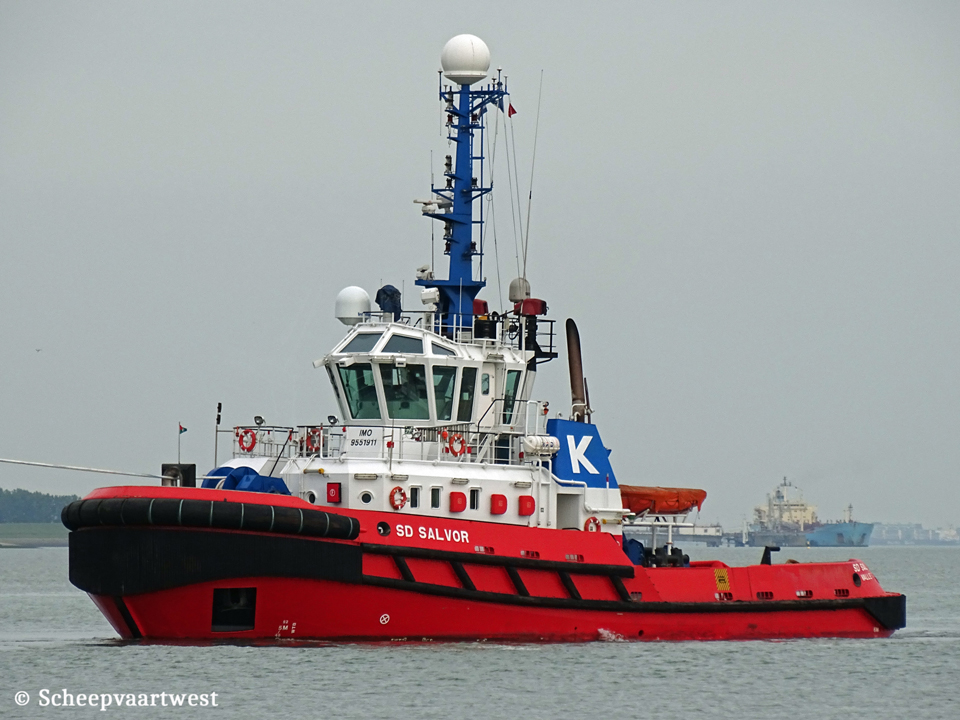

Westerschelde 08 June 2016 |
 |
 |
 |
 |
 |
||||

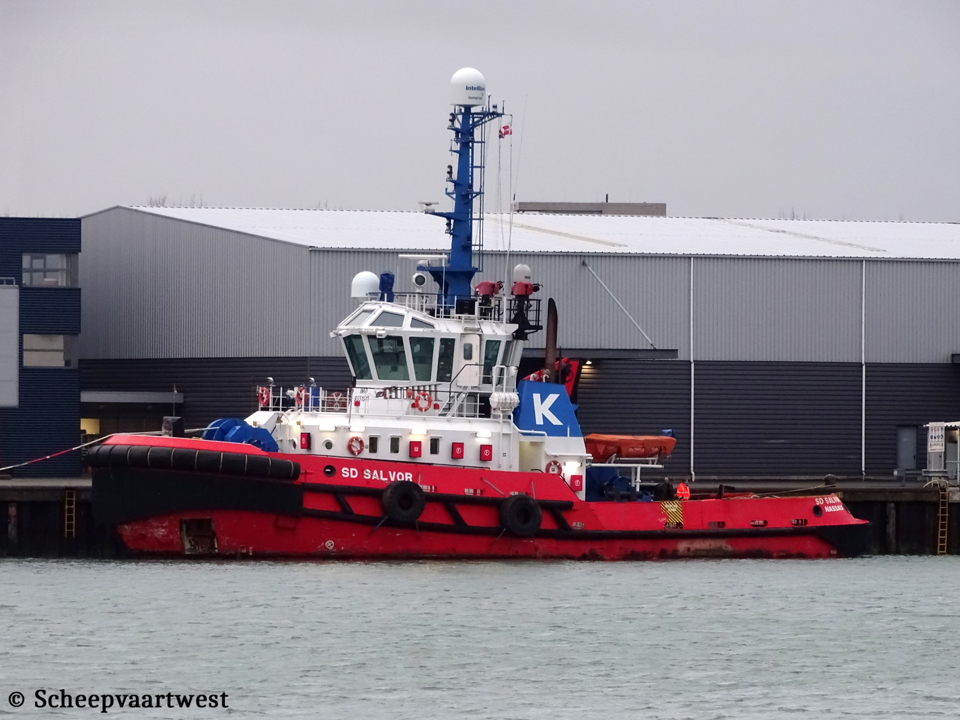

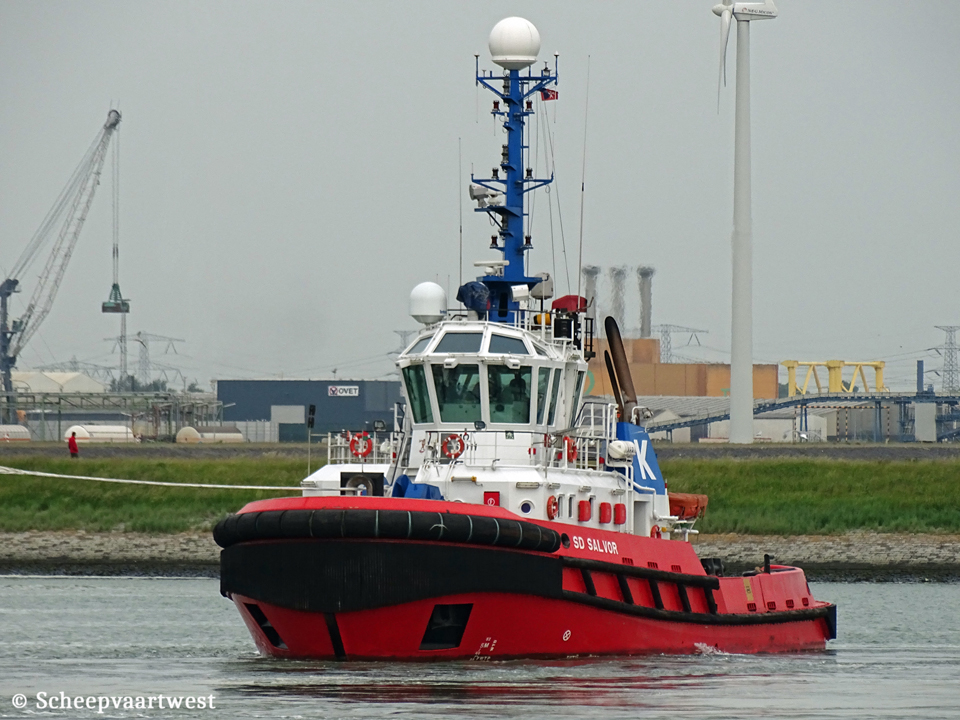

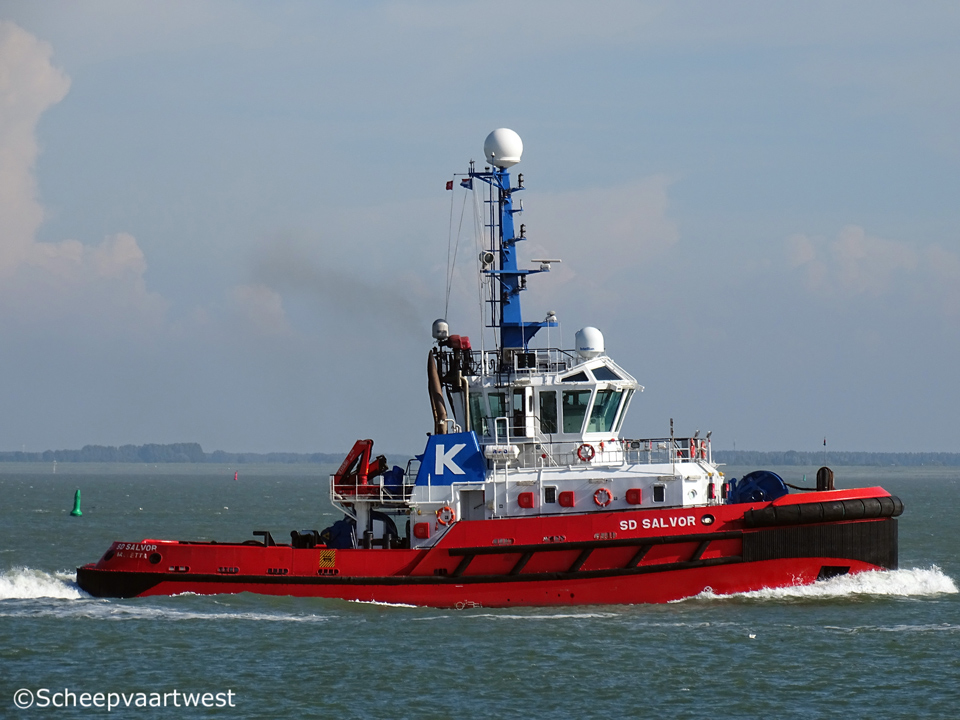

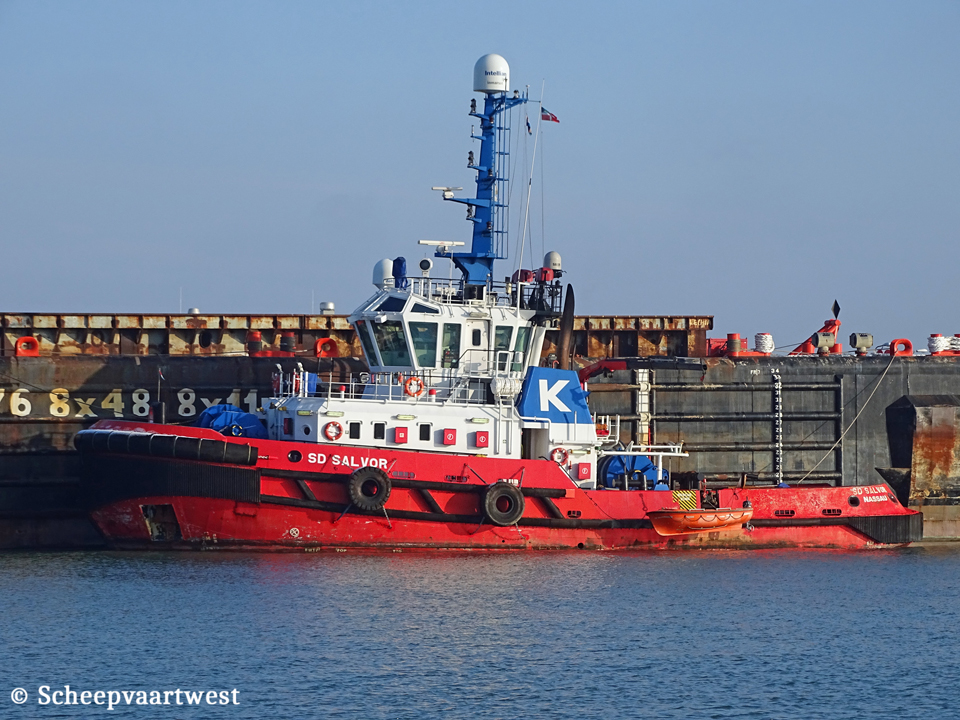

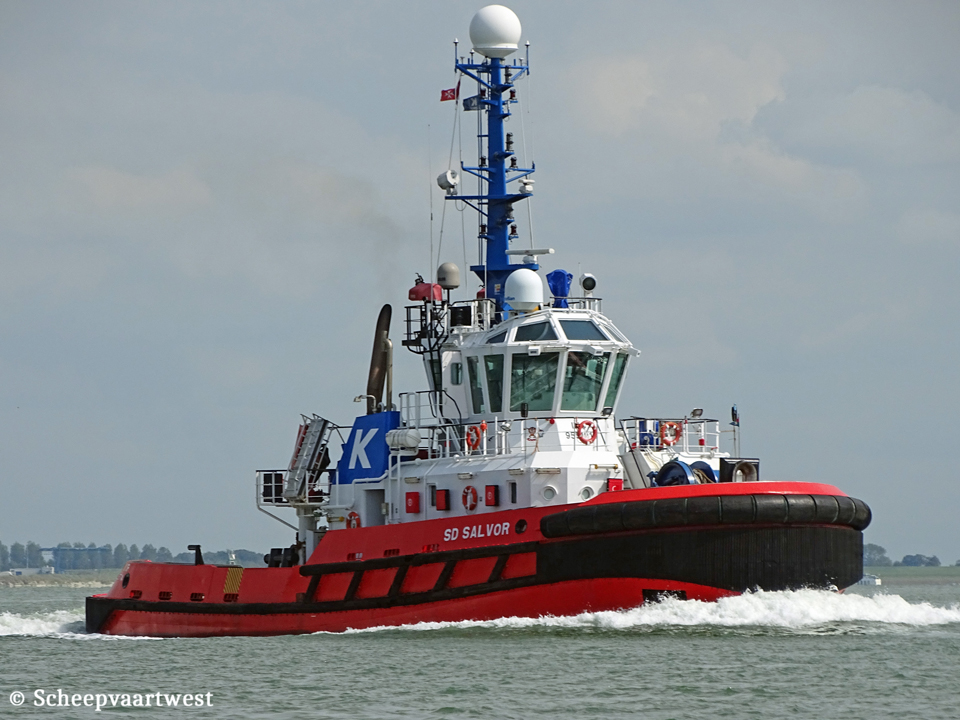

| Vlissingen 23/01/19 | Vlissingen 11/01/19 | Westerschelde 10/06/16 | Westerschelde 10/06/16 | Westerschelde 21/08/17 | ||||
|
Name |
SD SALVOR |
|
Previous names |
2010 - 04/2013 Boa Njord |
|
Type |
Azimuth stern drive tug - Fire fighting |
|
IMO-number |
9551911 |
|
Call sign |
50TH |
|
Flag |
Nigeria |
|
Port of registry |
Lagos |
|
Previous flags |
2010 - 2010 Turkey 2010 - 2010 Norway - Call sign: LAMC7 2010 - 2018 Malta, Valletta - Call sign: 9HA2375 2018 - 2021 Bahamas, Nassau - Call sign: C6EC9 |
|
GT |
490 t |
|
NT |
147 t |
|
Length |
32,00 m overall 30,46 m between perpendiculars |
|
Breadth |
11,60 m extreme |
|
Draught |
5,36 m |
|
Air draft |
20,00 m |
|
Depth |
5,36 m |
|
Speed |
Max: 13,5 knots |
|
Built |
2010 |
|
Keel laid |
25/05/2009 |
|
Launch date |
15/12/209 |
|
Date of completion |
31/03/2010 |
|
Builder |
Medyilmaz Gemi Insa Sanayi ve Ticaret As Karadeniz Eregli Turkey |
|
Yard number |
16 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar 3516BHD - 4 stroke 16 cylinder 170 x 190 mm combustion engines each 1.686 kW at 1.600 rpm Total: 3.372 kW / 4.589 bhp Built: 2010 |
|
Propulsion |
2x Lips CS250-S/WN-K azimuth propellers |
|
Generators |
2x Caterpillar C9 Acert diesel generatorsets each 269 kW |
|
Emergency generator |
1x Caterpillar C4.4 ACERT (Perkins 1204D E44TA) diesel generatorset 83 kW |
|
Bow thruster |
1x 200 hp |
|
Bollard pull |
67,0 t ahead 66,0 t Astern |
|
Towing equipment |
|
|
Anchor handling equipment |
Towing pins: MKB Fork towing pin System (FTP box) Stern Roller 3,00 x 1,30 m |
|
Tugger |
1x 15,0 t |
|
Fire fighting |
Fire fighting pumps: 2x 1.200 m³/h |
|
Tank capacities |
Ballast: 32,0 m³ Fuel oil: 152,7 m³ Fresh water: 43,5 t Liquid foam 15 m³ Dispersant: 8,0 m³ Dirty oil: 2,4 m³ Bilge water: 2,4 m³ Sewage: 3,7 m³ Foam tank: 15,4 m³ |
|
Anchor equipment |
Length: 550,00 m Diameter: 24 mm |
|
Accommodation |
For 12 persons Single cabins: 2 |
|
Communication navigation |
Area: GMDSS A3 Magnetic compass: Cassens + Plath Type II Gyro compass: Anschutz Gyro Compass Standard 22 AIS: Furuno FA-170 ECDIS: Transas GPS: Furuno GP-170 / 021S Radar system: JRC-JMA-5210-6 / JRC-JMA 5106 Echo sounder: Skipper GDS 101 INMARSAT: 2x Satcom C Sailor TT-3603E SSAS: Raytheon Anschutz TT3000SSA Autopilot: Raytheon Anschutz Pilotstar D AP02-S01 VHF Handheld GMDSS: 3x Jotron Tron TR-20 VHF DSC Watch Receiver: 2x Raytheon RT-5020 AIS / LRIT: Sailor TT-3000E MF / HF Radio: Raytheon Anschutz CU5100 NAVTEX: JRC-NCR-333 SART: 2x Jotron Tron Sart 20 EPIRB: Jotron Tron 40S MKII |
|
Manager |
Starzs Investments Company Limited 15C Omerelu Street, GRA. Phase 1 Port Harcourt, Rivers State Nigeria |
|
Registered owner |
SD Salvor B.V. The Netherlands |
|
Previous names & owner |
2010 - 2010 Boa Njord - Med Marine Denizcilik Romorkaj VE in Isanbul - Tuirkey 2010 - 2013 Boa Njotd- Boa Tugs AS in Göteburg 2013 SD Salvor - Kotug International BV in Rotterdam - The Netherlands |
|
Latest data adjustment |
22 April 2022 |
