Westerschelde 20 July 2018 |
 |
 |
 |
 |
 |
||||
| Vlissingen 21/04/19 | Westerschelde 06/04/19 | Vlissingen 11/11/18 | Vlissingen 31/08/15 | Westerschelde 04/03/18 | ||||
|
Name |

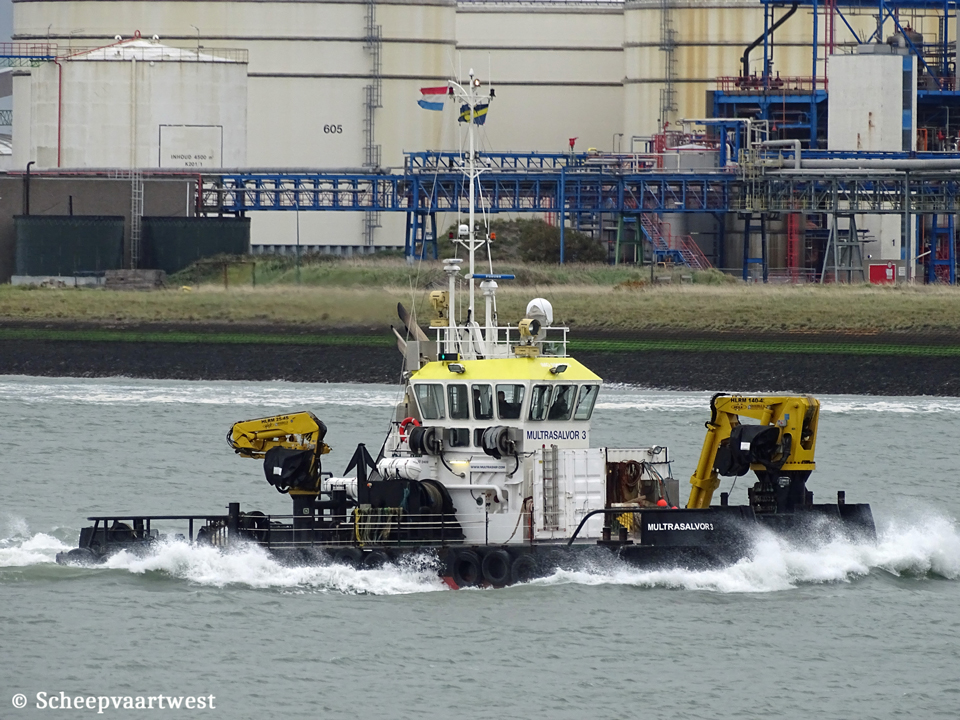

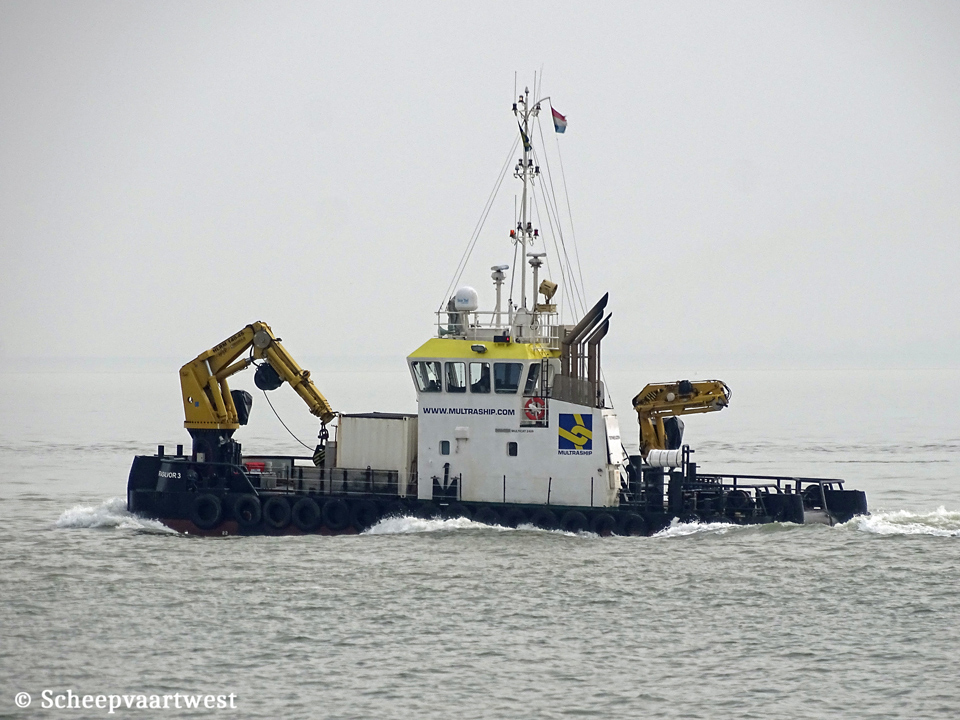

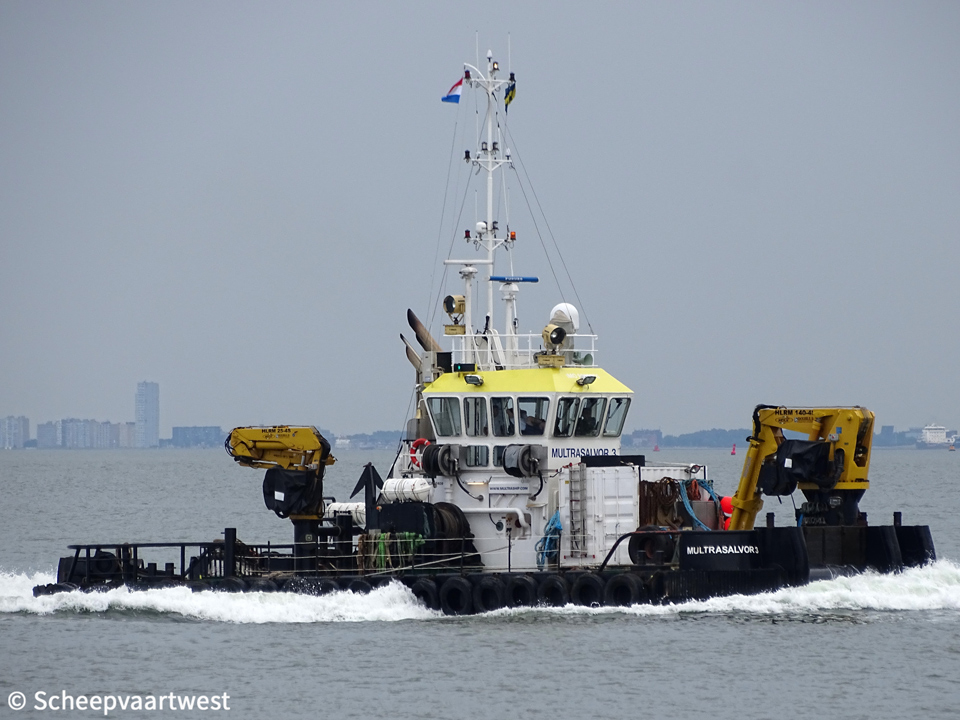

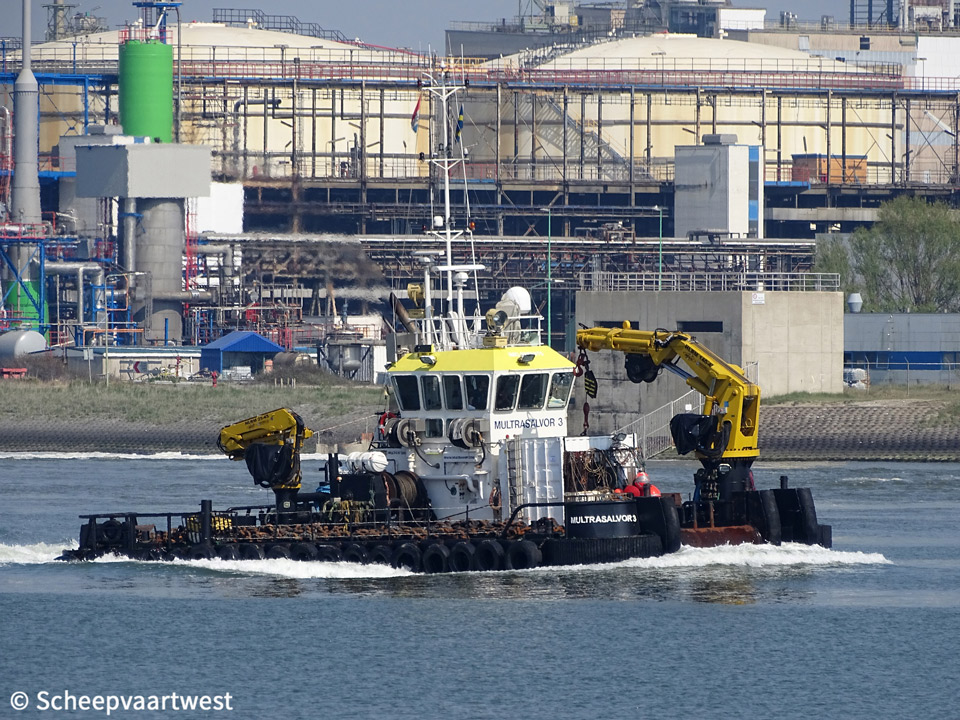

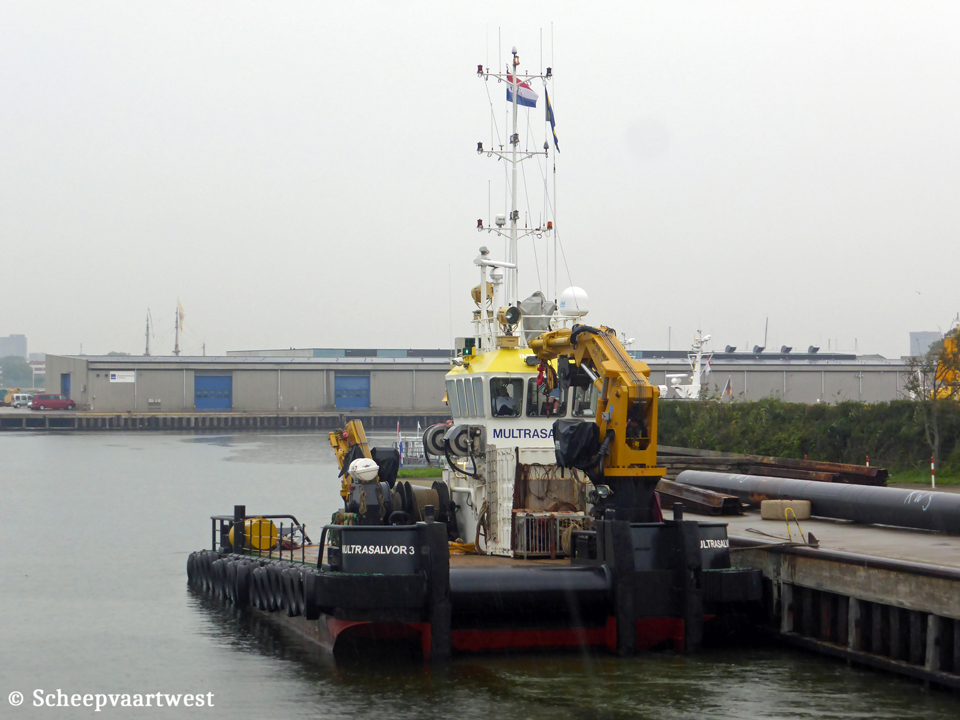

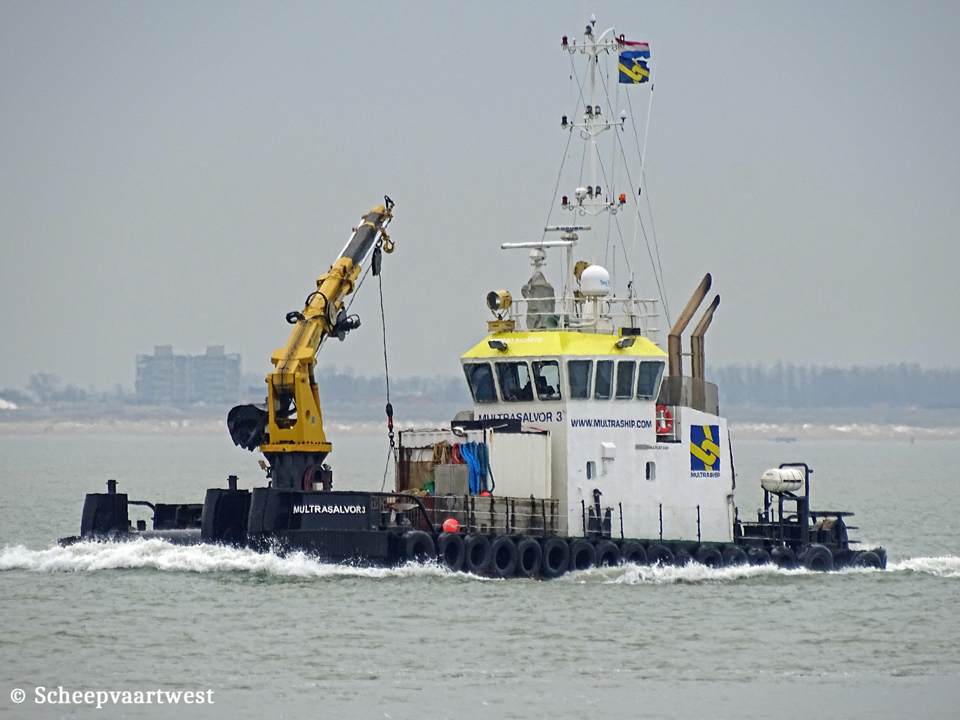

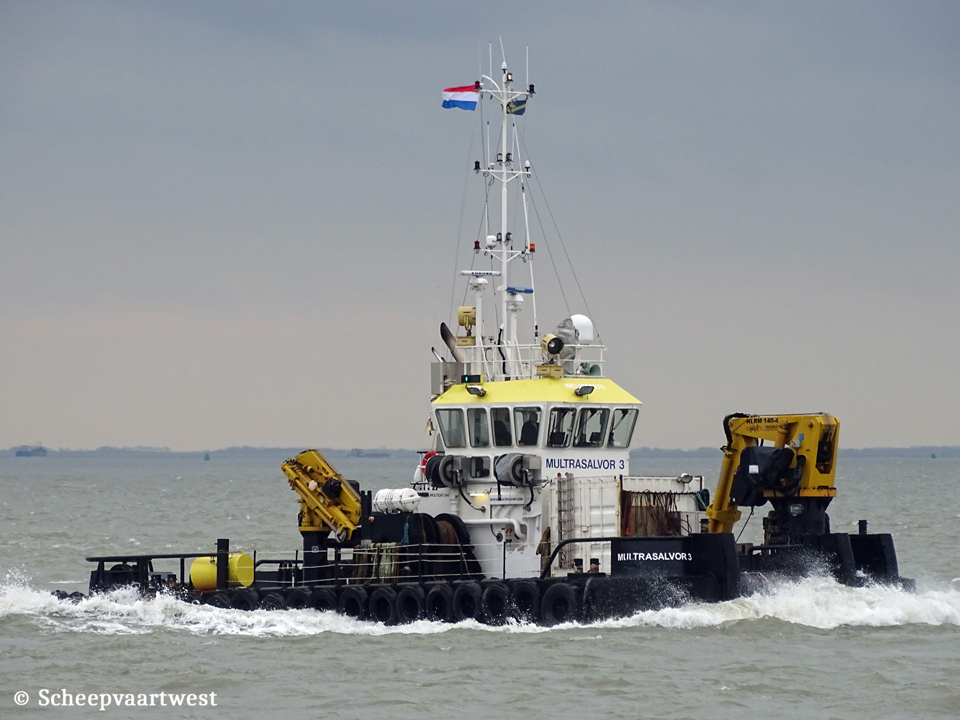

MULTRASALVOR 3 |
|
Type |
Tug - Utility vessel - Multi-Cat 2409 |
|
IMO-number |
9635975 |
|
Call sign |
PCID |
|
Flag |
The Netherlands |
|
Port of registry |
Terneuzen |
|
GT |
154 t |
|
DWT |
Summer: 250 t |
|
NT |
46 t |
|
Length |
23,33 m overall 22,83 m between perpendiculars |
|
Breadth |
9,00 m |
|
Draught |
Max: 2,25 m |
|
Depth |
3,20 m |
|
Speed |
10,0 knots |
|
Built |
2012 |
|
Date of completion |
19/10/2012 |
|
Builder cargo |
Damen Shipyards Kozle Sp z oo Kedzierzyn-Kozle Poland |
|
Builder completion |
Damen Shipyards Hardinxveld Hardinxveld Giessendam The Netherlands |
|
Yard number |
571628 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar C32 ACERT DI-TA - 4 stroke single acting 12 cylinder 162 x 145 mm combustion engines total 1.268 kW / 1.722 bhp at 1.800 rpm Starter Type: Electrical starter |
|
Gearbox |
2x Reintjes WAF 464/5.591:1 |
|
Propellers |
2x Promarin fixed pitch propeller - at 322 rpm Diameter: 1.700 mm - 4 blades |
|
Nozzles |
2x Damen Marine Components Optima nozzle |
|
Generators |
1x Caterpillar C-09 diesel generatorset 63,8 kVA, 50 Hz, 230/400 Volt 1x Caterpillar C-04.4T diesel generatorset 63,8 kVA, 50 Hz, 230/400 Volt |
|
Hydraulic set |
Combined with generator set Cat C-09, 162 kW @ 1.500 rpm |
|
Bollard pull |
27,8 t |
|
Deck lay-out |
Anchor: 2x 225 kg Pool (HHP) (1 spare) Anchor winch: Ridderinkhof, hydraulically driven, R-AWWH-17,5/1 Deck cranes: 1x Heila HLRM 140-4S, 6,5 ton @ 14,10 m 1x Heila HLRM 25-4S, 1,6 ton @ 12,50 m Anchor/towing winch: Ridderinkhof R-TW-H-400 Wire capacity: 650 m diameter 32 mm / 300 m diameter 32 mm Pull: 40 ton at 6,00 m/min / and 12 ton at 18,00 m/min Brake holding power: 72 ton first layer Towing hooks: 1x Mampaey, DCX 18 1x DCX 5/7 Tugger winch: 2x Brevini, BWC080 8 tons @ 4,50 m/min Spudpoles: 2x Spud poles length 14,00 m A-frame: 1x A-frame SWL 25 ton |
|
Transfer pumps FO/FW |
2x VWSI 8020, 50,0 m³/h at 4,8 bar |
|
Fuel oil separator |
Facet MV-11-AG, 1.200 l/h |
|
Tank capacities |
Fuel oil: 48,50 m³ Fresh water: 10,30 m³ Lubrication oil: 1,60 m³ Dirty oil: 1,20 m³ Bilge water: 2,20 m³ Sewage: 3,80 m³ Fresh water trim: 30,90 m³ |
|
Accommodation |
1-man cabin: 3 2-men cabin: 1 Messroom: 1 Galley: 1 |
|
Navigation & communications |
1x Furuno FAR-2117 Radar 1x Furuno FR-8062 Radar 1x Cassens & Plath Reflecta I Magnetic Compass 1x Radio Zeeland Seapilot 75 Autopilot 1x Furuno GP-150D GPS 1x Furuno FE-700 Echo Sounder 2x Sailor RT-6222 VHF 2x Jotron Tron TR-20 Handheld VHF 1x Furuno FS-1570 SSB Radio 1x Furuno Felcom 15 Inmarsat-C 1x Furuno Felcom 18 Inmarsat-C 1x Furuno NX-700 Navtex 1x Furuno FA-150 AIS 1x Marble 421 Watch Alarm 1x Transas NS-4000 Chart Plotter 1x Obsermet OMC-115 Wind Indicator |
|
Manager |
Multraship Towage & Salvage B.V. Schuttershofweg 1 4538 AA Terneuzen The Netherlands |
|
Registered owner |
Multratug B.V. |
|
Latest data adjustment |
22 May 2020 |
