Bergen, Norway 09 June 2019 |
 |
| Bergen, Norway 09/06/19 |
|
Name |

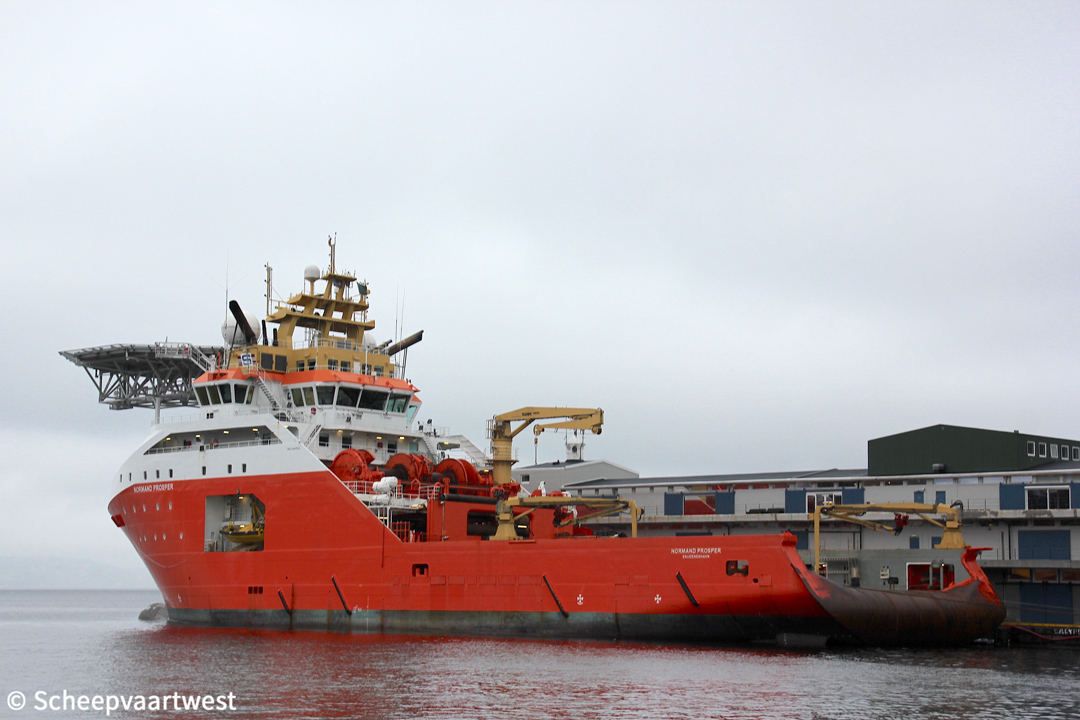

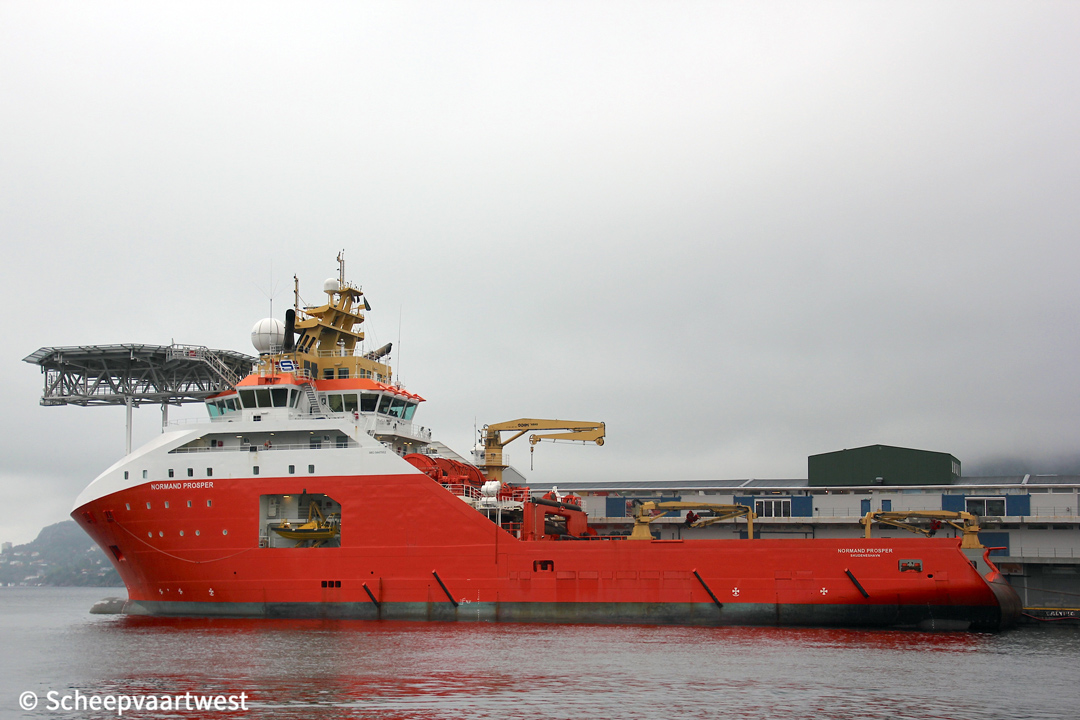

NORMAND PROSPER |
|
Type |
Offshore anchor handling supply tug / Supply vessel |
|
IMO-number |
9447952 |
|
Call sign |
LDRH |
|
Flag |
Norway |
|
Port of registry |
Skudeneshavn |
|
GT |
8.053 t |
|
DWT |
Summer: 4.724 t |
|
NT |
2.415 t |
|
Length |
95,00 m overall 84,80 m between perpendiculars |
|
Breadth |
24,00 m extreme |
|
Draught |
Max: 7,81 m |
|
Depth |
9,80 m |
|
Speed |
Max: 17,5 knots Service: 12,0 knots Economic: 10,0 knots |
|
Built |
2010 |
|
Keel laid |
23/10/2008 |
|
Launch date |
10/10/2009 |
|
Date of completion |
09/04/2010 |
|
Builder casco |
STX RO Offshore Tulcea SA |
|
Builder completion |
STX Norway Offshore AS |
|
Yard number |
724 |
|
Hull material |
Steel |
|
Hull type |
Single hull double bottom |
|
Main engine |
2x Wärtsilä 16V32E/E2 - 16 cylinder combustion engine each 7.680 kW Total: 32.600 bhp |
|
Propellers |
2x Wärtsilä 4E1300 controllable pitch propeller |
|
Generators |
3x Caterpillar 3516C main diesel generatorsets |
|
Emergency generator |
1x Caterpillar C18 diesel generatorset |
|
Bow thruster |
2x 1.609 bhp |
|
Stern thrusters |
1x 1.609 bhp |
|
Azimuth Thrusters (Bow) |
1x 2.011 bhp |
|
Bollard pull |
338 t |
|
Winch type |
Hydraulic triple drum |
|
Special handling winch capacity |
14.800 m of 76 mm wire or 0m of 84 mm wire or 3.275 m of 160 mm fibre rope |
|
Special handling brake (static/band brake) |
600 t |
|
Towing/working winch brake (static/band brake) |
750 t |
|
Towing/working winch no 2 brake (static/band brake) |
750 t |
|
Secondary winch fibre capacity - 160 mm |
2x 3.700 m of 160 mm |
|
Rope / reel storage |
2x 2.600 m of 160 mm |
|
Chain locker |
6x 167m³ = 1.002 m³ |
|
Tow pins |
4x 400 MWL - Rolls Royce |
|
Shark jaws |
2x 800 MWL - Rolls Royce |
|
Stern rollers |
2x 3,00 m x diameter 4,50 m - MWL 750 t |
|
Deck dimensions |
36,00 x 21,00 m 756 m² |
|
Deck load |
2.800 t |
|
Deck strength |
10,0 t/m² |
|
Tank capacities |
Fuel Oil: 1994m³ Pot Water: 888m³ Ballast: 3.711,7 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 56 mm |
|
Lifting equipment |
2x deck cranes - SWL 3,0 t + 5,0 t @14,30 m - Sliding with 2 manipulators |
|
Accommodation |
70 Persons |
|
Manager |
Solstad Shipping AS |
|
Registered owner |
Solstad Rederi AS |
|
Latest data adjustment |
24 September 2019 |
