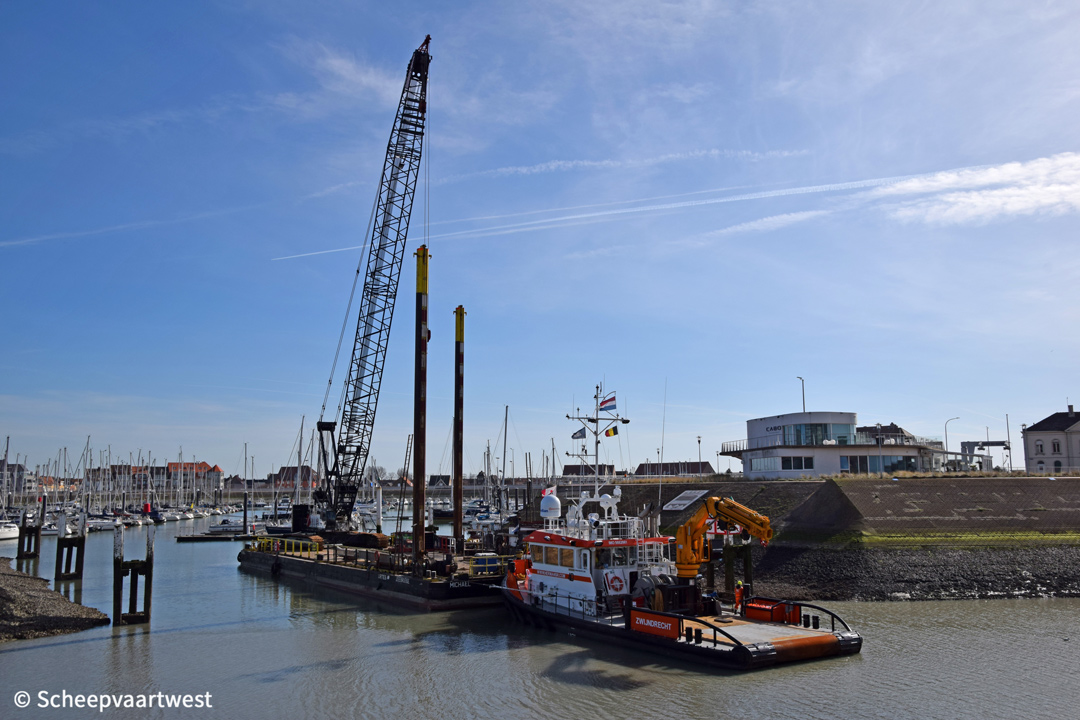

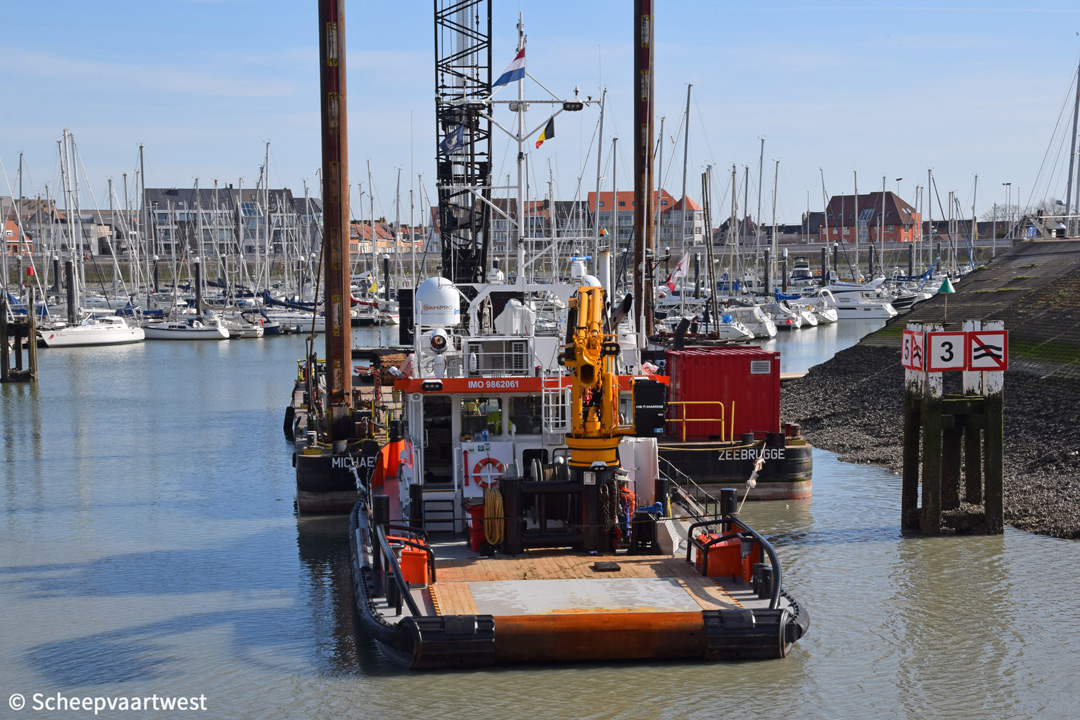

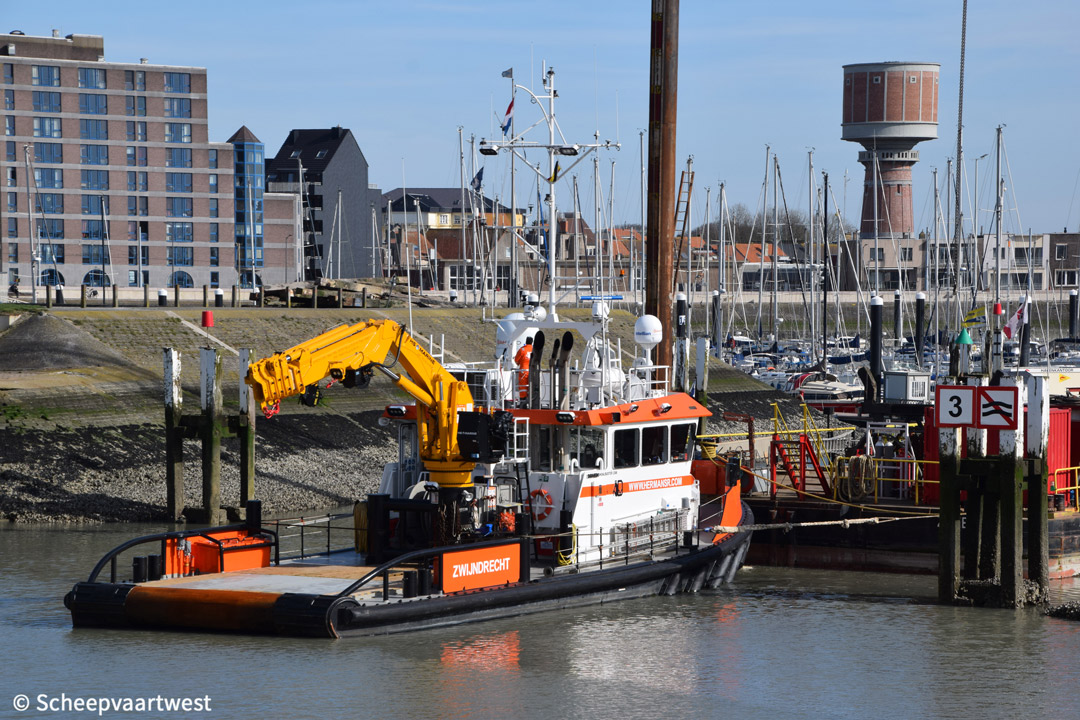

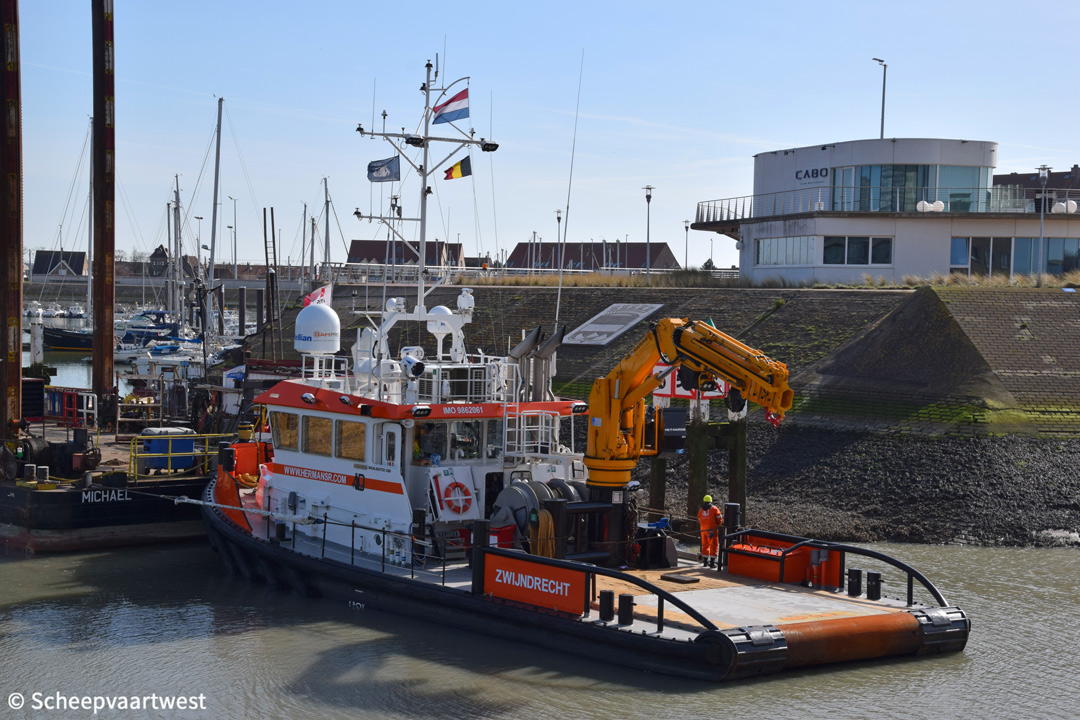

Blankenberge, Belgium 17 March 2020 |
 |
 |
 |
||
| Blankenberge 17/03/20 | Blankenberge 17/03/20 | Blankenberge 17/03/20 | ||
|
Name |
TEDDY |
|
Type |
Tug - Damen Shoalbuster 2308 |
|
Basic function |
Towing - Survey, Anchor handling Dredge-, Plough-, and coastal construction support |
|
IMO-number |
9862061 |
|
Call sign |
PBFE |
|
Flag |
The Netherlands |
|
Port of registry |
Zwijndrecht |
|
GT |
123 t |
|
NT |
37 t |
|
Length |
23,35 m overall 20,81 m between perpendiculars |
|
Breadth |
8,64 m |
|
Draught |
2,10 m |
|
Depth |
2,99 m at sides |
|
Speed |
10,5 knots |
|
Built |
2019 |
|
Date of completion |
18/04/2019 |
|
Builder |
Damen Shipyard Hardinxveld BV Hardinxveld - Giessendam The Netherlands |
|
Yard number |
571790 |
|
Hull material |
Steel |
|
Watertight compartments |
4 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar C32 TTA WOSR - 4 stroke 12 cylinder 145 x 162 mm combustion engines total 1.260 kW / 1.700 bhp at 1.800 rpm Built: 02/01/2012 Builder: Caterpillar Inc., Lafayette - USA |
|
Gearbox |
2x Reintjes WAF 464 L gearbox - reduction: 5.042:1 |
|
Propellers |
2x Promarin fixed pitch propellers - diameter: 1.600 mm - 4 blades Nozzle: 2x diameter: 1.612 mm |
|
Generators |
1x Hatz 4L41C diesel engine 22 kW - 46 hp connected Stamford UCM224 generator 28 kVA 1x Hatz 4M41 diesel engine 22 kW - 46 hp connected Stamford UCM224 generator 33 kVA |
|
Hydraulic power |
1x Caterpillar C9.3 auxiliary engine 269 kW for hydraulic pump drive |
|
Bow thruster |
1x Kalkman 120 hp |
|
Bollard pull |
22,0 t |
|
Deck layout |
Anchors: 1x 270 kg pool - 1x 180 kg spare Chain: 137,50 m - 19 mm Tugger winch: DWT 15 t Anchor handling winch: DWT, 30 t @ 6,00 m/min Towing winch: DWT 30 t @ 6,00 m/min Towing pins: 4x hydraulic pins Free deck space: 38 m² Maximum deck load: 10,0 t/m² A-frame: SWL 25 t |
|
Moonpool |
600 x 400 mm |
|
Tank capacities |
Fuel oil: 45,58 m³ fresh water: 13,90 m³ Lub oil: 1,90 m³ Hydraulic oil: 0,60 m³ Gearbox oil: 0,60 m³ Sewage: 2,88 m³ |
|
Lifting equipment |
1x Deck crane HS Marine AKC 115 LHE4 - SWL 4,0 t @ 16,30 m |
|
Accommodation |
Heated and air-conditioned living spaces for 6 persons, consisting of a captain’s cabin 2x Double cabins Gallery and sanitary facilities |
|
Nautical and communication equipment |
According GMDSS: Area A3 Searchlights: 1x Den Haan 300RCB200 Compass: 1x Kotter type, electric repater Radar system: 1x Furuno FAR-2117BB D-GPS / AIS: 1x Sailor/Cobham 6004 ECDIS: 1x Furuno FMD-3100 Gyro compass: 1x Anschuetz STD 22 Autopilot: 1x Simrad AP-80 Echosunder: 1x Furuno FE-800 VHF radio telehone: 2x Sailor TR6222 Navtex: 1x Sailor/Cobhan 6004 MF/HF: 1x Salior 6301 V-Sat: 1x v85 NX CCTV: 1x Orlaco system Inmarsat-C: 2x Salior H1252A |
|
Manager |
Herman Sr. BV Ebweg 56 2991 LT Berendecht The Netherlands |
|
Registered owner |
Shoalbuster Tarka B.V. |
|
Latest data adjustment |
28 April 2020 |
