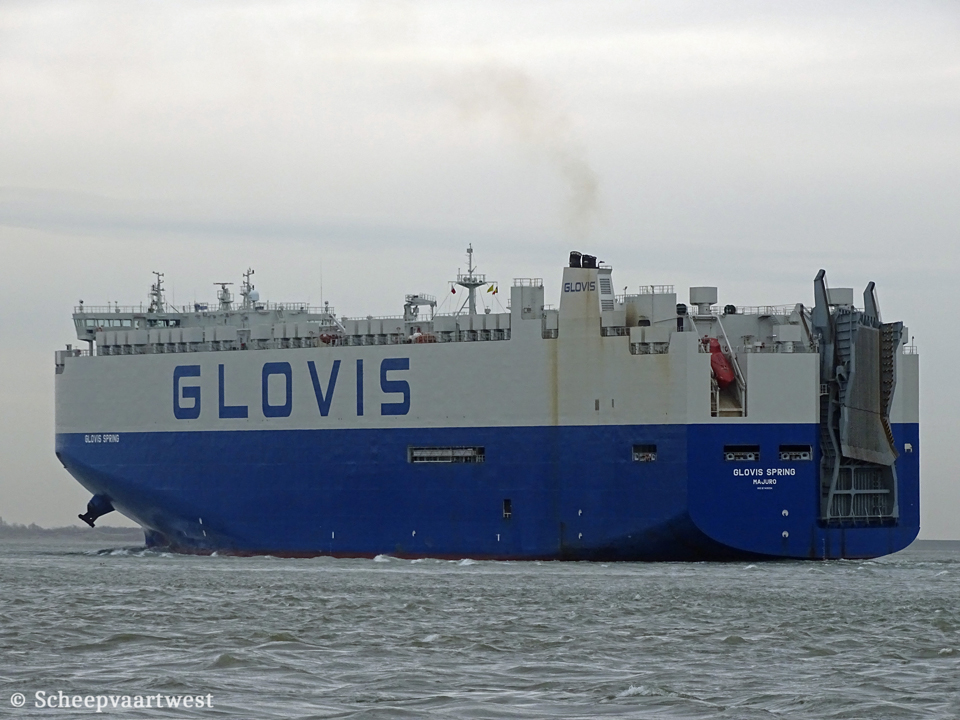

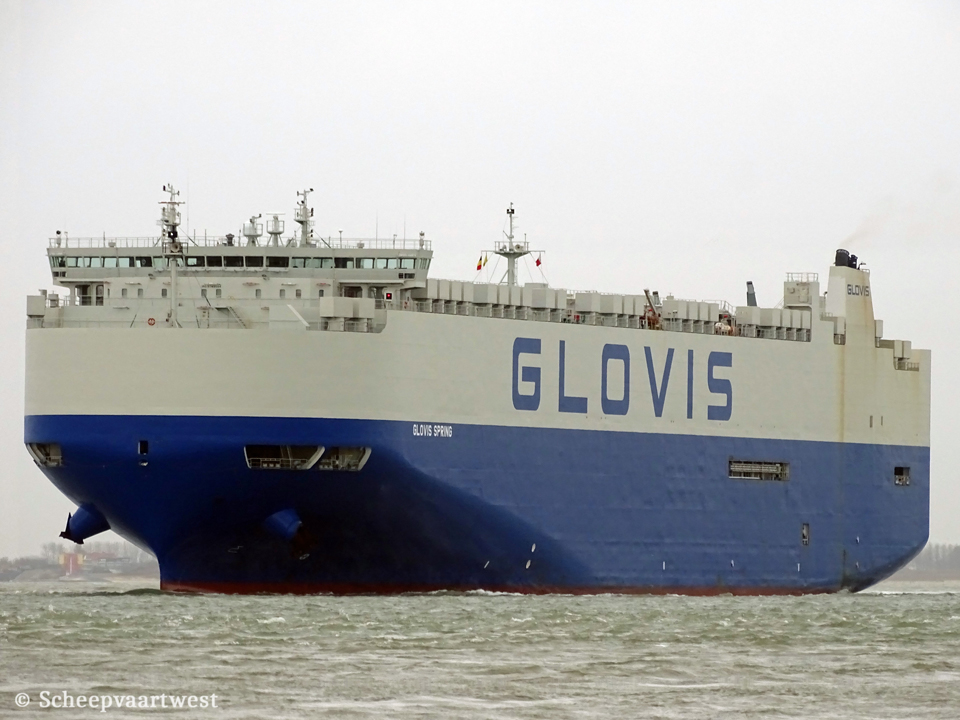

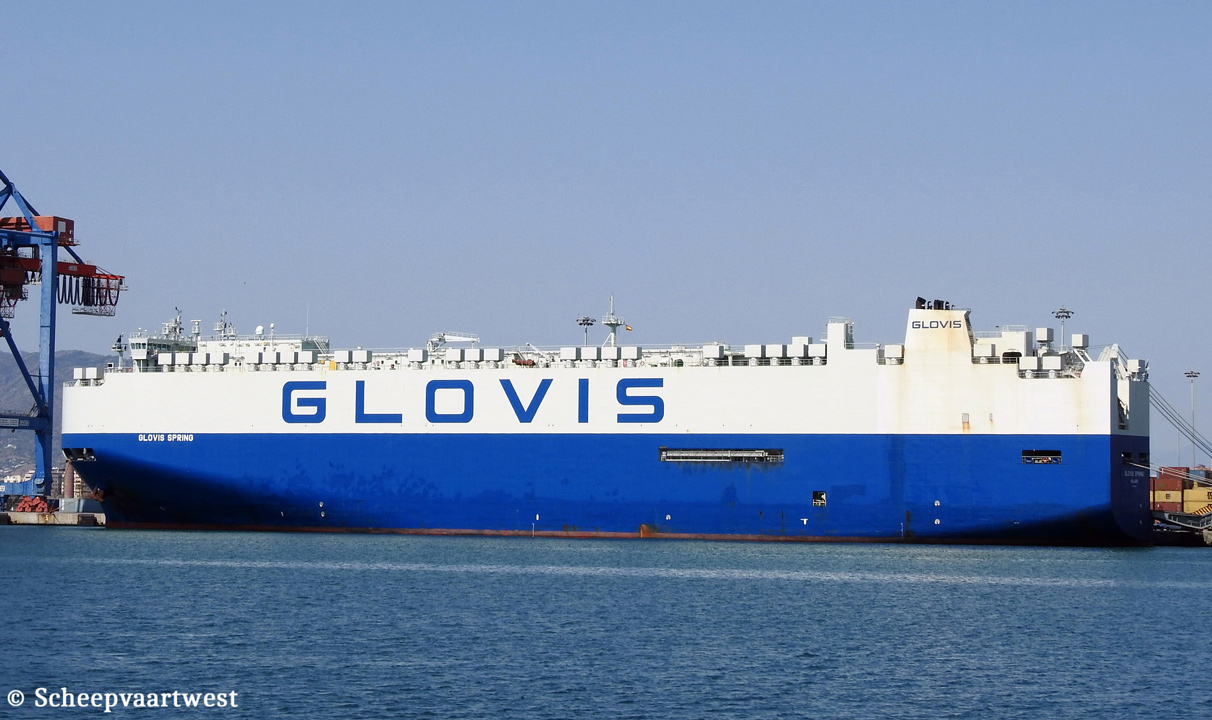

Glovis Spring - IMO 9749594

Westerschelde 02 January 2018

Name

GLOVIS SPRING

Korean name

글로비스 스프링

Type

Roll-On/Roll-Off carrier

PCC - Pure car carrier

IMO-number

9749594

Call sign

D7HK

Flag

South Korea

Port of registry

Jeju

Previous flag

2016 - 12/2022 Marshall Islands, Majuro - Call sign: V7DU5

GT

65.785

DWT

19.638 t

NT

22.949

Length

199,97 m overall

Breadth

35,40 m

Draught

Summer: 10,02 m

Reg. dimensions L x B x D

194,32 x 35,40 x 20,52 m

Rule dimensions L x B x D

188,80 x 35,40 x 35,60 m

Freeboard

Summer: 3.140 mm

Depth

20,52 m

Speed

Max: 20,0 knots

Built

2016

Keel laid

14/12/2015

Launch date

05/03/2016

Date of completion

29/04/2016

Builder

Hyundai Samho Heavy Industries Co., Ltd.

Yeongam

South Korea

Yard number

S808

Hull material

Steel

Main engine

1x Hyundai/MAN-B&W 7S60ME-C8 - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 13.070 kW at 102,0 rpm

Build: 11/2015

Builder: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea

Propellers

1

Boilers

1x Auxiliary boiler STB - 8,8 kg/cm²

Heating Surface: 30,2 m²

1x Economizer EGE - 11,8 kg/cm²

Heating Surface: 393,0 m²

Build: 10/2015

Builder: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea

Generators

1x Main diesel generatorset 1.250 kVA - 450 Volt

2x Main diesel generatorsets each 1.875 kVA - 450 Volt

Number of cars

7.409

Liftable decks

4

Tank capacities

Fuel oil: 3.410,9 m³

Fresh water: 313,5 m³

Water ballast: 9.203,0 m³

Crew

21

Manager

Hyundai Glovis Co., Ltd.

15th Floor, Milim Tower 12 Yeoksam 1-dong

Gangnam-gu

Seoul

135-081 South Korea

Technical manager

G-Marine Service Co., Ltd.

331, Jungang-daero

Dong-gu, Busan, 48792

South Korea

Operator

Glovis

Registered owner

Hyundai Glovis Co., Ltd.

Previous owner

GL NV19 Shipping Inc.

Latest data adjustment

19 January 2025
