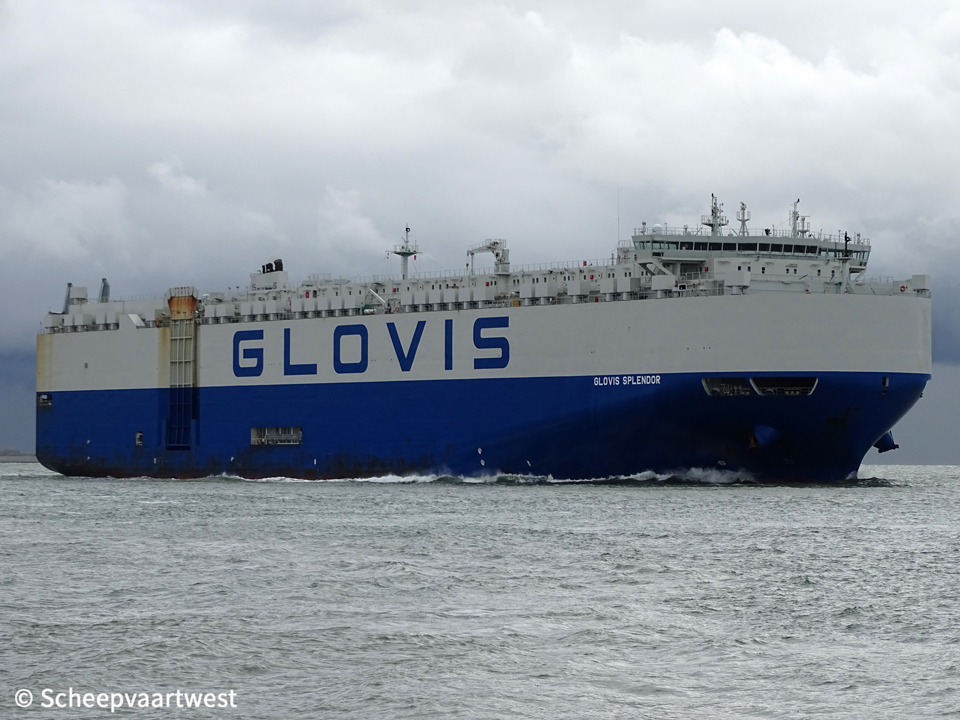

Glovis Splendor 01

Westerschelde 26 October 2018

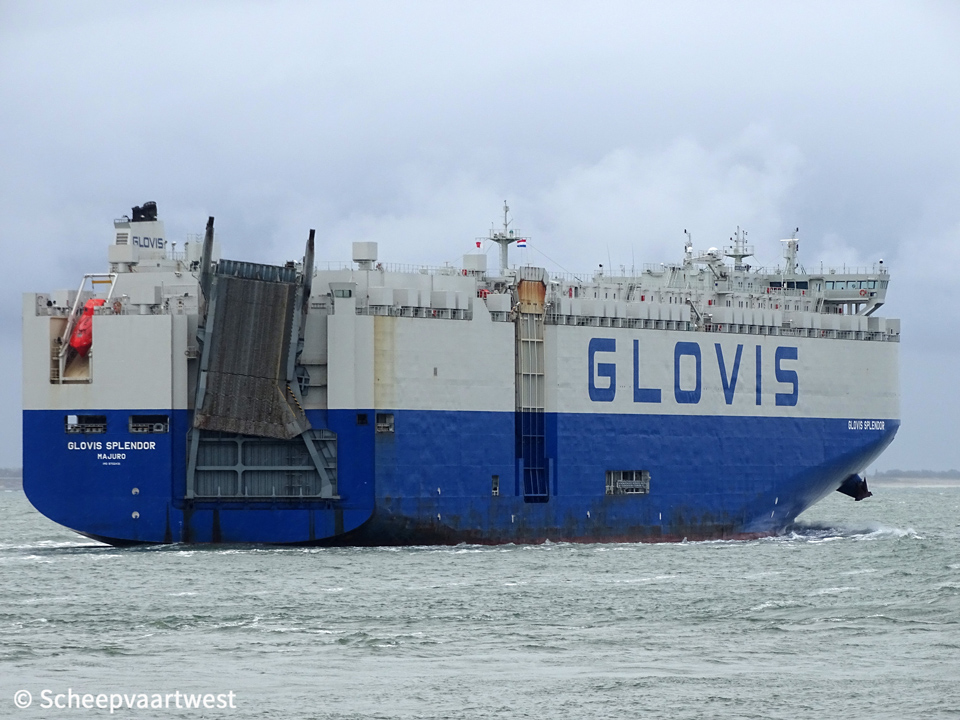

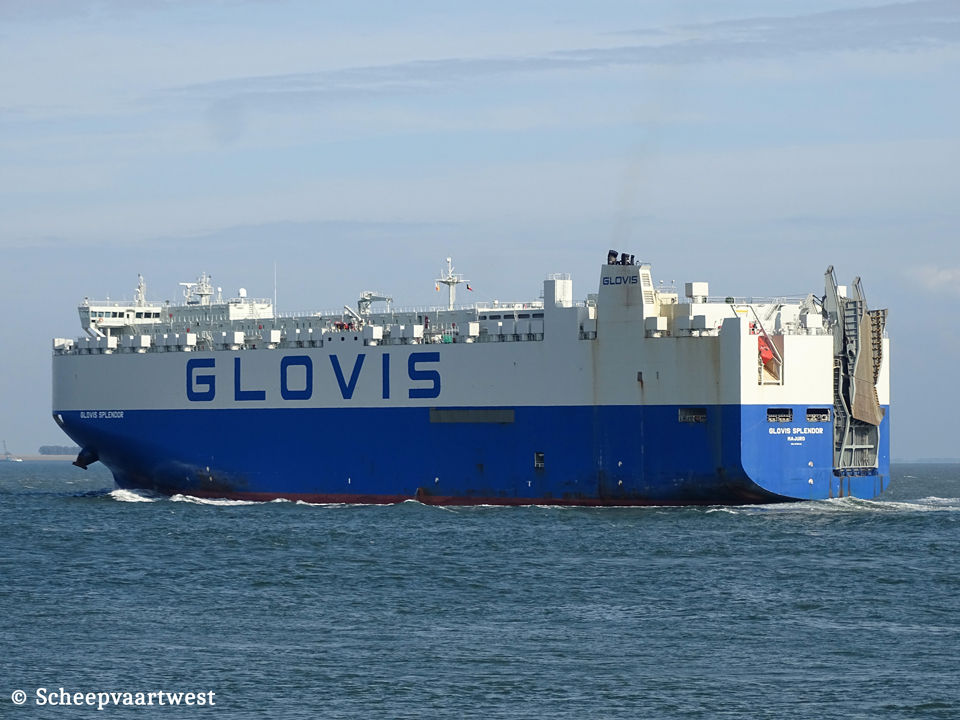

Glovis Splendor 02   Glovis Splendor IMO 9702431 03
Westerschelde 26/10/18   Westerschelde 01/08/19


Name

GLOVIS SPLENDOR

Korean name

글로비스 스플렌더

Location

Roll-On/Roll-Off carrier - Vehicles carrier

IMO-number

9702431

Call sign

South Korea

Flag

D7GY

Port of registry

Jeju

Previous flag

2014 - 12/2022 Marshall Islands, Majuro - Call sign: V7IM3

GT

64.546 t

DWT

20.056 t

NT

22.577 t

Length

199,97 m overall

Breadth

35,40 m

Draught

Max: 10,02 m

Reg. dimensions L x B x D

194,32 x 35,40 x 20,52 m

Rule dimensions L x B x D

188,80 x 35,40 x 14,48 m

Freeboard

Summer: 3.220 mm

Depth

20,52 m registered

Speed

Max: 19,9 knots

Built

2014

Keel laid

21/05/2014

Launch date

27/07/2014

Date of completion

28/10/2014

Builder

Hyundai Samho Heavy Industries Co., Ltd.

Yeonga

South Korea

Yard number

S-720

Hull material

Steel

Main engine

1x MAN-B&W/HHI 7S60ME-C8 - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 13.070 kW / 17.770 hp at 102,0 rpm

Build: 05/2014

Builder: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division - South Korea

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary Boiler CPB - 8,8 bar

Heating surface: 30,2 m²

2x Economizer EGE - 12,7 bar

Heating surface: 483,0 m²

Build: 04/2014

Builder: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea

Generators

1x Generator 1.250 kVA - 450 volt

2x Generator each 1.875 kVA - 450 volt

Number of cars

7.280

Number of ramps

2

Tank capacities

Fuel oil: 3.452,2 m³

Fresh water: 320,7 m³

Water ballast: 9.230,8 m³

Commercial manager

Hyundai Glovis Co., Ltd.

512, Yeongdong-daero, Gangnam-gu

Seoul, 06172

South Korea

ISM manager

G-Marine Service Co., Ltd.

331, Jungang-daero, Dong-gu

Busan, 48792

South Korea

Registered owner

GL NV12 Shipping Inc.

Care of Hyundai Glovis Co Ltd.

512, Yeongdong-daero, Gangnam-gu

Seoul, 06172

South Korea

Latest data adjustment

29 January 2023
