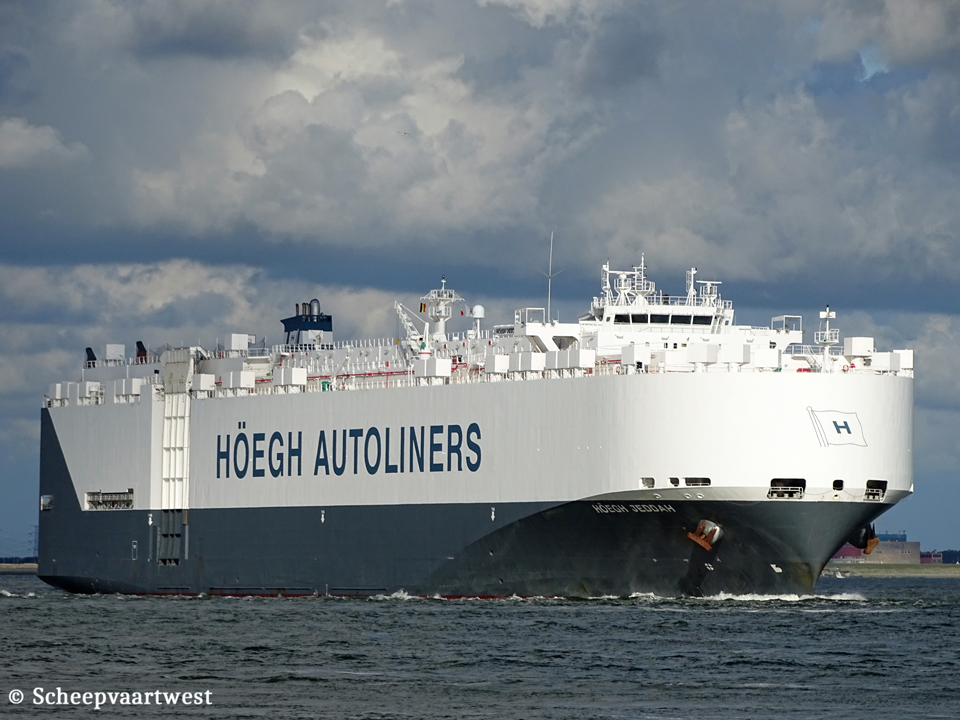

Höegh Jeddah IMO 9673381 10

Westerschelde 24 July 2017

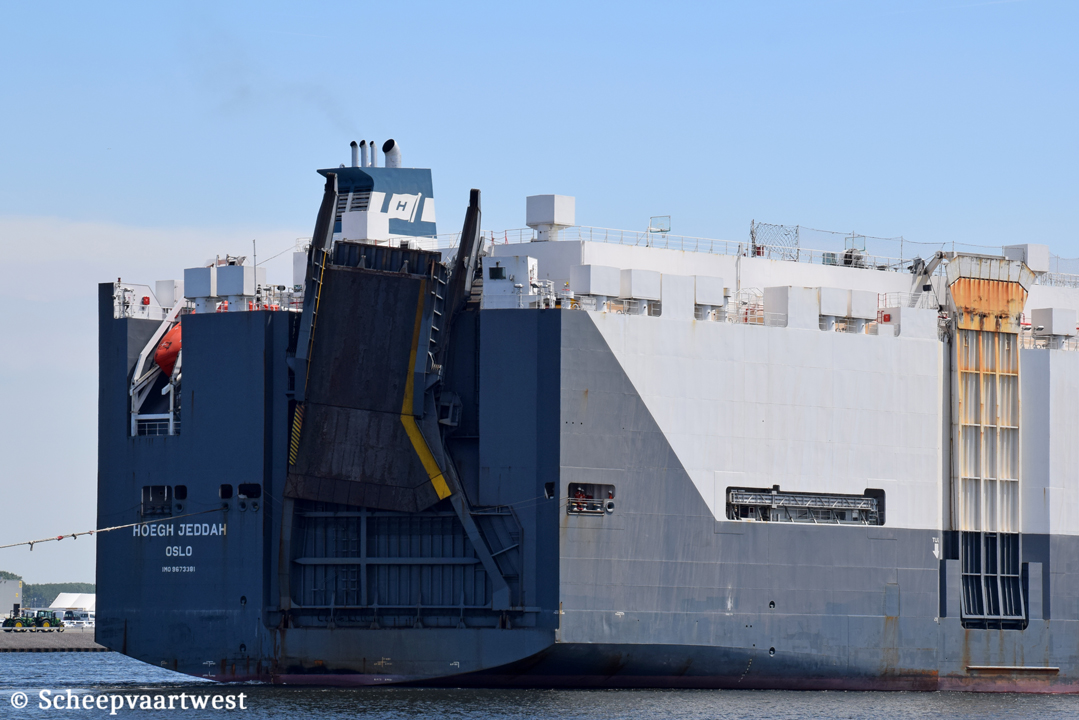

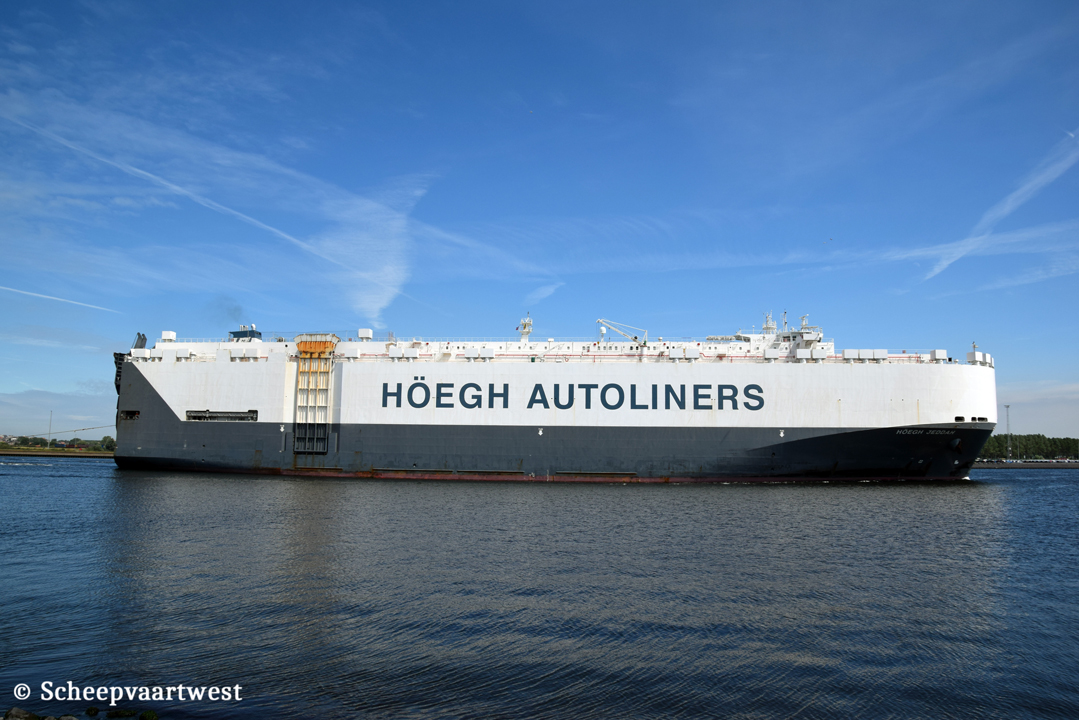

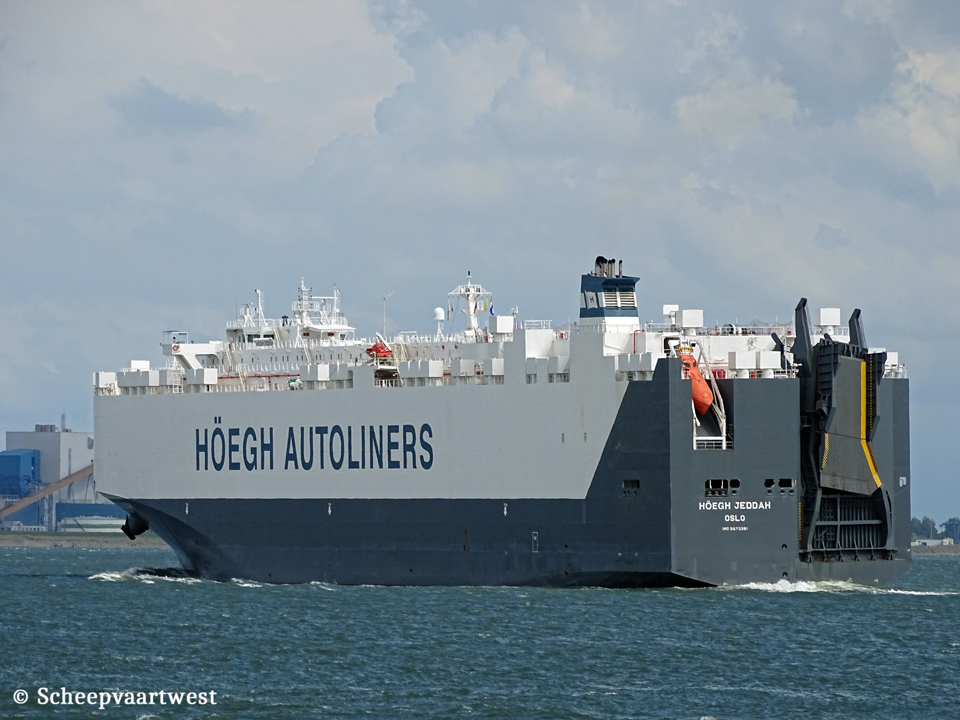

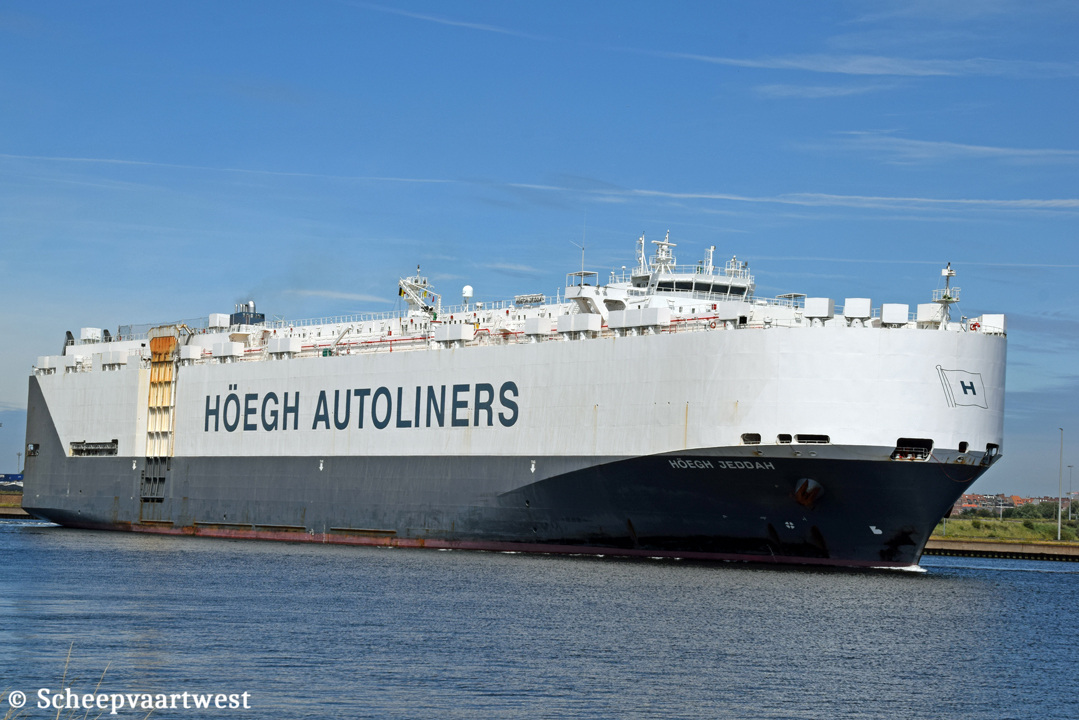

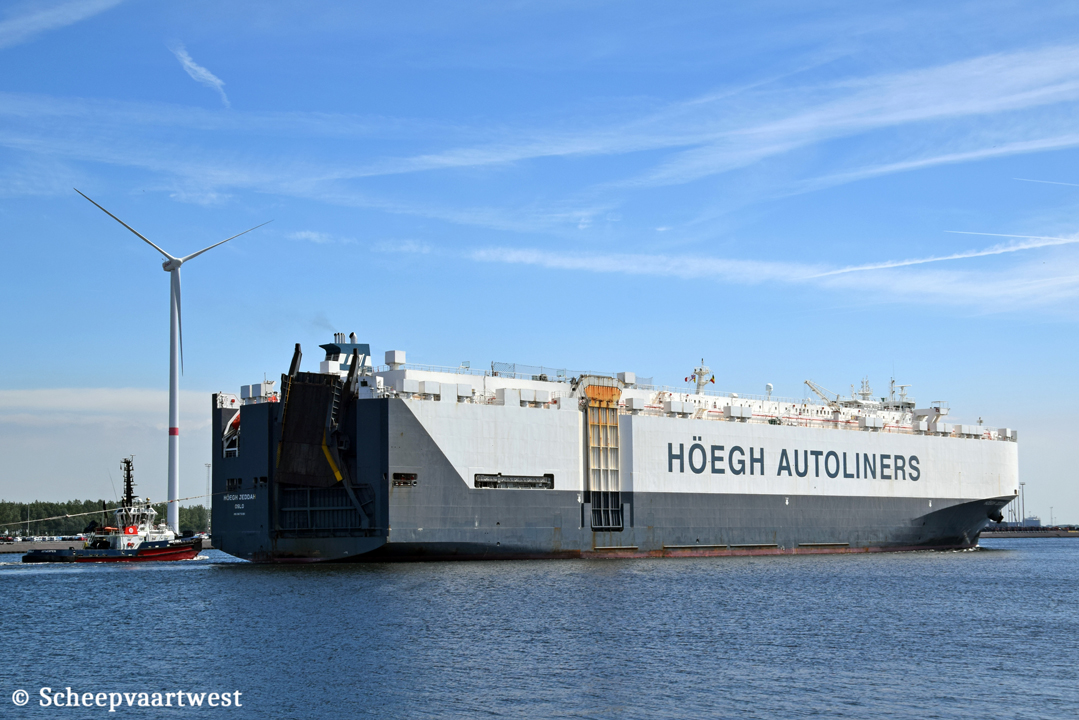

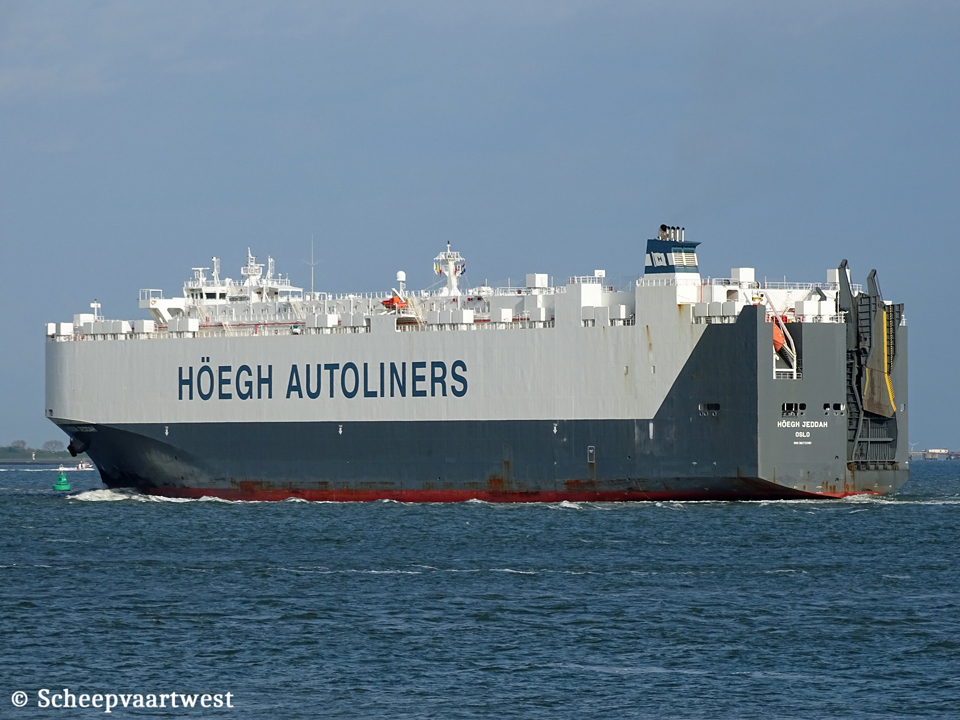

Höegh Jeddah IMO 9673381 02   Höegh Jeddah IMO 9673381 05   Höegh Jeddah IMO 9673381 06   Höegh Jeddah IMO 9673381 07   Höegh Jeddah IMO 9673381 01   Höegh Jeddah IMO 9673381 08
Zeebrugge 06/07/22   Zeebrugge 06/07/22 Zeebrugge 06/07/22 Zeebrugge 06/07/22 Westerschelde 06/05/19   Westerschelde 23/07/17


Name

HÖEGH JEDDAH

Type

Roll-On/Roll-Off car carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9673381

Call sign

LASZ7

Flag

Norway

Port of registry

Oslo

GT

58.6311 t

DWT

Summer: 20.407 t

NT

19.378 t

Length

199,95 m overall

191,23 m between perpendiculars

Breadth

32,29 m extreme

Draught

Summer: 10,00 m

Depth

19,93 m

Speed

Max: 20,5 knots

Built

2014

Keel laid

16/12/2103

Launch date

25/05/2014

Date of completion

04/09/2014

Builder

Daewoo Mangalia Heavy Industries SA

Mangalia

Romania

Yard number

4402

Hull material

Steel

Main engine

1x MAN-B&W 5S60ME-C - 2 stroke 5 cylinder 600 x 2.400 mm combustion engine 11.328 kW / 15.232 hp at 105,0 rpm

Propellers

1x Fixed pitch propeller - 4 blades

Boilers

1x Auxiliary boiler, exhaust gas heated AV-7

1x Auxiliary boiler, oil/gas fired Mission OS

Builder: Alfa Laval Aalborg A/S

Generators

3x MAN-B&W 7L28/32H diesel generatorsets each 2.000 kW

Number of cars

6.500

Ramp

Width: 15,20 m

Height: 5,00 m

Capacity: 150 t

Tank capacities

Ballast: 10.610,2 m³

Anchor equipment

Length: 687,50 m

Diameter: 81 mm

Commercial manager

Höegh Autoliners Management AS

Drammensveien 134

0277 Oslo

Norway

ISM manager

Höegh Technical Management Inc.

Drammensveien 134

0277 Oslo

Norway

Registered owner

Ocean Yield Jeddah Ltd., Valletta - Malta

Care of Hoegh Autoliners Management AS

Drammensveien 134

0277 Oslo

Norway

Latest data adjustment

17 July 2022
