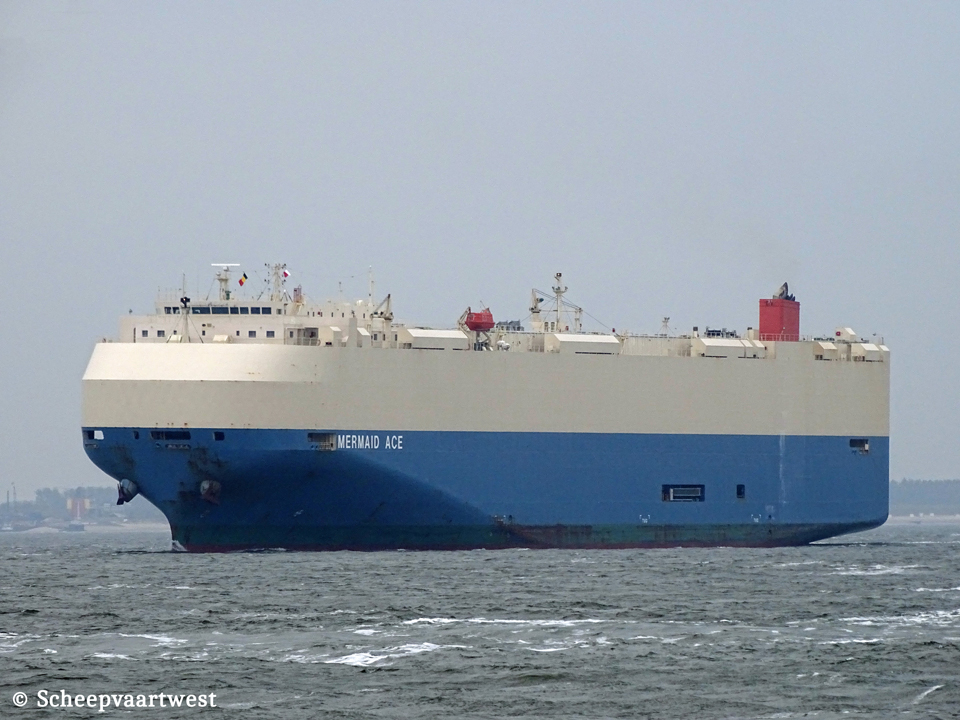

| Westerschelde 24 April 2017 |
|
Name |
MERMAID ACE |
|
Type |
Roll-On/Roll-Off carrier |
|
IMO-number |
9561289 |
|
Call sign |
3FCG3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
58.939 t |
|
DWT |
18.828 t |
|
NRT |
18.159 t |
|
Length |
199,95 m overall |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 9,82 m |
|
Moulded L x B x D |
190,00 x 32,20 x 14,70 m |
|
Registered L x B x D |
190,86 x 32,20 x 21,19 m |
|
Freeboard |
Summer: 4.914 mm |
|
Depth |
21,10 m moulded |
|
Speed |
Max: 22,3 knots |
|
Built |
2010 |
|
Keel laid |
22/12/2008 |
|
Launch date |
11/04/2010 |
|
Date of completion |
29/07/2010 |
|
Builder |
Minaminippon Shipbuilding Co., Ltd. Japan |
|
Yard number |
711 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W/Mitsui 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 15.130 kW / 20.571 hp at 100,0 rpm Manufacturer: Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 620 mm |
|
Propellers |
1x fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,78 MPa Evaporation: 3,96 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generatorsets total 3.900 kVA |
|
Bow thruster |
1x 1.510 kW |
|
Number of cars |
5.219 |
|
Number of ramps |
2 |
|
Tank capacities |
Fuel oil: 2.951 m³ Fresh water: 331 m³ |
|
ISM & commercial manager |
Masumoto Shipping Co., Ltd. 8-8, Nakasaki 1-chome, Akashi-shi, Hyogo-ken, 673-0883 Japan |
|
Registered owner |
Prosper World Marine Co., Ltd. Care of Masumoto Shipping Co Ltd. 8-8, Nakasaki 1-chome, Akashi-shi, Hyogo-ken, 673-0883 Japan |
|
Latest data adjustment |
02 February 2023 |
