| Zeebrugge 03 April 2005 |
|
Name |

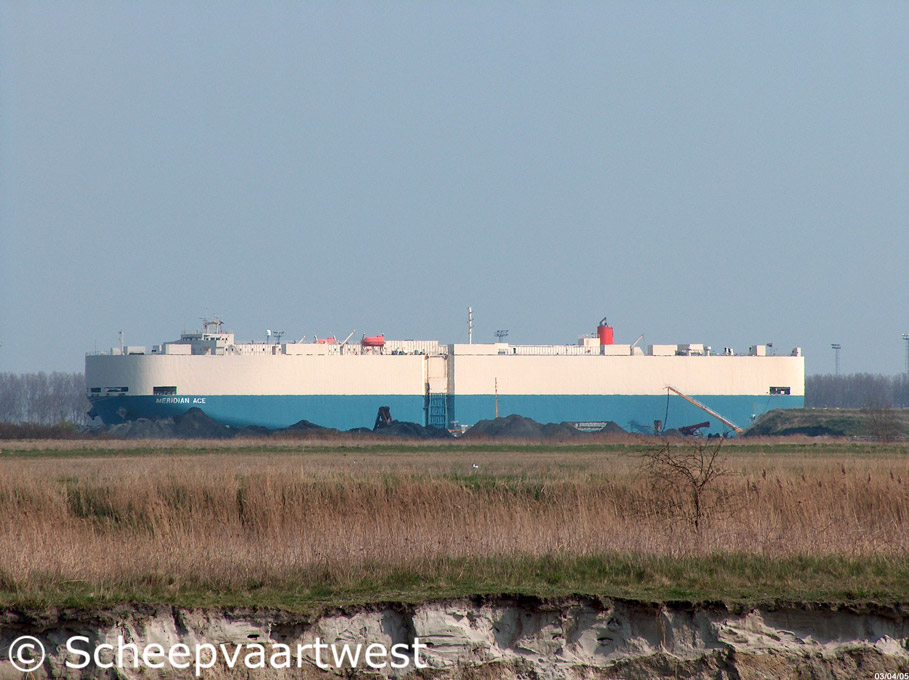

MERIDIAN ACE |
|
Type |
Roll-On/Roll-Off car carrier |
|
IMO-number |
9209518 |
|
Call sign |
H3GM |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama |
|
GT |
55.878 t |
|
DWT |
20.144 t |
|
NT |
16.764 t |
|
Length |
199,94 m overall 194,27 m registered |
|
Breadth |
32,20 m overall |
|
Moulded L x B x D |
190,00 x 32,20 x 14,69 m |
|
Registered L x B x D |
194,27 x 32,20 x 23,71 m |
|
Draught |
Summer: 10,02 m |
|
Freeboard |
Summer: 4.703 mm |
|
Depth |
14,69 m |
|
Speed |
Service: 18,9 knots Trail: 21,8 knots |
|
Built |
2000 |
|
Keel laid |
29.10.1999 |
|
Launch date |
25.03.2000 |
|
Date of completion |
08.06.2000 |
|
Builder |
Imabari Shipbuilding S.A. |
|
Yard number |
1322 |
|
Hull type |
Single hull |
|
Main engine |
1xMitsubishi - 2 stroke single acting 8 cylinder 600 x 2.20 mm diesel engine - 14.121 kW at 100 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 7,9 Bar Evaporation: 3,79 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 4.095 kVA |
|
Cargo capacity |
Cars: 5.059 Trucks: 204 Bulldozer: 44 |
|
Tank capacities |
Fuel oil: 3.202 m³ Fresh water: 359 m³ Water ballast: 8.266 m³ |
|
Lifting equipment |
2x Cranes SWL - 0,5 t each 1x Crane SWL - 0,9 t 3x Cranes SWL - 4,0 t each |
|
Manager |
New Asian Shipping Company, Limited |
|
Owner |
Meridian Shipholding S.A |
