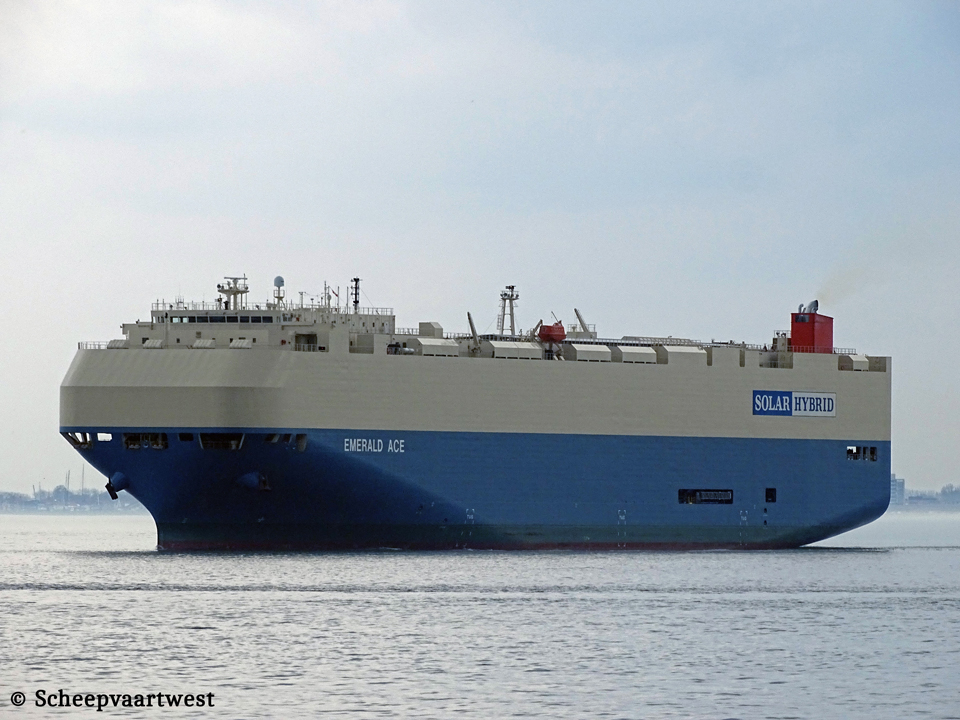

Emerald Ace IMO 9539236 01
Westerschelde 15 April 2018

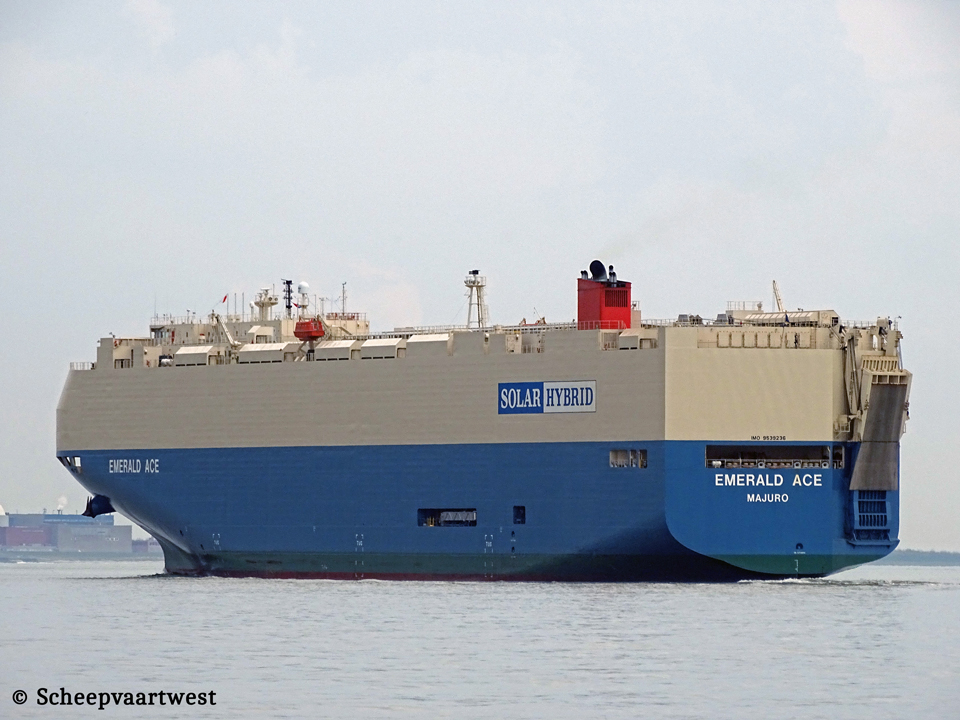

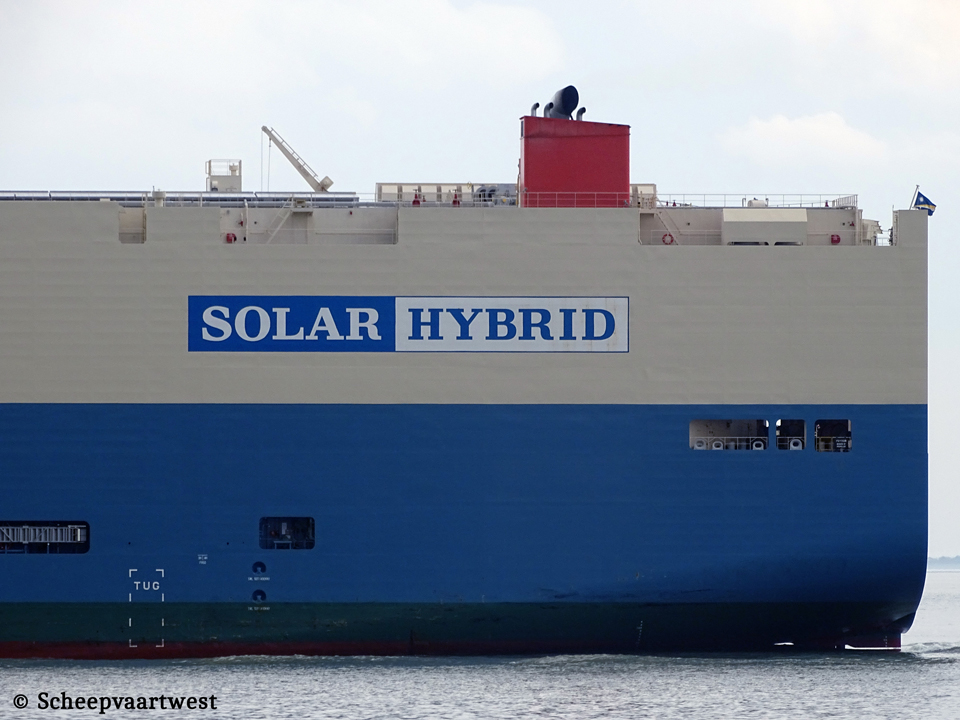

Emerald Ace IMO 9539236 03   Emerald Ace IMO 9539236 02
Westerschelde 15/04/18   Westerschelde 15/04/18


Name

EMERALD ACE

Type

Roll-On/Roll-Off carrier - Vehicle carrier

Solar Hybrid PCTC - Pure car and Truck Carrier

IMO-number

9539236

Call sign

V7YO3

Flag

Marshall Islands

Port of registry

Majuro

GT

60.154 t

DWT

18.334 t

NT

18.430 t

Length

199,99 m overall

Breadth

32,26 m moulded

Draught

Summer: 9,73 m

Moulded L x B x D

192,00 x 32,26 x 14,70 m

Registered L x B x D

194,31 x 32,26 x 21,25 m

Freeboard

Summer: 5.013 mm

Depth

14,70 m moulded

Speed

Max: 22,6 knots

Built

2012

Keel laid

14/12/2010

Launch date

09/03/2012

Date of completion

29/06/2012

Builder

Mitsubishi Heavy Industries, Ltd. Kobe Shipyard

Japan

Yard number

1296

Hull material

Steel

Main engine

1x Mitsubishi 7UEC60LSII - 2 stroke single acting 7 cylinder 600 x 2.300 mm combustion engine 14.315 kW at 105,0 rpm

Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 590 mm

Propellers

1x Fixed pitch propeller

Boilers

Auxiliary Vertical Boiler (Composite) - 0,69 MPa

Evaporation: 3,92 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generatorsets total 4.486 kVA

Bow thruster

1x 1.250 kW

Number of ramps

2

1x Stern

1x Starboard

Cargo capacity

Card: 6.312

Trucks: 376

Hybrid installation

Hybrid car carrier, designed to generate zero emissions while berthed

160 kW solar generation system

Lithium-ion batteries that can store 2,2 MWh

Tank capacities

Fuel oil: 2.921 m³

Fresh water: 567 m³

Crew size

32

Commercial manager

MOL - Mitsui O.S.K Lines

1-1, Toranomon 2-chome, Minato-ku

Tokyo, 105-8688

Japan

ISM manager

MOL Ship Management Co., Ltd.

3rd Floor, Mitsui OSK Lines Building

1-1, Toranomon 2-chome, Minato-ku

Tokyo, 105-0001

Japan

Registered owner

White Bear Maritime Ltd.

Care of Mitsui OSK Lines Ltd (MOL)

1-1, Toranomon 2-chome, Minato-ku

Tokyo, 105-8688

Japan

Latest data adjustment

20 February 2023
