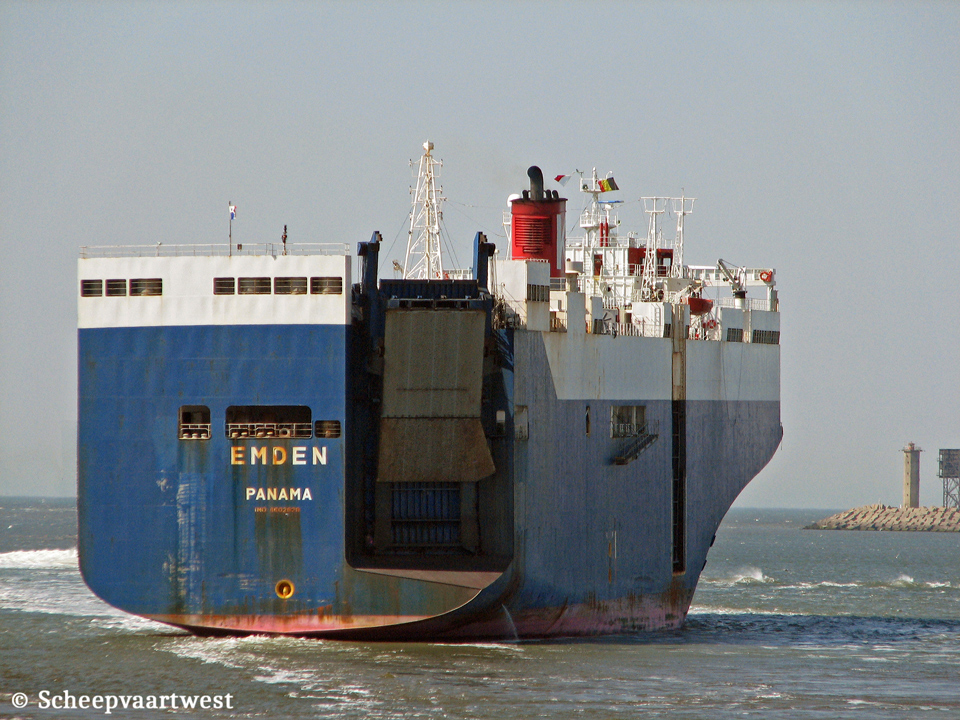

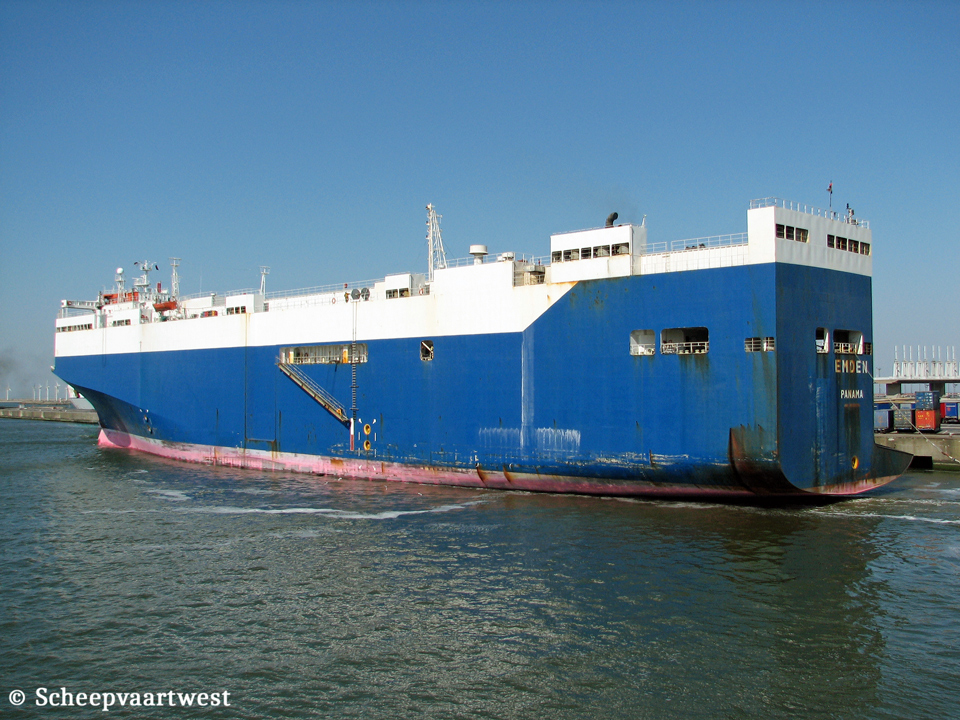

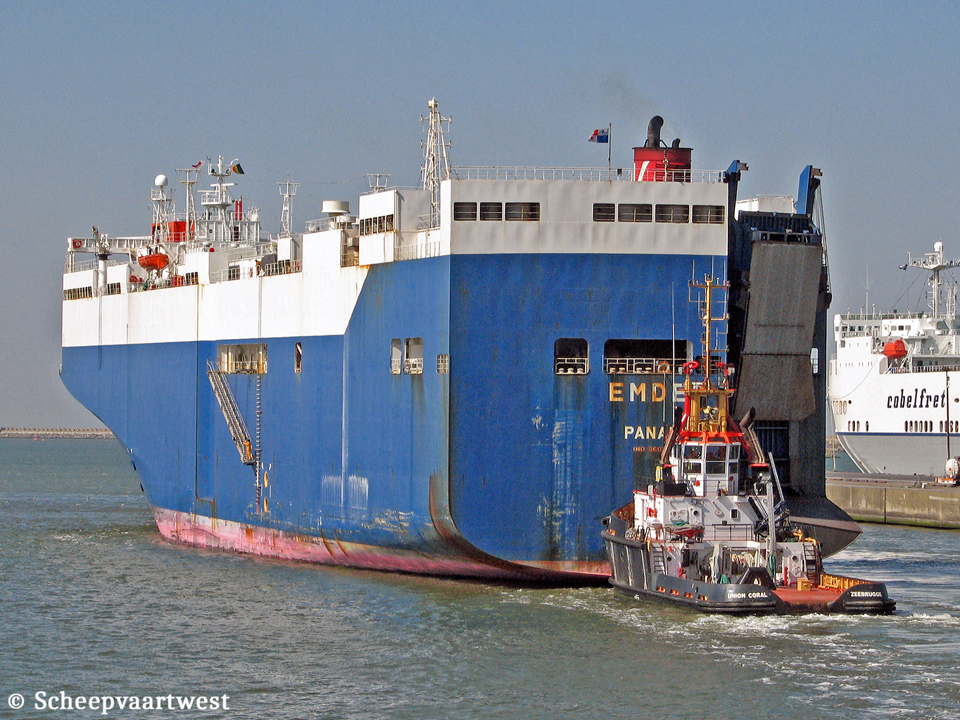

| Zeebrugge 01 May 2007 |
 |
 |
|
| Zeebrugge 01/05/07 | Zeebrugge 01/05/07 | |
|
Name |
EMDEN |
|
Type |
Roll-On/Roll-Of vehicles Carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
8602828 |
|
Call sign |
3ERP5 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama city |
|
Previous flag |
1997 - 2014 Philippines, Manilla - Call sig: DZAW |
|
GT |
38.062 |
|
DWT |
13.898 t |
|
NT |
11.419 |
|
Length |
178,01 m overall 169,02 m between perpendiculars 171,91 m registered |
|
Breadth |
29,21 m overall |
|
Draught |
Summer: 9,12 m |
|
Freeboard |
Summer: 2.117 mm |
|
Depth |
28,86 m |
|
Speed |
17,5 knots |
|
Built |
1987 |
|
Keel laid |
28/06/1986 |
|
Launch Date |
03/03/1987 |
|
Date of completion |
21/05/1987 |
|
Builder |
Tsuneishi Shipbuilding Co., Ltd. Japan |
|
Yard number |
592 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W - 2 stroke single acting 6 cylinder 600 x 2.292 mm combustion engine 7.430 kW at 102 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 6,8 bar Evaporation: 2,40 t/h Manufacturer: Nishida Marine Boiler Co., Ltd. |
|
Generator capacity |
3x Generatorsets total 2.100 kVA |
|
Car capacity |
3.788 |
|
Tank capacities |
Fuel oil: 1.658 m³ Fresh water: 191 m³ Water ballast: 6.434 m³ |
|
Lifting equipment |
2x Cranes - SWL 5,0 t |
|
Manager |
Escobal Japan Ltd. Chiba Japan |
|
Shipping company |
K-Line / Kawasaki Kisen Kaisha |
|
Owner |
Taiyo Nippon Kisen Kobe Japan |
|
Scrapped |
2017 Flag: Togo, Lomé at Aliaga - Turkey |
|
Latest data adjustment |
07 April 2025 |
