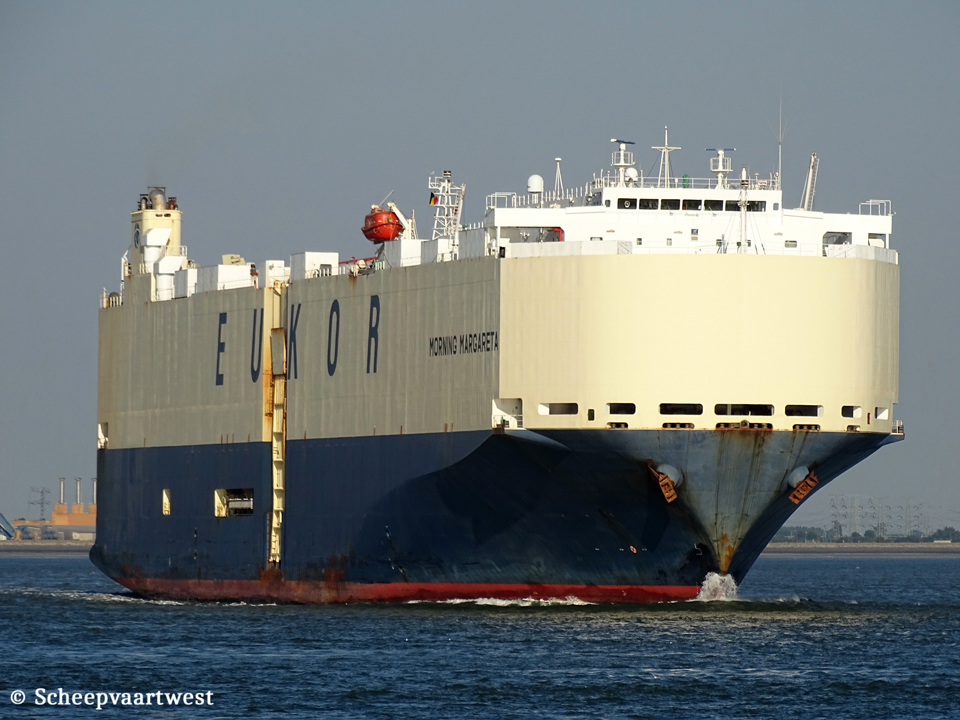

Morning Margareta IMO 9367580 01
Westerschelde 16 August 2016


Name

MORNING MARGARETA

Type

Roll-On/Roll)Off carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9367580

Call sign

9VHC2

Flag

Republic of Singapore

Port of registry

Singapore City

GRT

51.917 t

DWT

17.386 t

NRT

15.576 t

Length

179,90 m overall

Breadth

32,20 m moulded

Draught

Summer: 9,62 m

Moulded L x B x D

170,00 x 32,20 x 15,07 m

Registered L x B x D

170,01 x 32,20 x 21,62 m

Freeboard

Summer: 5.485 mm

Depth

15,07 m moulded

Speed

Max: 20,8 knots

Built

2008

Keel laid

12/01/2008

Launch date

13/05/2008

Date of completion

21/08/2008

Builder

Tsuneishi Holdings Corporation Tsuneishi Shipbuilding Company Tadotsu Factory

Tokyo

Japan

Yard number

1377

Hull material

Steel

Main engine

1x Mitsui - 2 stroke 7 cylinder 600 x 2.4000 combustion engine 14.120 kW - 19.197 hp at 100, rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 610 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 0,70 MPa

Evaporation: 3,36 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generatorsets total 3.725 kVA

Number of cars

5.195

Tank capacities

Fuel oil: 3.325 m³

Fresh water: 440 m³

Operator

Eukor Car Carriers Inc.

Registered owner

United PCTC Pte Ltd.

2 Shenton Way

#11-01 SGX Centre

Singapore City 068804

Republic of Singapore

Latest data adjustment

04 August 2023
