Westerschelde 03 May 2014 |
 |
|
| Westerschelde 02/03/17 | |
|
Name |

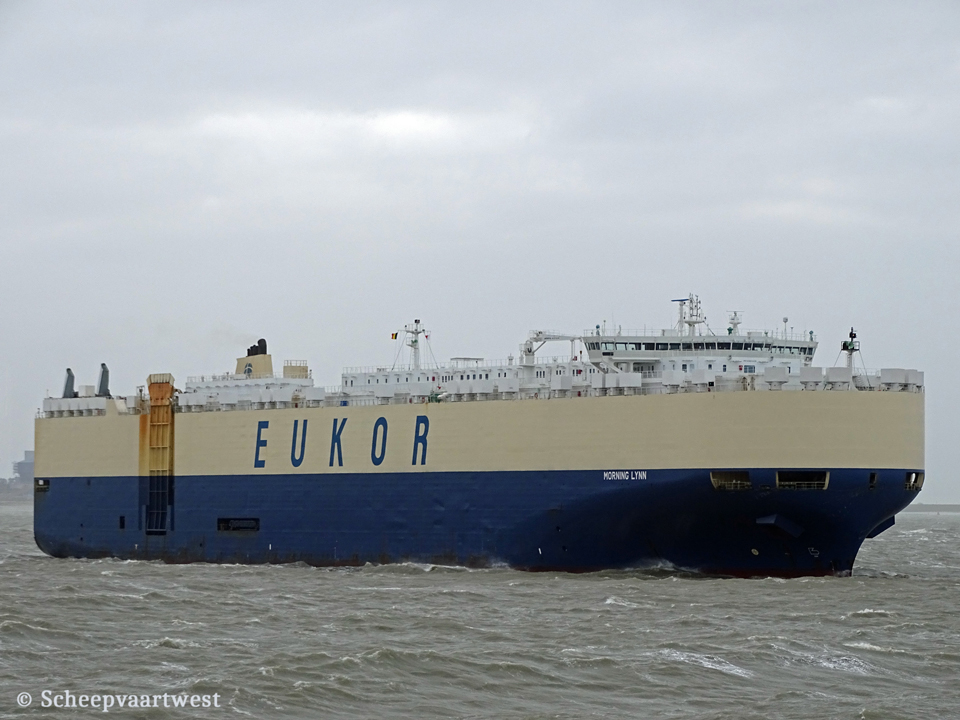

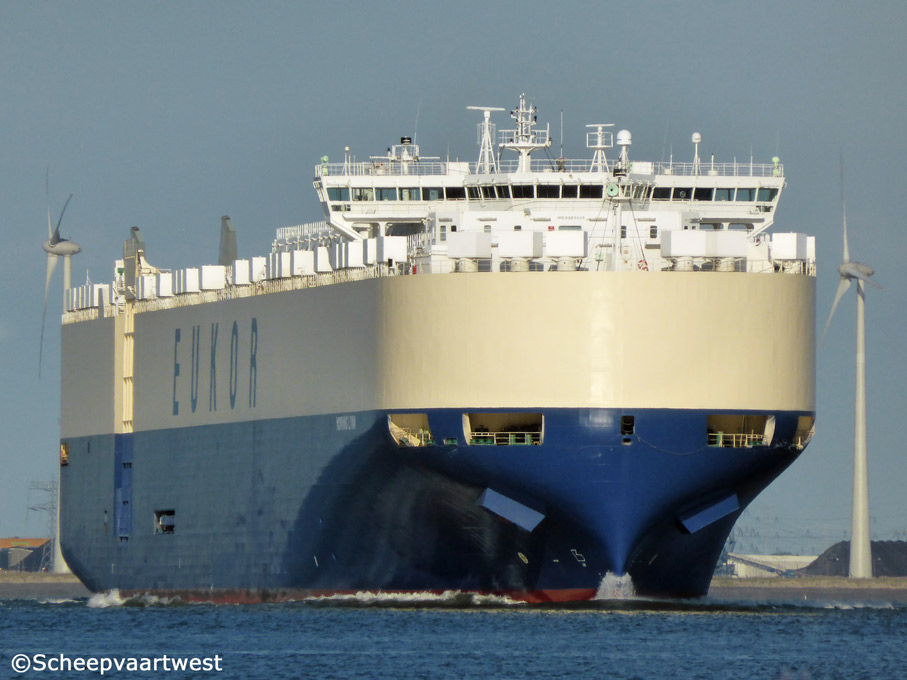

MORNING LYNN |
|
Type |
Roll-On/Roll-Off carrier - Vehicle Carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9383429 |
|
Call sign |
3FXS4 |
|
Flag |
Republic of panama |
|
Port of registry |
Panama City |
|
GT |
68.701 t |
|
DWT |
Summer: 28.092 t |
|
NT |
24.507 t |
|
Length |
232,37 m overall |
|
Breadth |
32,26 m |
|
Draught |
10,02 m |
|
Reg. dimensions L x B x D |
225,52 x 32,26 x 20,11 m |
|
Rule dimensions L x B x D |
222,40 x 32,26 x 14,30 m |
|
Freeboars |
3.020 mm |
|
Depth |
20,11 m |
|
Speed |
19,6 knots |
|
Built |
2009 |
|
Keel laid |
25/06/2008 |
|
Launch date |
13/09/2008 |
|
Date of completion |
16/02/2009 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. Mokpo South Korea |
|
Yard number |
S331 |
|
Hull material |
Steel |
|
Watertight bulkheads |
4x Tranverse bulkheads |
|
Main engine |
1x Hyundai/MAN-B&W 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 14 342 kW at 105,0 rpm Build: 04/2008 Builder: HD Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated (Economizer) - 11,8 kg/cm² Heting surface: 29,0 m² 1x Auxiliary boiler, oil/gas fired - 8,8kg/cm² Heting surface: 24,0 m² Build: 04/2008 Builder: Kang Rim Ind. Co., Ltd., Changzhou - China |
|
Generators |
3x MAN 7L28/32H main diesel generatorsets each 1.750 kVA - 450 Volt |
|
Emergency generator |
1x AGCO Sisu 634 diesel generatorset |
|
Bow thruster |
1x 2.000 kW |
|
Number of decks |
7 |
|
Number of cars |
8.011 |
|
Ro-Ro ramps |
1x Starboard aft 39,00 x7,00 m 150 t |
|
Tank capacities |
Fuel oil: 5.377,8 m³ Fresh Water: 323,8 m³ Water ballast: 7.509,4 m³ |
|
Anchor equipment |
Length: 687,50 m Diameter: 84 mm |
|
Commercial manager |
Eukor Car Carriers Inc. 24th floor, Gangnam Finance Center 152 Teheran-ro Gangnam-gu Seoul South Korea |
|
ISM manager |
Wilhelmsen Ship Management (Korea) Ltd. |
|
Previous managers |
2009 - 2009 Eukor Car Carriers Inc. 2009 - 2013 Haeyoung Maritime Services Co., Ltd. |
|
Registered owner |
Lynn International Maritime S.A. |
|
Latest data adjustment |
02 November 2024 |
