| Zeebrugge 05 August 2011 |
 |
| Zeebrugge 07/12/15 |
|
Name |

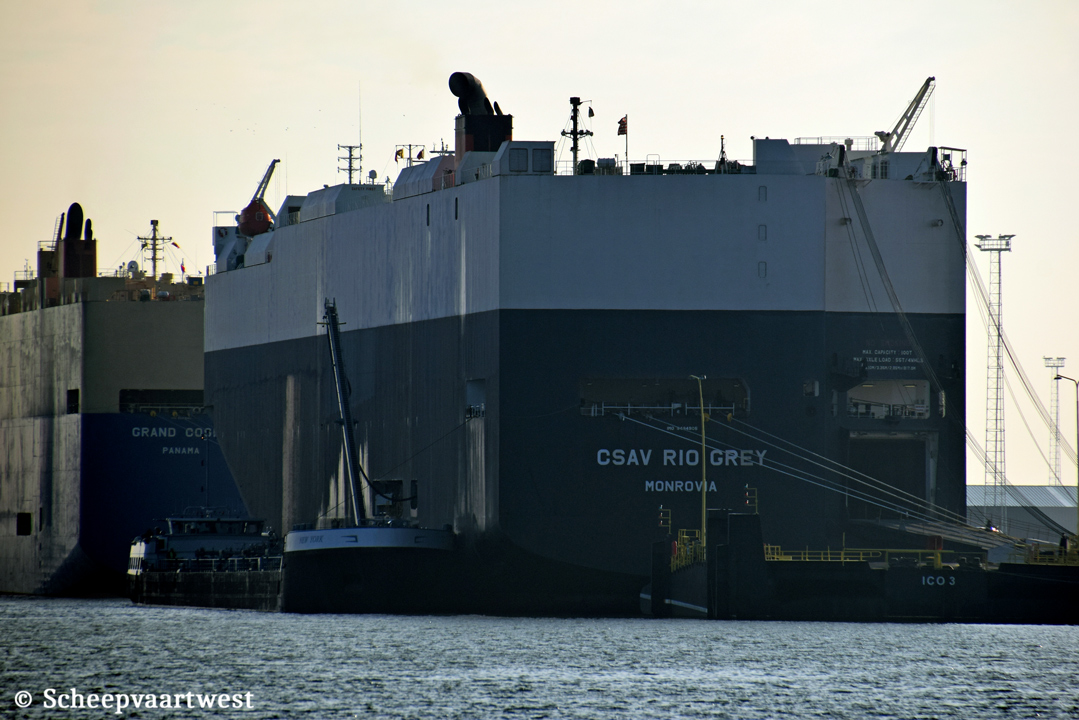

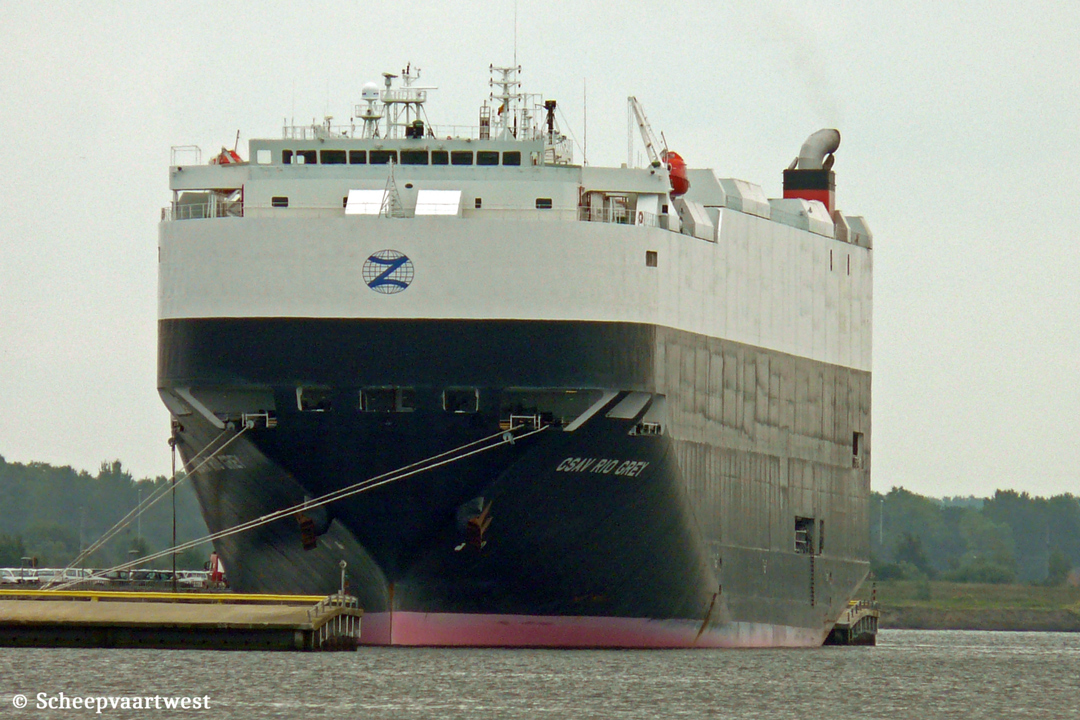

CSAV RIO GREY |
|
Type |
Roll-On/Roll-Off carrier - Vehicles carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9494905 |
|
Call sign |
A8UC7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
60.387 |
|
DWT |
Summer: 17.245 t Winter: 16.219 t Tropical: 18.282 t |
|
NT |
18.651 |
|
Displacement |
34.577 t |
|
Light ship |
17.332 t |
|
Length |
199,99 m |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 9,72 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,65 m |
|
Registered L x B x D |
193,95 x 32,26 x 21,20 m |
|
Freeboard |
Summer: 4.965 mm |
|
Depth |
14,65 m moulded |
|
Speed |
Max.: 22,2 knots Service: 20,65 knots |
|
Built |
2009 |
|
Keel laid |
16/04/2009 |
|
Launch date |
18/08/2009 |
|
Date of completion |
18/11/2009 |
|
Builder |
Shin Kurushima Dockyard Co. Ltd. Tokyo Japan |
|
Yard number |
5511 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 15.090 kW / 20.516 hp at 98,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 665 mm |
|
Propellers |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3,30 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generatorsets total 4.275 kVA |
|
Car capacity |
6.295 |
|
Deck area |
54.674 m² |
|
Tank capacities |
Fuel oil: 3.054 m³ Fresh water: 402 m³ Water ballast: 6.920 m³ |
|
Lifting capacity |
2x Cranes - SWL 4,0 t |
|
Crew |
25 |
|
Manager |
Eastern Pacific Shipping Pte. Ltd. 1 Temasek Avenue #38 - 01 Millenia Tower Singapore City 039192 Republic of Singapore |
|
Previous managers |
Zodiac Maritime Agencies Ltd. 13th Floor, Sea Containers House 20 Upper Ground London, SE1 9PD United kingdom |
|
Owner |
Fair Wind Navigation. S.A. |
|
Renamed |
08/2016 Lake Fuxian Liberia, Monrovia - Call sign: A8UC7 Registered owner: KS Navigation SA, C/o Kitaura Kaiun KK, Ehime-ken, 794-0043 - Japan ISM manager: Eastern Pacific Shipping UK, London, W1J 0DX - United Kingdom Commercial manager: Hyundai Glovis Co Ltd., Seoul - South Korea |
|
Latest data adjustment |
24 March 2025 |
