| Zeebrugge 10 August 2009 |
 |
|
| Zeebrugge 10/08/09 |
|
Name |

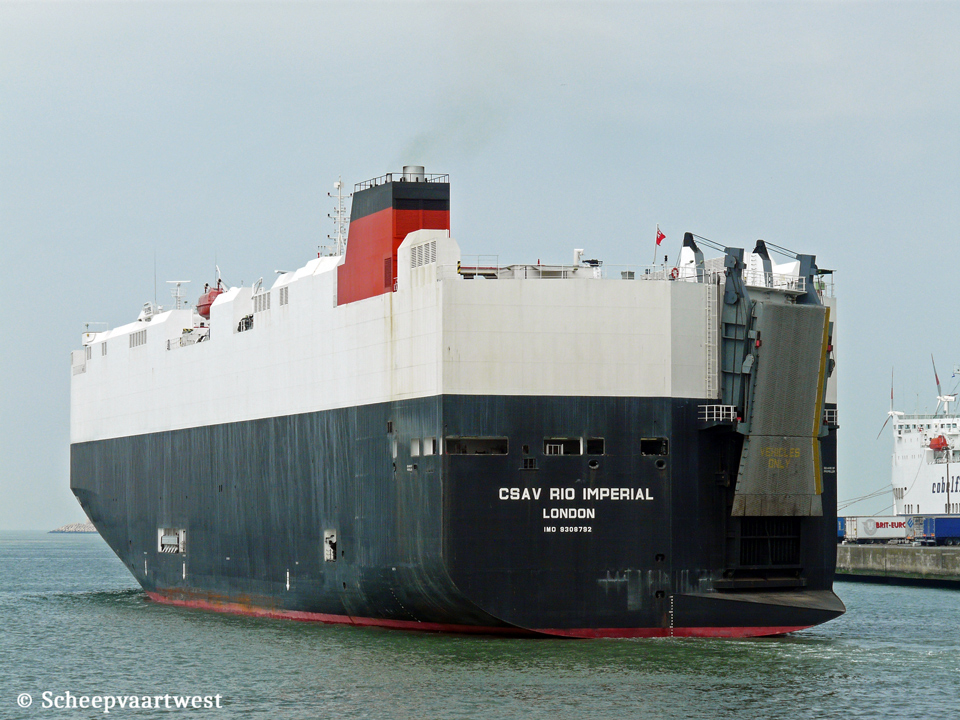

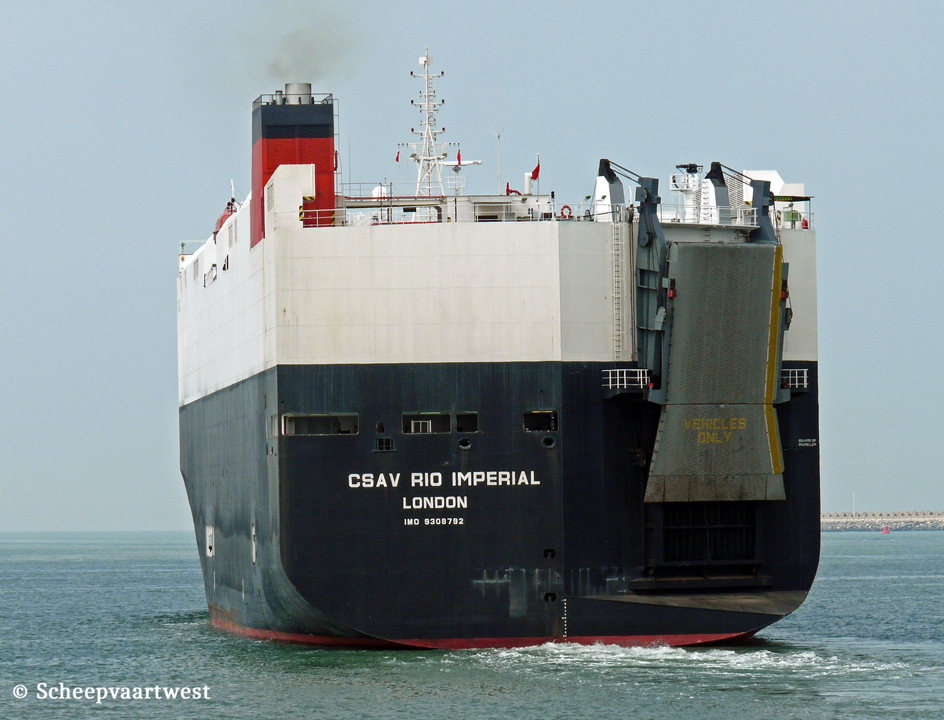

CSAV RIO IMPERIAL |
|
Type |
Roll-On/Roll-Off carrier - Vehicles carrier |
|
IMO-number |
9308792 |
|
Call sign |
MPNH6 |
|
Flag |
United Kingdom |
|
Port of registry |
London |
|
Previous flag |
2006 - 2006 Liberia |
|
GT |
46.800 Suez: 50.755 |
|
DWT |
12.325 t Summer: 12.322 t Winter: 11.469 t Tropical: 13.185 t |
|
NT |
14.264 Panama: 46.600 Suez: 45.656 |
|
Displacement |
27.130 t |
|
Light ship |
14.734 t |
|
Length |
182,80 m overall 170,68 m between perpendiculars |
|
Breadth |
31,53 m |
|
Draught |
Summer: 9,16 m Winter: 8,81 m Tropical: 9,20 m |
|
Depth |
12,80 m |
|
Speed |
20,0 knots |
|
Built |
2006 |
|
Keel laid |
28/02/2006 |
|
Launch date |
16/07/2006 |
|
Date of completion |
06/11/2006 |
|
Builder |
Xiamen Shipbuilding Industry Co., Ltd. PaiTou HaiCang Invest Zone 361026 Xiamen China |
|
Yard number |
XS403C |
|
Hull material |
Ordinary strength steel High strength steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
9 |
|
Main engine |
1x MAN-B&W 9S50MC-C Mk7 - 9 cylinder 500 x 2.000 mm combustion engine 14.220 kW / 19.334 hp at 127,0 rpm Manufacturer: Hyundai Heavy Industries, Co., Ltd. |
|
Propellers |
1x Fixed pitch mono-block propeller Manufacture: Wärtsilä Propulsion Netherlands B.V. |
|
Boilers |
1x Exhaust gas smoke tube (Exhaust) AQ-7 - 8,83 bar Manufacturer: Alfa Laval Aalborg AS. 1x Vertical shell type (Oil fired) Mission OS - 8,83 bar Manufacturer: Aalborg Industries (Shanghai) Ltd. |
|
Generators |
2x MAN 68L23/30 A-H main diesel generatorsets each 990 kW 1x MAN 6L23/30 A-H main diesel generatorsets each 740 kW Manufacturer: Fensi Machinery Plant |
|
Emergency generator |
1x Volvo TAMD74 diesel generatorset |
|
Bow thruster |
1.100 kW |
|
Car capacity |
4.902 |
|
Number of ramps |
2 |
|
Number of car decks |
11x Car decks, incl. 3 moveable decks |
|
Ventilation |
10x Air changes/hr during sea voyages 20x Air changes/hr during loading and unloading |
|
Number of tanks |
Ballast: 18 Fuel oil: 10 Lubricating oil: 8 Sludge: 4 Diesel oil: 3 Freshwater: 3 Chain: 2 Potable water: 2 Hydraulic oil: 1 Waste water: 1 Slop:1 |
|
Tank capacities |
Diesel Oil: 245,8 m³ Freshwater: 301,7 m³ Fuel Oil: 3.498,6 m³ Lube Oil: 153,6 m³ Tank Ballast: 5.951,6 m³ |
|
Anchor chain |
Length: 660 m Diameter: 76 mm |
|
Crew |
22 |
|
Crew size |
31 |
|
Manager |
Zodiac Maritime Agencies Ltd. 13th Floor, Sea Containers House 20 Upper Ground SE1 9PD London United Kingdom |
|
DocHolder |
Zodiac Maritime Agencies Ltd. 13th Floor, Sea Containers House 20 Upper Ground SE1 9PD London United Kingdom |
|
Owner |
Lombard Corporate Finance (December 3) Limited United Kingdom |
|
Previous owner |
|
|
Renamed |
10/2013 Lake Kivu Liberia, Monrovia - Call sign: D5DX4 Registered owner: Xiang T61 HK International - C/o: Flota Suardiaz SL, Madrid - Spain ISM manager: Eastern Pacific Shipping UK, London, W1J 0DX - United Kingdom Commercial manager: Flota Suardiaz SL, Madrid - Spain |
|
Latest data adjustment |
24 March 2025 |
