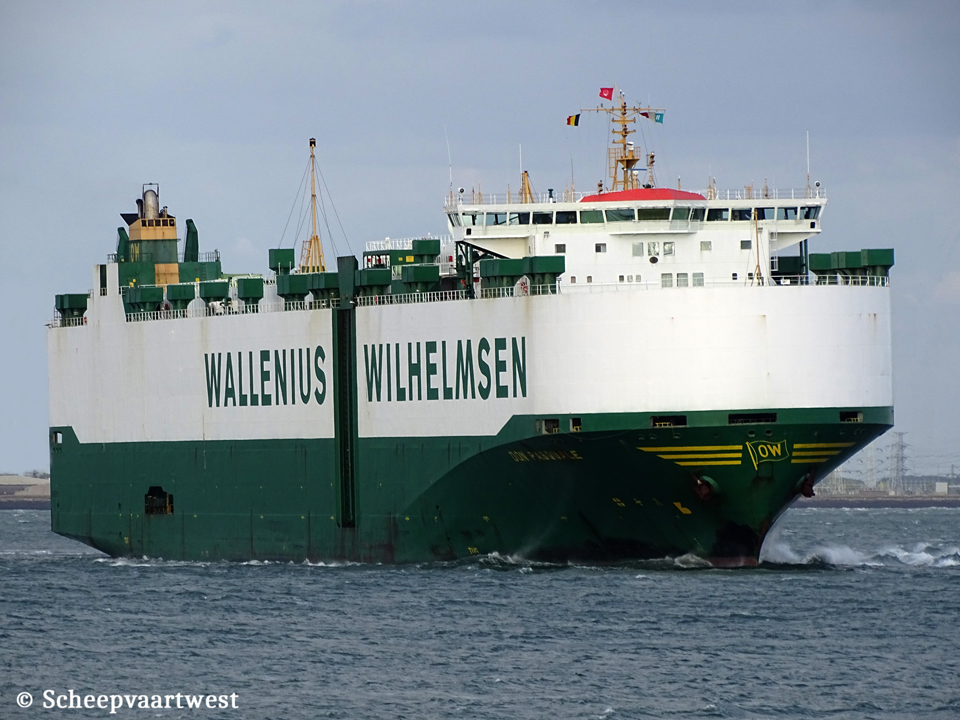

Westerschelde 29 June 2020 |
_IMO_9138513_13.jpg) |
_IMO_9138513_11.jpg) |
_08.jpg) |
||
| Zeebrugge 01/08/10 | Zeebrugge 01/08/10 | Zeebrugge 20/07/09 | ||
|
Name |
DON PASQUALE |
|
Type |
Roll-On/Roll-Off vehicles Carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9138513 |
|
Call sign |
LATF8 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
Previous flags |
1997 - 2013 Sweden, Stockholm - Call sign: SFQG 2013 Republic of Singapore, Singapore City - Call sign: 9V9826 |
|
GT |
67.141 |
|
DWT |
Summer: 28.271 t |
|
NT |
28.379 |
|
Length |
227,90 m overall 219,30 m between perpendiculars |
|
Breadth |
32,29 m extreme 32,26 m moulded |
|
Draught |
Summer: 11,02 m |
|
Keel to mast end |
52,03 m |
|
Air draft |
47,92 m |
|
Height to upperdeck |
33,48 m |
|
Freeboard |
3.030 mm |
|
Depth to upperdeck |
32,28 m |
|
Speed |
20,5 knots |
|
Built |
1997 |
|
Keel laid |
24/03/1997 |
|
Launch date |
12/07/1997 |
|
Date of completion |
31/10/1997 |
|
Builder |
DSME - Daewoo Heavy Industry Ltd. Okpo South Korea Elongated: 21/01/2007 Hyundai Vinashin Shipyard - Vietnam |
|
Yard number |
4416 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W 8S60MC - 2 stroke 8 cylinder 600 x 2.292 mm combustion engine 14.700 kW / 20.000 bhp at 101,3 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Shaft generator |
1x 950 kW |
|
Electrical power |
2x Wärtsilä 4R32 diesel engines each connected with generators each 1.400 kW / 3x 440 Volt 60 Hz |
|
Emergency generator |
1x Diesel generatorset 165 kW |
|
Bow thruster |
1x 1.500 kW 1x 700 kW |
|
Stern ramp |
Width: 7,00 m Height: 5,00 m Capacity: 125 t |
|
Number of car decks |
13 (of which 3 are hoistable) |
|
Capacity car (RT43) |
7.194 or 3.700 cars and 600 trucks 1 RT43 unit = 7,38975 m² |
|
Capacity deck area |
63.106 m² |
|
Crew |
19 |
|
Commerical manager |
Wallenius Wilhelmsen Norway AS Care of Wallenius Marine Singapore Pte. 20-01, Fragrance Empire Building, 456, Alexandra Road Singapore 119962 Republic of Singapore |
|
ISM manager |
Wallenius Marine AB Swedenborgsgatan 19 SE-118 27 Stockholm Sweden |
|
Owner |
Wallenius Wilhelmsen Norway AS Care of Wallenius Marine Singapore Pte Ltd , 20-01, Fragrance Empire Building, 456, Alexandra Road, Singapore 119962 Republic of Singapore |
|
Latest data adjustment |
31 March 2025 |
