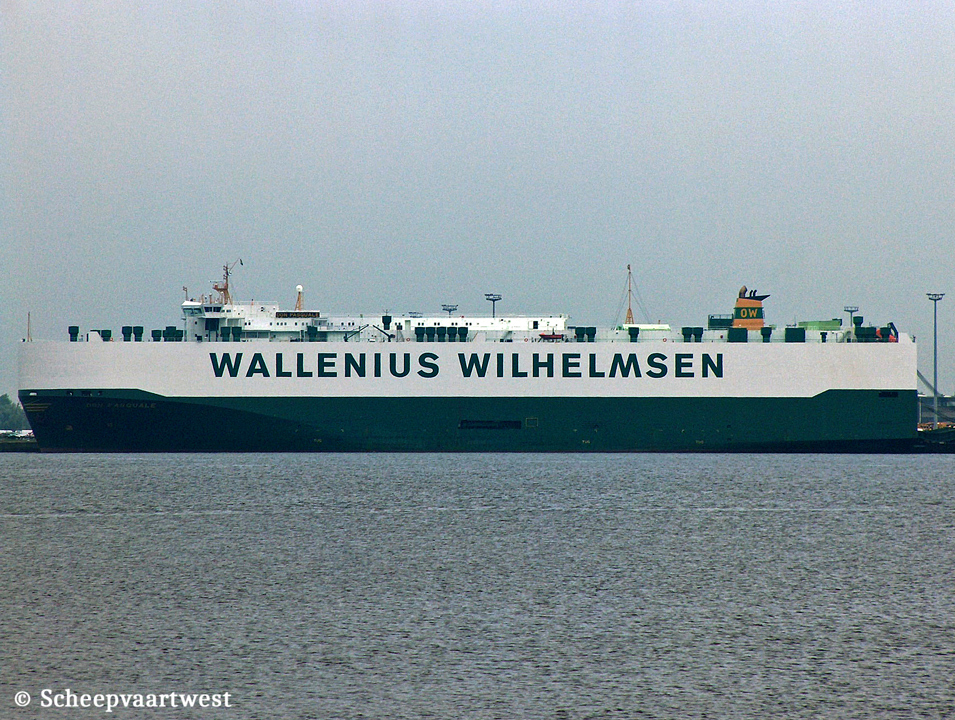

| Zeebrugge 11 May 2006 |
|
Name |
DON PASQUALE |
|
Type |
Roll-On/Roll-Off vehicles carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9138513 |
|
Call sign |
SFQG |
|
Flag |
Sweden |
|
Port of registry |
Stockholm |
|
GT |
56.898 |
|
DWT |
22.754 t |
|
NT |
23.693 |
|
Length |
199,10 m overall 190,50 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 9,50 m |
|
Freeboard |
3.030 mm |
|
Depth |
14,50 m |
|
Air draft |
47,92 m |
|
Speed |
20,5 knots |
|
Height to upperdeck |
33,48 m |
|
Built |
1997 |
|
Date of completion |
10/1997 |
|
Builder |
Daewoo Heavy Industry Ltd Okpo South Korea |
|
Yard number |
4416 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W 8S60MC - 8 Cylinder combustion engine 14.700 kW / 20.000 bhp at 101,3 rpm |
|
Number of screws |
1 |
|
Shaft generator |
1x 950 kW |
|
Generators |
2x Wärtsilä 4R32 diesel engines each connected with generators each 1.400 kW / 3x 440 Volt 60Hz |
|
Emergency generator |
1x Diesel generatorset 165 kW |
|
Bow thruster |
1.500 kW by 23,5 t thrust |
|
Stern ramp |
Width: 7,00 m Height: 5,00 m Capacity: 125 t |
|
Number of car decks |
13 (of which 3 are hoistable) |
|
Capacity deck area |
52.357 m² |
|
Capacity car (RT43) |
5.873 1 RT43 unit = 7,38975 m² |
|
Capacity cars / trucks |
2.949 / 488 |
|
Basic complement |
15 |
|
Management |
Wallenius Marine |
|
Operator & Charter |
Wallenius Wilhelmsen |
|
Owner |
Wallenius Lines AB Stockholm Sweden |
|
Latest data adjustment |
31 March 2025 |
