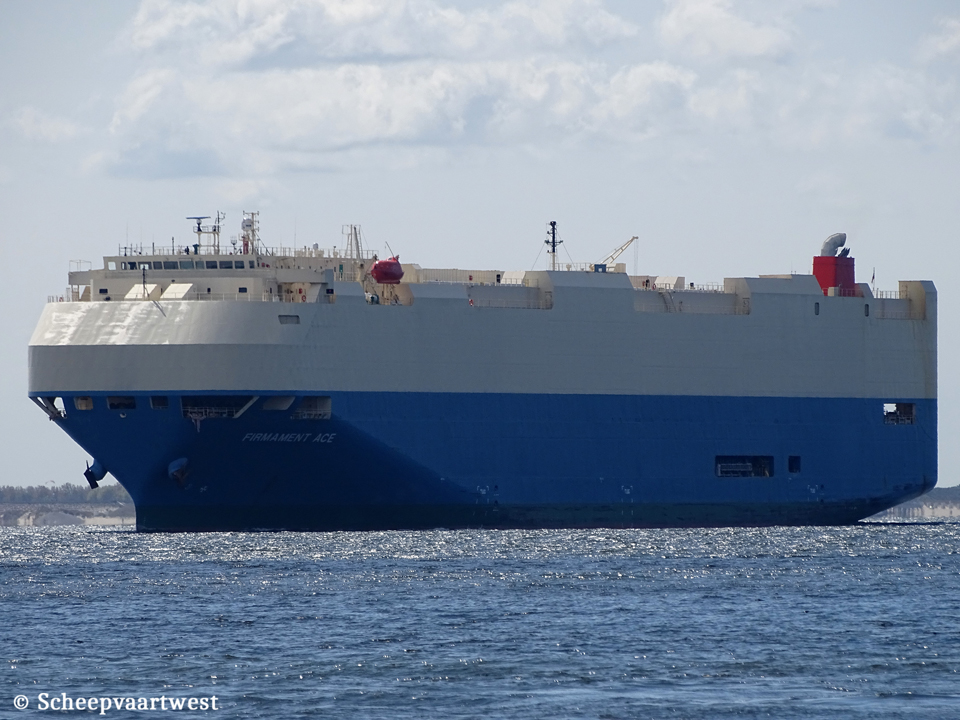

Firmament Ace IMO 9293894 23
Westerschelde 23 April 2017

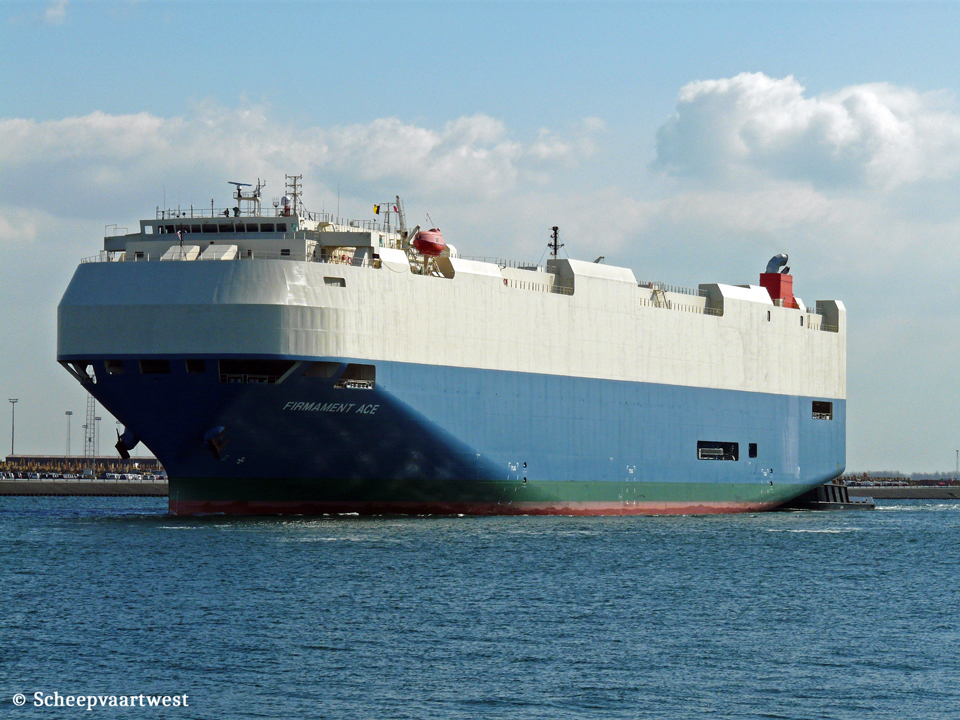

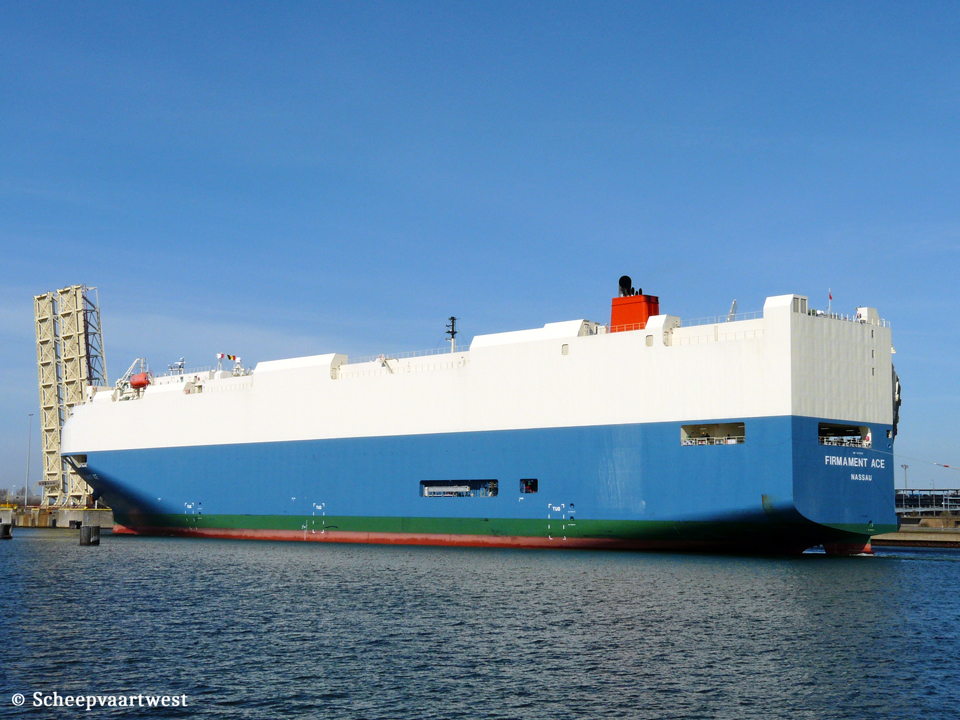

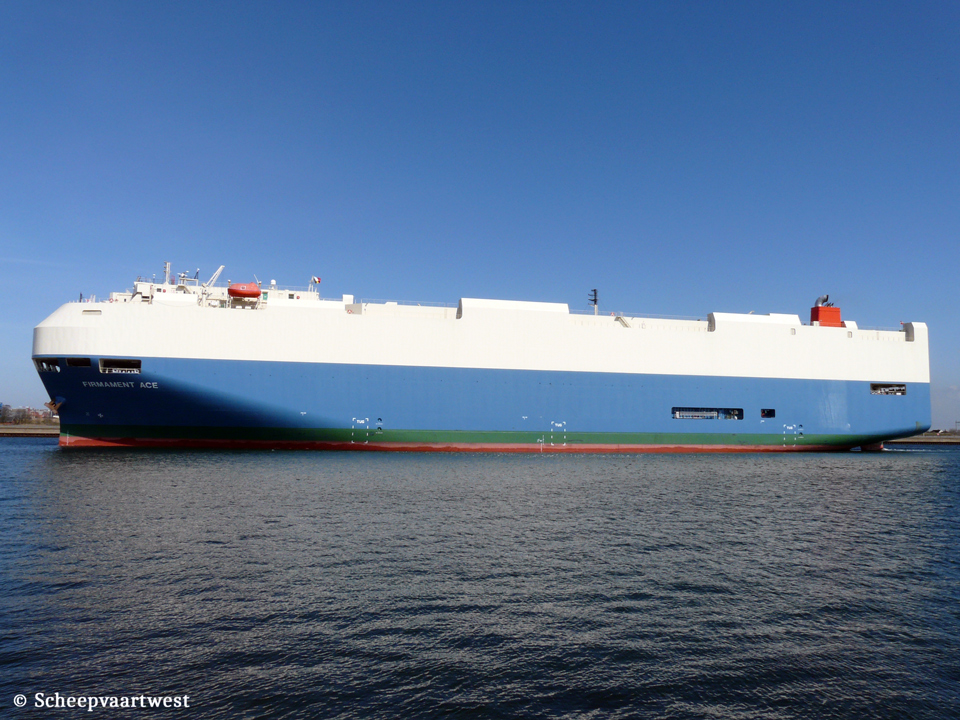

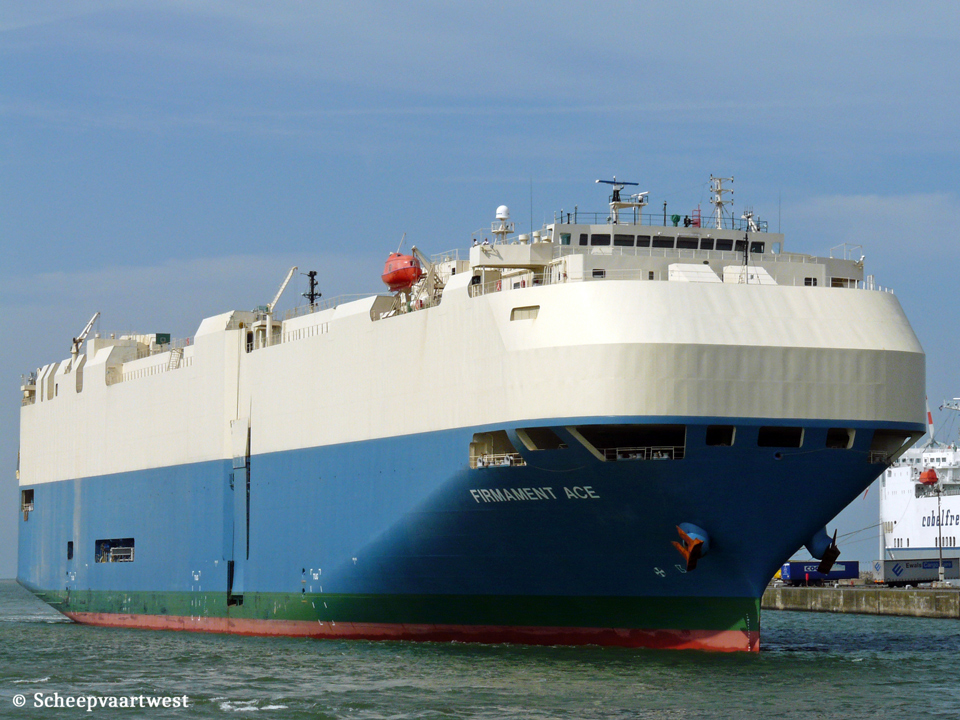

Firmament Ace 22   Firmament Ace 04   Firmament Ace 11   Firmament Ace 14
Zeebrugge 09/08/09   Zeebrugge 30/03/09 Zeebrugge 30/03/09 Zeebrugge 30/03/09


Name

FIRMAMENT ACE

Type

Roll-On/Roll-Off carrier - Vehicles carrier

IMO-number

9293894

Call sign

7KKF

Flag

Japan

Port of registry

Tokyo

Previous flag

08/2006 - Vanuatu

Bahamas, Nassau - Call sign: C6VP5

GT

60.118 t

DWT

17.713 t

NT

18.543 t

Length

199,99 m overall

192,00 m between perpendiculars

Breadth

32,26 m over all

Moulded L x B x D

192,00 x 32,26 x 14,65 m

Registered L x B x D

193,94 x 32,26 x 21,17 m

Draught

Summer: 9,725 m

Freeboard

Summer: 4.965 mm

Depth

34,26 m

Speed

20,5 knots

Built

2006

Keel laid

09/12/2004

Launch date

15/05/2006

Date of completion

22/08/2006

Builder

Shin Kurushima Dockyard Co., Ltd.

Onishi

Japan

Yard number

5307

Hull type

Single hull

Main engine

1x Mitsubishi 8UEC60LSII - 2 stroke single acting 8 cylinder 600 x 2.300 mm combustion 15.090 kW / 20.236 bhp at 98,0 rpm

Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works

Number of screws

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 3,82 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Generatorsets total 4.275 kVA

Car capacity

5.231

Number of ramps

2

Tank capacities

Fuel oil: 2.991 m³

Fresh water: 404 m³

Water ballast: 7,400 m³

Lifting equipment

2x Cranes - SWL 4,0 t each

Crew

25

Manager

MOL Ship Management (Singapore) Pte. Ltd.

17-04, UIC Building, 5, Shenton Way

Singapore 068808

Republic of Singapore

Registered owner

Mitsui O.S.K. Lines, Ltd.

Japan

Latest data adjustment

07 December 2022
