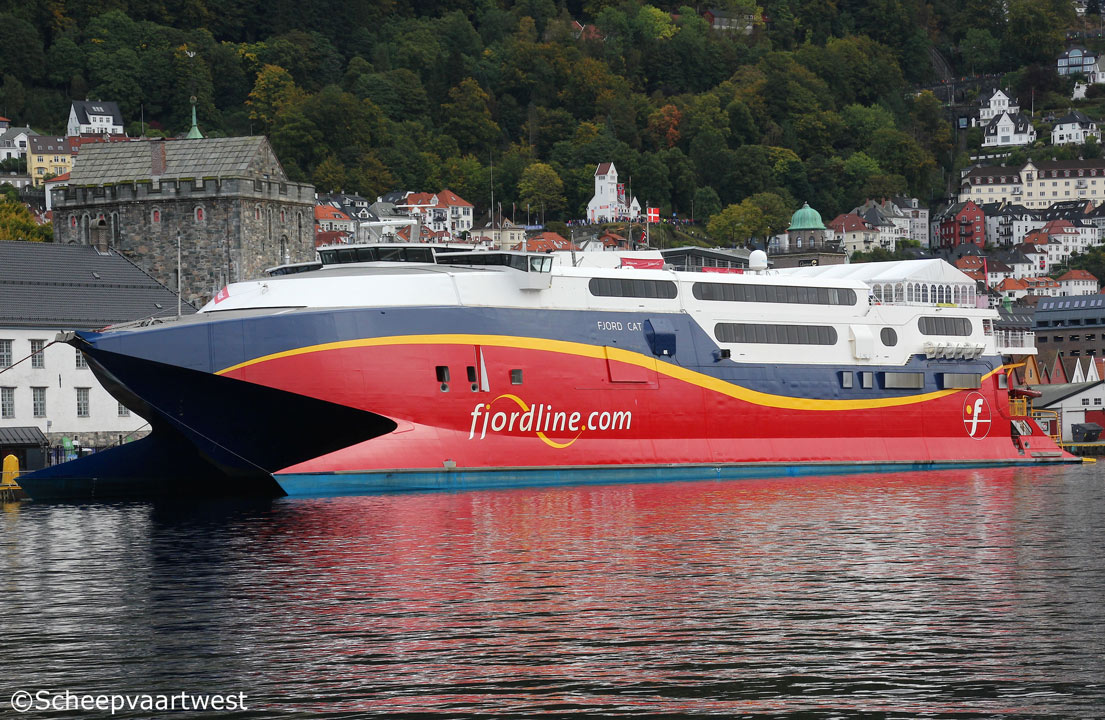

Fjord Cat 02

Bergen, Norway 20 September 2017

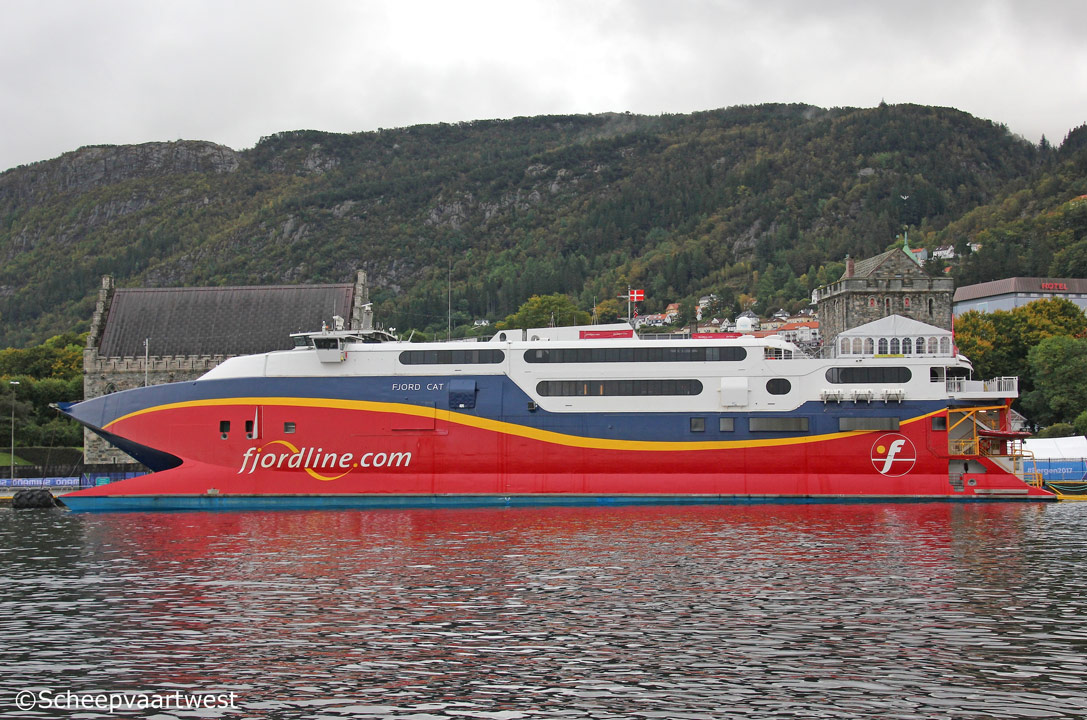

Fjord Cat 01
Bergen, Norway 20/09/17



Name

FJORD CAT

Previous names

06.1998 - 03.1999 Cat Link V

03.1999 - 08.2005 Mads Mols

08.2005 - 02.2006 Incat 049

02.2006 - 02.2006 Mads Mols

02.2006 - 03.2008 Master Cat

Type

Roll-On/Roll-Off carrier / Car ferry / Ocean-going catamaran

High speed

IMO-number

9176060

Call sign

OZCR2

Flag

Denmark

Port of registry

Hanstholm

Previous flags

1998 - 2006 Denmark

2006 - 2008 Norway

Previous port of registry

1998 - 1999 Kalundborg
1999 - 2006 Århus
2006 - 2008 Kristiansand
2008 - 2009 Hanstholm

GT

5.619 t

DWT

Summer: 500

NT

2.314 t

Length

91,30 m overall

76,70 m between perpendiculars

Breadth

26,00 m extreme

Draught

3,70 m

Depth

4,08 m

Speed

Service: 31,2 knots

Max.: 48,0 knots

Routes

07.1998 - 04.1999 Århus - Kalundborg

04.1999 - 12.1999 Århus - Odden

04.2000 - 07.2005 Århus - Odden

04.2006 - 09.2008 Kristiansand - Hanstholm
09.2008 - 2010 Lay up
04.2010 Kristiansand - Hirtshals

Built

1998

Keel laid

13.10.1997

Launch date

14.06.1998

Date of completion

26.06.1998

Builder

International Catamarans Ltd.

Hobart
Tasmania
Australia

Yard number

049

Hull material

Aluminium

Bulkheads

Transverse: 7

Propulsion thruster engines

4x Ruston / Alstrom 20 RK270M MKII diesel engine each 9.494 hp total 37.976 hp / 28.320 kW

Manufacturer: ALSTOM Engines, Ruston Diesels Lts., Newton -le- Willows - United Kingdom

Propulsion

4x Waterjet Lips LJ145D

Generators

4x Caterpillar 3406 DITA diesel generatorsets each 1.028 kW

Number of passengers

676

Number of cars

180

Manager

Fjord Line Denmark A/S
Hirtshals
Denmark

Previous operator

06.1998 - 07.1998 Nordic Catamaran Ferries K/S, Denmark
Charter: 06/1998 - 01.1999 Cat-Link, Denmark
Charter: 01.1999 - 07.2005 Mols-Linien A/S, Denmark
12.2005 - 01.2008 Master Ferries, Norway

Registered owner

Fjord Skibsholding II A/S

Latest data adjustment

02 November 2017
