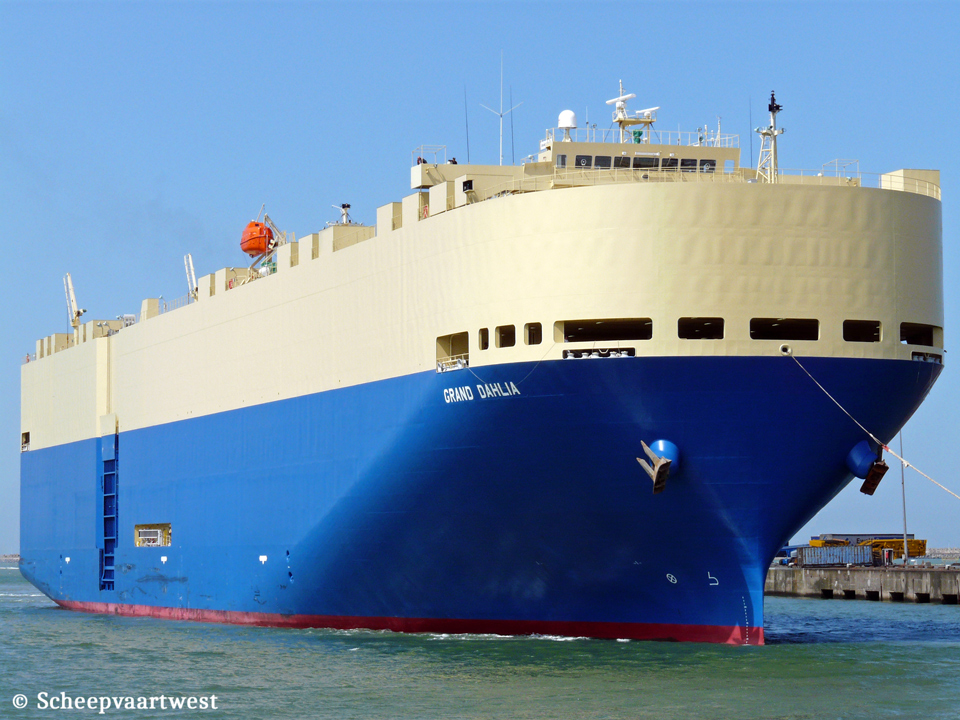

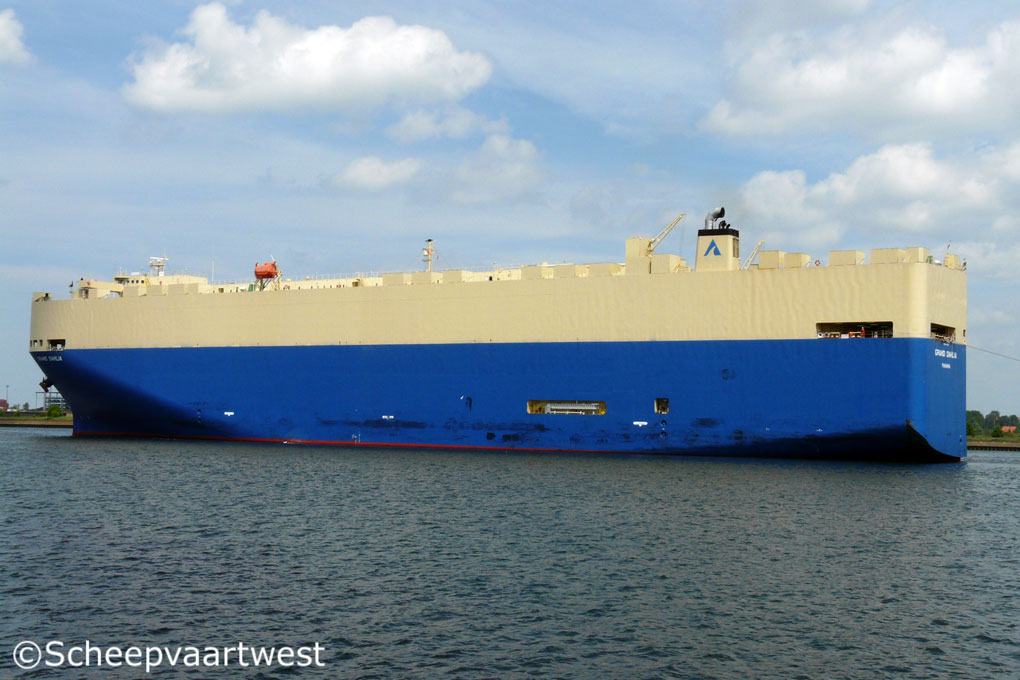

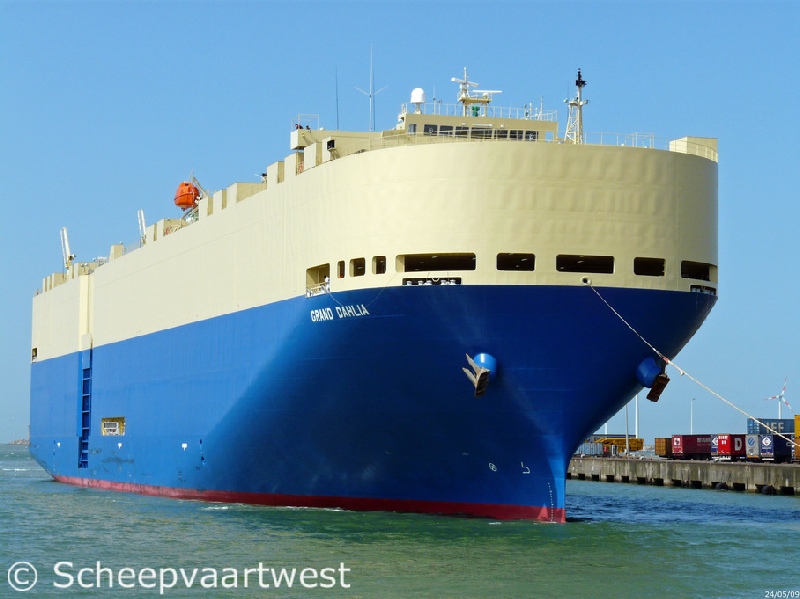

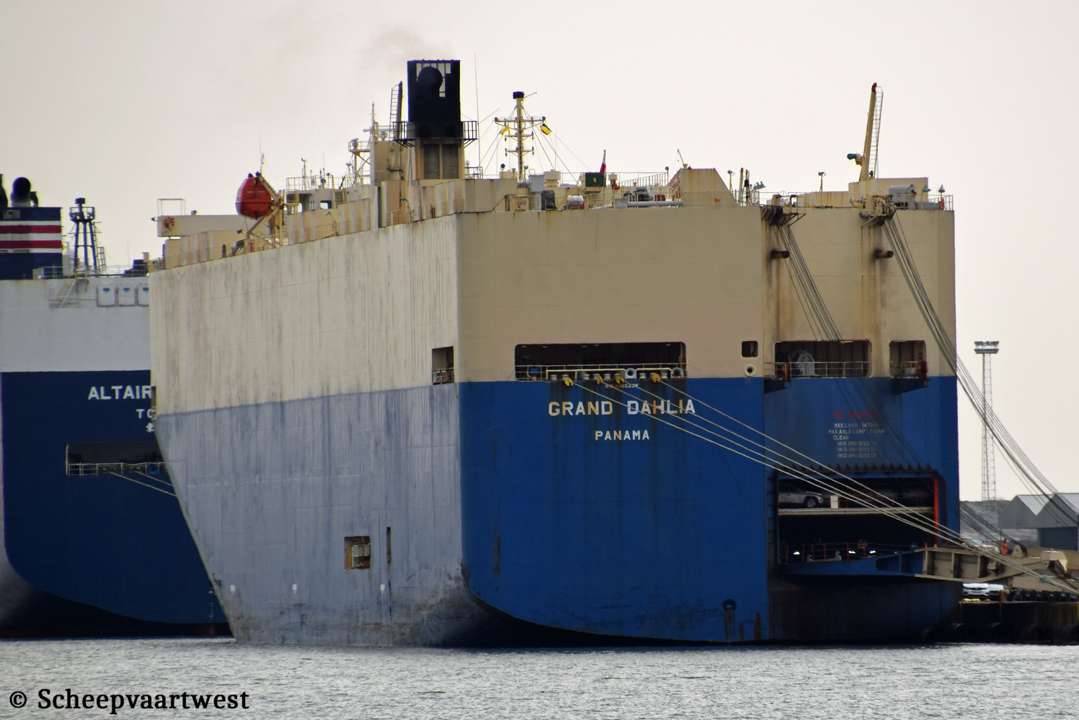

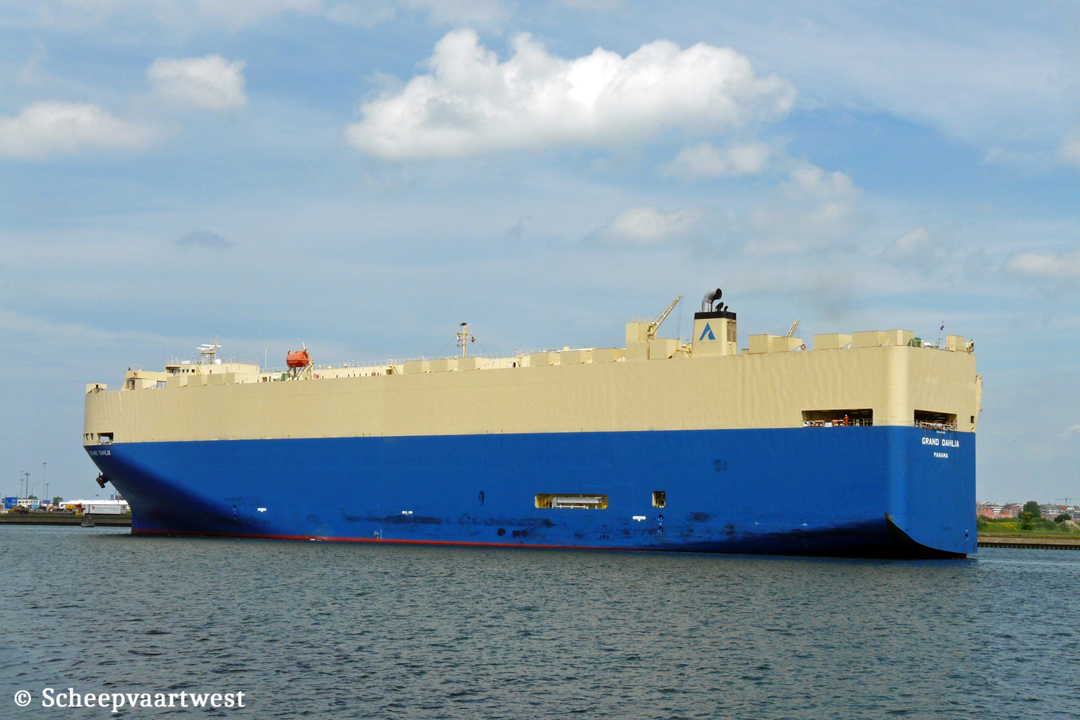

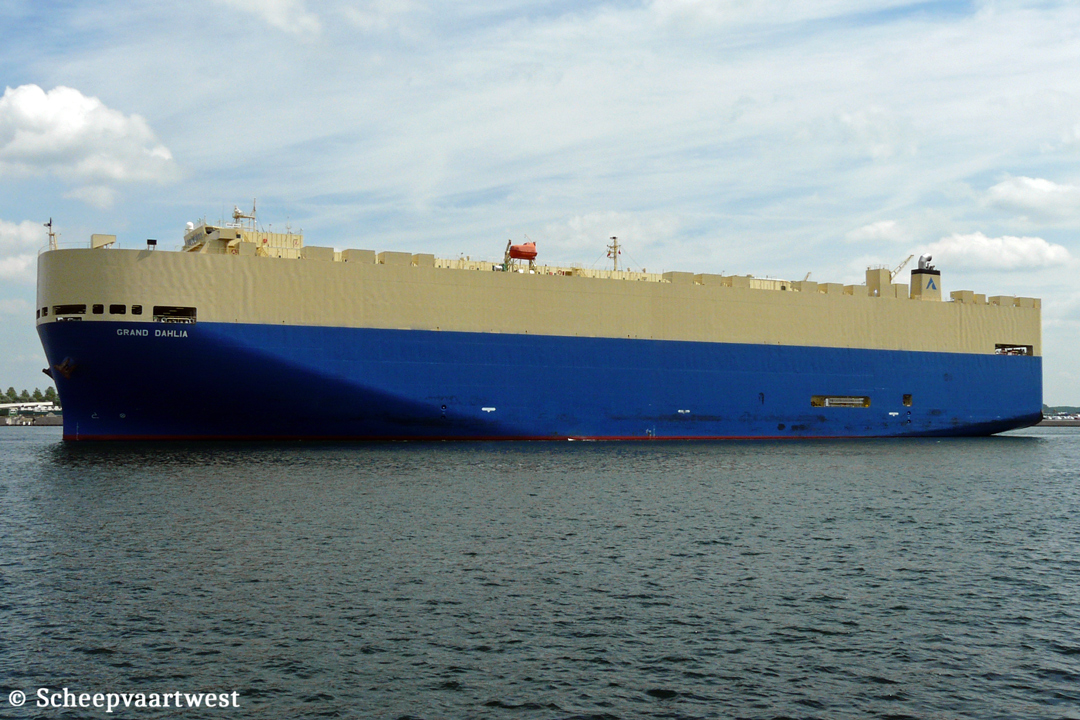

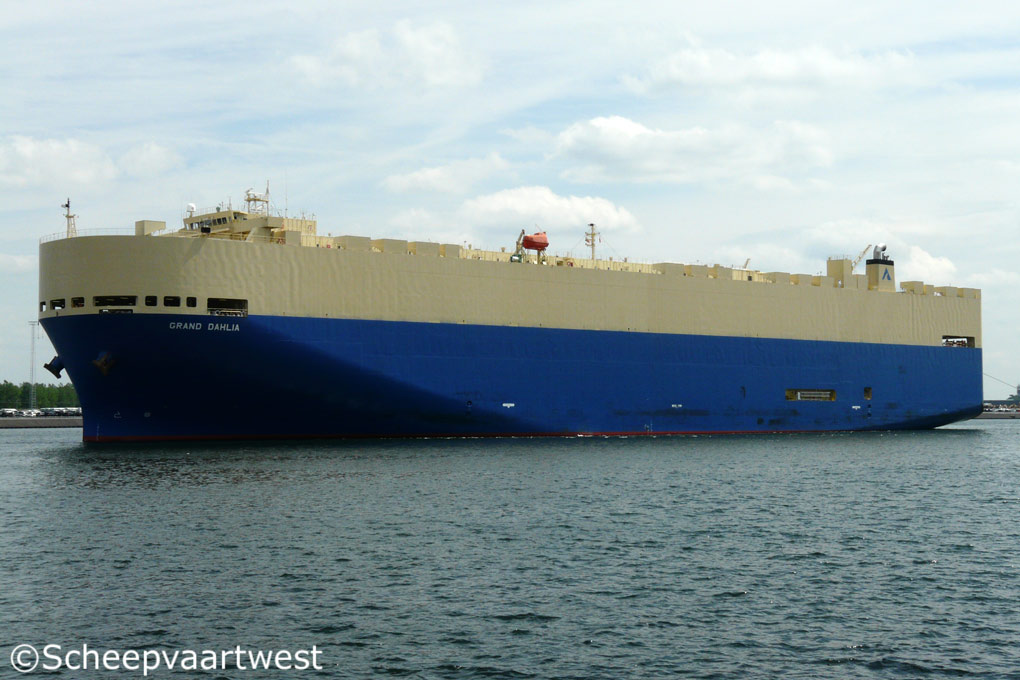

| Zeebrugge 24 May 2009 |
 |
 |
 |
||
| Zeebrugge 05/06/12 | Zeebrugge 05/06/12 | Zeebrugge 22/02/21 | ||
|
Name |
GRAND DAHLIA |
|
Type |
Roll-On/Roll-Off vehicles carrier PCC - Pure Car Carrier |
|
IMO-number |
9355238 |
|
Call sign |
3FRA8 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.217 |
|
DWT |
18.054 t |
|
NT |
17.766 |
|
Length |
199,99 m overall |
|
Breadth |
32,26 m moulded |
|
Reg. Dimensions L x B x D |
194,70 x 32,26 x 25,33 m |
|
Rule Dimensions L x B x D |
192,00 x 32,26 x 35,80 m |
|
Draught |
Summer: 9,62 m |
|
Freeboard |
Summer: 4.664 mm |
|
Depth |
35,80 m |
|
Speed |
20,6 knots |
|
Built |
2009 |
|
Keel laid |
24/07/2008 |
|
Launch date |
19/11/2008 |
|
Date of completion |
15/01/2009 |
|
Builder |
Toyohashi Shipbuilding Co. Ltd. Toyohashi Japan |
|
Yard number |
3616 |
|
Hull type |
Single hull |
|
Bulkheads watertight |
5 |
|
Main engine |
1x 2 stroke single acting 7 cylinder 600 x 2.292 mm combustion engine 14.280 kW at 105,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co.,Ltd. Tamano Works. |
|
Number of screws |
1 |
|
Boilers |
1x Auxiliary Steam tube boiler (STB) - 6,9 bar Heating surface: 44,8 m² 1x Auxiliary Steam tube boiler (STB) - 10,9 bar Heating surface: 171,2 m² Built: 2007 Manufacturer: Tortoise Engineering CO., LTD., Ehime - Japan |
|
Generators |
3x Diesel generatorsets each 1.200 kVA - 450 V |
|
Tank capacities |
Fuel oil: 3.132,70 m³ Freshwater: 466,00 m³ Water ballast: 10.155,20 m³ |
|
Crew |
22 |
|
Commercial manager |
Cido Shipping (HK) Co. Ltd. 20th Floor, World Wide House 19 Des Voeux Road Hong Hong - China |
|
Technical manager |
Cido Shipping (Korea) Co., Ltd. (Pusan Site) 3rd & 4th Floors, 798, Jungang-daero, Busanjin-gu, Busan South Korea |
|
Owner |
Dynamic Exploiter Marine S.A. Care of Cido Shipping (HK) Co. Ltd. 20th Floor, World Wide House 19 Des Voeux Road Hong Hong - China |
|
Latest data adjustment |
02 May 2025 |
