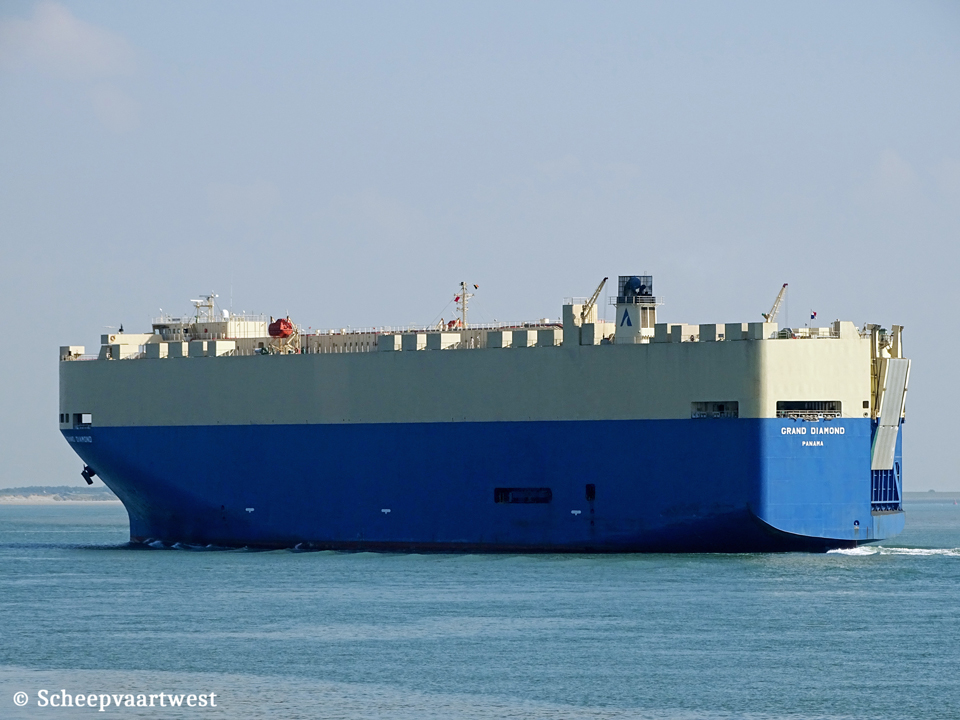

Westerschelde 28 April 2018 |
 |
 |
|

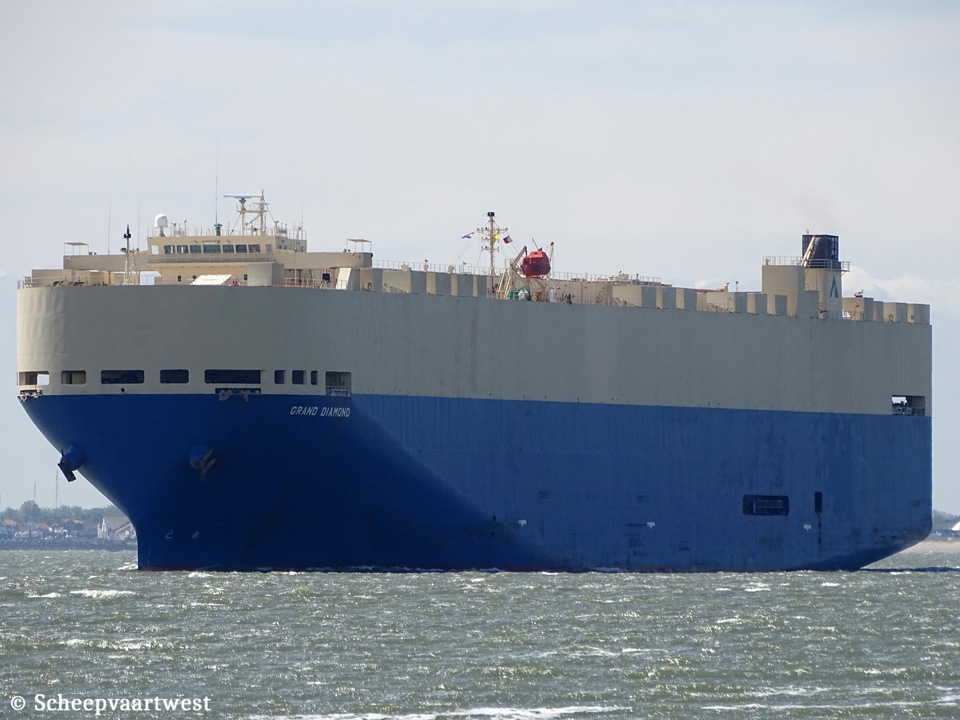

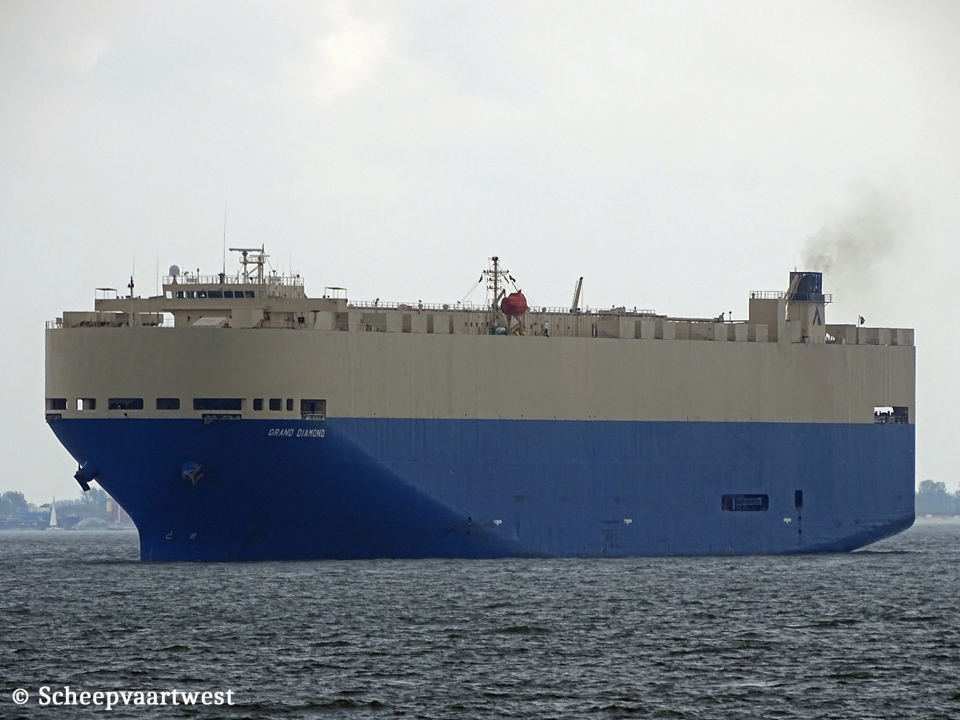

| Westerschelde 01/05/18 | Westerschelde 23/09/17 | |
|
Name |
GRAND DIAMOND |
|
Type |
Roll-On/Roll-Off carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9303223 |
|
Call sign |
3EHY |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.217 t |
|
DWT |
Summer: 18.058 t |
|
NT |
17.766 t |
|
Length |
199,00 m overall |
|
Breadth |
32,26 m |
|
Draught |
Summer: 9,63 m |
|
Reg. dimensions Lx Bx D |
194,70 x 32,26 x 25,33 m |
|
Rule Dimensions Lx Bx D |
192,00 x 32,26 x 35,80 m |
|
Freeboard |
Summer: 4.664 mm |
|
Depth |
23,55 m |
|
Speed |
20,6 knots |
|
Built |
2007 |
|
Keel laid |
09/11/2004 |
|
Launch date |
16/10/2006 |
|
Date of completion |
09/01/2007 |
|
Builder |
Shin Kurushima Toyohashi Shipbuilding Co., Ltd. Toyohashi Japan |
|
Yard number |
H-3591 |
|
Hull material |
Steel |
|
Watertight bulkheads |
5 |
|
Number of decks |
9 |
|
Main engine |
1x Mitsui/MAN-B&W 7S60MC - 2 stroke single acting 7 cylinder 600 x 2.292 mm combustion engine 14.280 kW at 105,0 rpm Build: 02/2006 |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary Boiler STB - 6,9 kg/cm² Heating surface: 44,8 m³ 2x Economizer EGE - 10,9 kg/cm² Heating surface: 171,2 m² Build: 01/2006 Builder: Tortoise Engineering Co., Ltd., Ehime - Japan |
|
Generators |
4x Main diesel generatorsets each 960 kW / 1.200 kVA - 450 Volt |
|
Car capacity |
6.402 |
|
Number of ramps |
3 |
|
Tank capacities |
Fuel oil: 3.132,8 m³ Fresh water: 466,0 m³ Water ballast: 10.155,2 m³ |
|
Crew |
17 |
|
Commercial manager |
Cido Shipping (H.K.) Co., Ltd. 20th Floor World Wide House 19 des Voeux Road Central Hong Kong |
|
ISM manager |
Cido Shipping(Korea) Co., Ltd. Pusan South Korea |
|
Registered owner |
Blooming Anemone Corporation |
|
Previous owners |
Ocean Transit Carrier S.A. c/o Yamamaru Kisen KK - Japan |
|
Latest data adjustment |
29 November 2022 |
