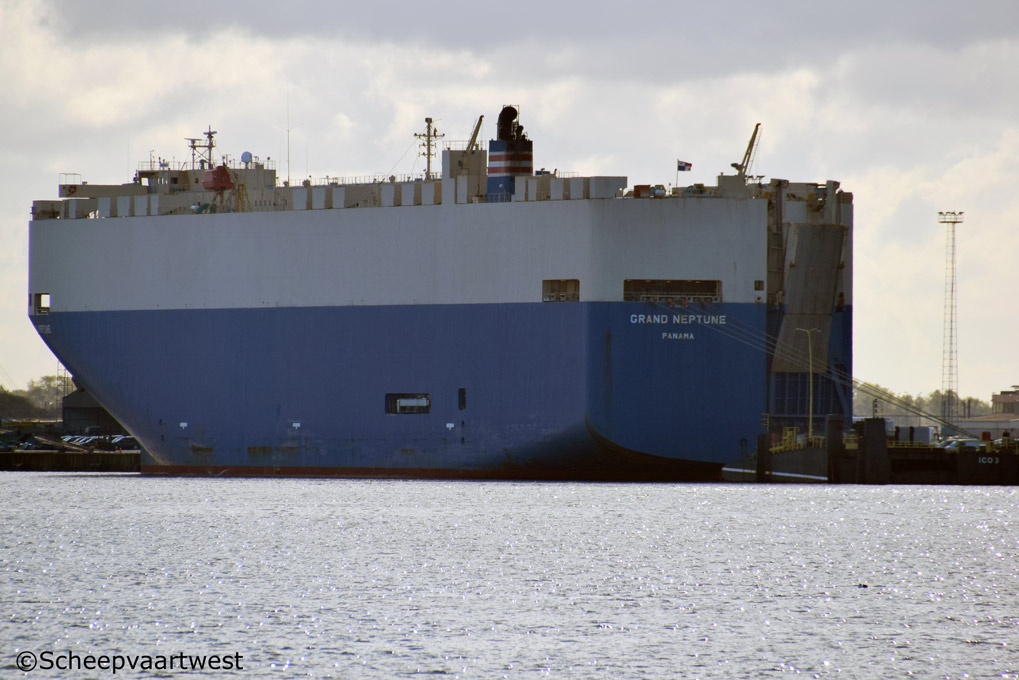

| Zeebrugge 10 April 2022 |
 |
 |
 |
||

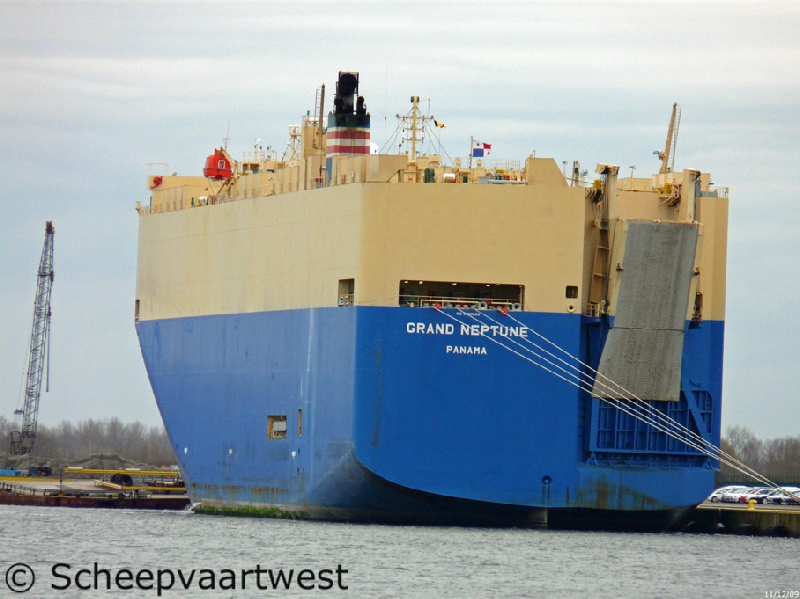

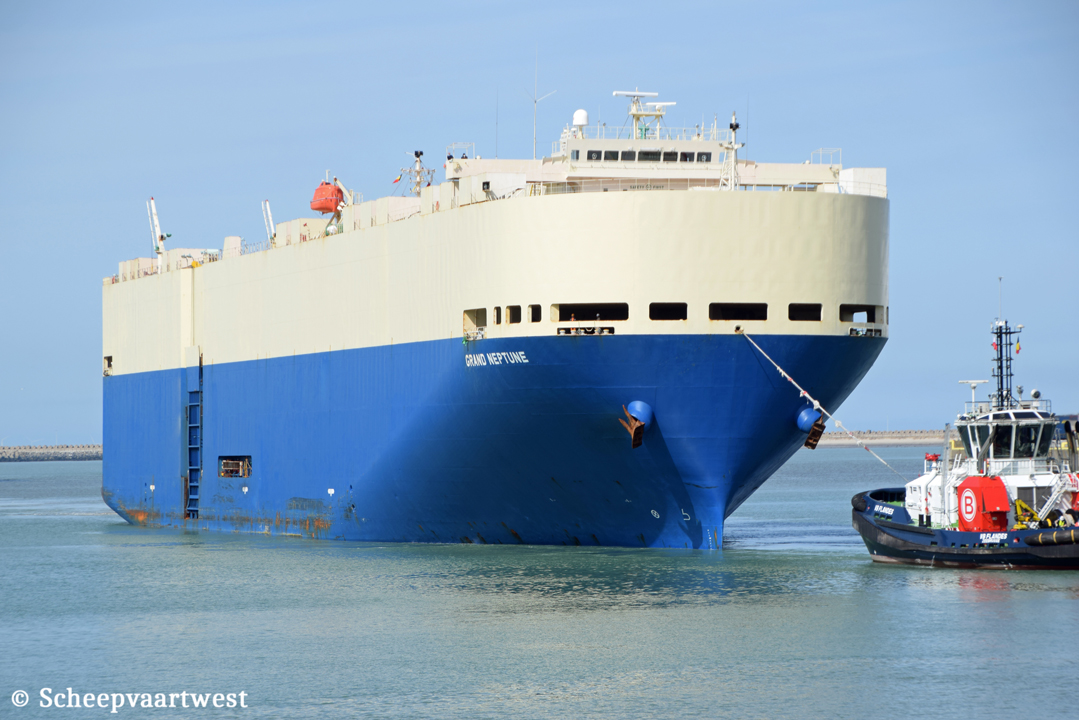

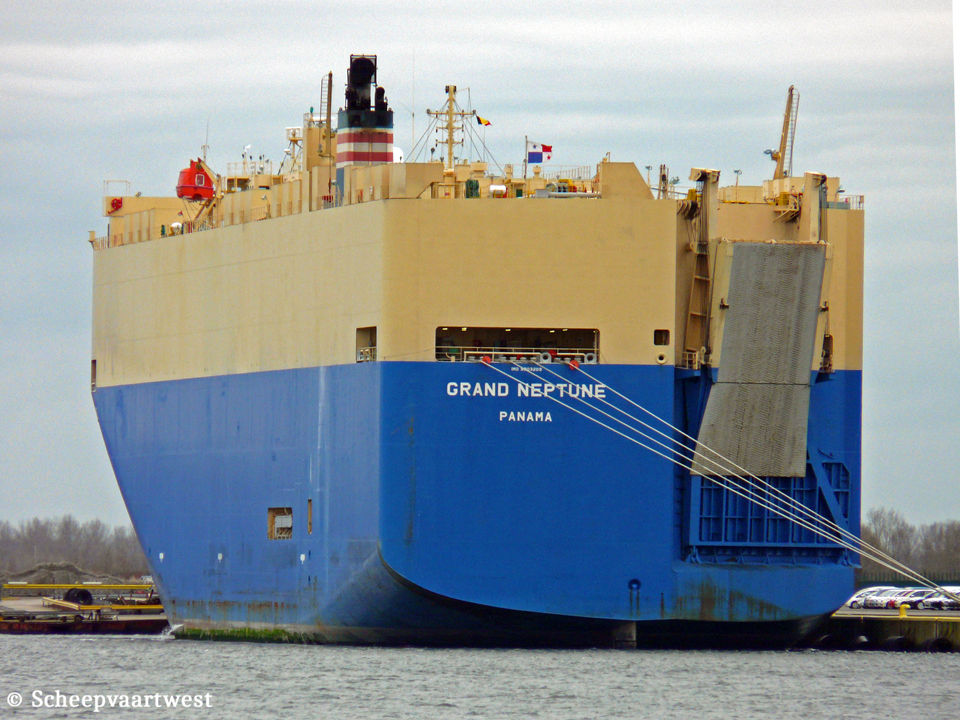

| Zeebrugge 10/04/22 | Zeebrugge 11/12/09 | Zeebrugge 22/10/16 |
|
Name |
GRAND NEPTUNE |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier |
|
IMO-number |
9303209 |
|
Call sign |
3EEX9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.217 t |
|
DWT |
18.318 t registered |
|
NT |
17.766 t |
|
Length |
199,90 m overall 192,00 m between perpendiculars |
|
Breadth |
32,26 m |
|
Reg. Dimensions L x B x D |
194,70 x 32,26 x 25,33 m |
|
Rule Dimensions L x B x D |
192,00 x 32,26 x 35,80 m |
|
Draught |
Summer: 9,62 m |
|
Freeboard |
Summer: 4.664 mm |
|
Speed |
Service: 19,5 knots Max.: 20,6 knots |
|
Built |
2006 |
|
Keel laid |
03/11/2004 |
|
Launch date |
30/01/2006 |
|
Date of completion |
27/03/2006 |
|
Builder |
Shin Kurushima Toyohashi Shipbuilding Co., Ltd. Toyohashi Japan |
|
Yard number |
H-3583 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
5 |
|
Main engine |
1x Mitsui - 2 stroke single acting 7 cylinder 600 x 2.292 mm combustion 14.280 kW / 18.415 bhp at 105,0 rpm |
|
Number of screws |
1 |
|
Boilers |
1x Auxiliary steam tube boiler - 6,9 bar Heating surface: 44,8 m² 2x Auxiliary steam tube boiler - 1,09 bar Heating surface: 171,2 m² |
|
Generators |
4x Main diesel generatorsets - 1.200 kVA 450 Volt |
|
Number of decks |
9 |
|
Number of car |
6.400 |
|
Tank capacities |
Fuel oil: 3.132 m³ Fresh water: 466 m³ Water ballast: 10.155,20 m³ |
|
Crew |
20 |
|
Manager |
Cido Shipping(Korea) Co., Ltd. |
|
Technical Manager |
Cido Shipping(Korea) Co., Ltd. (Pusan Site) |
|
Registered owner |
Dynamic Advantage Marine S.A. |
|
Latest data adjustment |
21 April 2022 |
