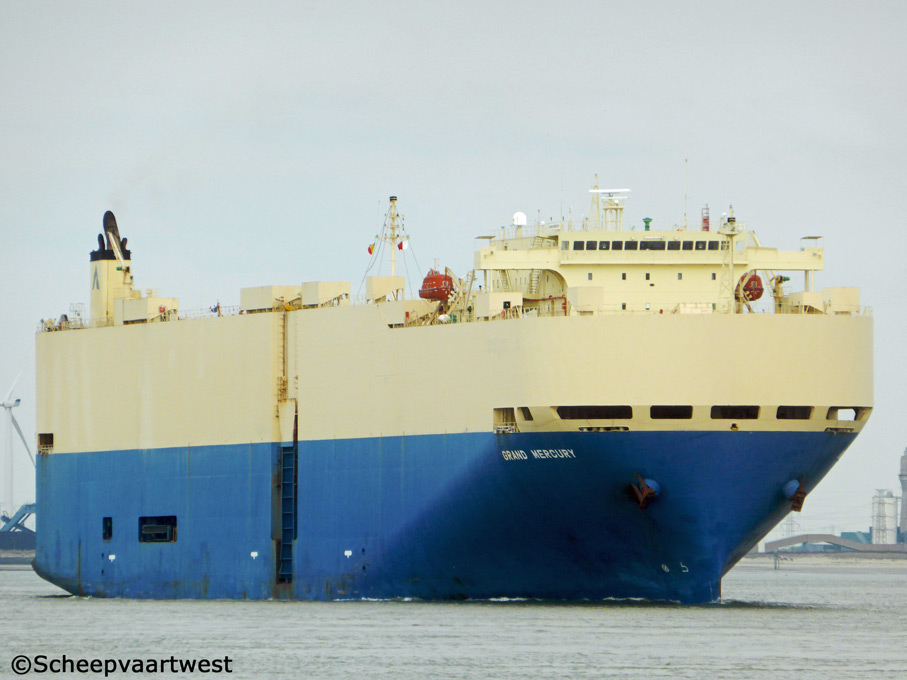

| Westerschelde 25 May 2014 |
 |
 |
|

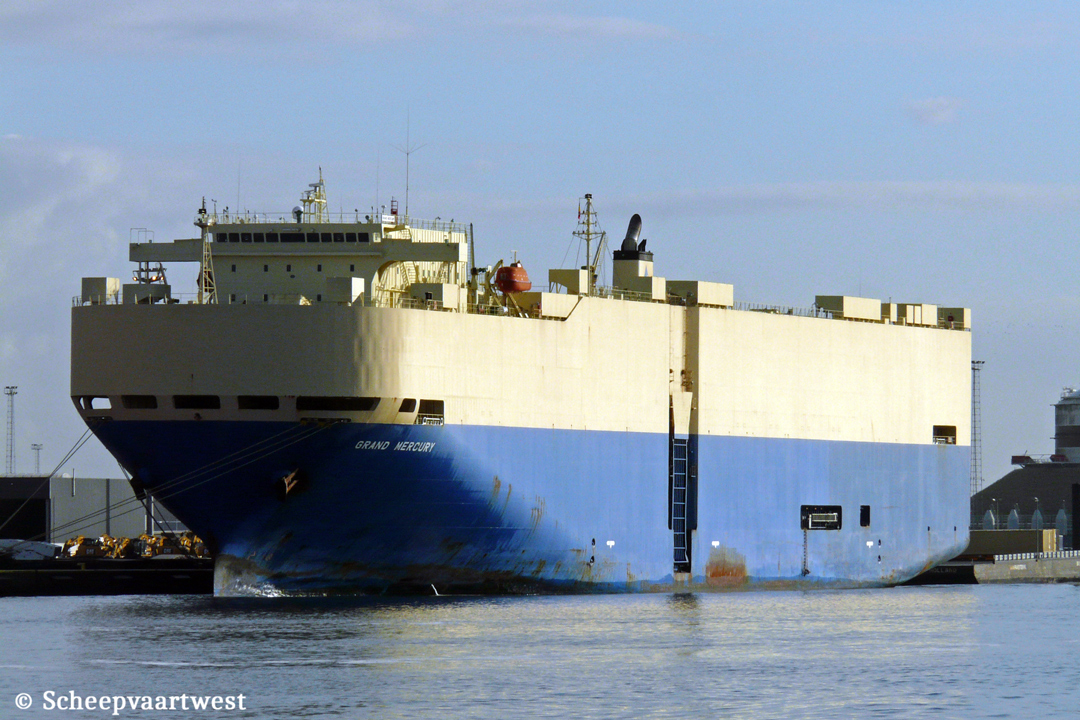

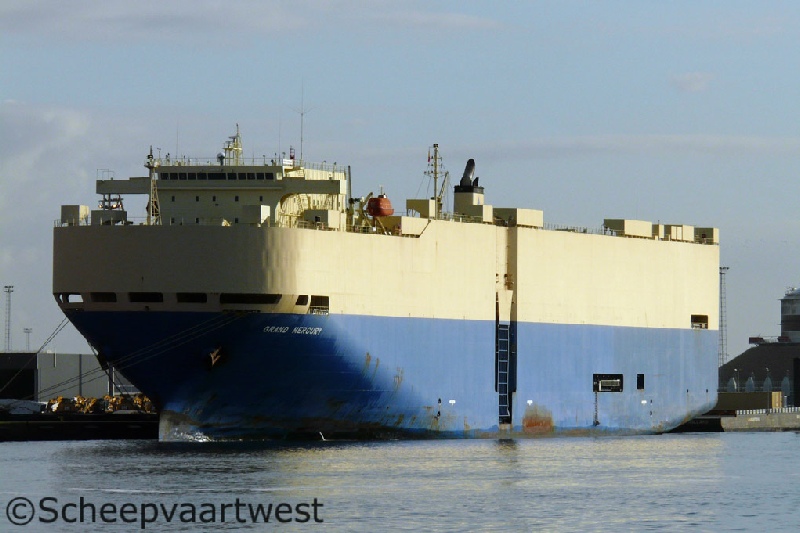

| Zeebrugge 14/01/12 | Zeebrugge 14/01/12 | |
|
GRAND MERCURY |
|
|
Type |
Roll-Off/Roll-On car carrier PCC - Pure Car Carrier |
|
IMO-number |
9247584 |
|
Call sign |
HOOC |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
58.947 |
|
DWT |
Summer: 19.121 t |
|
NT |
17.685 |
|
Length |
199,50 m |
|
Breadth |
32,26 m |
|
Draught |
Summer: 9,63 m |
|
Reg. Dimensions L x B x D |
192,85 x 32,26 x 23,82 m |
|
Rule Dimensions L x B x D |
190,00 x 32,26 x 34,06 m |
|
Freeboard |
Summer: 5.014 mm |
|
Depth |
23,82 m registered |
|
Speed |
20,75 knots |
|
Built |
2002 |
|
Keel laid |
21/01/2002 |
|
Launch date |
17/06/2002 |
|
Date of completion |
24/09/2002 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. Ehime Japan |
|
Yard number |
H-5137 |
|
Watertight bulkheads |
Transverse: 6 |
|
Main engine |
1x Mitsubishi 8UEC60LS - 2 Stroke single acting 8 cylinder 600 x 2.200 mm combustion engine 14.160 kW / 19.257 bhp at 100,0 rpm |
|
Boilers |
1x Auxiliary steam tube boiler STB - 6,9 bar Heating surface: 41,4 m² 1x Auxiliary exhaust gas economizer EGE - 9,8 bar Heating surface: 213,3 m² Builder: Tortoise Engineering Co., Ltd. Matsuyama Japan |
|
Generators |
3x Main diesel generatorsets each 960 kW / 1.200 kVA - 450 Volt |
|
Number of decks |
13 |
|
Number of cars |
6.400 |
|
Tank capacities |
Fuel oil: 1.757 m³ Fresh water: 402 m³ Water ballast: 7.915 m³ |
|
Crew |
22 |
|
Commercial manager |
Cido Shipping (H.K.) Co., Ltd. 20th Floor, World Wide House 19, Des Voeux Road Central Hong Kong - China |
|
Technical manager |
Cido Shipping (Korea) Co., Ltd. (Pusan Site) 3rd & 4th Floors, 798, Jungang-daero, Busanjin-gu Busan South Korea |
|
Registered owner |
Dynamic Sunrise Shipping S.A c/o Cido Shipping (HK) Co Ltd . 20th Floor, World Wide House 19, Des Voeux Road Central Hong Kong - China |
|
Latest data adjustment |
04 May 2025 |
