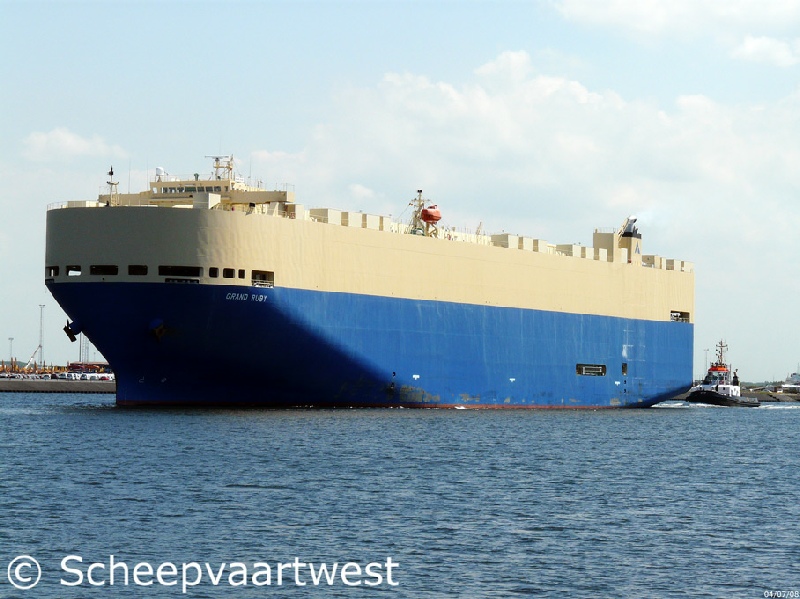

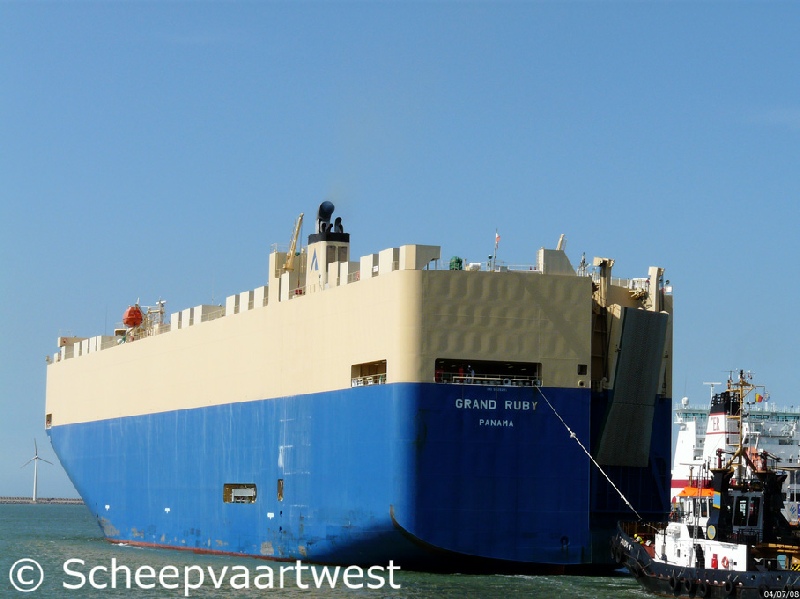

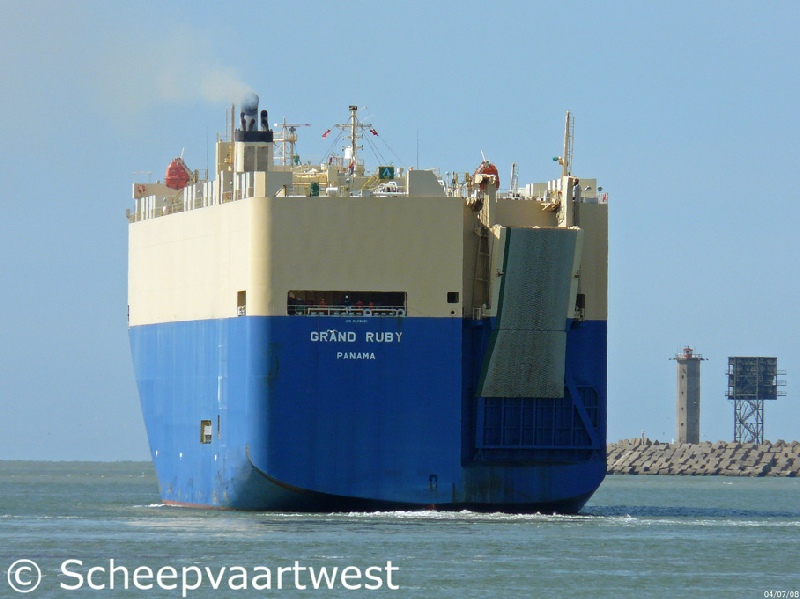

| Zeebrugge 04 July 2008 |
 |
 |
 |
||

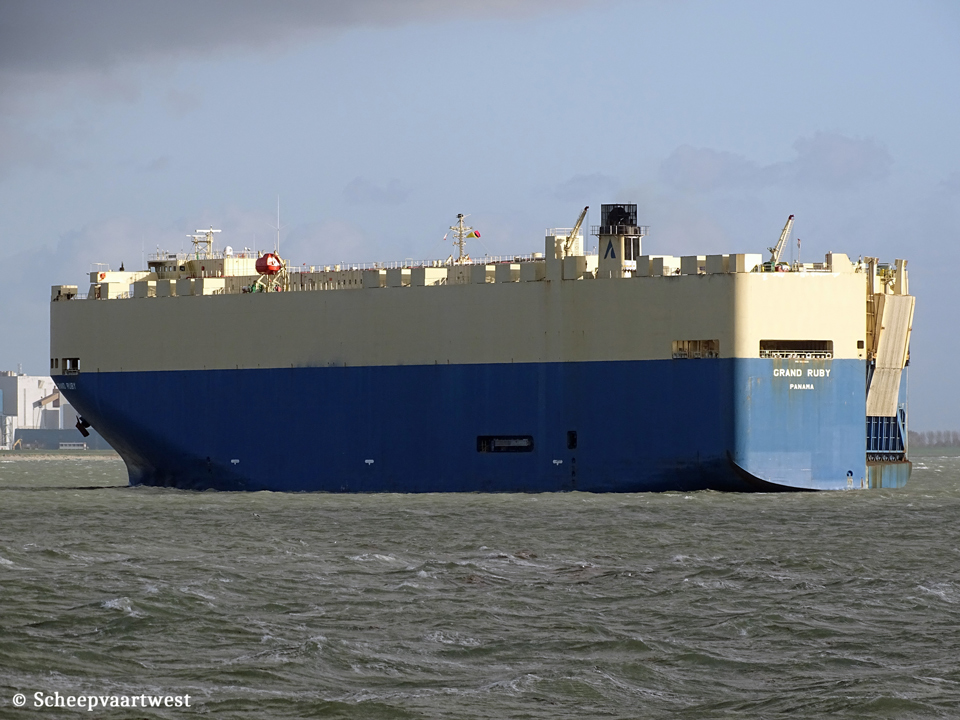

| Zeebrugge 04/07/08 | Zeebrugge 04/07/08 | Westerschelde 03/11/20 |
|
Name |
GRAND RUBY |
|
Type |
Roll-On/Roll-Off vehicles carrier PCC - Pure Car Carrier |
|
IMO-number |
9325221 |
|
Call sign |
3EIU3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.217 t |
|
DWT |
18.117 t |
|
NT |
17.766 t |
|
Length |
199,90 m overall 192,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Reg. Dimensions L x B x D |
194,70 x 32,26 x 25,33 m |
|
Rule Dimensions L x B x D |
192,00 x 32,26 x 35,80 m |
|
Draught |
Summer: 9,625 m |
|
Depth |
35,79 m |
|
Speed |
Max.: 20,6 knots |
|
Built |
2007 |
|
Keel laid |
09/11/2004 |
|
Launch date |
24/11/2006 |
|
Date of completion |
08/02/2007 |
|
Builder |
Shin Kurushima Toyohashi Shipbuilding Co., Ltd. Toyohashi Japan |
|
Yard number |
H-3592 |
|
Hull type |
Single hull |
|
Watertight bulkheads |
5 |
|
Main engine |
1x MAN-B&W/Mitsui 7S60MC Mk6 - 2 stroke single acting 7 cylinder 600 x 2.292 mm combustion engine 14.280 kW / 19.420 bhp at 105,0 rpm Build: 08/2006 |
|
Number of screws |
1 |
|
Boilers |
1x Auxiliary steam tube boiler - 6,9 bar Heating surface: 44,8 m² 2x Auxiliary exhaust gas tube - 10,9 bar Heating surface: 171,2 m² Build: 07/2006 Builder: Tortoise Engineering Co., Ltd., Ehime - Japan |
|
Generator |
3x Main diesel generatorsets each 1.200 kVA - 450 Volt |
|
Car capacity |
6.400 |
|
Number of decks |
9 |
|
Number of ramps |
3 |
|
Tank capacities |
Fuel oil: 3.132,8 m³ Fresh water: 46,0 m³ Water ballast: 10.122,2 m³ |
|
Commerical manager |
CIDO Shipping (H.K.) Co., Ltd. 20th Floor, World Wide House, 19, Des Voeux Road Central Hong Kong China |
|
Technical manager |
Cido Shipping(Korea) Co., Ltd. (Pusan Site) 3rd & 4th Floors, 798, Jungang-daero, Busanjin-gu, Busan, 614-706 South Korea. |
|
Registered owner |
TK Navigation Panama SA Care of Cido Shipping (HK) Co Ltd , 20th Floor, World Wide House, 19, Des Voeux Road Central Hong Kong China |
|
Latest data adjustment |
24 December 2021 |
