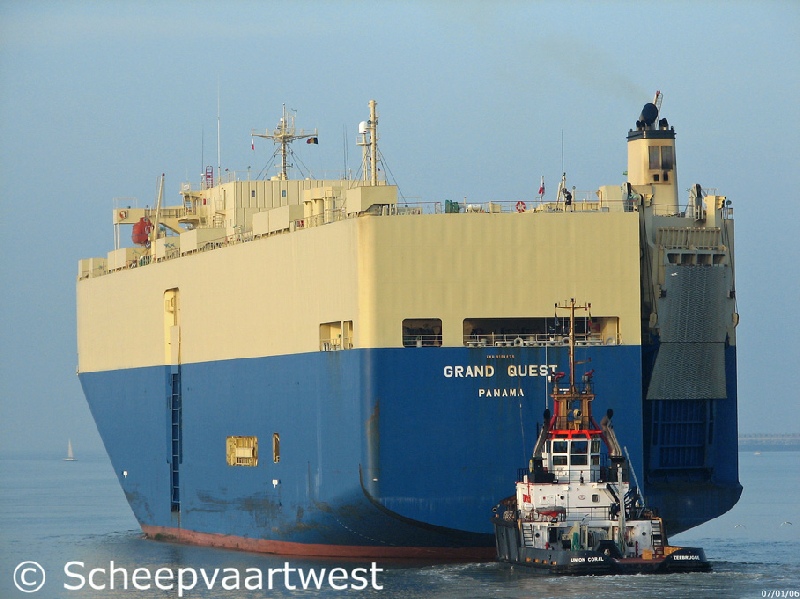

Grand Quest 05
Zeebrugge 07 January 2006



Name

GRAND QUEST

Type

Roll-ON/Roll-Off vehicles carrier

PCC - Pure Car Carrier

IMO-number

9181479

Call sign

3FTO9

Flag

Panama

Port of registry

Panama City

GT

50.309 t

DWT

16.702 t

NT

15.093 t

Length

179,16 m overall
173,36 m between perpendiculars

Breadth

32,26 m over all

Reg. dimensions L x B x D

173,36 x 32,26 x 23,78 m

Rule dimensions L x B x D

173,36 x 32,26 x 34,05 m

Draught

Summer: 9,123 m

Freeboard

Summer: 5.494 mm

Depth

34,05 m

Speed

20,1 knots

Built

1999

Keel laid

24.06.1998

Launch date

09.08.1999

Date of completed

09.11.1999

Builder

Kanasashi Shipbuilding Co. Ltd.
Toyohashi

Japan

Yard number

3475

Hull type

Single hull

Bulkheads

6x Watertight

Main engine

1x 2 stroke single acting 7 cylinder 600 x 2.200 mm engine - Output 12.356 kW at 100,0 rpm

Built: 1999

Builder: Kobe Diesel Co., Ltd., Nagasaki - Japan

Number of screws

1

Generators

4x Main diesel generatorsets each 1.150 kVA - 450 Volt

Boiler maker

1x Auxiliary steam tube boiler - 6,9 bar

Heating surface: 29,3 m²

2x Auxiliary exhaust gas boiler - 10,3 bar
Heating surface 204,1 m²

Builder: Masaki

Propulsion system

Single screw diesel engine

Car capacity

4.373

Tank capacities

Fuel oil: 2.522,6 m³
Fresh water: 333 m³
Water ballast: 7331,4 m³

Manager

Cido Shipping (H.K) Co Ltd.

Technical manager

Cido Shipping(Korea) Co., Ltd. (Pusan Site)
