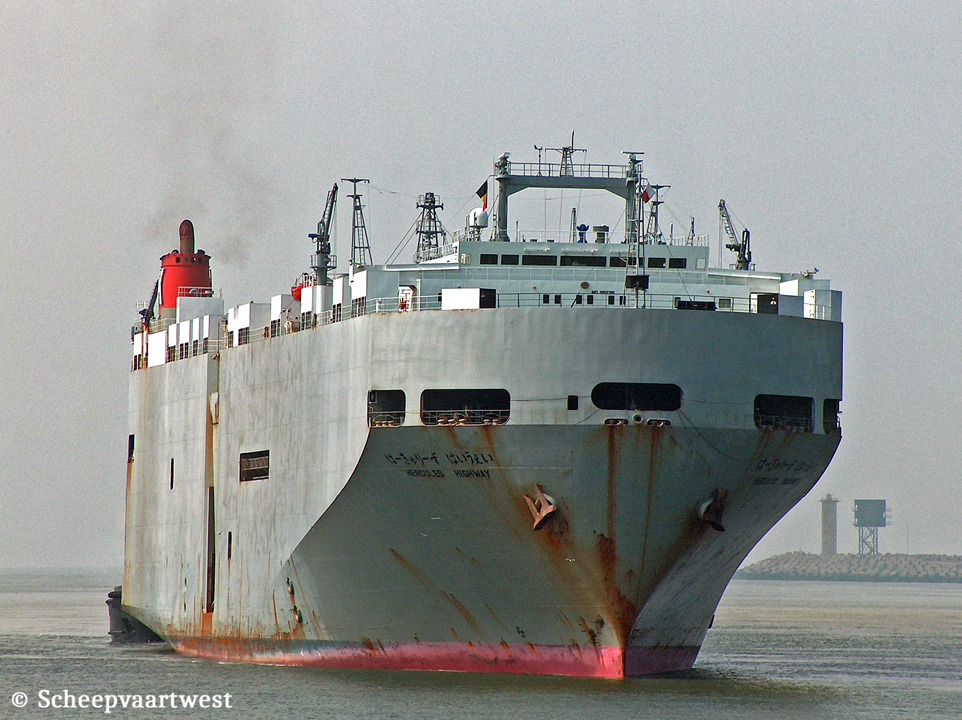

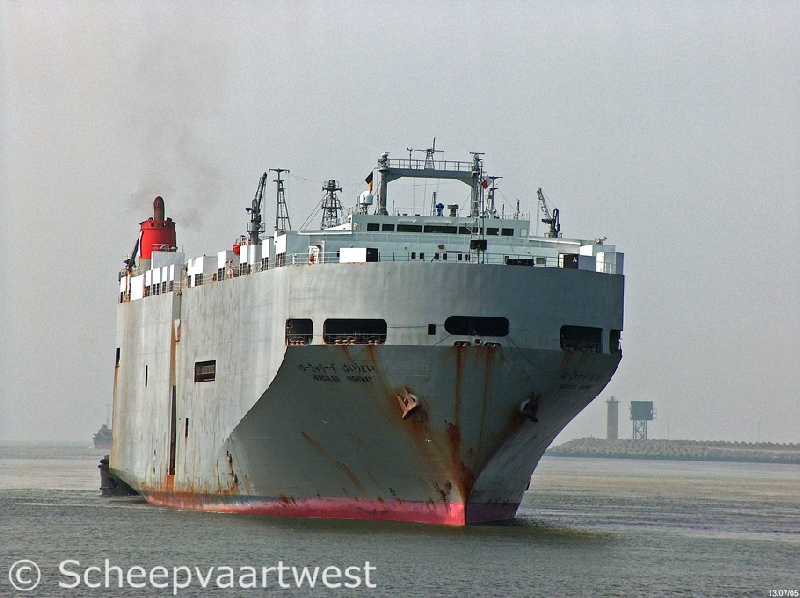

Hercules Highway 13
Zeebrugge 13 July 2005

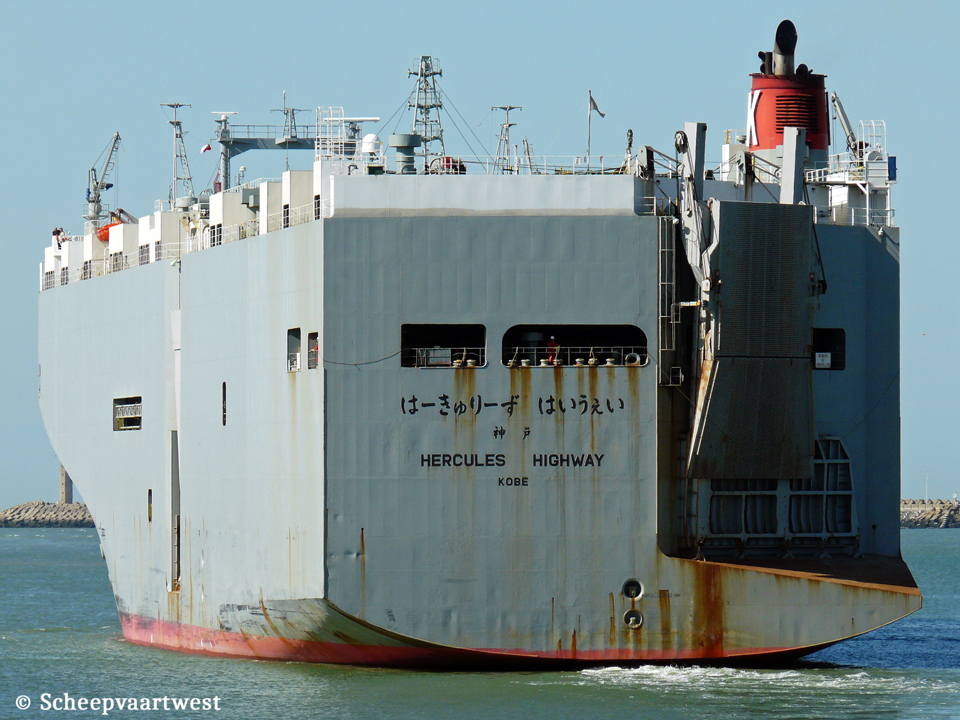

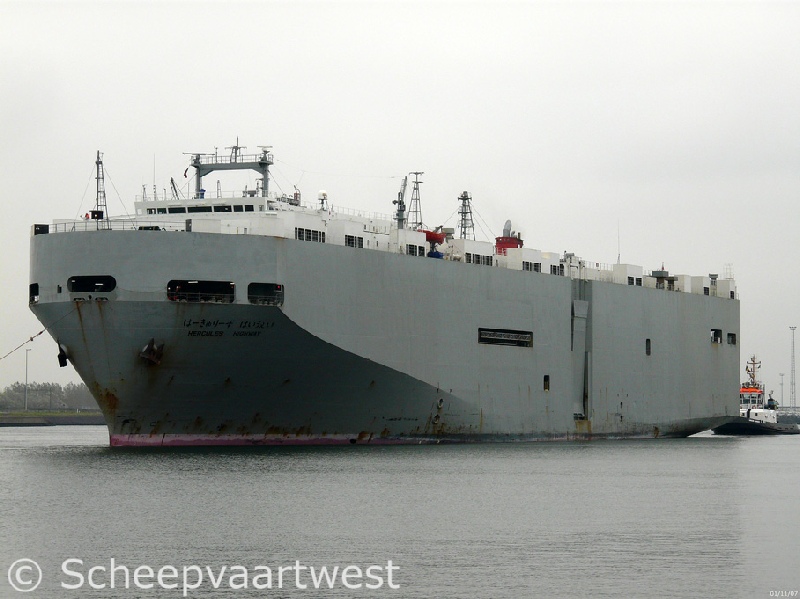

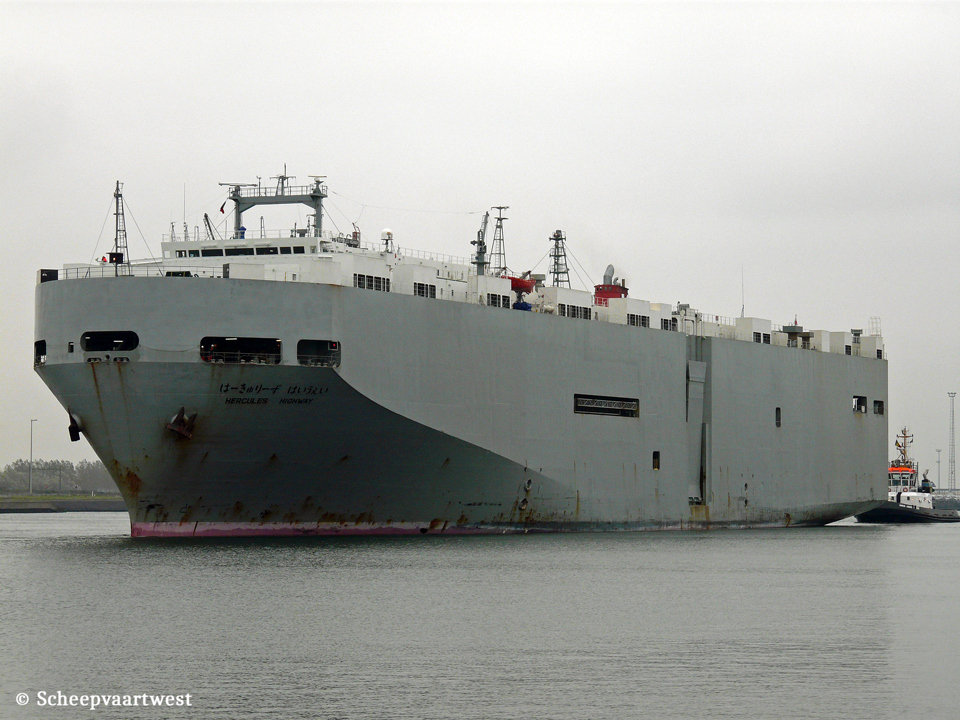

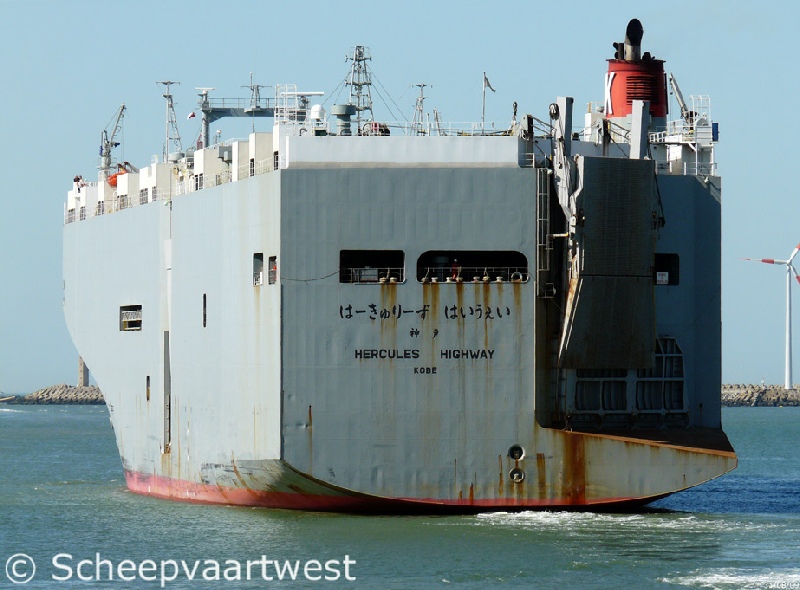

Hercules Highway 19   Hercules Highway 07   Hercules Highway 26
Zeebrugge 01/11/07 Zeebrugge 26/08/04 Zeebrugge 31/08/09



Name

HERCULES HIGHWAY

Type

Roll-On/Roll-Off vehicles carrier
PCC - Pure Car Carrier

IMO-number

8612316

Official number

129162

Call sign

JKOW

Flag

Japan

Port of registry

Kobe

GT

46.875 t

DWT

14.977 t

NT

14.062 t

Length

179,58 m overall
170,00 m between perpendiculars

173,60 m registered

Breadth

32,24 m over all

Draught

Summer: 9,22 m

Freeboard

Summer: 5.674 mm

Depth

14,86 m

Speed

18,5 knots

Built

1987

Keel laid

30.06.1986

Launch date

02.12.1986

Date of completion

13.02.87

Builder

Tsuneishi Shipbuilding Co Ltd.

Numakuma
Japan

Yard number

594

Hull type

Single hull

Main engine

1x B&W 8L70MC - 2 stroke single acting 8 cylinder 600 x 2.292 mm engine - 10.297 kW at 102,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Number of screws

1

Boiler

1x Auxiliary vertical boiler - 7,9 bar

Evaporation:3,44 t/h

Manufacturer: Nishida Marine Boiler Co., Ltd.

Generators

4x Main diesel generatorsets each 2.914 kVA

Deck height

4,50 m

Ramp capacity

100 ton

Cargo capacity

Cars: 4.925

Trucks: 576

Lifting equipment

1x Crane - SWL 2,5 t

2x Cranes - SWL 3,0 t each

2x Cranes - SWL 4,0 t each

Tank capacities

Fuel oil: 2.555 m³

Fresh water: 437 m³

Water ballast: 7.348 m³

Manager

Taiyo Nippon Kisen
Kobe
Japan

Operator

K-Line - Kawasaki Kisen Kaisha Line

Registered owner

Taiyo Nippon Kisen Ltd.
Kobe
Japan

Scrapped

09.2016 at Alang - India
