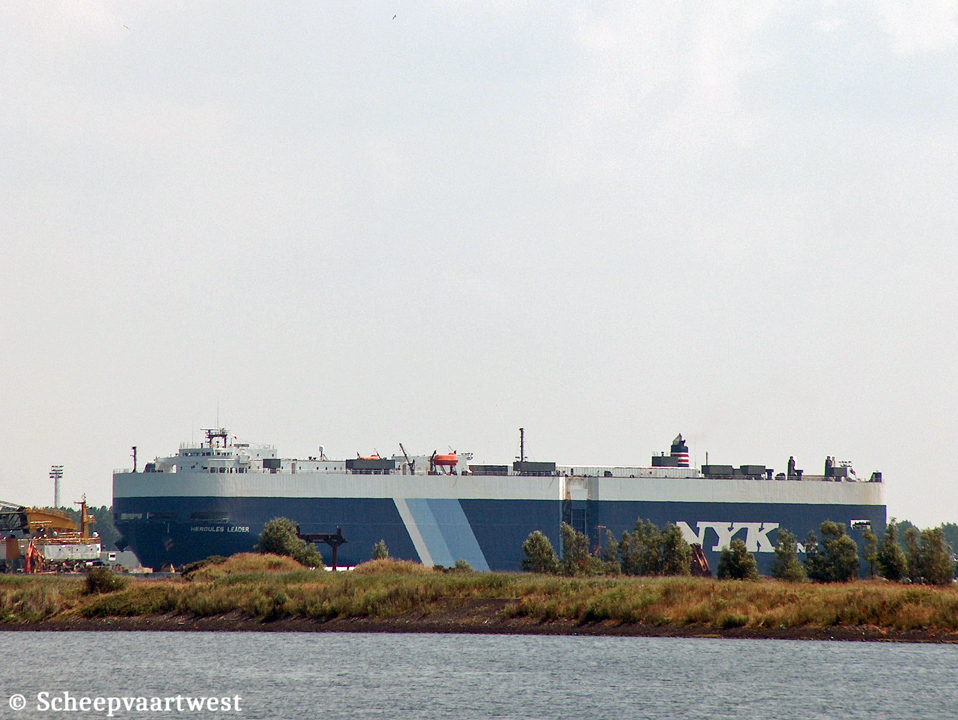

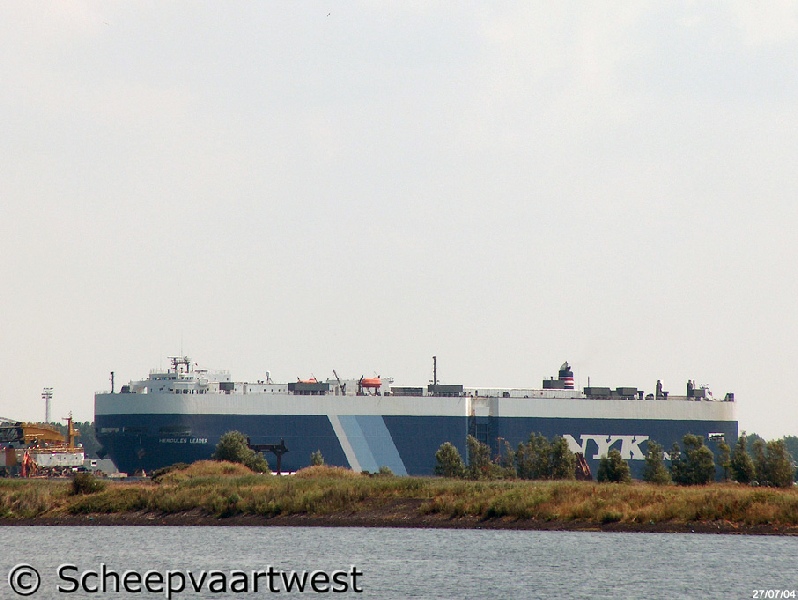

Hercules Leader 02
Zeebrugge 27 July 2004



Name

HERCULES LEADER

Type

Vehicles Carrier
PCC - Pure Car Carrier

IMO-number

9177428

Call sign

3FXH8

Flag

Republic of Panama

Port of registry

Panama

GT

57.449 t
Suez: 62.655,07 t

DWT

21.523 t

NT

17.235 t
Suez: 58.919,95 t

Length

199,94 m overall
190,00 m between perpendiculars
194,27 m registered

Breadth

32,20 m overall

Draught

Summer: 10,07 m

Freeboard

13.460 mm

Depth

23,53 m moulded

Speed

18,5 knots

Built

1998

Keel laid

26.12.1997

Builder

Imabari Zosen
Marugame
Japan

Yard number

S1296

Hull material

High strength steel

Hull type

Single hull

Bulkheads

5x Watertight

Main engine

1x 8 UEC60LS - 8 cylinder 600 x 1.900 mm engine - 14.121 kW
Builder: Osaka Boiler Manufacturing Osaka - Japan

Number of screws

1

Boilers

1x Exhaust gas boiler
1x Auxiliary water tube boiler
Manufacturer: Osaka Boiler

Generators

3x Main diesel generatorsets each 1.100 kW

Car capacity

6.000

High car cap. height 2,0 m

4.345

Ramp loadable

150 t

Tank capacities

Ballast: 9.523 t
Diesel oil: 191,29 t
Fresh water: 419,49 t
Fuel oil: 3.095 t
Lube oil: 178,20 t

Number of tanks

Ballast: 16
Fuel oil: 11
Lubricating oil: 9
Sludge: 6
Diesel oil: 3
Fresh water: 3
Waste water: 2
Chain: 1
Sea water: 1

Lifting equipment

2x Cranes EEO-A - SWL 4,0 t each
Manufacture: Sekigahara Seisakusho - Japan
1x Crane - SWL 0,9 t
2x Davits - SWL 0,9 t each

Operator

NYK-Line - Nippon Yusen Kaisha Line
Tokyo
Japan

Renamed

2005 Green Ridge
