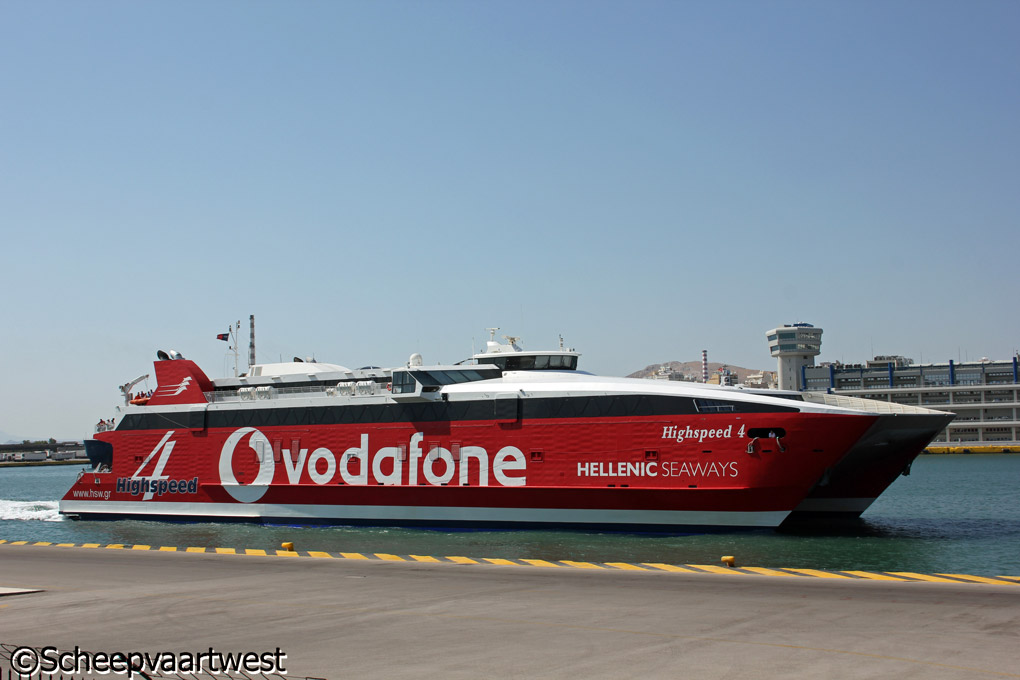

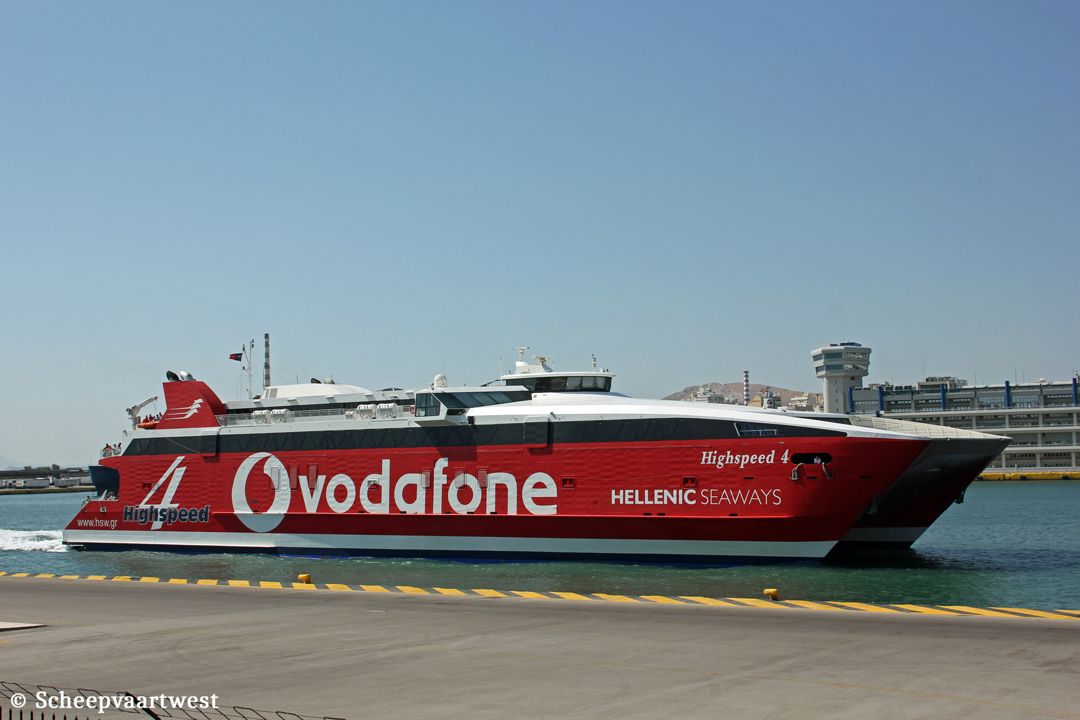

Piraeus, Greece 11 June 2014 |

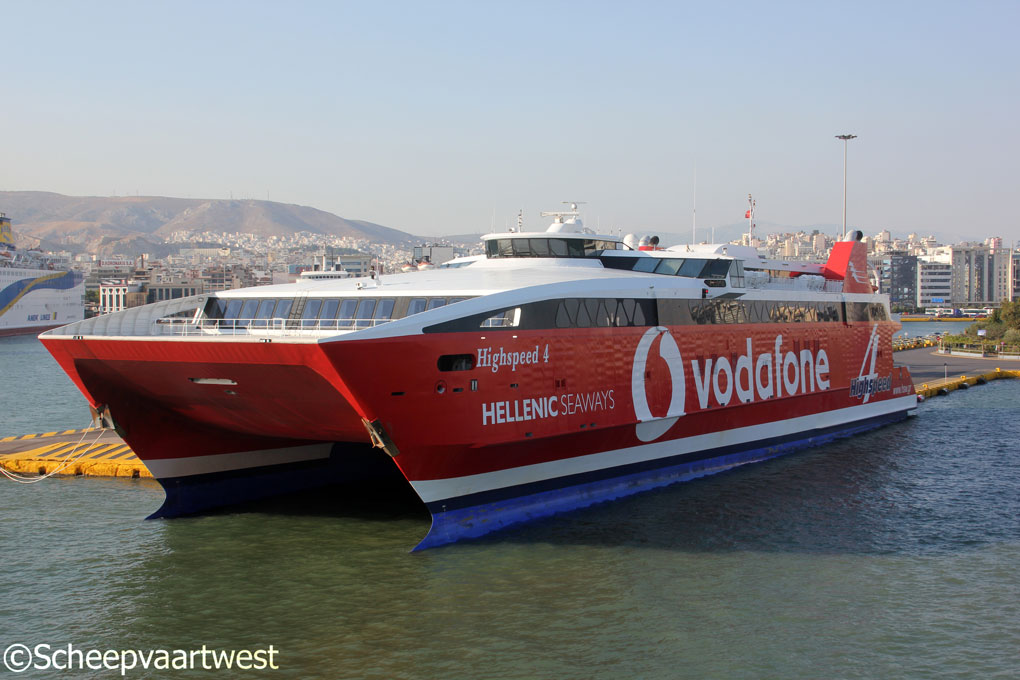

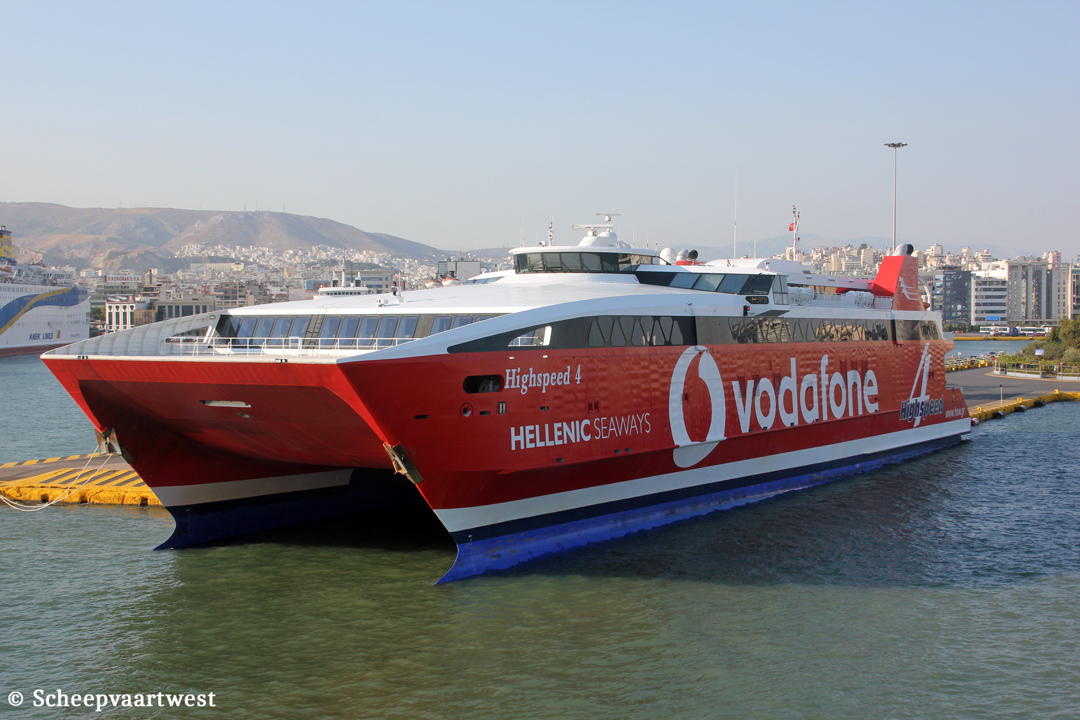

Piraeus, Greece 27/08/12 | Piraeus, Greece 25/08/12 |
Name |
HIGHSPEED 4 |
Hellenic name |
ΧΑΪΣΜΙΝΤ 4 |
Type |
High speed craft - Catamaran - Roll-On/Roll-Off Passengers vessel / Car ferry |
IMO-number |
9216183 |
Call sign |
SWJD |
Flag |
Greece |
Port of registry |
Piraeus |
GT |
6.274 t |
DWT |
Summer: 470 t |
NT |
1.882 t |
Length |
92,60 m overall 80,80 m registered |
Breadth |
24,00 m registered |
Draught |
3,86 m |
Freeboard |
3.936 mm |
Depth |
7,80 m moulded |
Speed |
35,0 knots |
Built |
2000 |
Keel laid |
01.07.1999 |
Launch date |
30.04.2000 |
Date of completion |
01.07.2000 |
Builder |
Austal Ships Pty. Ltd. |
Yard number |
97 |
Hull material |
Aluminium alloy |
Watertight bulkheads |
7 |
Continuous decks |
3 |
Main engine |
4x Caterpillar 3618 - 4 stroke 18 cylinder 137 x 152 mm engines - each 7200 kW total 28.800 kW at 1.050 rpm Year of manufacture: 1999 Manufacturer: Caterpillar Tractor Co. |
Propellers |
4x Jet - aft at 500 rpm |
Electric installation |
4x Plants each 380/220 V - 350 kVA |
Generators |
4x Main generatorsets each 350 kVA |
Compressed air receivers |
2x Receivers each 660 litres - 30,0 bar 1x Receiver 150 litres - 30,0 bar |
Number of passengers |
1.045 |
Number of cars |
188 |
Fuel capacity |
332 m³ |
Operator |
Hellenic Seaways |
Registered owner |
Hellenic Seaways Maritime S.A. |
Previous owners |
2000 - 2001 Minoan Flying Dolphins 2001 - 2005 Hellas Flying Dolphins |
Latest data adjustment |
15 August 2004 |
