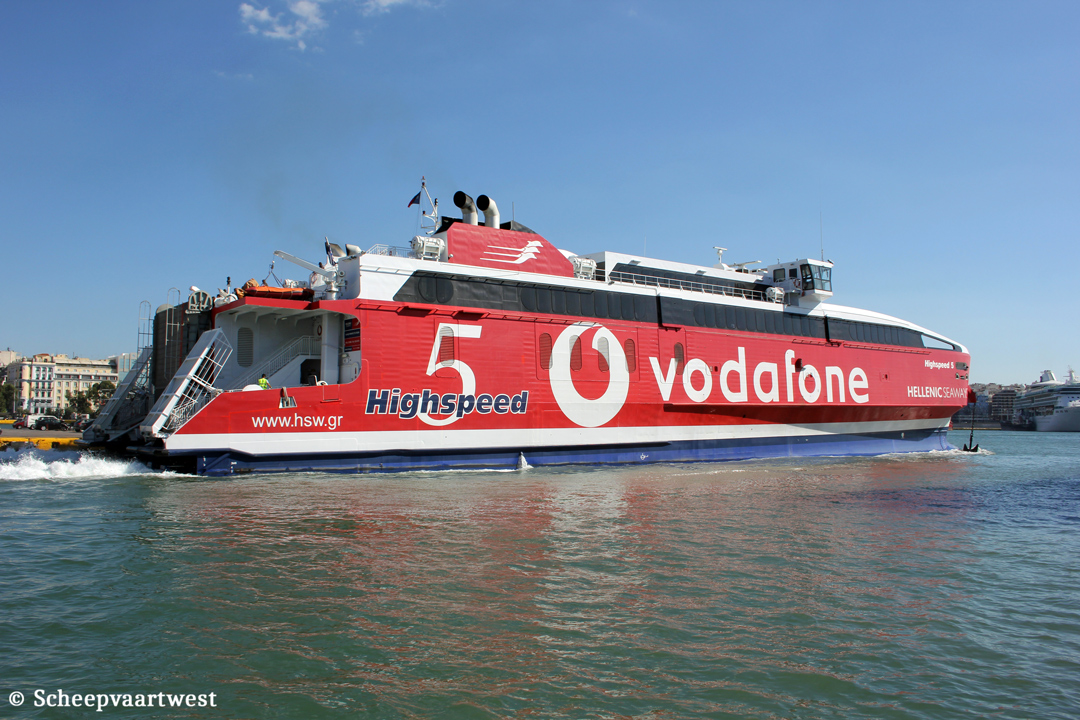

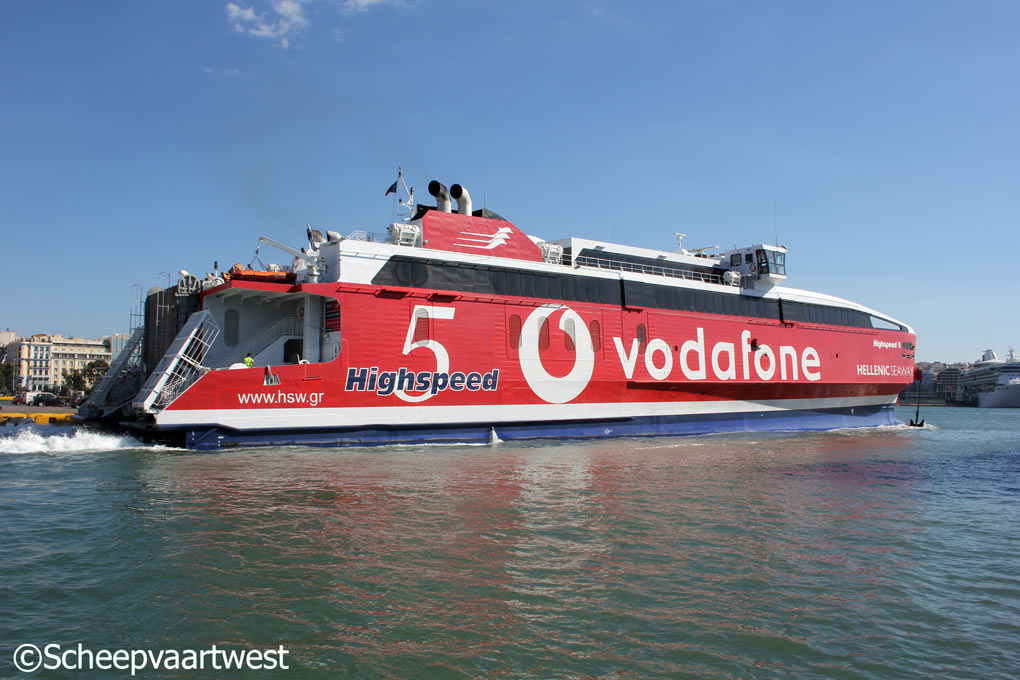

Highspeed 5 03
Piraeus, Greece 28 August 2012

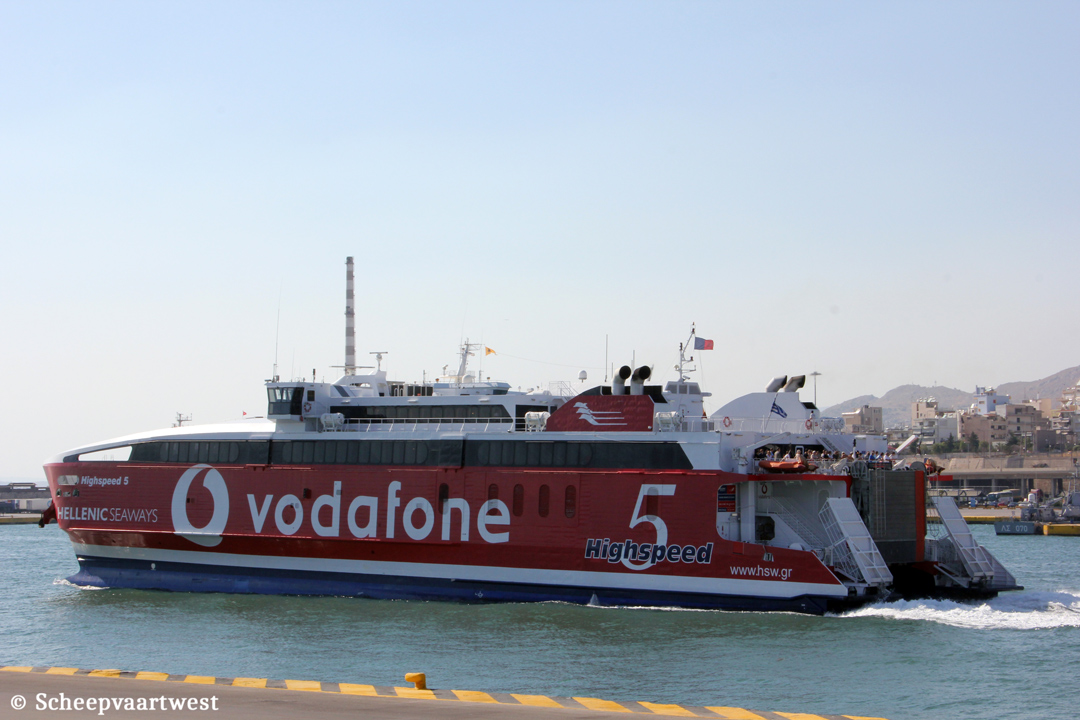

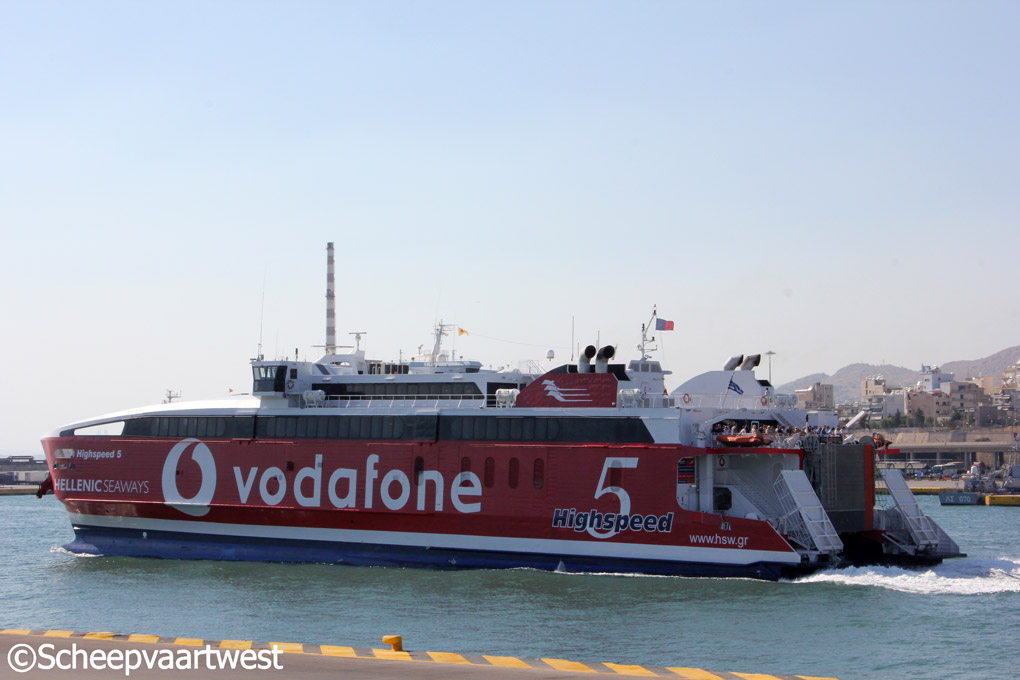

Highspeed 5 02
Piraeus, Greece 26/08/12



Name

HIGHSPEED 5

Type

High speed craft - Catamaran - Passengers car ferry

IMO-number

9329095

Call sign

SYDM

Flag

Greece

Port of registry

Piraeus

GT

4.913 t

DWT

Summer: 470 t

NT

1.474

Length

85,00 m overall

74,98 m registered

Breadth

21,20 m registered

Draught

3,01 m

Depth

9,35 m

Speed

37,0 knots

Built

2005

Keel laid

19.07.2004

Launch date

20.03.2005

Date of completion

13.07.2005

Builder

Austal Ships Pty. Ltd.
100, Clarence Beach Road
Henderson, 6166 Western Australia
Australia

Yard number

285

Hull material

Aluminium alloy

Hull type

Partly double bottom

Watertight bulkheads

7

Continuous decks

5

Main engine

4x Caterpillar 3618 - 4 stroke 18 cylinder 280 x 300 mm engines - each 7200 kW total 28.800 kW at 1.050 rpm

Year of manufacture: 2004

Manufacturer:
IZAR Construcciones Navales, S.A. Propulsion y Energia Manises
Ctra. de Madrid, Km. 8
46930 Quart de Poblet, (Valencia) Barcelona
Spain

Propellers

4x Jet - aft at 619 rpm

Electric installation

4x Plants each 400 V - 393 kVA

2x plants each 24 V - 200 Ah

1x Plant 24 V - 2.400 Ah

Generators

4x Main generatorsets each 393 kVA

Batteries

4x 6 Batteries for emergency lighting each 600 Ah

1x 8 Batteries for emergency lighting each 200 Ah

Compressed air receivers

2x Receivers each 75 litres - 40,0 bar

2x Receivers each 730 litres - 30,0 bar

4x Receivers each 25 litres - 15,0 bar

Number of passengers

809

Number of cars

154

Crew size

26

Operator

Hellenic Seaways

Registered owner

Hellenic Seaways Maritime S.A.
6, Agostigkos Street Karaiskaki Sq.
185 31 Piraeus
Greece
