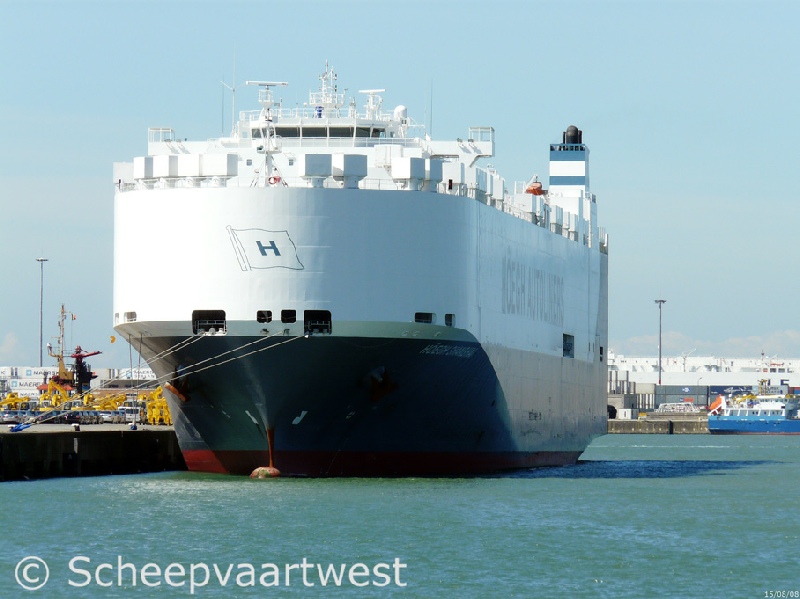

| Zeebrugge 15 August 2008 |
 |
|
| Zeebrugge 15/08/08 | |
|
Name |
HÖEGH SHANGHAI |
|
Type |
Roll-On/Roll-Off vehicles carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9312482 |
|
Call sign |
LAJZ6 |
|
Flag |
Norway |
|
Previous flag |
2004 - 2007 Bahamas |
|
Port of registry |
Oslo |
|
GT |
68.871 |
|
DWT |
27.178 t |
|
NT |
25.912 |
|
Length |
228,74 m overall 223,91 m between perpendiculars |
|
Breadth |
32,29 m extreme 32,26 m moulded |
|
Draught |
10,01 m |
|
Freeboard |
4.700 mm |
|
Depth |
13,70 m |
|
Speed |
20,5 knots |
|
Built |
2007 2009 Lengthened by Hyndai Vinashin Shipyard, Ninh Hoa - Vietnam |
|
Keel laid |
24/07/2006 |
|
Launch date |
21/10/2006 |
|
Date of completion |
16/01/2007 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. 1, Ajoo-Dong Geoje-Si 656-714 Republic of Korea |
|
Yard number |
4440 |
|
Bulkheads |
Transverse: 2 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W Diesel 7S60MC - 2 stroke single acting 7 cylinder 600 x 2.292 mm combustion engine 17.510 bhp Manufacturer: Hanjung, Changwon - South Korea |
|
Number of screws |
1x Fixed mono-block pitch propeller Manufacturer: Kaiping Yuanhang Propeller Manufacturing Co., Ltd. |
|
Boilers |
1x Exhaust Gas Boiler AV-7 1x Vertical shell type Mission OS2 Builder: Aalborg Industries A/S |
|
Generators |
3x MAN B&W 7L28/32H main diesel generatorsets each 1.470 kW |
|
Emergency generator |
1x MAN B&W Diesel engine L-10 generatorset 200 kW |
|
Number of decks |
12 |
|
Car capacity |
7.800 |
|
Ramps |
1x Side port 25,00 x 6,50 - SWL 22,0 t 1x Ramp aft 38,00 m x 7,00 - SWL 150 t |
|
Tank capacities |
Ballast: 9.638,4 m³ HFO: 3.269 t Diesel oil: 125 t |
|
Anchor Chain |
Length: 687,50 m Diameter: 84 mm |
|
Crew |
26 |
|
ISM & commercial manager |
Hoegh Autoliners Management AS Drammensveien 134 0277 Oslo Norway |
|
Registered owner |
Höegh Autoliners Shipping AS Drammensveien 134 0277 Oslo Norway |
|
Latest data adjustment |
17 May 2025 |
