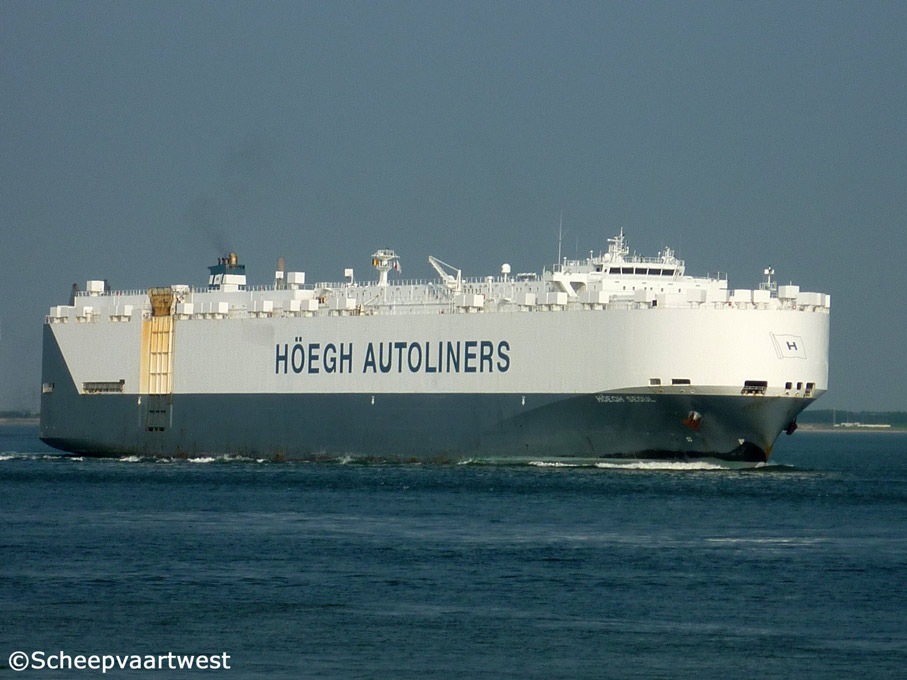

Hoegh Seoul 01

Westerschelde 20 June 2012



Name

HÖEGH SEOUL

Previous names

2004 - 03.2009 Hual Seoul

Type

Vehicle carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9285495

Call sign

LADO6

Flag

Norway

Port of registry

Oslo

GT

68.871 t

DWT

Summer: 27.178 t

NT

25.912 t

Length

288,74 m overall

223,91 m between perpendiculars

Breadth

32,29 m extreme

Draught

10,00 m

Freeboard

4.700 mm

Depth

13,70 m

Speed

Service: 19,0 knots

Built

2004

Keel laid

14.06.2004

Launch date

18.09.2004

Date of completion

26.11.2004

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.
1, Ajoo-Dong
Geoje-Si 656-714
Republic of Korea

Yard number

4433

Hull material

Steel

Hull type

Single hull

Main engine

1x MAN-B&W-Doosan - 7 cylinder 14.313 kW / 19.460 bhp

Propellers

1x Fixed propeller

Boilers

1x Exhaust gas smoke tube AV-7

1x Vertical shell type Mission OS

Builder: Aalborg

Generators

3x MAN B&W 7L28/32H main diesel generatorsets

Emergency generator

1x Cummins L10 diesel generatorset

Number of cars

7.800

Number of decks

12

Ramp

Max. door width: 15,00 m

Max. door height: 5,00 m

Max. ramp capacity: 150 t

Anchor equipment

Length: 660,00 m

Diameter: 78 mm

Manager

Höegh Wallem Ship Management Pte. Ltd.

Previous managers

2004 - 2015 Höegh Fleet Services AS
Drammensveien 134
0277 Oslo
Norway

Owner

Höegh Autoliners AS
Oslo
Norway

Previous owners

2004 - 2004 Höegh Autoliners Shipping AS

2004 - 2008 Höegh Autoliners Ltd.

Latest data adjustment

18 October 2015
