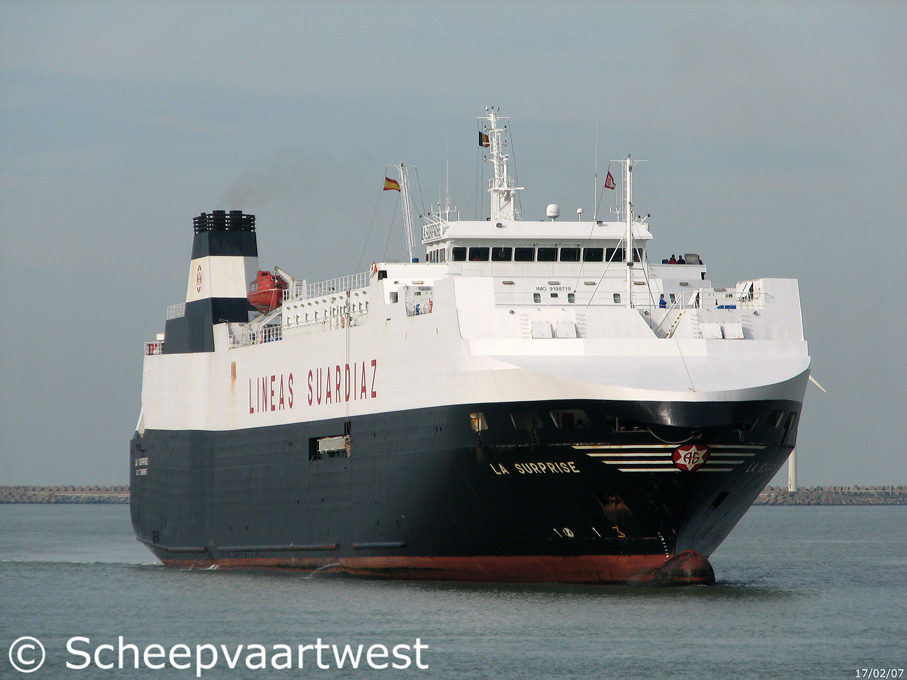

Zeebrugge 17 February 2007 |

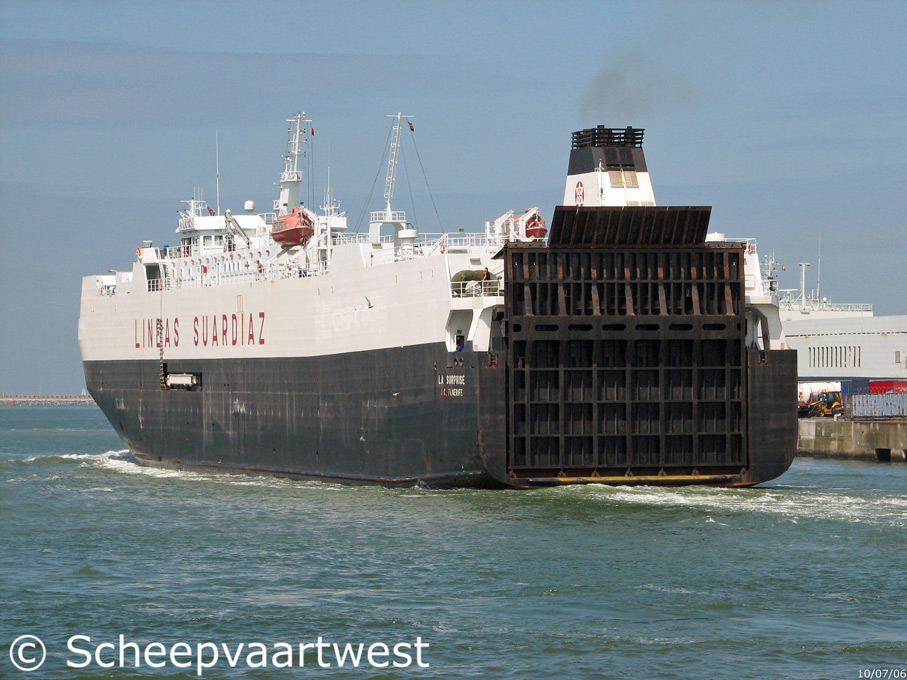

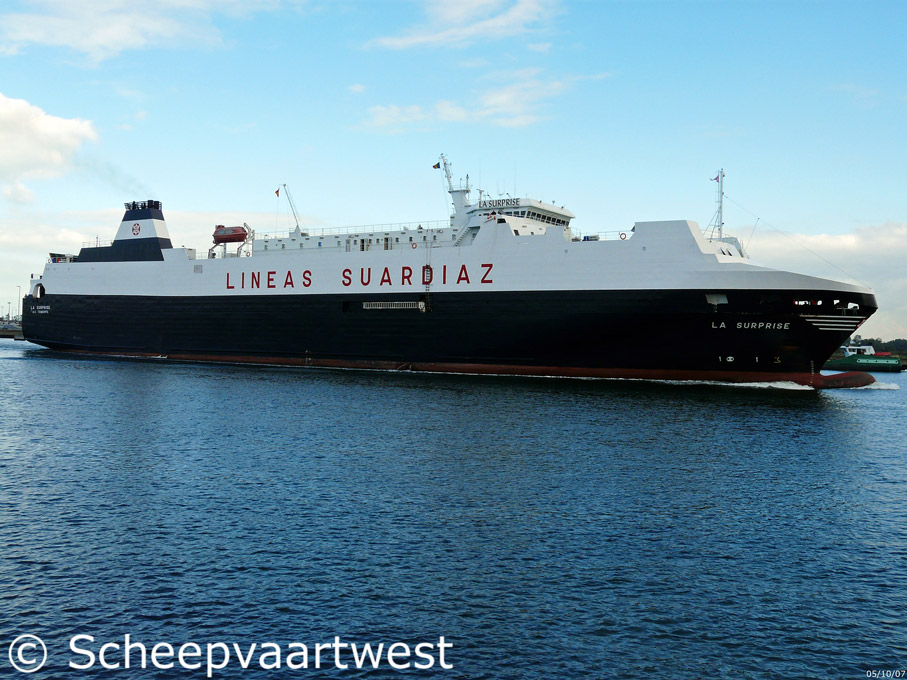

Zeebrugge 05/10/07 | Zeebrugge 10/07/06 |
Name |
LA SURPRISE |
Type |
Roll-On/Roll-Off cargo Ship |
IMO-number |
9198719 |
Call sign |
EAHX |
Flag |
Spain (Canary Islands) |
Port of registry |
Santa Cruz de Tenerife |
GT |
15.224 t |
DWT |
Summer: 6.000 t |
NT |
4.567 t |
Length |
141,25 m overall |
Breadth |
21,00 m overall |
Draught |
Summer: 6,20 m |
Freeboard |
6.200 mm |
Depth |
20,68 m |
Speed |
Service: 19,5 knots |
Built |
2000 |
Date of completion |
13.03.2000 |
Builder |
Astillero Barreras S.A. (Hijos de J. Barreras S.A) |
Yard number |
1572 |
Hull material |
Steel |
Hull type |
Single hull |
Watertight compartments |
8 |
Number of Cont. decks |
5 |
Main engine |
2x MAN-B&W 9L 40/45 - 4 stroke 9 cylinder 400 x 540 mm diesel engines - 12.960 kW / 17.608 hp at 550 rpm |
Number of screws |
2x Screw propeller controllable pitch at 164 rpm |
Boiler |
1x CHM Vulcano Commodore - 7,00 bar |
Shaft generators |
2x 810 kVA - 648 kW |
Diesel generators |
2x Main diesel generatorsets each 810 kVA - 648 kW - 914 hp |
Emergency generator |
1x Diesel generatorset 138 kVA - 110 kW - 150 hp |
Electrical installation |
Power voltage: 400 V |
Ro-Ro capacity cars |
1.164 |
Ro-Ro capacity trailers |
105 |
Fuel capacity |
854,4 m³ |
Manager |
Flota Saurdiaz S.A. |
Shipping company |
Lineas Suardiaz |
Owner |
Cantabric Car Services SA |
