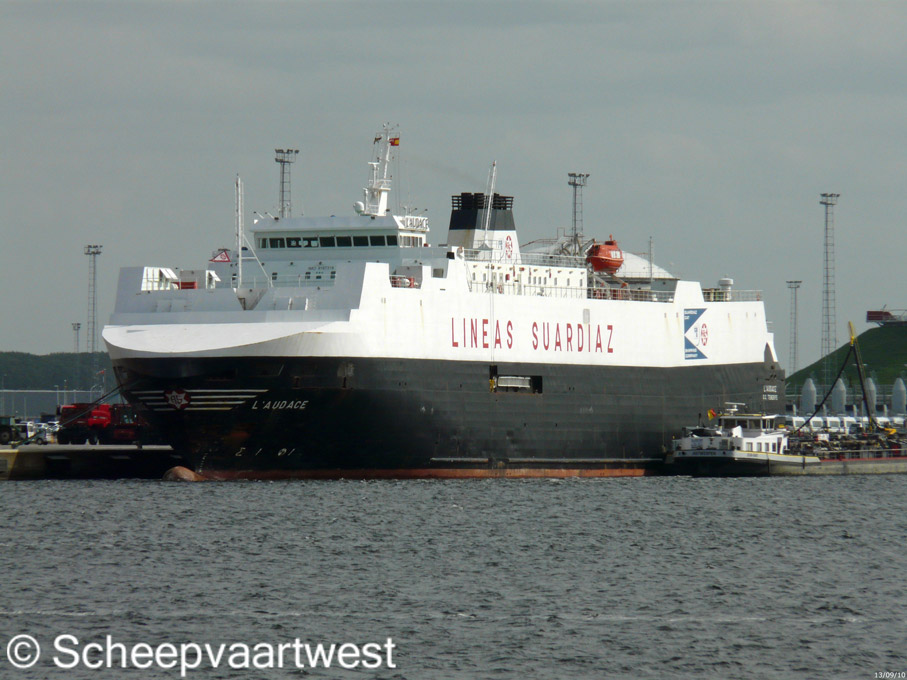

| Zeebrugge 13 June 2012 |
 |
 |
 |
 |
 |
||||

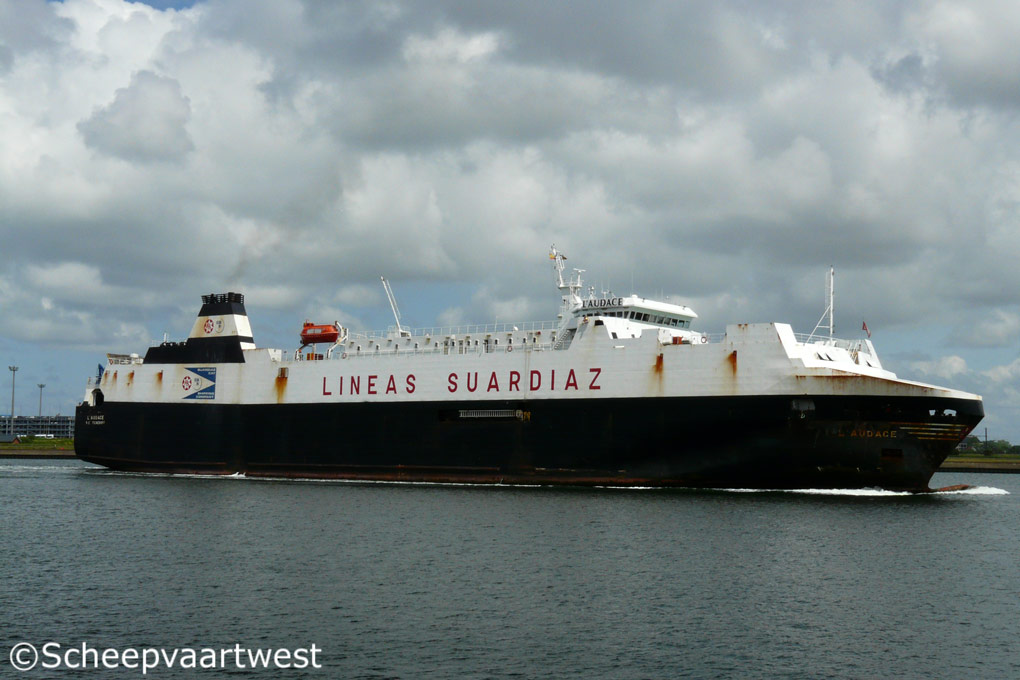

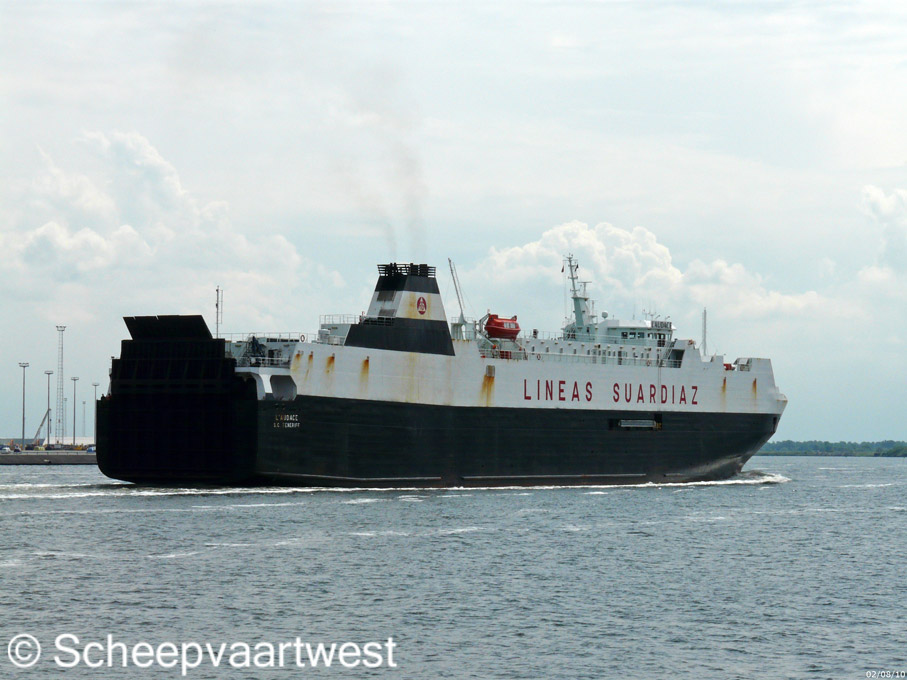

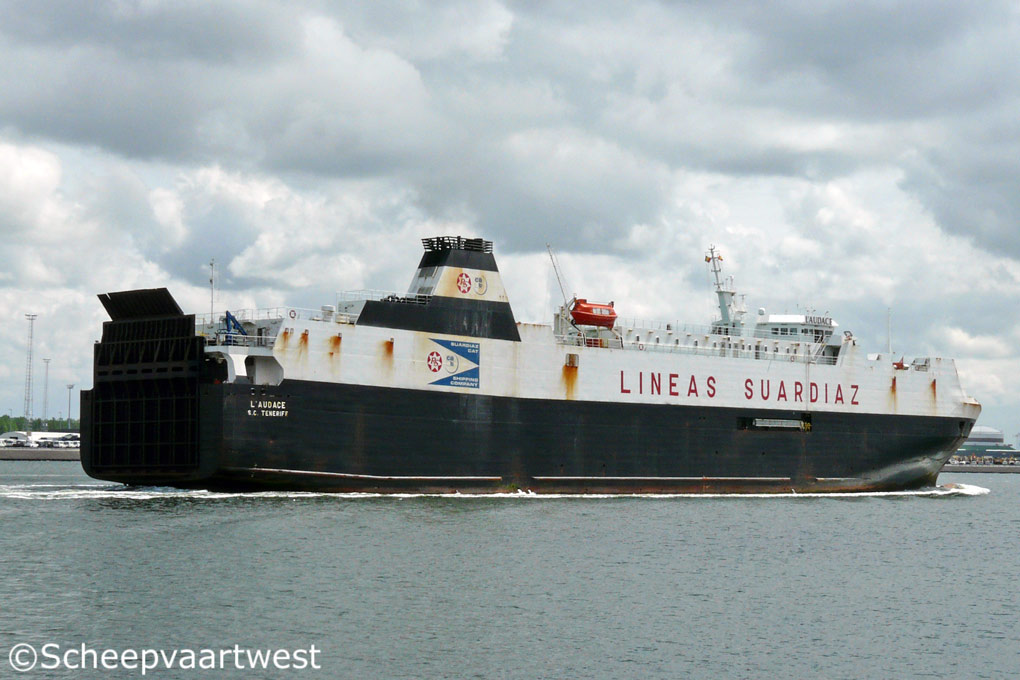

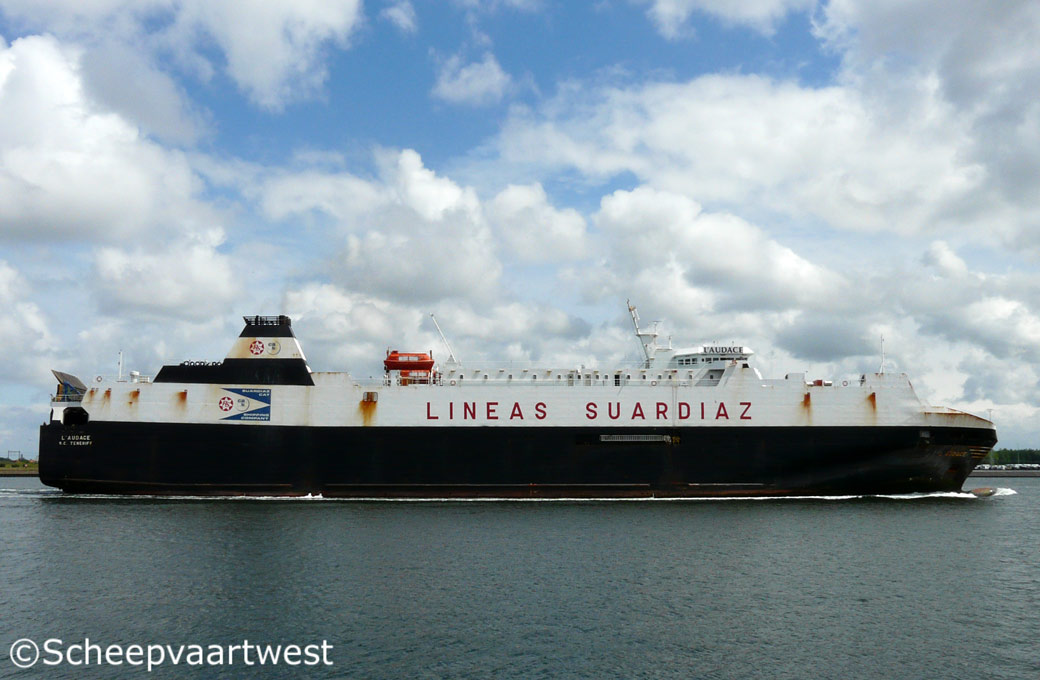

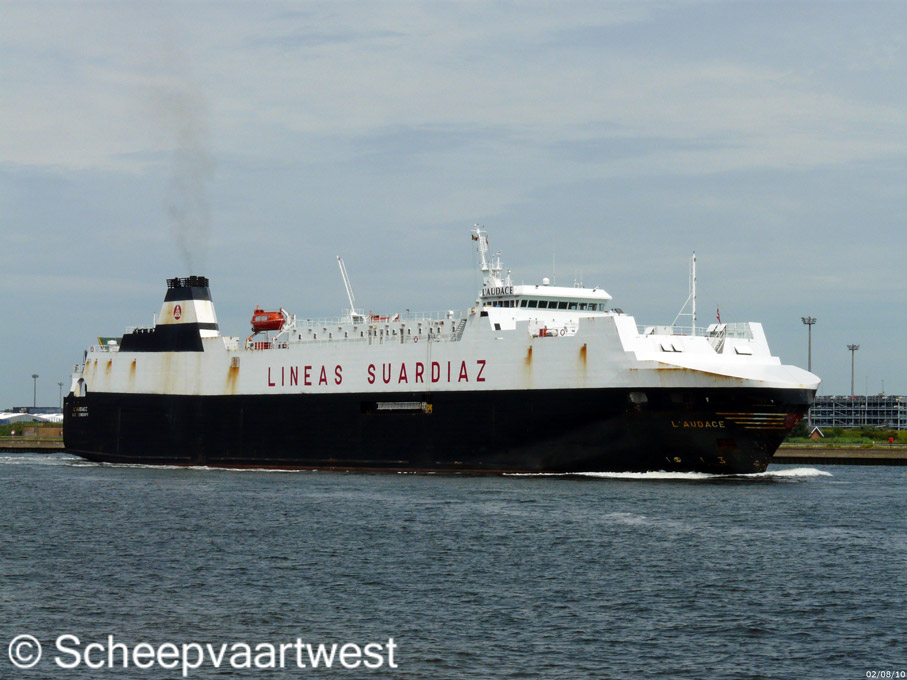

| Zeebrugge 13/06/12 | Zeebrugge 13/06/12 | Zeebrugge 02/08/10 | Zeebrugge 02/08/10 | Zeebrugge 13/09/10 |
|
Name |
L' AUDACE |
|
Type |
Roll-On/Roll-Off cargo ship |
|
IMO-number |
9187318 |
|
Call sign |
EAXA |
|
Flag |
Spain |
|
Port of registry |
Santa Cruz De Tenerife |
|
GT |
15.224 t |
|
DWT |
4.567 t |
|
NT |
10.304 t |
|
Length |
141,25 m overall 132,00 m between perpendiculars |
|
Breadth |
21,00 m |
|
Draught |
Summer: 6,00 m |
|
Freeboard |
1.012 mm |
|
Depth |
12,44 m |
|
Speed |
21,5 knots |
|
Built |
1999 |
|
Date of completion |
18.11.1999 |
|
Builder |
Hijos De J. Barreras S.A. |
|
Yard number |
1571 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
8 |
|
Continuous decks |
5 |
|
Main engine |
2x MAN B&W 9L 40/45 - 4 stroke 9 cylinder 400 x 540 mm internal combustion engine - 12.960 kW / 17.608 hp at 550rpm Built: 1999 |
|
Electrical propulsion gen. |
2x 648 kW - 400 Volt |
|
Propelling system |
2x Screw propeller controllable pitch - aft at 164 rpm |
|
Boiler |
1x CHM Vulcano Commodore 7,00 bar |
|
Electrical installation |
Power voltage: 400 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Diesel generators |
2x Mian diesel generatorsets each 810 kVA - 648 kW - 914 hp |
|
Emergency generators |
1x Diesel generatorset 138 kVA - 110 kW - 150 hp |
|
Ro-Ro capacity |
1.250 cars or 110 trailers |
|
Fuel capacity |
854,4 m³ |
|
Crew |
17 |
|
Operator |
Linaes Suardiaz |
|
Owner |
Vapores Suardiaz S.A. |
|
Registered owner |
RO-RO Maritime Services, S.L. |
