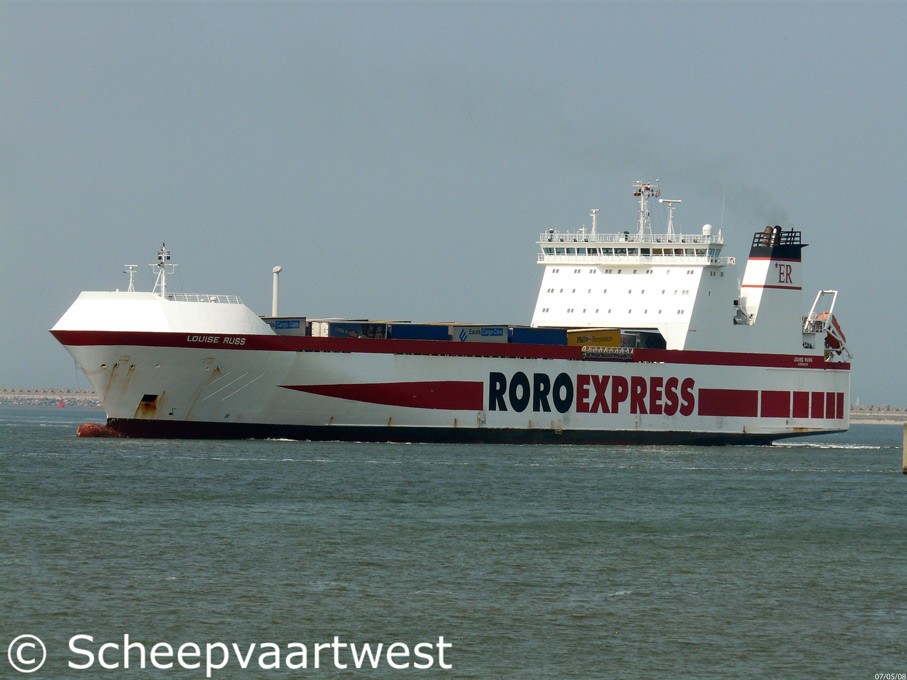

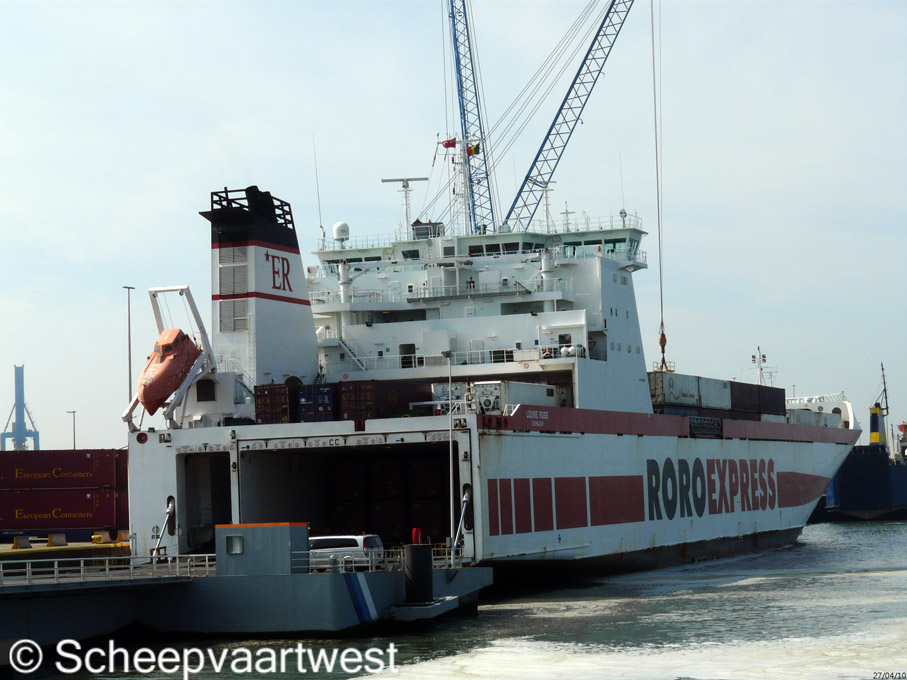

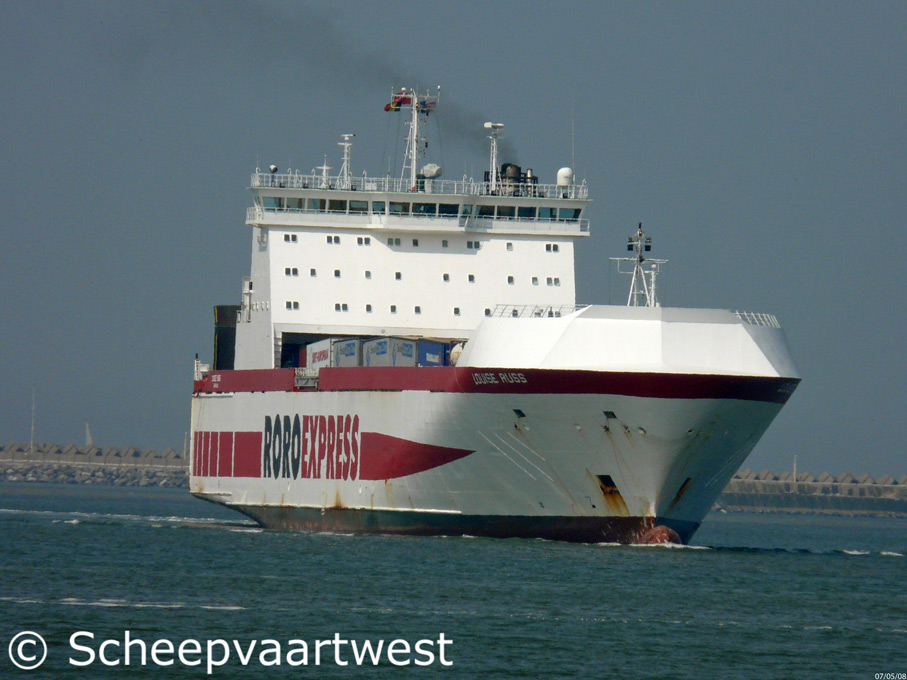

| Zeebrugge 07 May 2008 |
 |
 |
|
| Zeebrugge 07/05/08 | Zeebrugge 27/04/10 |
|
Name |
LOUISE RUSS |
|
Previous names |
2000 - 2001 Porto Express (Ro-Ro Express) 2001 - 2002 Louise Russ (Belgium Army) |
|
Type |
Roll-On/Roll-Off Cargo Vessel |
|
IMO-number |
9226360 |
|
Call sign |
ZDEK3 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
18.256 t |
|
DWT |
9.090 t |
|
NT |
5.479 t |
|
Number of 20ft containers |
426 198 Feu + 30 Teu |
|
Reefer plugs |
80 |
|
Length |
172,90 m overall 166,17 m registered |
|
Breadth |
25,47 m over all |
|
Draught |
Summer: 6,84 m |
|
Lanemetres |
2.500 |
|
Freeboard |
9.960 mm |
|
Depth |
16,80 m moulded |
|
Speed |
Abt. 22,5 knots |
|
Built |
2000 |
|
Keel laid |
10.02.2000 |
|
Launch date |
15.12.2000 |
|
Date of completion |
12.2000 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
1145 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom |
|
Number of bulkheads |
5x Watertight |
|
N° of Continuous decks |
2 |
|
Main engine |
2x Wärtsilä 9M43 - 4 stroke single acting 9 cylinder 430 x 610 mm diesel engine -each 8.400 kW total 16.800 kW Built: 2000 Builder: Krupp MaK Maschinenbau, Kiel - Germany |
|
Number of screws |
1x controllable pitch propeller - aft |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 58,0 m² 2x Thermal oil heater, exh.gas heated - 10,0 bar Heating surface: 124,0 m² Year of manufacture: 2000 Manufacturer: PWT Prozesswärmeträgertechnik GmbH |
|
Electric installations |
1x 380 / 220 V - 2.200 kVA 1x 380 V - 2.750 kVA |
|
Shaft generator |
1x 2.750 kVA |
|
Generators |
2x Main diesel generatorsets each 800 kVA 1x Diesel generatorset 600 kVA |
|
Bow thruster |
1x Variable pitch propeller Kamewa - 1.200 kW |
|
Stern thruster |
1x Variable pitch propeller Kamewa - 720 kW |
|
Compressed air receivers |
2x Receivers each 1.500 litres - 30,0 bar 1x Receiver 750 litres - 11,0 bar |
|
Number of decks |
2 decks |
|
Deck heights |
Ro-Ro: 7,20 m |
|
Number of trailers |
170 |
|
Cargo capacity |
Bale: 27.000 m³ |
|
Tank capacity |
Ballast: 6.159 m³ Bunker: 1.365 t Fuel oil:1.365 m³ |
|
Anchor equipment |
3x Anchors weight each 6.450 kg |
|
Number of passengers |
12 |
|
Number of beds |
12 |
|
Drivers accommodation |
12 drivers (6x2) |
|
Operator |
Cobelfret Ferries |
|
Shipping company |
Ernst Russ GmbH & Co. KG |
|
Manager |
Ernst Russ GmbH & Co. KG |
|
Owner |
MS "LOUISE RUSS" Schiffahrtsges. mbH & Co. KG Alsterufer 10 |
