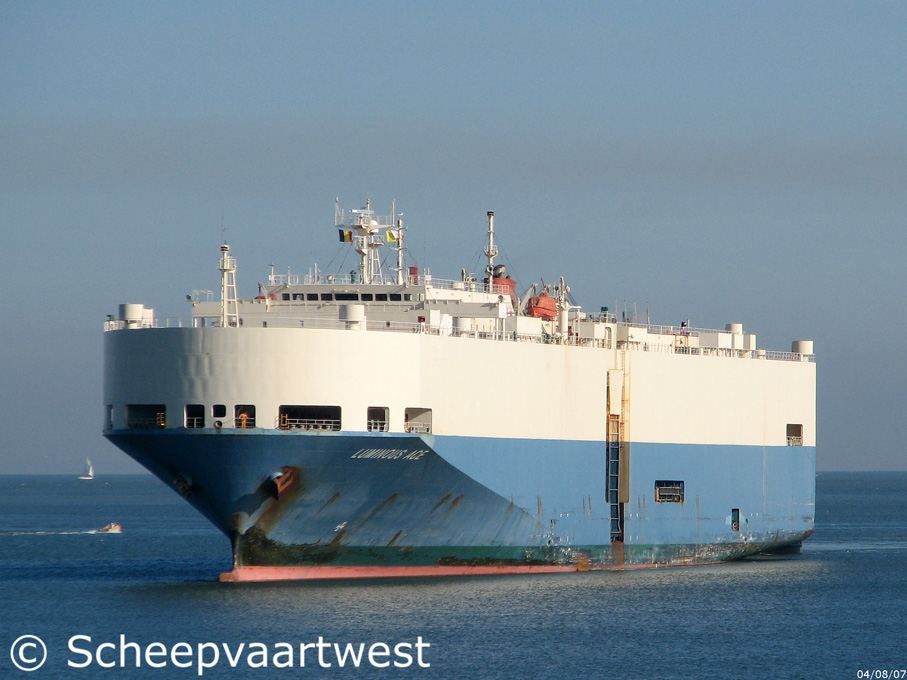

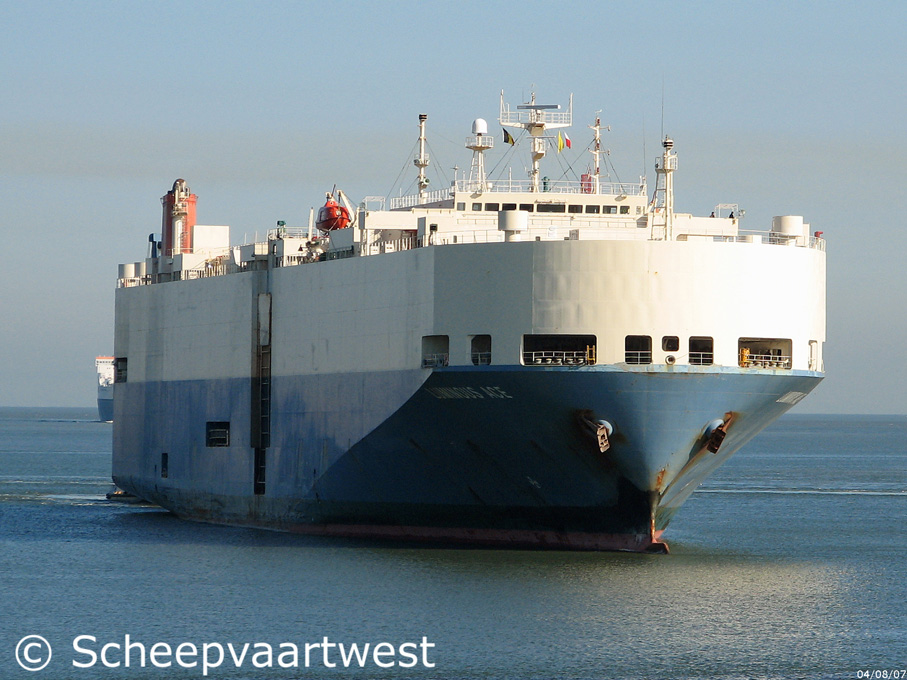

| Zeebrugge 04 August 2007 |
 |
| Zeebrugge 04/08/07 |
|
Name |
LUMINOUS ACE |
|
Type |
Roll-ON/Roll-Off carrier - Vehicles Carrier PCC - Pure Car Carrier |
|
IMO-number |
9110107 |
|
Call sign |
3FSW4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flag |
1995 Hong Kong Philippines, Manila - Call sign: DZSA |
|
GT |
45.796 t |
|
DWT |
15.181 t |
|
NT |
13.739 t |
|
Length |
188,00 m overall 178,00 m between perpendiculars 181,86 m registered |
|
Breadth |
31,20 m over all |
|
Moulded L x B x D |
178,00 x 31,20 x 11,80 m |
|
Registered L x B x D |
181,86 x 31,20 x 21,25 m |
|
Draught |
Summer: 9,015 m |
|
Freeboard |
Summer: 2.807 mm |
|
Depth |
30,60 m |
|
Speed |
18,5 knots |
|
Built |
1995 |
|
Keel laid |
10/06/1994 |
|
Launch date |
06/10 1994 |
|
Date of Build |
20/01/1995 |
|
Builder |
Minami-Nippon Shipbuilding K.K. Usuki Japan |
|
Yard number |
M631 |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsui - 2 stroke single acting 6 cylinder 600 x 1.944 mm combustion engine 11.473 kW at 123,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,80 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generatorsets total 3.210 kVA |
|
Bow thruster |
1x 1.040 kW |
|
Car capacity |
4.095 |
|
Lifting equipment |
1x Crane SWL - 0,9 t 2x Cranes SWL - 4,0 t each |
|
Tank capacities |
Fuel oil: 3.978 m³ Fresh water: 286 m³ Water ballast: 7.726 m³ |
|
Crew |
22 |
|
Manager |
Meikai Marine Services Co Ltd (MMS) Surfeel Nakameguro Building 18-12, Kami-meguro 1-chome Meguro-ku Tokyo Japan |
|
Shipping company |
Mitsui O. S. K. (MOL) |
|
Registered owner |
T&M Maritime SA c/o Neom Maritime (Singapore) |
|
Scrapped |
09/2020 at Alang- India |
|
Latest data adjustment |
23 September 2020 |
