| Westerschelde 07 December 2019 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 07/12/19 | Westerschelde 12/10/13 | Zeebrugge 15/03/08 | Zeebrugge 10/03/15 | Zeebrugge 10/03/15 | Zeebrugge 10/03/15 | |||||
|
Name |

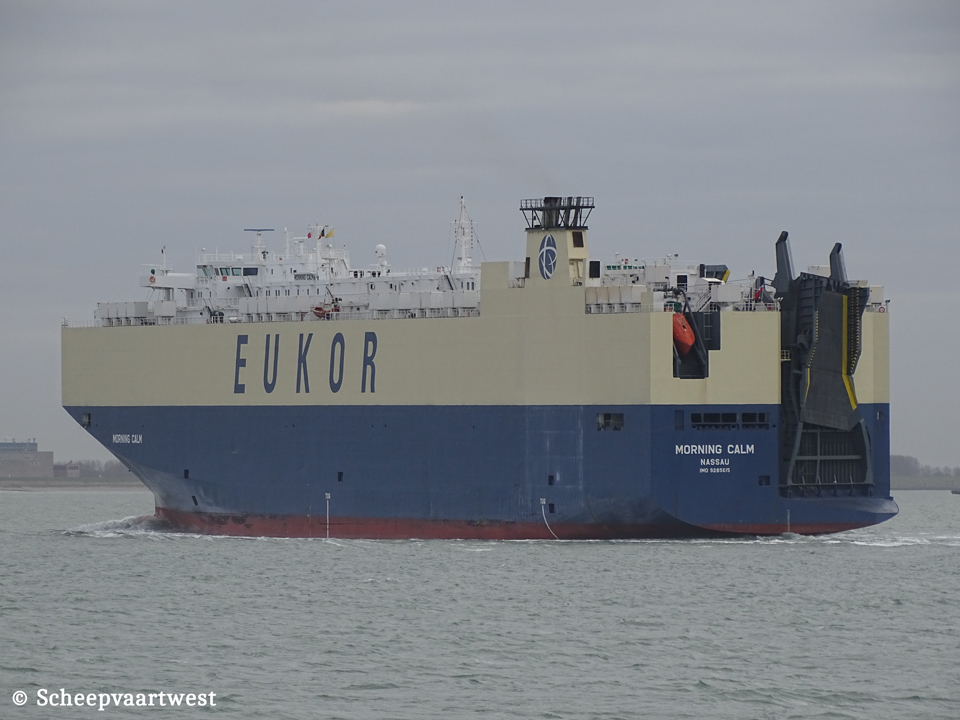

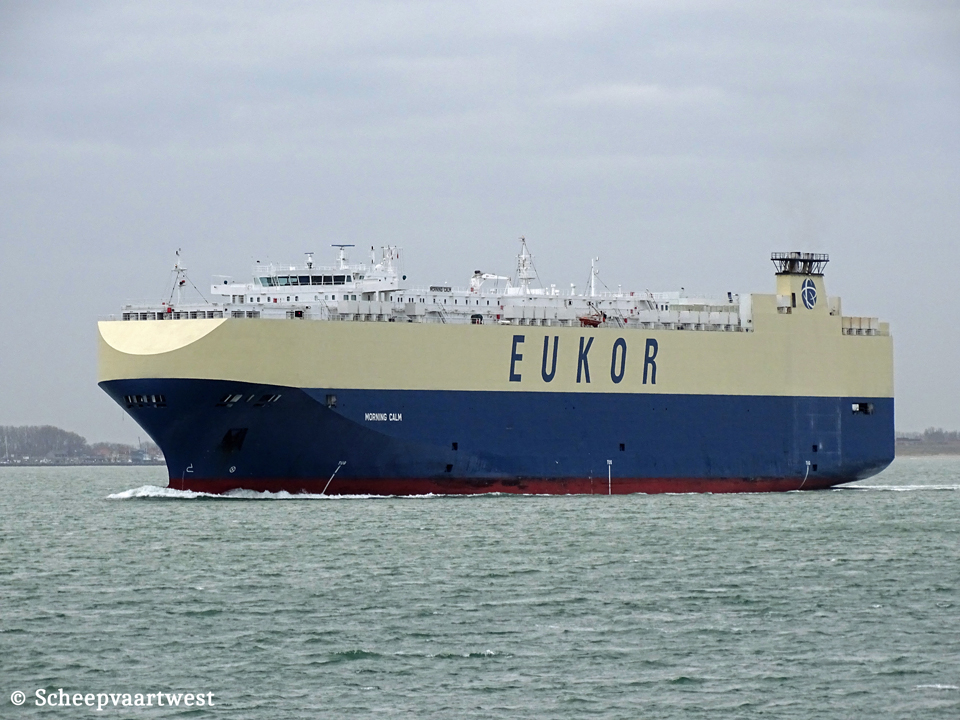

MORNING CALM |
|
Previous names |
Launch as: 2004 Opal Ray |
|
Type |
Roll-On/Roll-Off carrier - Vehicles carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9285615 |
|
Call sign |
C6TM5 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
57.692 t |
|
DWT |
Summer: 21.005 t |
|
NT |
21.037 t |
|
Length |
199,98 m overall |
|
Breadth |
32,25 m |
|
Draught |
Summer: 10,01 m |
|
Reg. dimensions L x B x D |
191,50 x 32,25 x 19,98 m |
|
Rule dimensions L x B x D |
188,33 x 32,25 x 19,98 m |
|
Freeboard |
Summer: 3.652 mm |
|
Depth |
19,98 m |
|
Speed |
Max: 20,2 knots |
|
Built |
2004 |
|
Keel laid |
15/04/2004 |
|
Launch date |
21/08/2004 |
|
Date of completion |
11/10/2004 |
|
Builder |
Stocznia Gdynia S. A ul. Czechoslowacka 3 81-963 Gdynia Poland |
|
Yard number |
8168/8 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Transverse: 3 |
|
Main engine |
1x MAN-B&W 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 15.820 kW at 105,0 rpm Builder: : H.Cegielski-Poznan S.A. |
|
Propeller |
1x Fixed pitch mono-block |
|
Boilers |
Exhaust gas water tube AV-7 - 9,0 bar Heating surface: 17,4 m² Vertical shell type Mission OS Builder: Aalborg Industries A/S |
|
Main generator |
3x MAN-B&W 7L28/32H main diesel generatorsets each 1.750 kVA / 450 Volt |
|
Emergency generator |
1x MAN D2866LXE30 diesel generatorset |
|
Bow thruster |
1x 1.300 kW |
|
Number of decks |
14 |
|
Car capacity |
6.658 |
|
Truck capacity |
4?500 |
|
Deck area |
Hoistable: 17.000 m² Total: 54.900 m² |
|
Number of ramps |
2 1x Starboard: 25,00 x 7,00 m - 22,0 t 1x Starboard aft: 38,00 x 7,00 m - 150 t |
|
Tank capacities |
Fuel: 3.838 m³ Lub oil: 150 m³ Potable water: 259,4 m³ Water ballast: 7.956,7 m³ |
|
Anchor chain |
Length: 660 m Diameter: 78 mm |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Ballast capacity |
7.774 m³ |
|
Crew size |
29 |
|
ISM & commercial manager |
Wilhelmsen Ship Management (Korea) Ltd. Busan South Korea |
|
Previous manager |
Stamco Ship Management Company Ltd., 185 35 Piraeus - Greece |
|
Operator |
Head Office EUKOR Car Carriers Inc. 13th Floor Hansol Building 736-1 Yeoksam-dong, Kangnam-gu Seoul South Korea |
|
Registered owner |
Calm Maritime Limited 8 Christian Rd. Douglas Isle of Man United Kingdom |
|
Previous owner |
Ray Car Carriers, Douglas (isle Of Man)- United Kingdom |
|
Latest data adjustment |
19 March 2023 |
