Zeebrugge 21 June 2019 |
|
Name |

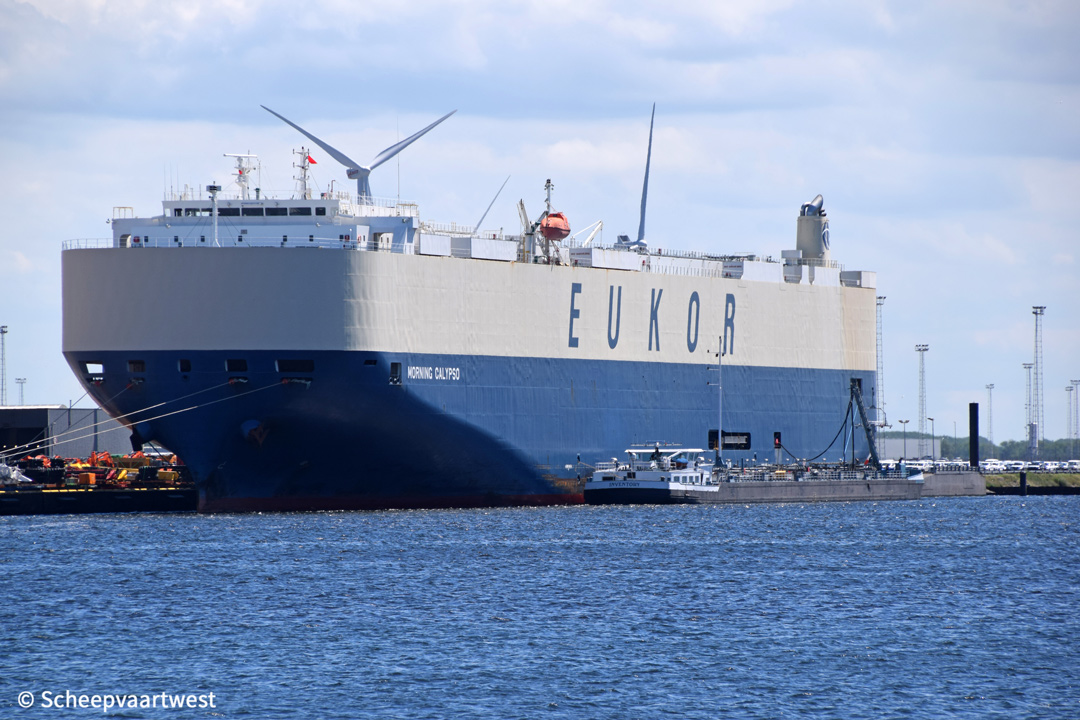

MORNING CALYPSO |
|
Type |
Roll-On/Roll-Off carrier - Vehicle Carrier |
|
IMO-number |
9638460 |
|
Call sign |
3FIK5 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.432 t registered |
|
DWT |
Summer: 18.932 t |
|
NT |
19.148 t registered |
|
Length |
199,97 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Max: 10,02 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,70 m |
|
Registered L x B x D |
194,14 x 32,26 x 21,31 m |
|
Freeboard |
Summer: 4.714 mm |
|
Depth |
14,70 m moulded |
|
Speed |
Service: 20,0 knots Max: 21,8 knots |
|
Built |
2013 |
|
Keel laid |
26/07/2010 |
|
Launch date |
31/01/2013 |
|
Date of completion |
30/03/2013 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters Japan |
|
Yard number |
1605 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 8 cylinder 600 x 2.300 mm combustion engine 13.260 kW at 100,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 630 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 4,04 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generatorsets total 4.275 kVA |
|
Number of cars |
6.215 |
|
Tank capacities |
Fuel oil: 2.805 m³ Fresh water: 659 m³ |
|
Manager |
Excel Marine Co., Ltd. |
|
Operator |
Eukor Car Carriers Inc. |
|
Registered owner |
Kaho Shipping Co., Ltd. |
|
Latest data adjustment |
13 August 2019 |
