| Zeebrugge 29 March 2011 |
 |
 |
 |
||

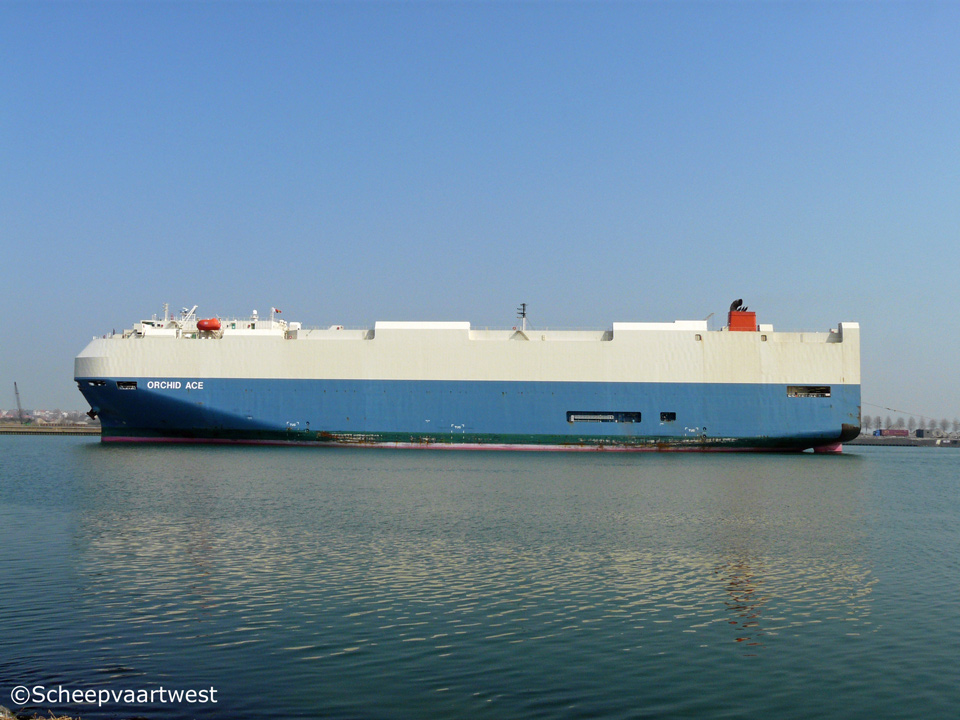

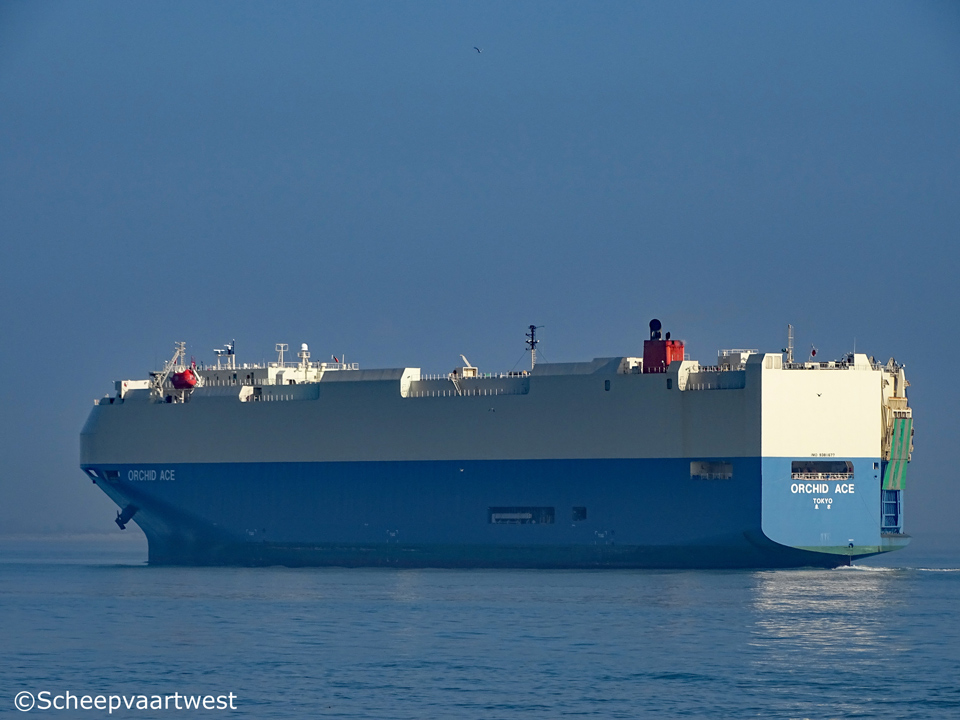

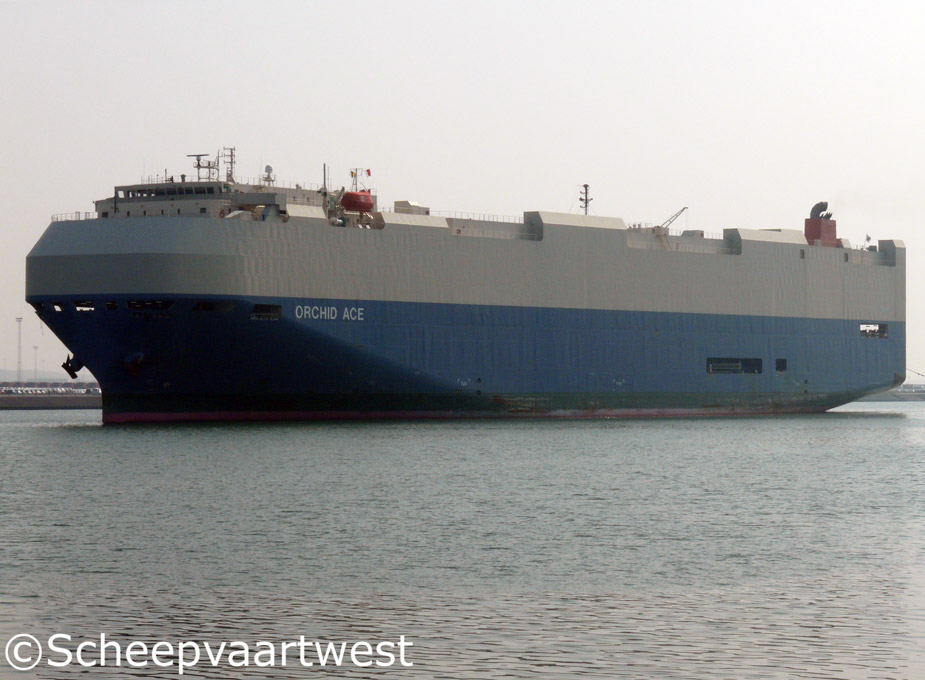

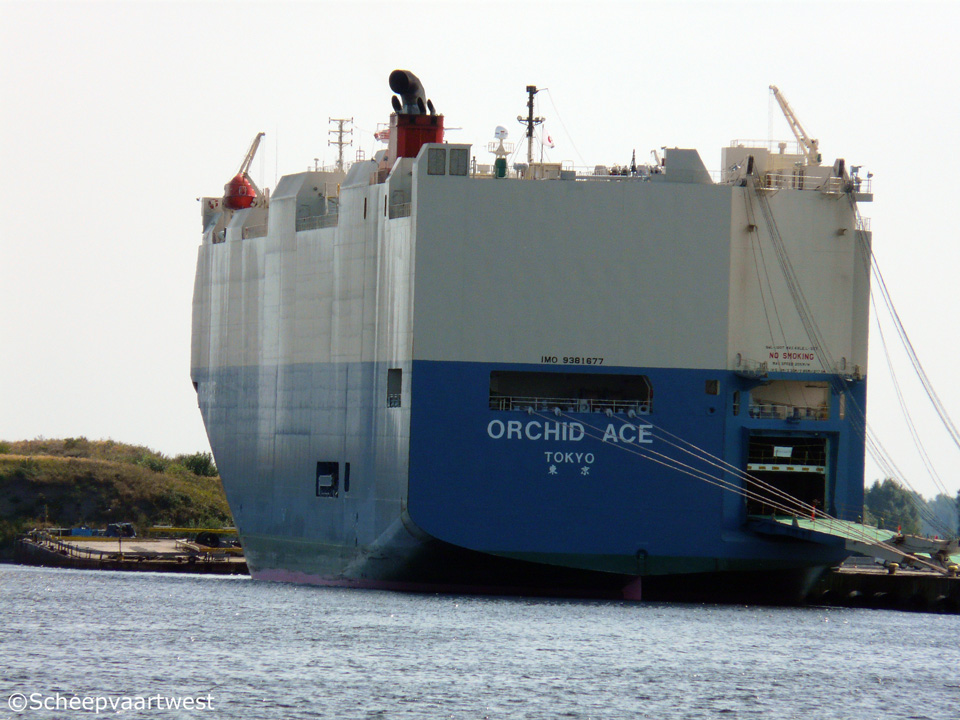

| Zeebrugge 29/03/11 | Zeebrugge 24/08/09 | Westerschelde 03/04/17 |
|
Name |
ORCHID ACE |
|
Type |
Roll-On/Roll-Off carrier - Vehicles carrier |
|
IMO-number |
9381677 |
|
Call sign |
7JDE |
|
Flag |
Japan |
|
Port of registry |
Tokyo |
|
GT |
59.262 t |
|
DWT |
17.289 t |
|
NT |
18.298 t |
|
Length |
199,99 m overall 192,00 m between perpendiculars |
|
Breadth |
32,26 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,65 m |
|
Registered L x B x D |
195,12 x 32,26 x 21,17 m |
|
Draught |
Summer: 9,725 m |
|
Freeboard |
Summer: 4.965 mm |
|
Depth |
14,65 m moulded |
|
Built |
2008 |
|
Keel laid |
06.11.2007 |
|
Launch date |
18.02.2008 |
|
Date of completion |
02.05.2008 |
|
Builder |
Toyohashi Shipbuilding Co. Ltd. |
|
Yard number |
3607 |
|
Main engine |
1x 2 stroke single acting 8 cylinder 600 x 2.300 mm diesel engine - 15.090 kW at 98,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar |
|
Generators |
4x Main diesel generatorsets 4.275 kVA |
|
Car capacity |
6.287 |
|
Tank capacities |
Fuel oil: 2.991 m³ Fresh water: 404 m³ Water ballast: 7.372 m³ |
|
Lifting equipment |
3x Cranes - SWL 4,0 t each 1x Elevator - SWL 350 kg |
|
Crew |
24 |
|
Manager |
MOL Ship Management Co., Ltd. |
|
Operator |
MOL ACE - Auto Carrier Express |
|
Registered owner |
Mitsui O.S.K. Lines, Ltd. |
|
Latest data adjustment |
25 August 2017 |
