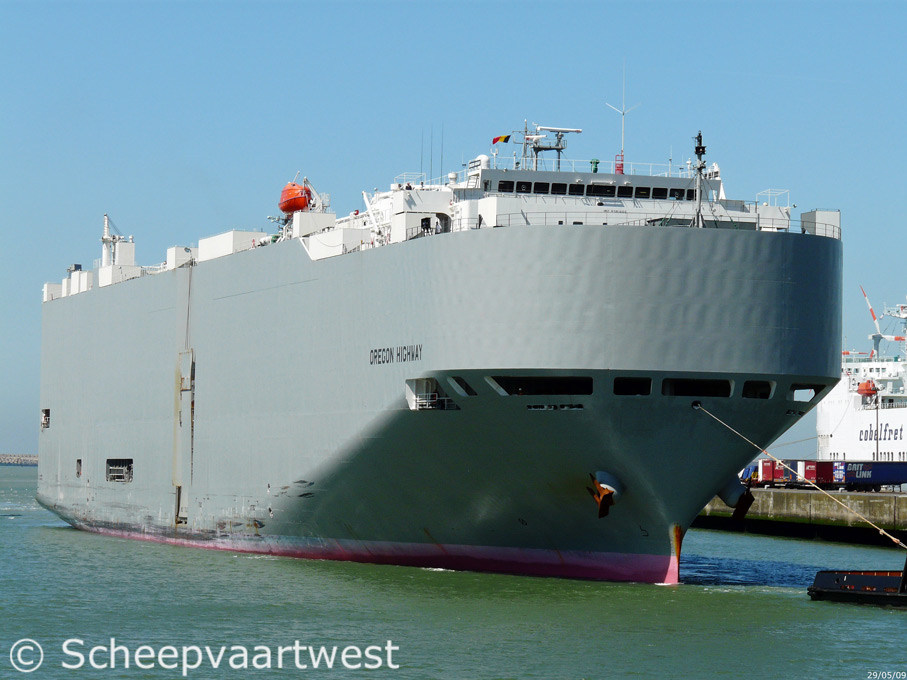

| Zeebrugge 29 May 2009 |
 |
 |
|

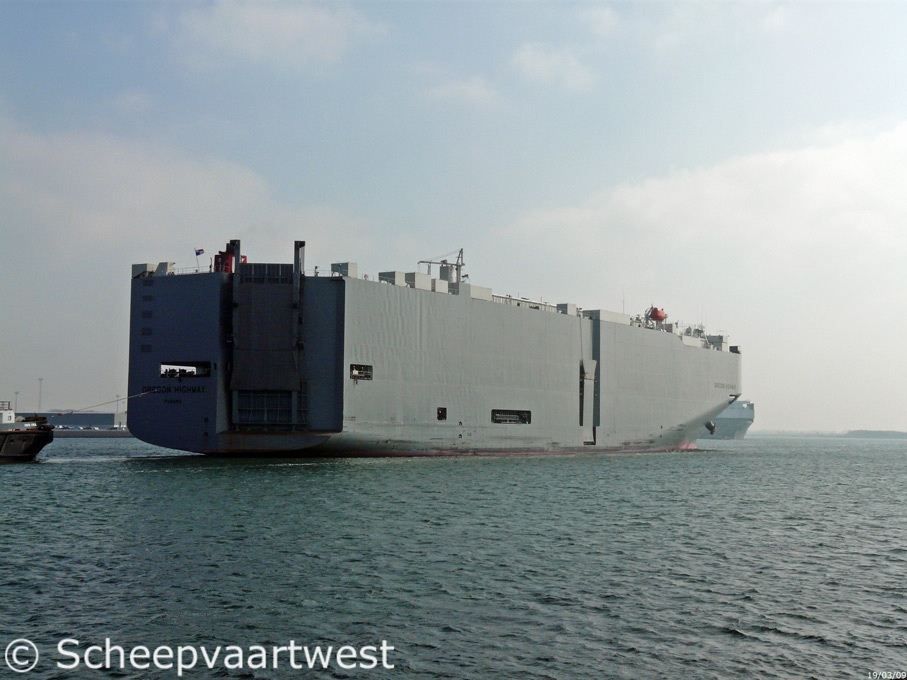

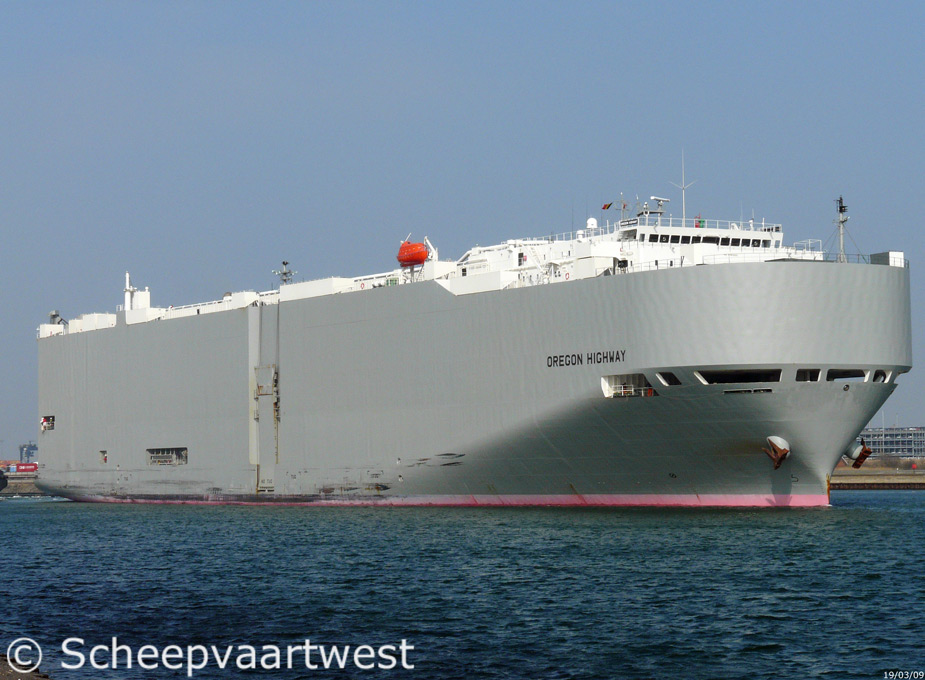

| Zeebrugge 19/03/09 | Zeebrugge 19/03/09 |
|
Name |
OREGON HIGHWAY |
|
Type |
Vehicles Carrier |
|
IMO-number |
9381665 |
|
Call sign |
3ENO7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
57.147 t |
|
DWT |
Summer: 17.699 t |
|
NT |
17.145 t |
|
Length |
199,94 m overall 192,00 m between perpendiculars |
|
Breadth |
32,26 m overall |
|
Moulded L x B x D |
192,00 x 32,26 x 13,90 m |
|
Registered L x B x D |
193,90 x 32,26 x 20,36 m |
|
Draught |
Summer: 9,826 m |
|
Freeboard |
Summer: 4.114 mm |
|
Depth |
25,80 m |
|
Built |
2007 |
|
Keel laid |
11.06.2007 |
|
Launch date |
19.09.2007 |
|
Date of completion |
21.11.2007 |
|
Builder |
Toyohashi Shipbuilding |
|
Yard number |
3595 |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 8 cylinder 500 x 2.000 mm diesel engine - 11.935 kW at 127,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Number of screws |
1 |
|
Boilers |
1x Auxiliary Vertical boiler - 7,9 bar |
|
Generators |
4x Main diesel generatorsets each 4.275 kVA |
|
Cargo capacity |
Cars: 6.135 |
|
Tank capacities |
Fuel oil: 3.185 m³ Freshwater: 589 m³ Water ballast: 6,070 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t each |
|
Crew |
24 |
|
Manager |
Taiyo Nippon Kisen Co. Ltd. |
|
Owner |
SKD 5400 Shipping S.A. |
|
Owner as completed |
SKD 5400 Sg S.A. |
