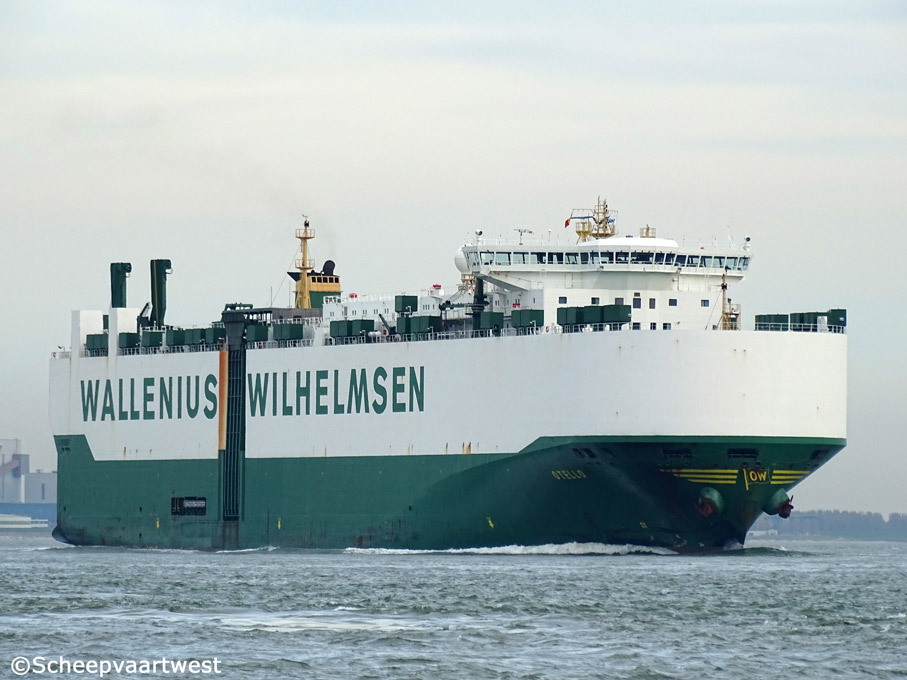

| Westerschelde 30 October 2015 |
 |
 |
 |
 |
 |
||||

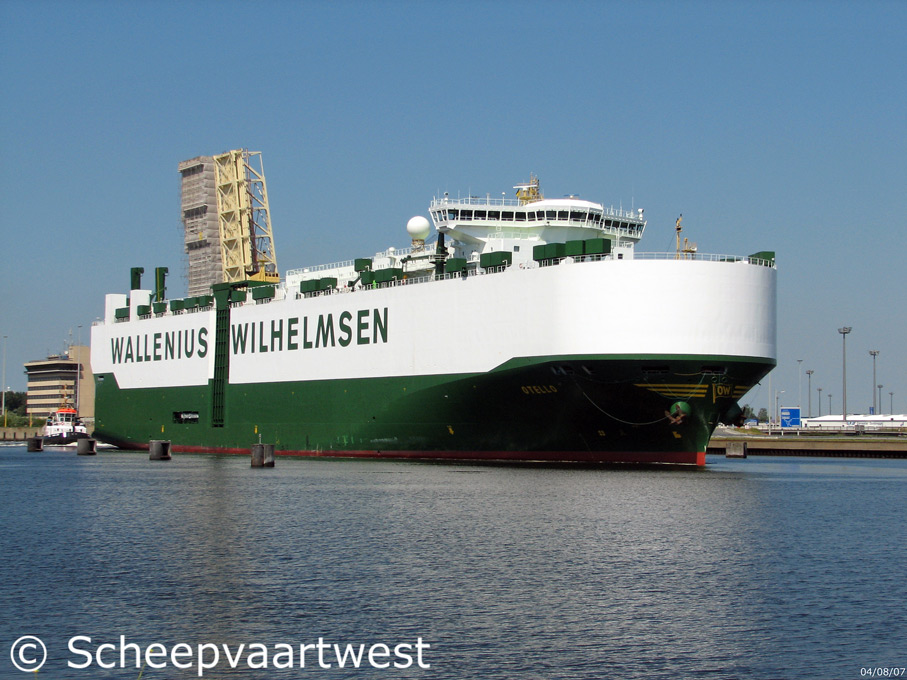

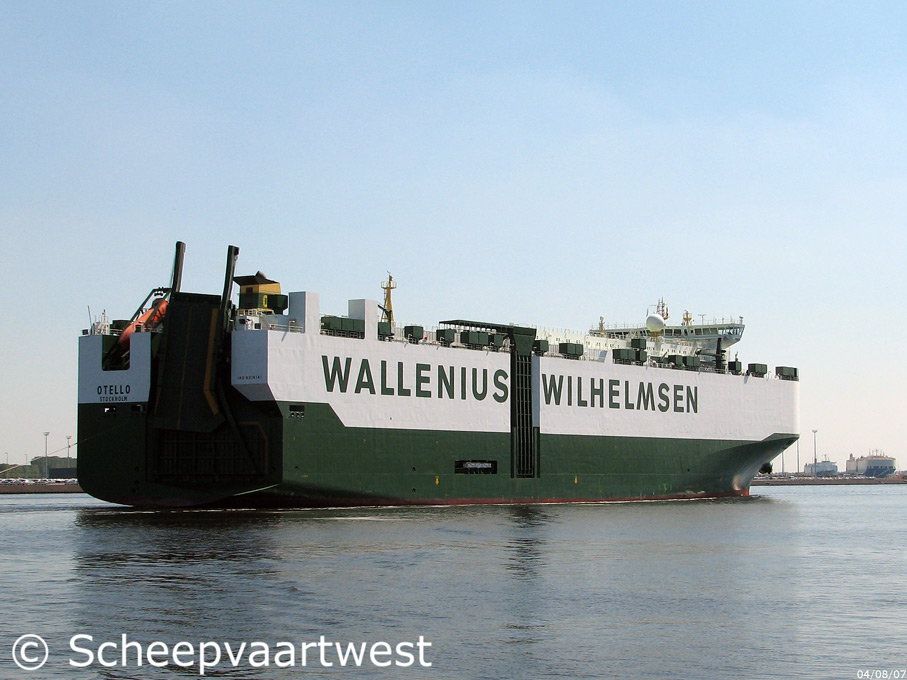

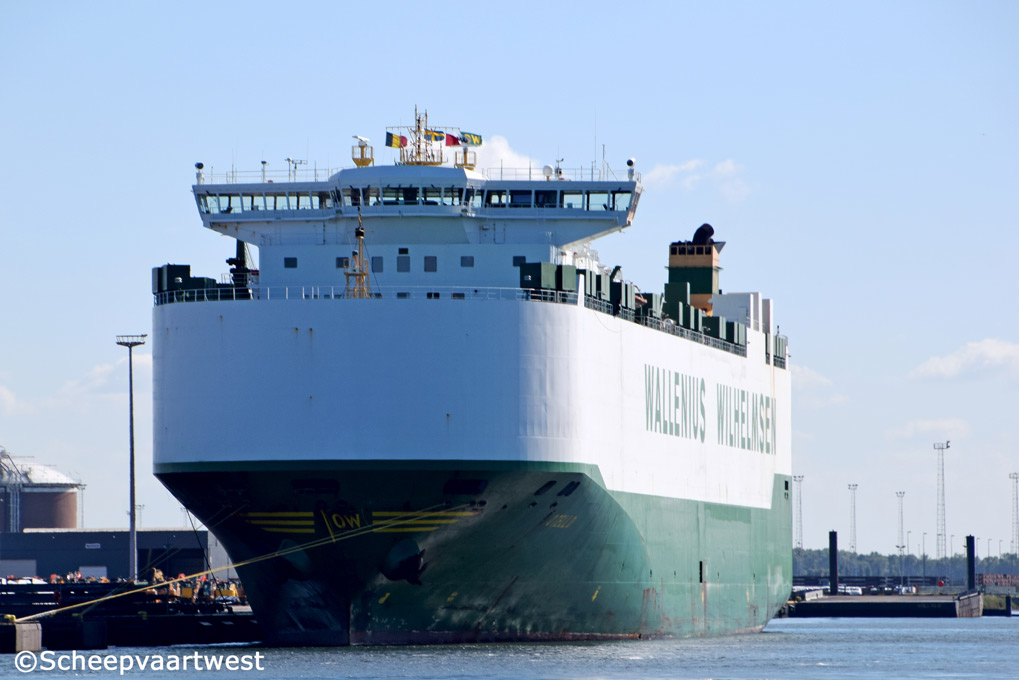

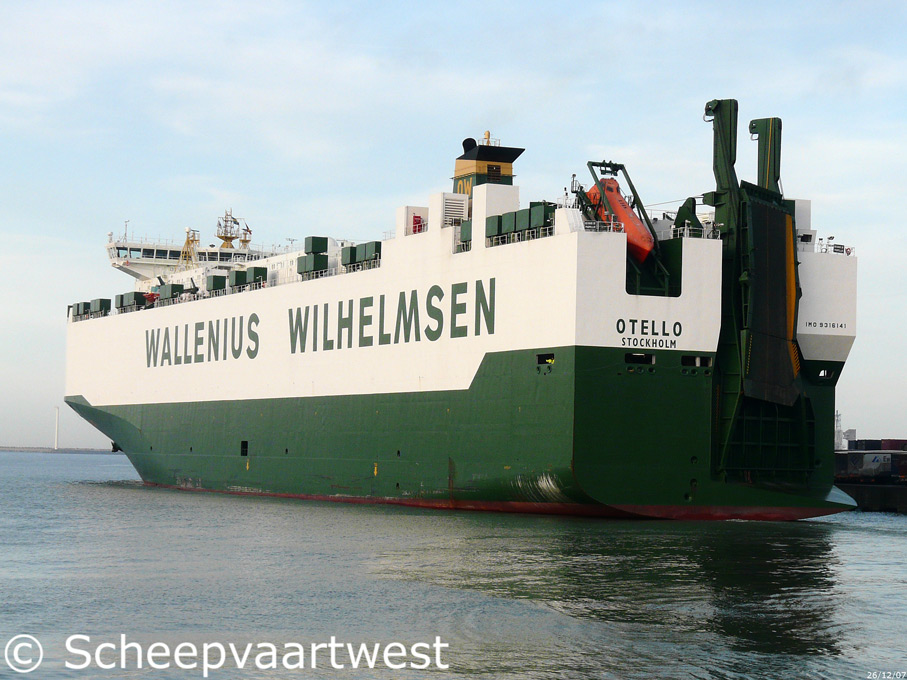

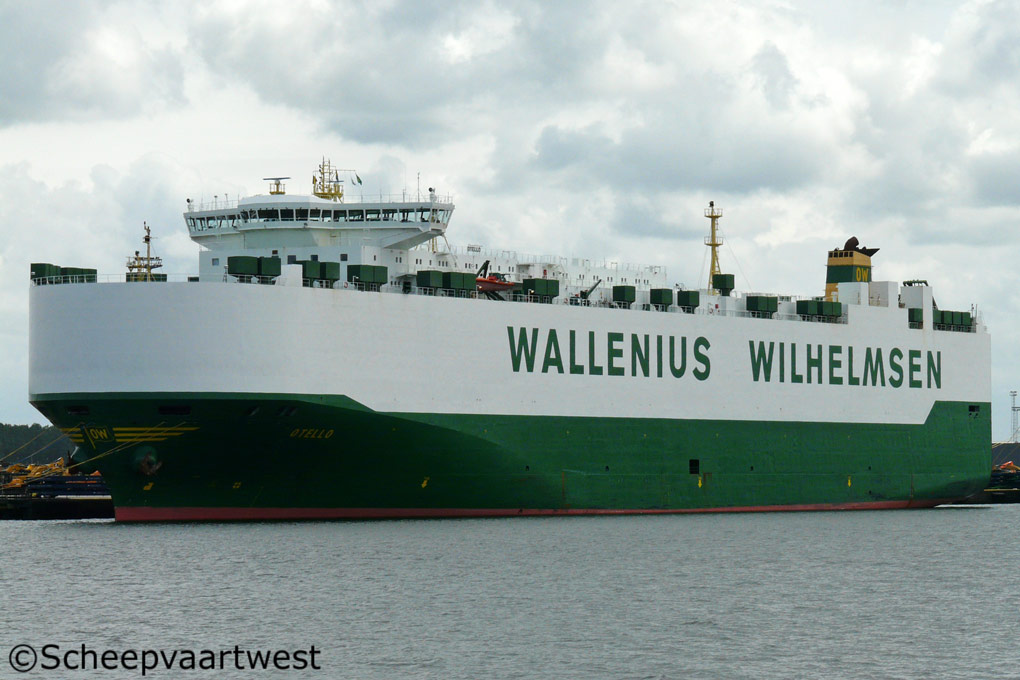

| Zeebrugge 04/08/07 | Zeebrugge 26/12/07 | Zeebrugge 13/06/12 | Zeebrugge 27/09/15 | Zeebrugge 04/08/07 | ||||
|
Name |
OTELLO |
|
Type |
Roll-On/Roll-Off carrier PCTC - Pure Car and truck Carrier |
|
IMO-number |
9316141 |
|
Call sign |
SBLW |
|
Flag |
Sweden |
|
Port of registry |
Stockholm |
|
GT |
61.260 t |
|
DWT |
22.564 t |
|
NT |
28.618 t |
|
Length |
199,00 m overall 190,00 m between perpendiculars |
|
Breadth |
32,29 m extreme |
|
Draught |
Summer: 11,30 m |
|
Freeboard |
23.400 mm |
|
Depth |
34,70 m moulded |
|
Speed |
20,0 knots |
|
Air draft |
51,98 m |
|
Height to upperdeck |
34,70 m |
|
Built |
2006 |
|
Keel laid |
20/02/2006 |
|
Date completion |
25/08/2006 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering DSME Geoje South Korea |
|
Yard number |
4443 |
|
Hull type |
Single hull |
|
Main engine |
1x B&W 7S60MC-C - 7 cylinder combustion engine maximum output of 21.490 bhp at 105,0 rpm |
|
Shaft generator |
1x 1.000 kW |
|
Generators |
2x STX/MAN-B&W SL21/31 diesel engines each connected with generators each 1.400 kW - 3x 450 Volt, 60 Hz |
|
Emergency generator |
1x Diesel generatorset 215 kW |
|
Bow thruster |
1x 1.500 kW bow thruster by about 22,6 tons thrust |
|
Capacity car (RT43) |
6.700 1RT43 unit = 7,38975 m² |
|
Capacity car / trucks |
3.000 cars and 400 buses |
|
Stern ramp capacity |
Width: 7,00 m Height: 6,50 m Capacity: 240 t |
|
Number of car decks |
13 (of which 5 are hoistable) |
|
Capacity deck area |
56.430 m² |
|
Basic complement |
15 |
|
Crew |
20 |
|
Manager |
Wallenius Lines AB Stockholm Sweden |
|
Operator |
Wallenius Wilhelmsen Logistics |
|
Owner |
Wallenius Lines AB Stockholm Sweden |
|
Renamed |
08/2019 Arc Resolve United States of America, Wilmington - Call sign: WTSZ Registered owner: Wilmington Trust Co. - USA |
|
Latest data adjustment |
09 October 2023 |
