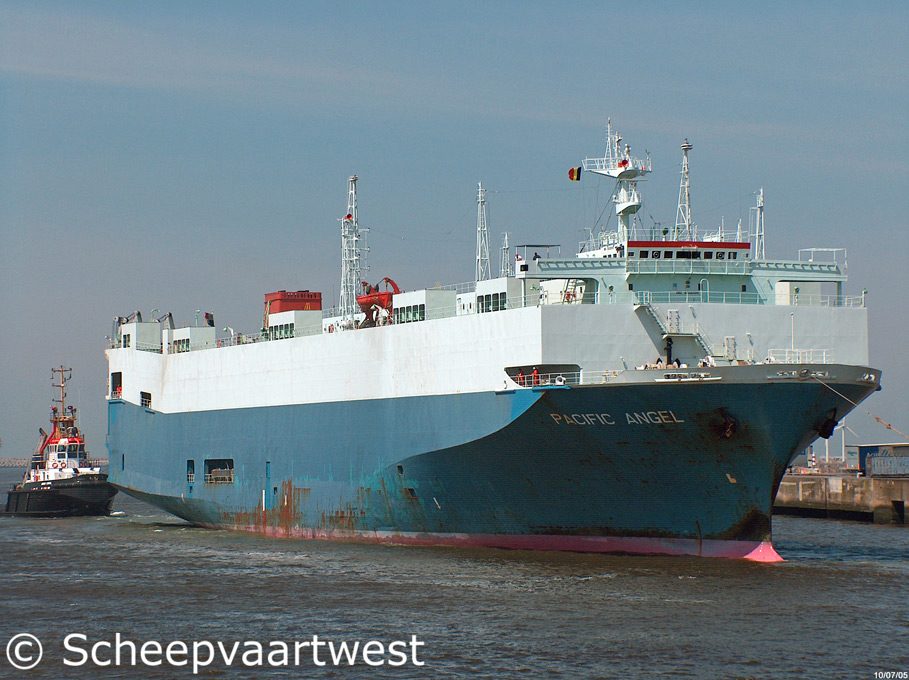

| Zeebrugge 10 July 2005 |
 |
 |
|

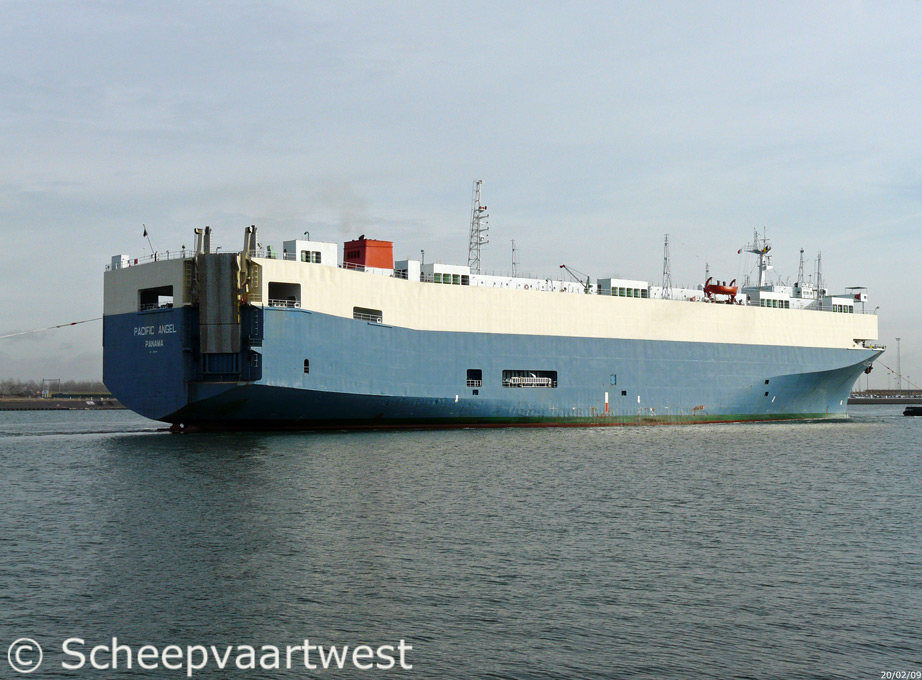

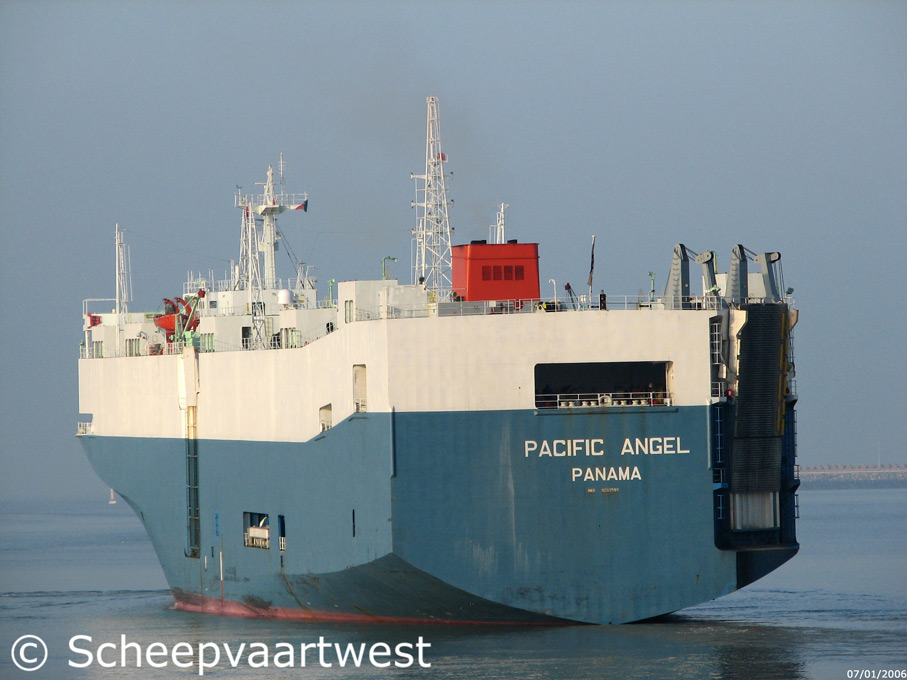

| Zeebrugge 07/01/06 | Zeebrugge 20/02/09 |
|
Name |
PACIFIC ANGEL |
|
Type |
Vehicles Carrier |
|
IMO-number |
8202599 |
|
Call sign |
3EXQ2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama |
|
GT |
26.914 t |
|
DWT |
9.348 t |
|
NT |
8.075 t |
|
Length |
158,73 m overall 148,17 m registered |
|
Breadth |
27,81 m overall |
|
Moulded L x B x D |
148,00 x 27,80 x 11,84 m |
|
Registered L x B x D |
151,96 x 27,80 x 19,53 m |
|
Draught |
Summer: 7,80 m |
|
Freeboard |
Summer: 4.050 mm |
|
Depth |
11,84 m moulded |
|
Speed |
Service: 17,5 knots Trial: 19,5 knots |
|
Built |
1983 |
|
Keel laid |
16.06.1982 |
|
Launch date |
11.06.1983 |
|
Date of completion |
21.09.1983 |
|
Builder |
Sumitomo Heavy Industries |
|
Yard number |
1107 |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 7 cylinder 560 x 1.150 mm diesel engine - 6.950 kW at 164,0 rpm Manufacturer: Sumijyu Machinery Co. Ltd. |
|
Boiler |
1x Auxiliary vertical boiler - 7,9 bar Evaporation: 2,58 t/h Manufacturer: Osaka Boiler Mfg. Co. Ltd. |
|
Generators |
3xMain diesel generators each 1.764 kVA |
|
Number of screws |
1 |
|
Cargo capacity |
Cars: 2.517 Trucks: 209 |
|
Tank capacities |
Fuel oil: 2.164 m³ Fresh water: 346 m³ Water ballast: 3.545 m³ |
|
Lifting equipment |
1x Crane - SWL 2,0 t 1x Crane - SWL 5,0 t |
|
Manager |
Patt Manfield & Co. Ltd. |
|
Operator |
Mitsui O.S.K Lines |
|
Owner |
Manfield & Co. Ltd. |
|
Registered owner |
Bamboo Shipping Corporation Liberia |
