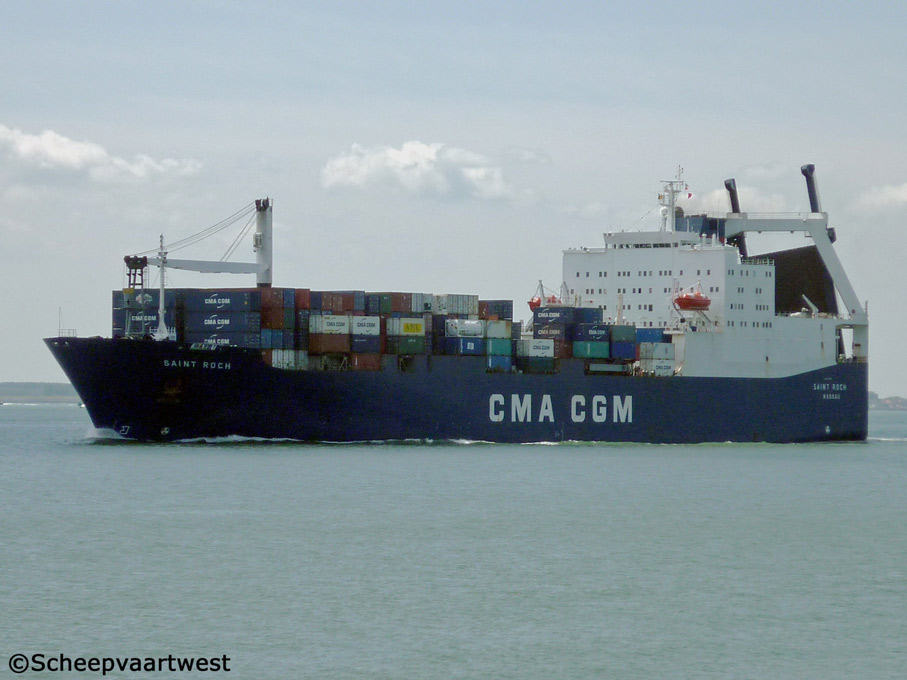

Saint Roch 02

Westerschelde 14 June 2012

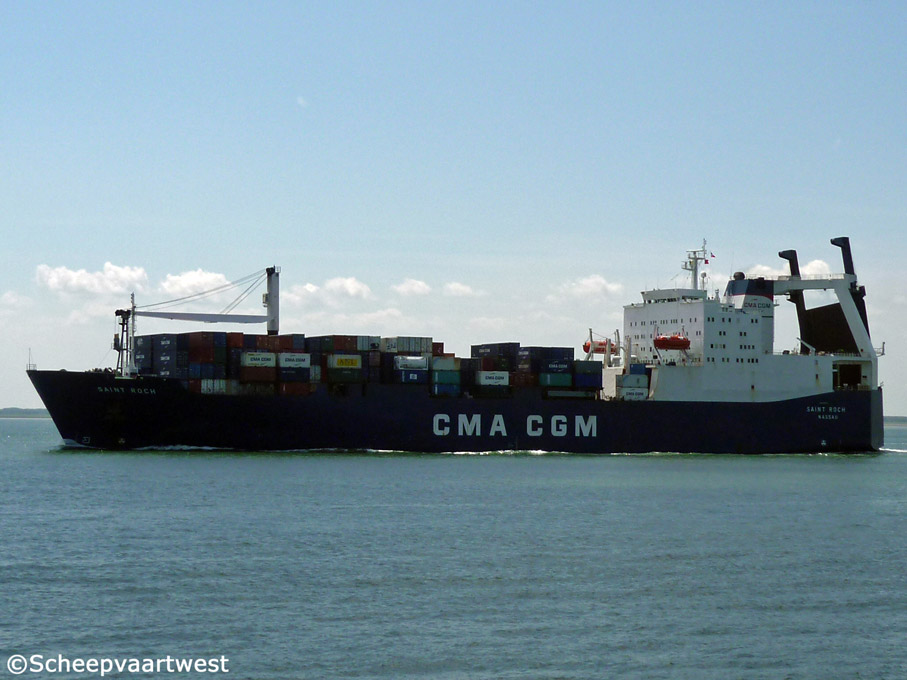

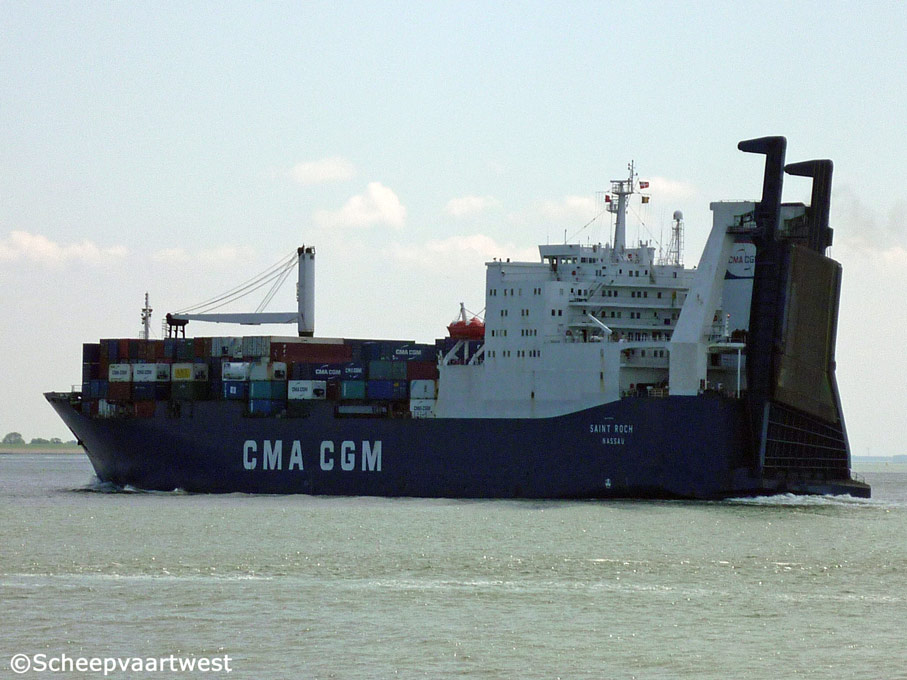

Saint Roch 05   Saint Roch 07   Saint Roch 09
Westerschelde 14/06/12 Westerschelde 14/06/12 Westerschelde 14/06/12



Name

SAINT ROCH

Previous names

1980 - 1981 Höegh Belle

Type

Roll-On / Roll-Off cargo vessel

IMO-number

7724306

Call sign

C6NS4

Flag

Bahamas

Port of registry

Nassau

GT

31.007 t

DWT

Summer: 24.282 t

NT

9.302 t

Number of 20ft containers

1.187

Reefer points

70

Length

186,49 m overall

170,00 m between perpendiculars

Breadth

32,26 m

Draught

10,62 m

Line metres

3.308 m

Freeboard

1.679 mm

Depth

19,60 m

Speed

18,0 knots

Built

1980

Builder

Stocznia Komuny Paryskiej
Gdynia
Poland

Yard number

B484

Hull material

Steel

Watertight compartments

6

Continuous decks

4

Main engine

1x Sulzer-Cegielski 6 RND 90 - 2 stroke 6 cylinder 900 x 1550 mm diesel engine - 12.806 kW / 17.400 hp at 122,0 rpm

Builder: Cegielsky, Poznan - Poland

Propellers

1x Screw propeller - aft at 122,0 rpm

Boilers

1x CHR 514,00 m² - 6,0 bar
1x CHM 80,00 m² - 6,0 bar

Electric installations

Power voltage: 440 V

Generators

1x Main diesel generatorset 1.260 kVA - 1.008 kW - 1.800 hp
4x Main diesel generatorsets each 1.260 kVA - 1.008 kW - 1.389 hp

Cargo capacity

44.780 m³ of which 509 m³ refrigerated

Number of vehicles

Trucks: 150

Cars: 320

Fuel capacity

3.237 m³

Cargo gear

1x Crane - SWL 5,0 t

1x Crane - SWL 40,0 t

Crew

26

Manager

Midocean IOM
Douglas

Isle Of Man
United Kingdom

Operator

CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime

4 Quai d'Arenc
Marseille
France

Owner

Delmas
Le Havre
France

Registered owner

SCAC Delmas Vieljeux

Last data update

07 February 2014
