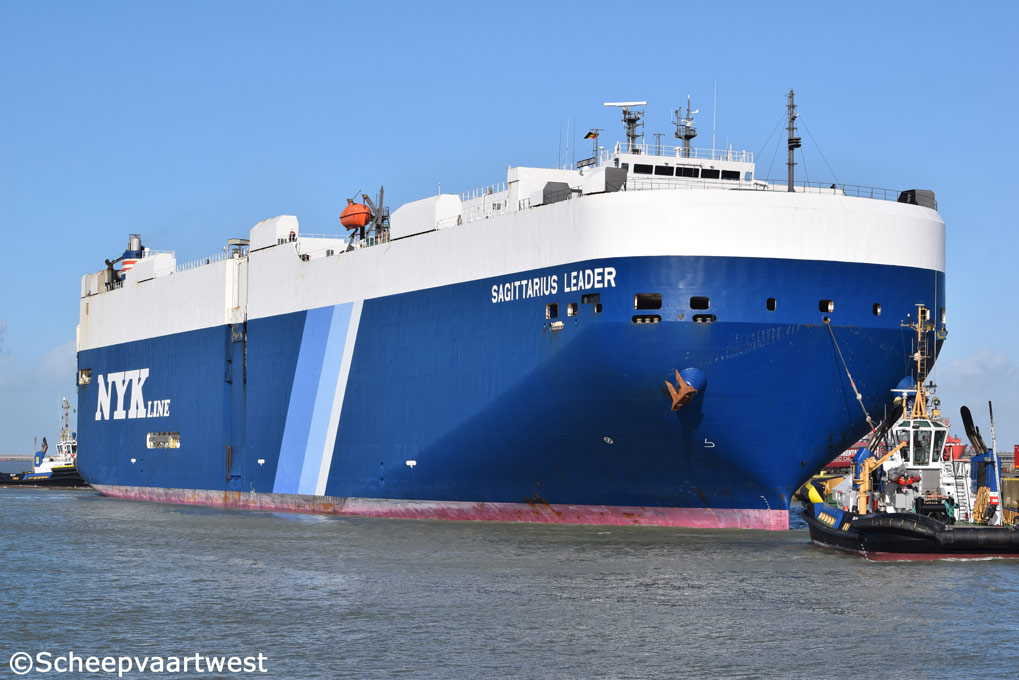

Sagittarius Leader 16
Zeebrugge 14 February 2014

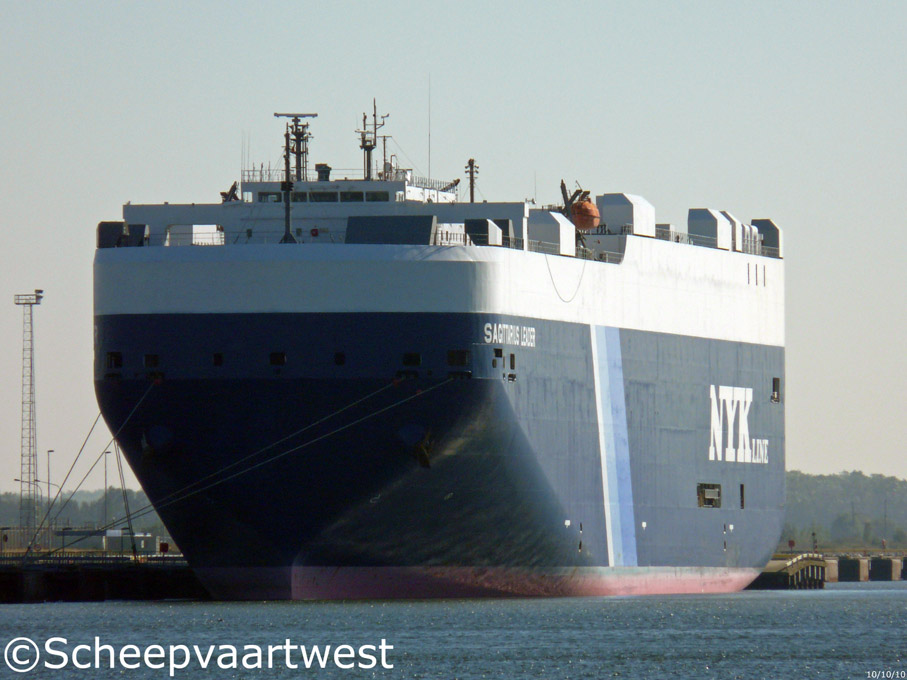

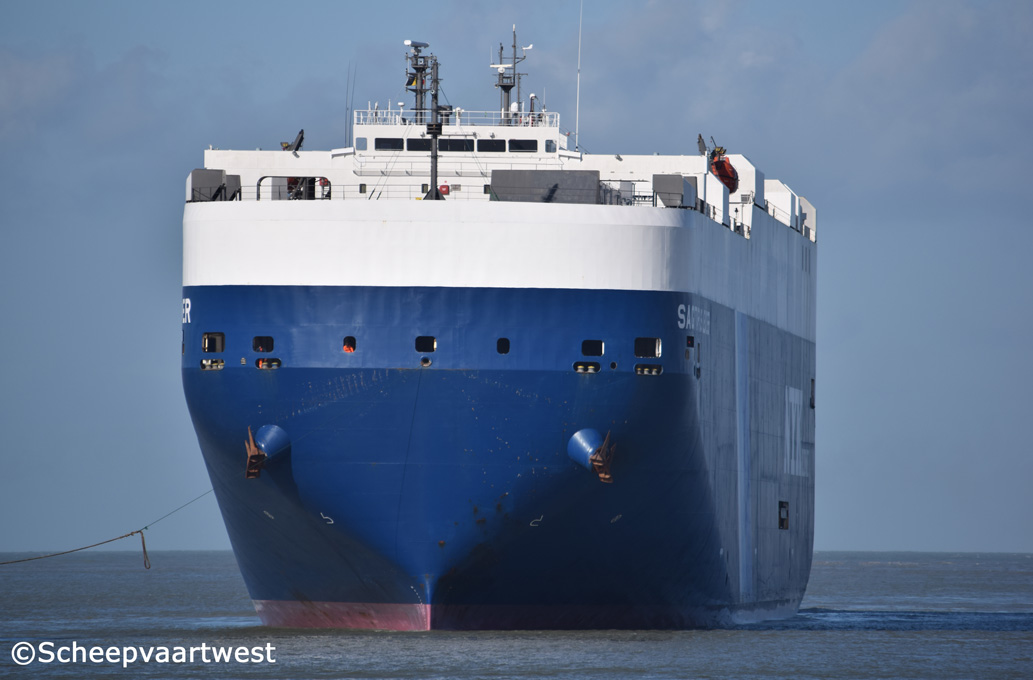

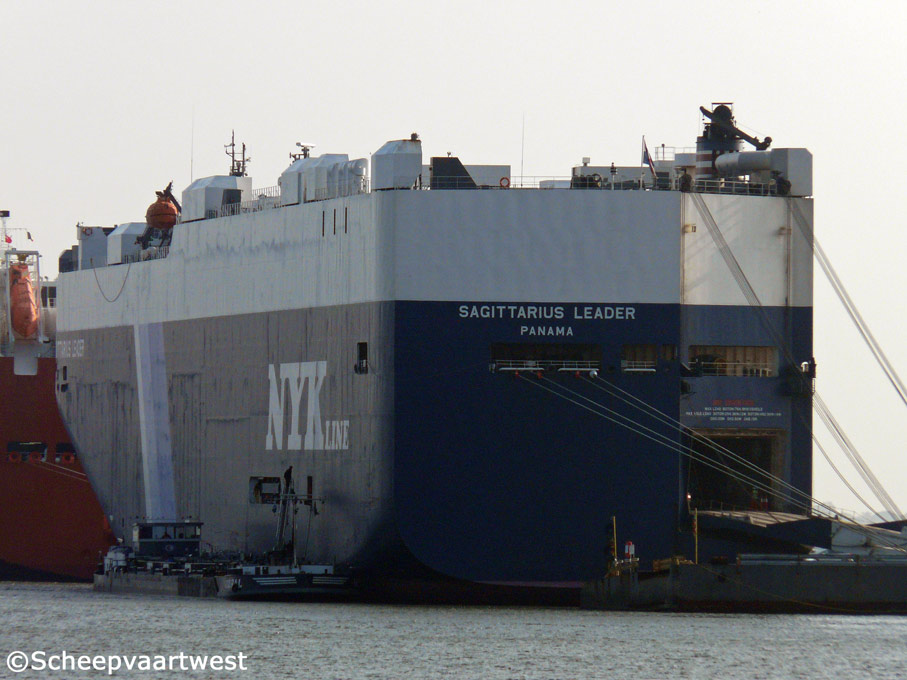

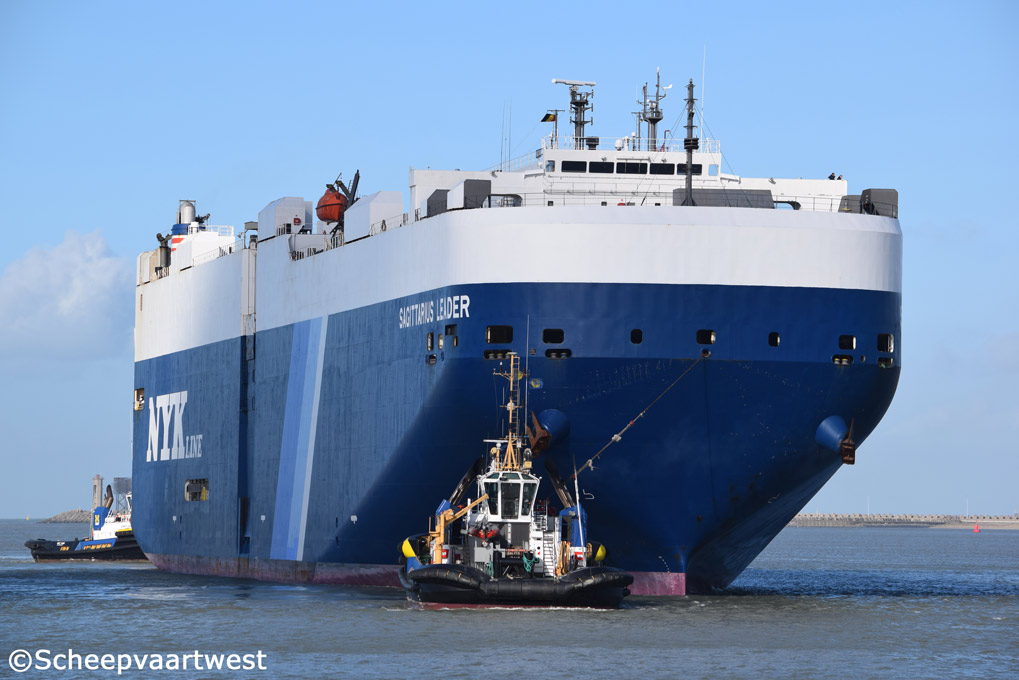

Sagittarius Leader 13   Sagittarius Leader 10   Sagittarius Leader 08   Sagittarius Leader 01
Zeebrugge 10/02/14 Zeebrugge 10/02/14 Zeebrugge 08/10/10 Zeebrugge 08/10/10



Name

SAGITTARIUS LEADER

Type

Vehicles carrier

IMO-number

9283887

Call sign

3EAB7

Flag

Republic of Panama

Port of registry

Panama City

GT

61.804 t registered

DWT

20.098 t

NT

18.542 t registered

Length

199,94 m

Breadth

32,26 m

Draught

Summer: 10,016 m

Moulded L x B x D

190,00 x 32,26 x 15,00 m

Registered L x B x D

194,11 x 32,26 x 24,32 m

Freeboard

Summer: 5.025 mm

Depth

15,0 m moulded

Speed

Trial: 21,3 knots

Built

2005

Keel laid

29.09.2004

Launch date

28.12.2004

Date of completion

04.03.2005

Builder

Imabari Shipbuilding Co., Ltd.
Marugame Headquarters
Japan

Yard number

1424

Hull type

Single hull

Main engine

1x 2 stroke single acting 8 cylinder 600 x 2.300 mm diesel engine - 15.540 kW at 104,0 rpm

Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works

Propeller

1

Propeller shaft

1x Oil lubrication shaft with monitoring device

Boiler

1x Auxiliary vertical boiler - 7,8 bar

Evaporation: 4,81 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Main diesel generatorsets each 4.275 kVA

Cargo capacity

Cars: 6.501

Cars / Trucks: 5.415 / 162

Tank capacities

Fuel oil: 3.637 m³

Fresh water: 369 m³

Water ballast: 9.450 m³

Lifting equipment

2x Cranes - SWL 0,9 t each

3x Cranes - SWL 4,0 t each

Crew

22

Manager

Wilhelmsen Ship Management SDN BHD

Operator

NYK-Line - Nippon Yusen Kaisha Line

Owner

Sagitarius Maritima .S.A
