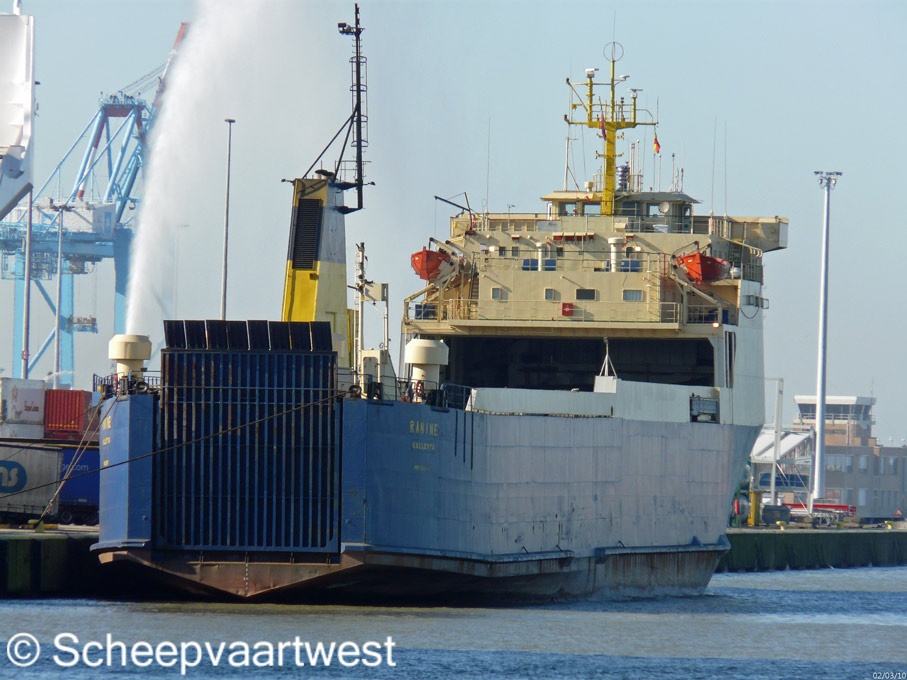

Ranine 04
Zeebrugge 02 March 2010



Name

RANINE

Previous names

1978-1982 Gabriele Wehr

1982-1985 Tor Anglia

1986-1992 Gabriele Wehr

1992-1993 Sari

1993-2001 Gabriele Wehr

2001-2009 Flanders Way

Type

Roll-On/Roll-Off vessel

IMO-number

7720477

Call sign

9HIA9

Previous call sign

V3OI5

Flag

Malta

Previous flag

Belize

Port of registry

Valletta

GT

7.635 t

DWT

4.322 t

NT

2.290 t

Number of 20ft containers

180

Length

141,13 m overall

133,20 m m registered

Breadth

17,43 m

Draught

5,218 m

Lane metres

1.148

Forecastle

9,20 m

Depth

12,20 m moulded

Speed

15,0 knots

Built

1978

Keel laid

14.10.1977

Launch date

14.03.1978

Date of completion

06.1978

Builder

Rickmers Reederei GmbH Rickmers Werft
Bremerhaven
Federal Republic of Germany

Yard number

391

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

7

Continuous decks

2

Main engine

2x Mak 8 M 453 C - 4 stroke single acting 8 cylinder 320 x 420 mm diesel engines - each 2.200 kW at 600 rpm

Year of manufacture: 1989

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

2x Controllable pitch propeller - aft at 310 rpm

Boilers

2x Water heater, oil fired

Year of Manufacture: 1976

Electric installations

1x Plant 440/220 V - 701 kVA

1x Plant 440 V - 700 kVA

Shaft generator

1x 700 kVA

Generators

2x Main diesel generatorsets each 338 kVA

1x Main generatorset 25 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

1x Receiver 63 litres - 30,0 bar

1x Receiver 20 litres - 30,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 441 kW, forward

Cargo capacity

Bales: 14.498 m³

Tank capacities

Ballast water: 2.446 m³

Fuel oil: 665 m³

Anchor equipment

3x Anchors weight each 3.540 kg

Chain length: 522,50 m

Number of passengers

12

Number of beds

12

Crew

20

Manager

EuroShip Services Ltd.
Long Reach House (1st Floor) London Road
Purfleet , Essex RM19 1PD
United Kingdom

Operator

Cobelfret Ferries

Owner

Ro-Roco N.V.
Sneeuwbeslaan 14
2610 Wilrijk
Belgium

Previous owners

1978-2001 Oscar Wehr Transport

Special annotations

Ship lengthened 08.1982

42 t lift, ramp on the 2nd deck.
As substitute of containers 91 trailer a 40' 67 cars under deck.

Previous names & operators

1978 Gabriele Wehr

1978-1979 Gabriele Wehr - Hanse Ferries

1979 Gabriele Wehr - North Sea Ferries

1980-1981 Gabriele Wehr - Hanse Ferries

1981 Gabriele Wehr - Lübeck Line

1981-1982Gabriele Wehr - Tor Line

1982 Gabriele Wehr - North Sea Ferries

1982-1985Tor Anglia - Tor Line

1985-1986Gabriele Wehr

1986-1987Gabriele Wehr - North Sea Ferries

1987 Gabriele Wehr - Kent Line

1988-1989 Gabriele Wehr - Brittany Ferries

1989-1992 Gabriele Wehr - P&O European Ferries

1992 Gabriele Wehr - Sally Line

1992-1993 Sari

1993-1999 Gabriele Wehr - P&O European Ferries

1999-2000 Gabriele Wehr

2000-2001 Gabriele Wehr - Ferryways

2001-2007 Flanders Way - Ferryways

2007-2009 Flanders Way - Cobelfret Ferries
