| Zeebrugge 07 July 2007 |
 |
 |
|

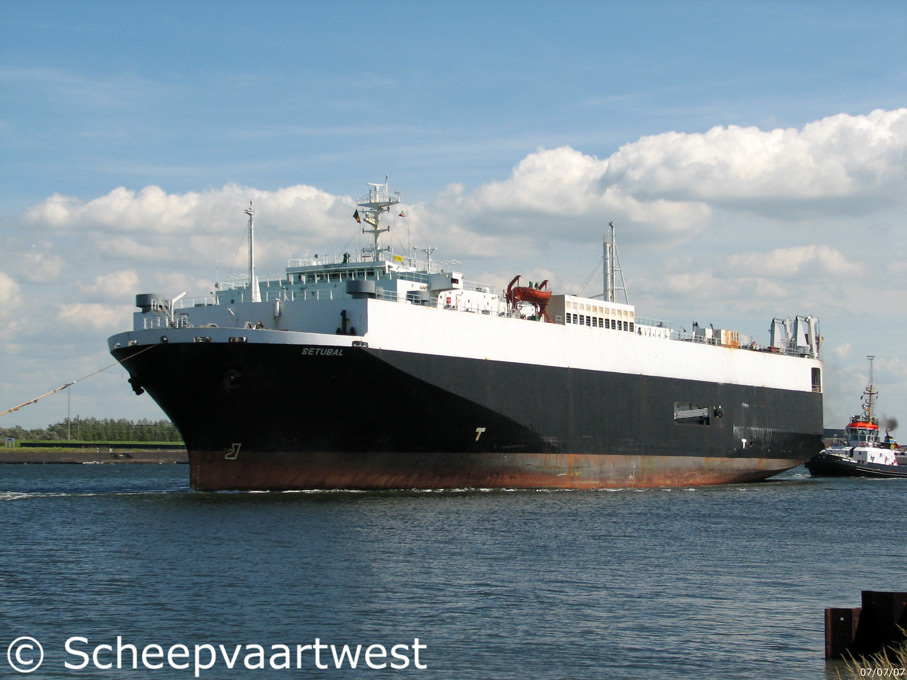

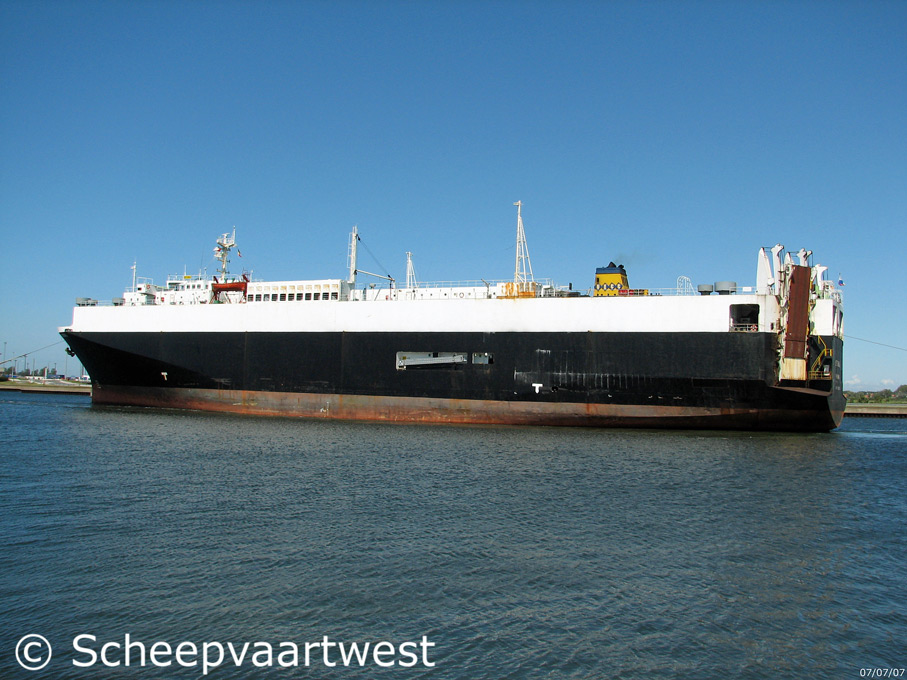

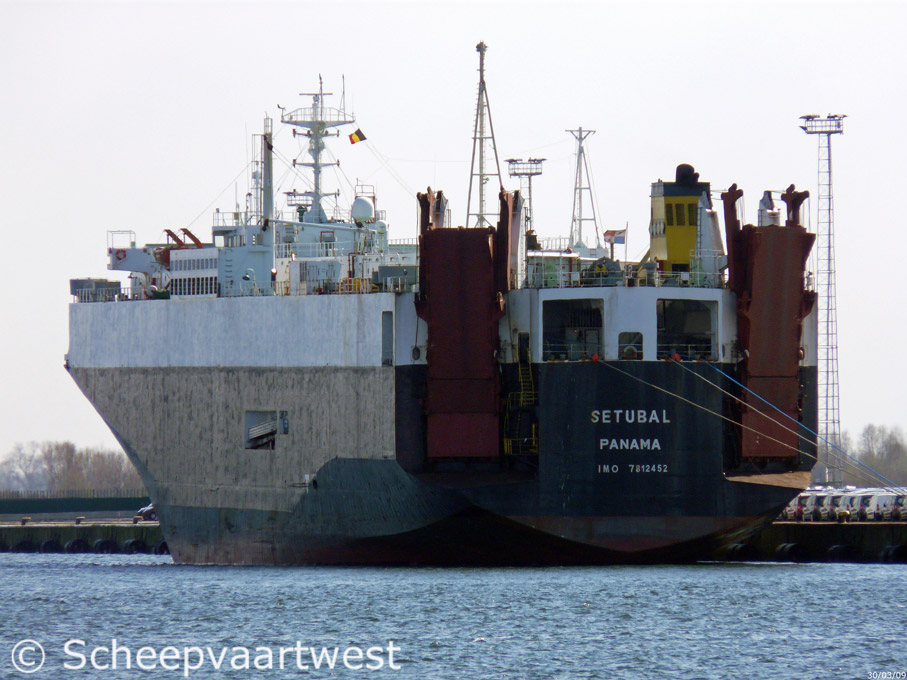

| Zeebrugge 07/07/07 | Zeebrugge 30/03/09 |
|
Name |
SETUBAL |
|
Previous name |
1978-1995 Zuijin |
|
Type |
Vehicles Carrier |
|
IMO-number |
7812452 |
|
Call sign |
HPHI |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama |
|
GT |
20.248 t |
|
DWT |
14.919 t |
|
NT |
8.340 t |
|
Length |
138,58 m overall 130,75 m registered |
|
Breadth |
26,00 m moulded |
|
Moulded L x B x D |
130,00 x 26,00 x 11,45 m |
|
Registered L x B x D |
130,75 x 26,00 x 14,01 m |
|
Draught |
Summer: 7,819 m |
|
Freeboard |
Summer: 3.650 mm |
|
Depth |
11,45 m moulded |
|
Speed |
Service: 18,5 knots Trial: 20,1 knots |
|
Built |
1978 |
|
Keel laid |
28.07.1978 |
|
Launch date |
25.10.1978 |
|
Date of completion |
21.12.1978 |
|
Builder |
Oshima Shipbuilding Co. Ltd. |
|
Yard number |
10039 |
|
Hull type |
Single hull |
|
Main engine |
1x 4 stroke 16 cylinder 400 x 480 diesel engine - 8.531 kW at 530,0 rpm Manufacturer: Sumijyu Machinery Co. Ltd. |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 7,9 bar Evaporation: 2,20 t/h Manufacturer: Gadelius K.K. (Kajiwara Tekkosho) |
|
Generators |
2x Main diesel generatorsets each 1.426 kVA |
|
Car capacity |
2.155 |
|
Lifting equipment |
1x Derrick - SWL 3,5 t 2x Cranes - SWL 1,5 t each |
|
Manager |
Patt Manfield Ltd. |
|
Operator |
UECC - United European Car Carriers |
|
Registered owner |
UECC IOM Limited |
|
Scrapped |
07.2010 Turkey |
