| Zeebrugge 09 December 2005 |
 |
| Zeebrugge 02/08/10 |
|
Name |

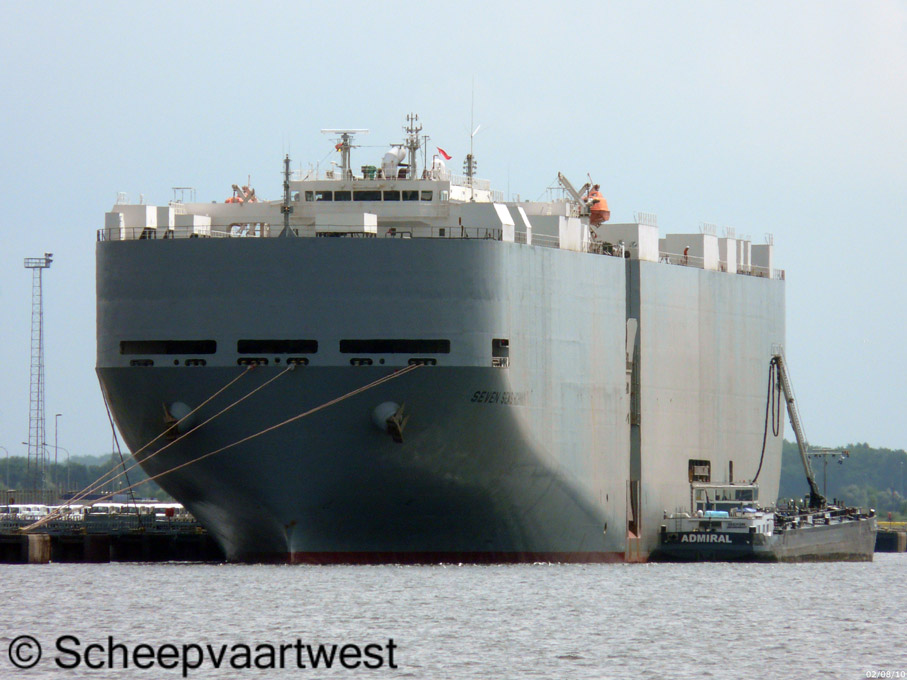

SEVEN SEAS HIGHWAY |
|
Type |
Vehicles Carrier |
|
IMO-number |
9238521 |
|
Call sign |
H9RB |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
55.493 t |
|
DWT |
17.232 t |
|
NT |
16.648 t |
|
Length |
199,94 m overall 194,27 m registered |
|
Breadth |
32,20 m overall |
|
Moulded L x B x D |
190,00 x 32,20 x 15,30 m |
|
Registered L x B x D |
194,27 x 32,20 x 23,71 m |
|
Draught |
Summer: 9,616 m |
|
Freeboard |
14.280 mm |
|
Depth |
23,71 m registered |
|
Speed |
Service: 20,0 knots Trial: 22,0 knots |
|
Built |
2001 |
|
Keel laid |
10.05.2001 |
|
Launch Date |
23.09.2001 |
|
Date of completion |
26.11.2001 |
|
Builder |
Imabari Shipbuilding Co., Ltd., Marugame Works |
|
Yard number |
1367 |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 8 cylinder 600 x 2.300 diesel engine - 13.940 kW at 99,0 rpm Manufacturer: Kobe Diesel Co. Ltd. Nagasaki Works |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 7,9 bar Evaporation: 4,44 t/h Manufacturer: Tortoise Engineering Co. Ltd. |
|
Generators |
4x Main diesel generatorsets 4.650 kVA |
|
Transportation of |
Toyota cars to Europe |
|
Cargo capacity |
Cars: 6.015 Trucks: 156 |
|
High Height Ratio |
100% |
|
Tank capacities |
Fuel oil: 3.521 m³ Fresh water: 376 m³ Water ballast: 8.447 m³ |
|
Lifting equipment |
2x Cranes - SWL 0,5 t each 1x Crane - SWL 0,9 t 2x Cranes - SWL 4,0 t each |
|
Manager |
Taiyo Nippon Kisen Co. Ltd. |
|
Operator |
K-line - Kawasaki Kisen Kaisha Line |
|
Registered owner |
SES Shipholding S.A. |
