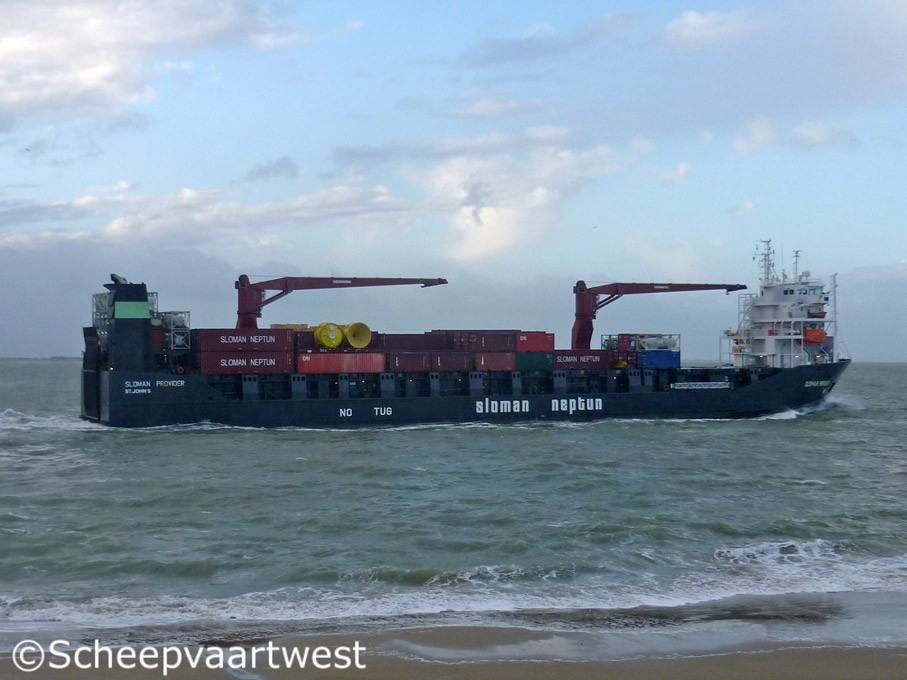

Sloman Provider 02
Westerschelde 13 December 2011

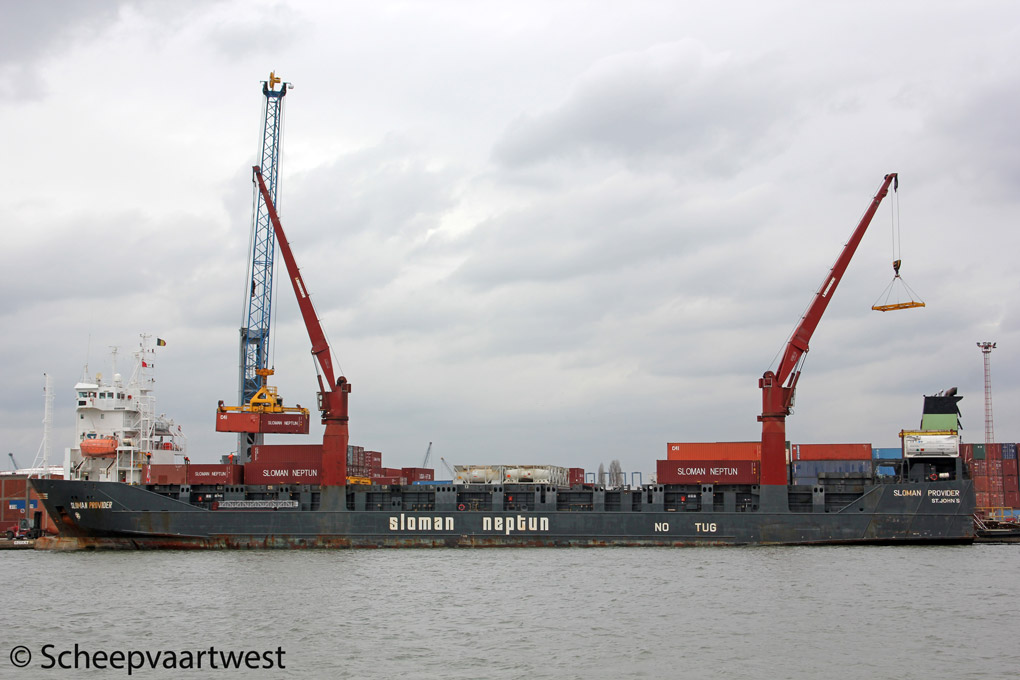

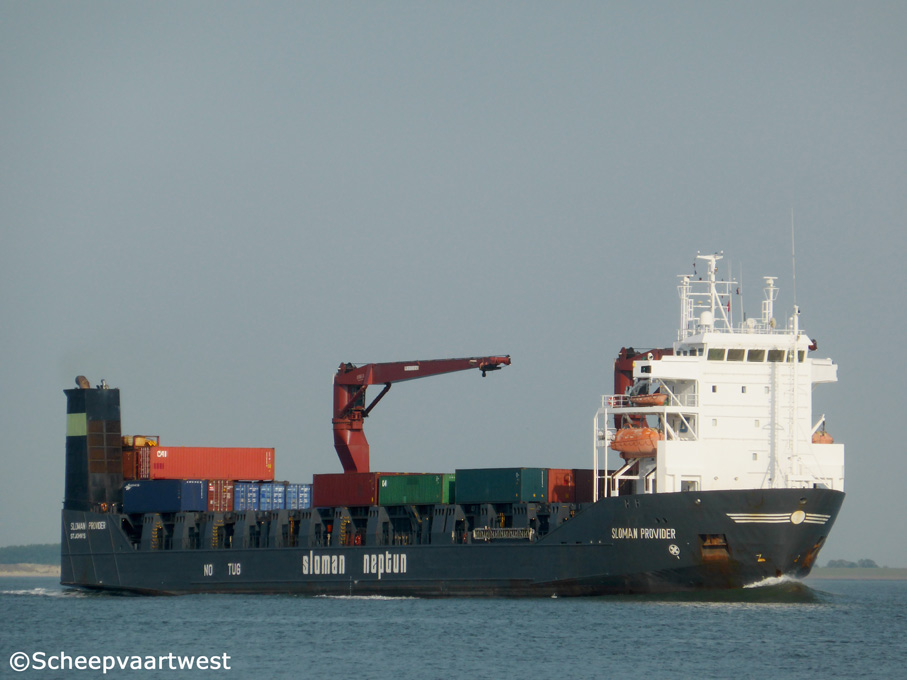

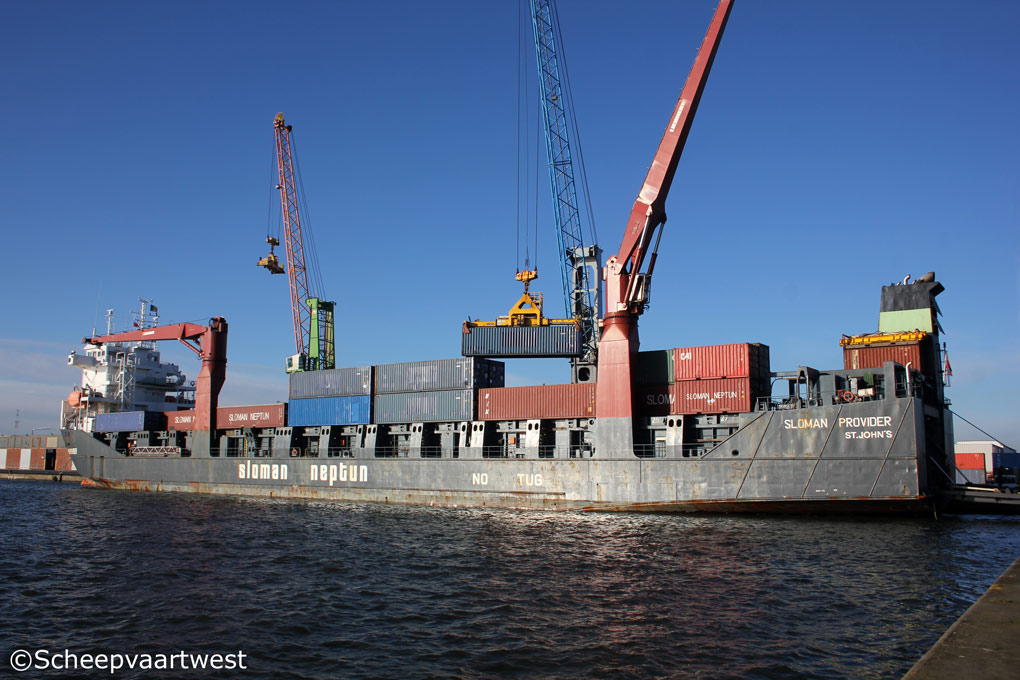

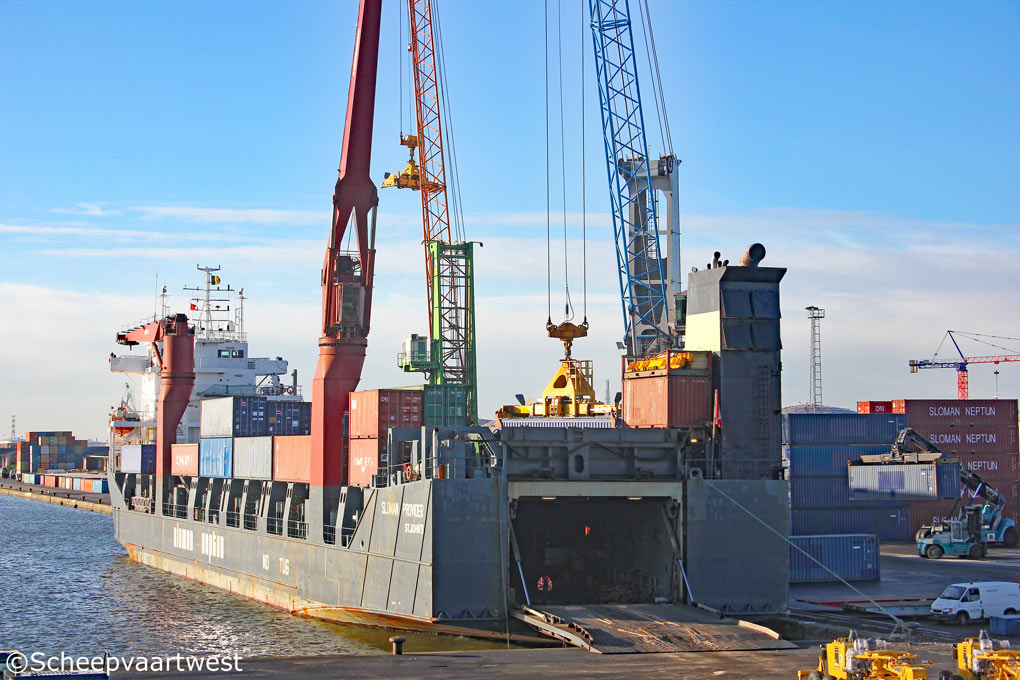

Sloman Provider 03   Sloman Provider 04   Sloman Provider 05   Sloman Provider 06
Antwerpen 16/04/13 Westerschelde 17/05/14 Antwerpen 17/01/15 Antwerpen 17/01/15



Name

SLOMAN PROVIDER

Type

Multi purpose Ro-Ro / Lo-Lo and heavy lift vessel - Equipped for carriage of containers

IMO-number

9160994

Call sign

V2BK8

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

7.260 t

DWT

8.194 t

NT

3.906 t

Number of 20ft containers

783

Containers capacity 14 t

427

Reefer capacity

40 on deck

Length

122,11 m overall

115,40 m between perpendiculars

116,13 m registered

Breadth

18,70 m registered

Draught

7,169 m

Forecastle

13,40 m

Freeboard

2.991 mm

Depth

10,15 m moulded

Speed

13,5 knots

Built

2000

Keel laid

29.06.1998

Launch date

27.07.2000

Date of completion

11.2000

Builder

Pendik Tersanesi ve Agir Sanayi
Tesisleri Müdürlügü Kaynarca
81504 Pendik , Istanbul
Turkey

Yard number

22

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

6

Continuous decks

2

Main engine

1x MAN 12 V 32/40 - 4 stroke 12 cylinder 320 x 400 mm diesel engine - 5.760 kW at 750 rpm

Year of manufacture: 1999

Manufacturer: MAN Diesel & Turbo SE
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft at 185 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 35,0 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 121,0 m²

Year of manufacture: 1998

Manufacturer: PWT Prozesswärmeträgertechnik GmbH
Max-Weber-Str. 10
25451 Quickborn
Federal Republic of Germany

Electric installations

2x Plant 440/220 V each 325 kVA

1x Plant 440 V - 680 kVA

1x Plant 440 V - 343 kVA

Shaft generator

1x 680 kVA

Generators

2x Main diesel generatorsets each 325 kVA

Emergency generator

1x Diesel generatorset 343 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 400 kW, forward

Cargo capacity

Grain: 14.300 m³

Bales: 13.450 m³

Number of holds

2

Tank capacities

Fuel oil: 596 m³

Ballast water: 3.146 m³

Anchor equipment

3x Anchors weight each 3.780 kg

Chain length: 522,50 m

Lifting devices

2x Cranes - SWL 40 t each combinable up to 60 t

Manager

Sloman Neptun Schiffahrts-Aktiengesellschaft
Langenstr. 44
28195 Bremen
Federal Republic of Germany

Operator

Sloman Neptun

Owner

Sloman Neptun Schiffahrts-Aktiengesellschaft
Langenstr. 44
28195 Bremen
Federal Republic of Germany

Last Update

25.04.2013
