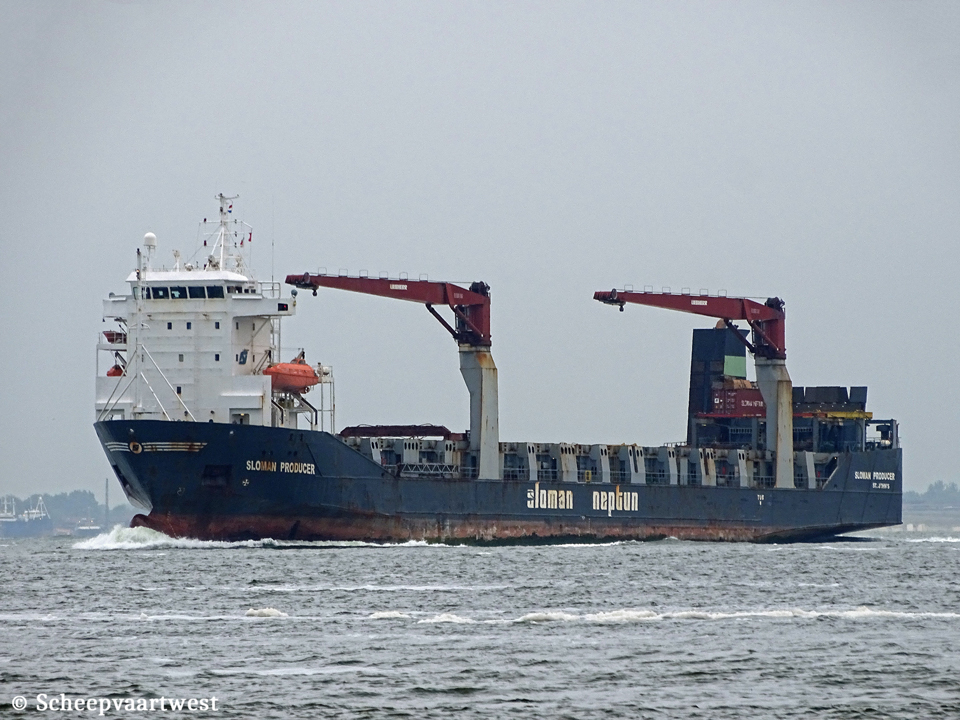

| Westerschelde 07 May 2017 |
 |
 |
 |
 |
 |
 |
|||||

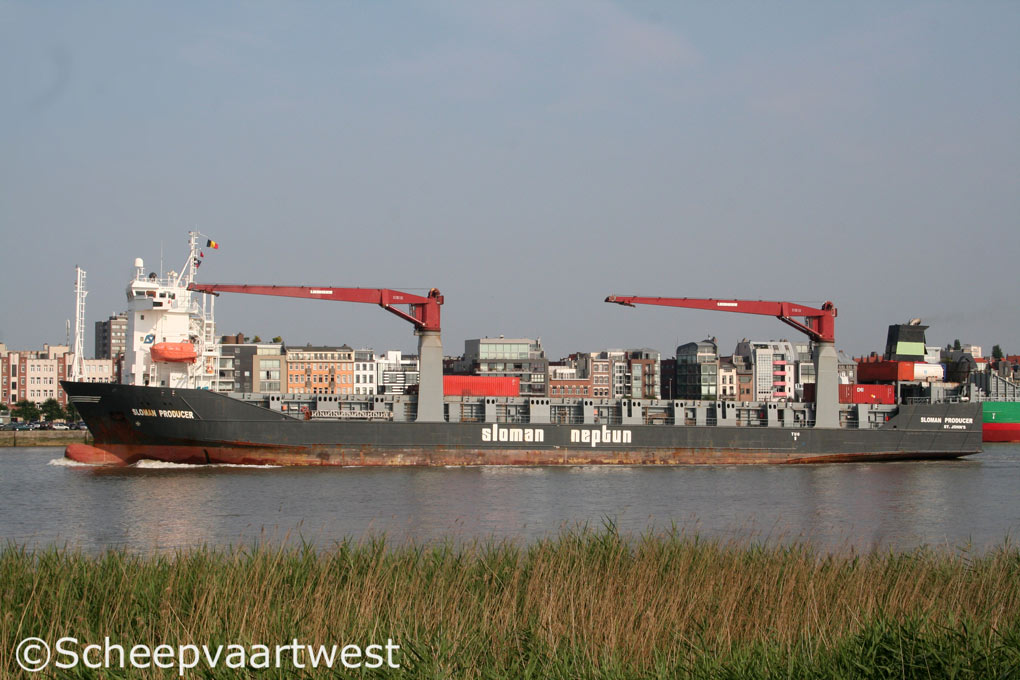

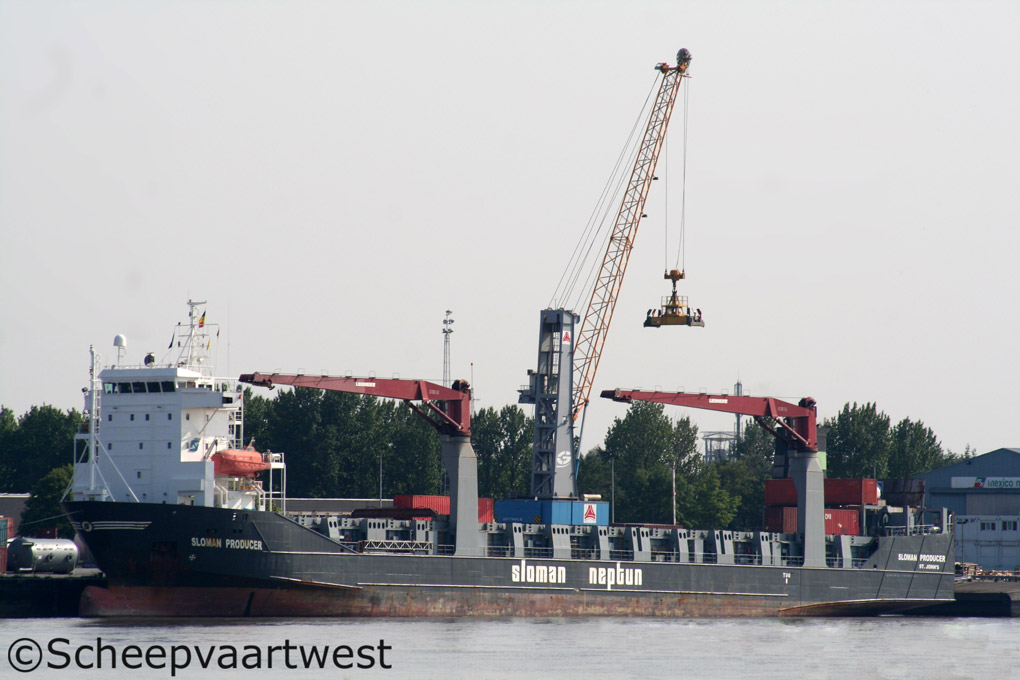

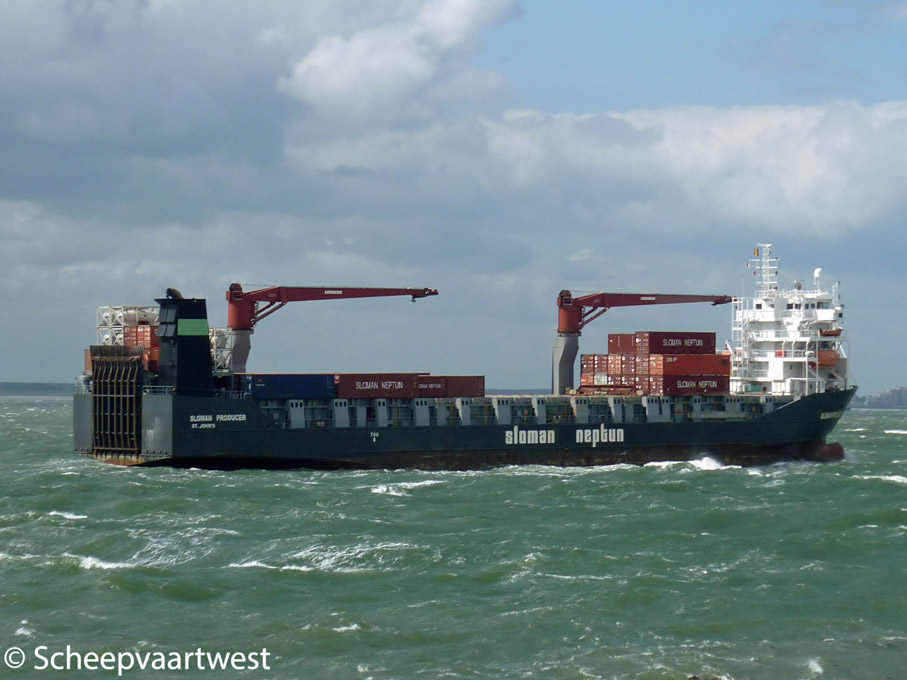

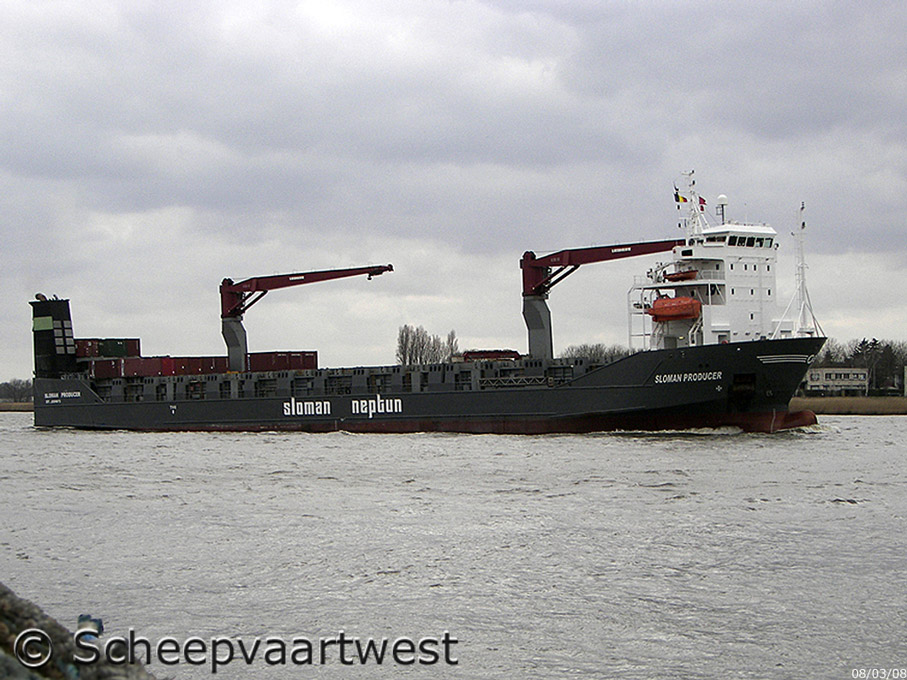

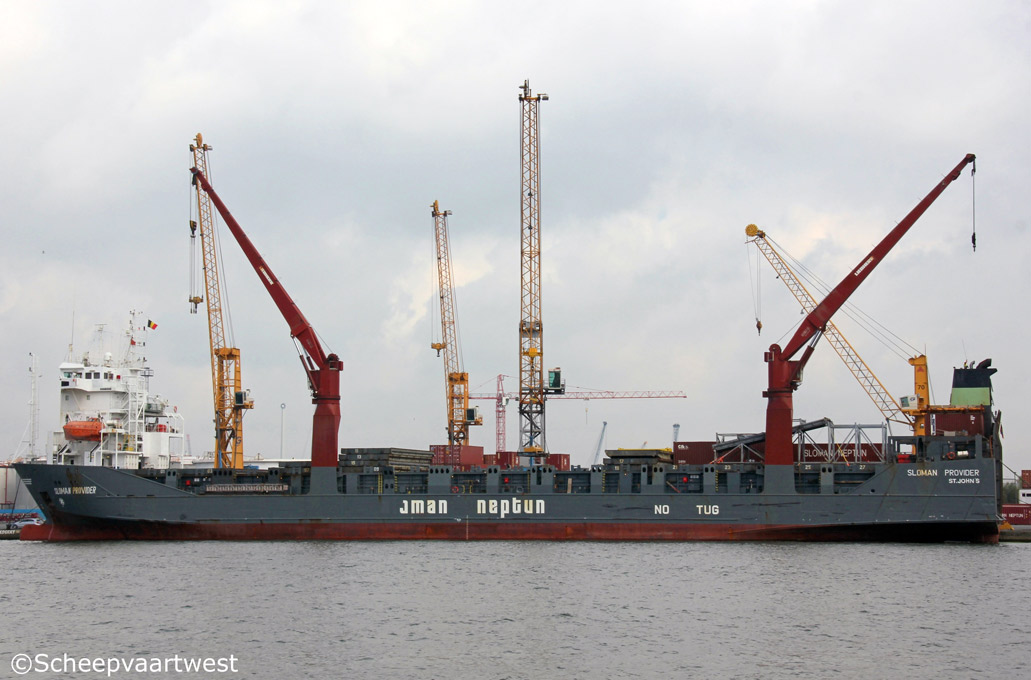

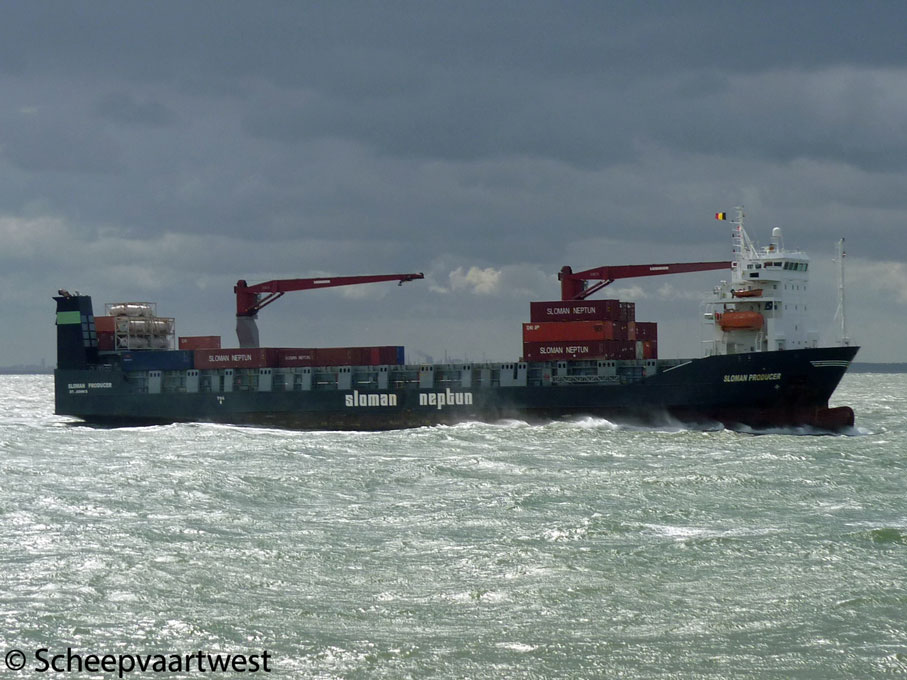

| WS 07/05/17 | Antwerpen 08/03/08 | Antwerpen 05/07/11 | Antwerpen 05/07/11 | Westerschelde 09/06/12 | Westerschelde 09/06/12 | |||||
 |
 |
 |
||

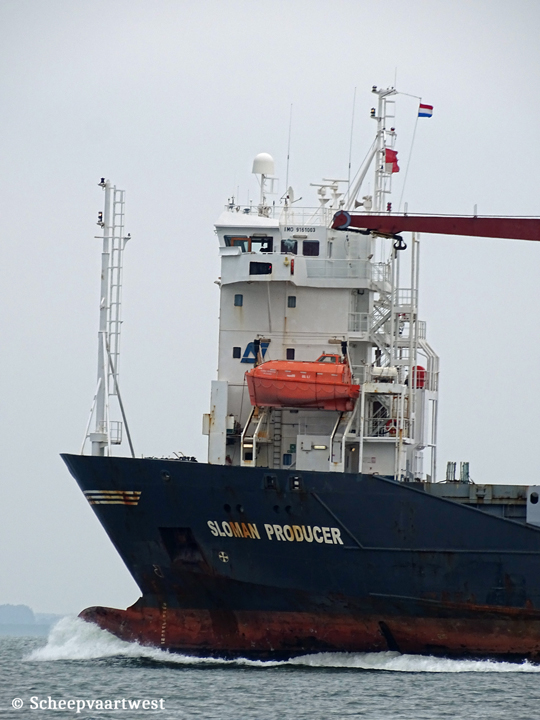

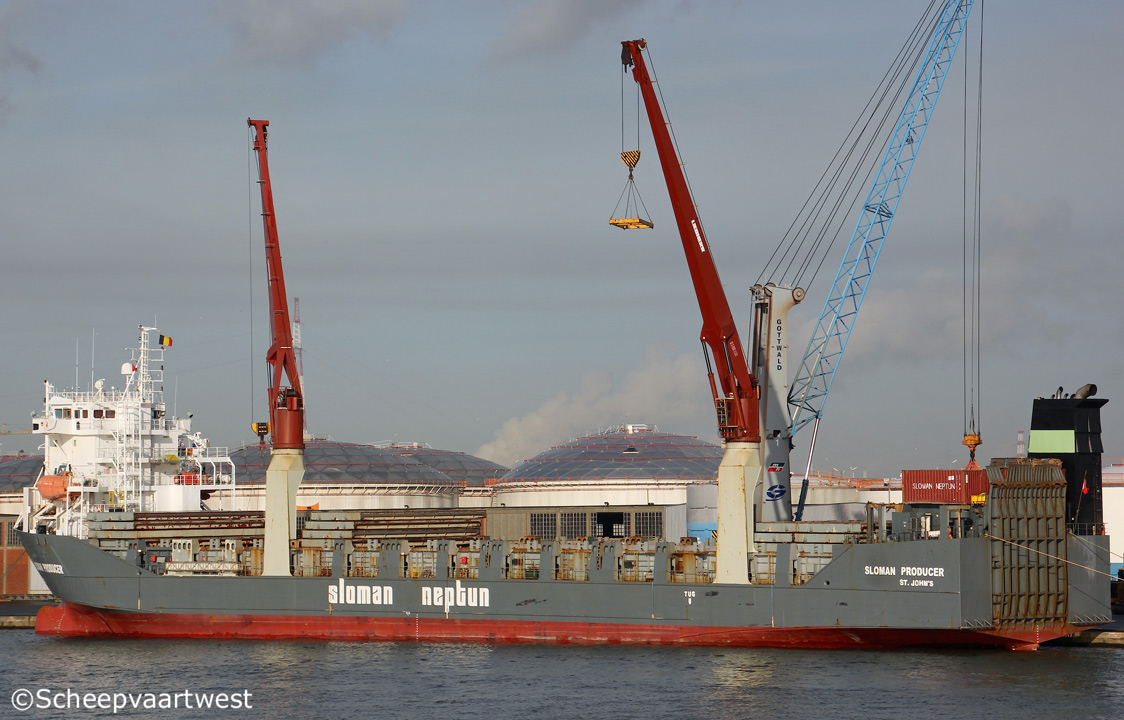

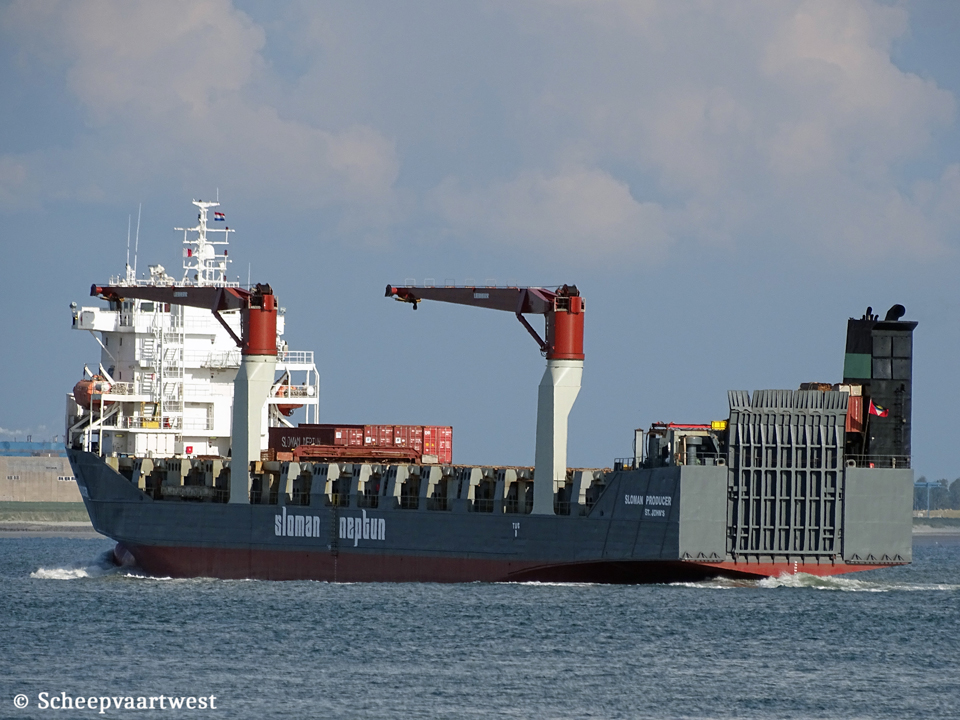

| Antwerpen 01/09/16 | Antwerpen 30/01/18 | Westerschelde 01/09/17 | ||
|
Name |
SLOMAN PRODUCER |
|
Type |
Roll-On/Roll-Off Cargo Carrier - Equipped for carriage of containers |
|
Basic functions |
Car carriage - Train carriage - Military vehicle carriage - Container carriage - Passenger carriage - General cargo carriage |
|
IMO-number |
9161003 |
|
Call sign |
V2OT9 |
|
Flag |
Antigua & Barbuda |
|
Previous flag |
2004 - Republic of Panama, Panama City |
|
Port of registry |
Saint John's |
|
GT |
7.260 |
|
DWT |
8.210 t |
|
NT |
3.906 |
|
Number of 20ft containers |
783 |
|
Container Capacity 14t |
427 |
|
Reefer capacity |
40 |
|
Length |
122,11 m overall 116,13 m registered |
|
Breadth |
18,60 m overall |
|
Draught |
Summer: 7,169 m |
|
Forecastle |
13,40 m |
|
Freeboard |
3.000 mm |
|
Depth |
10,15 m moulded |
|
Speed |
15,5 knots |
|
Built |
2004 |
|
Keel laid |
29/06/1998 |
|
Launch date |
03/12/1999 |
|
Date of completion |
17/08/2004 |
|
Builder casco |
Turkiye Gemi Camialti Shipbuilding Istanbul Turkey |
|
Builder completed |
ADA Shipyard-Tuzla Tersaneler Bölgesi Tersaneler Cad. No:1 Tuzla, Istanbul Turkey |
|
Yard number |
244 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN 12V32/40 - 4 stroke single acting 12 cylinder 320 x 400 mm combustion engine 5.760 kW / 7.831 hp at 720 rpm Year of manufacture: 1999 Builder: MAN Group Munchen - Germany |
|
Number of screws |
1x Controllable pitch propeller - aft 4 blades |
|
Boiler |
1x Thermal oil heater, oil fired - 10 bar Heating surface: 35,0 m² Year of manufacture: 1998 1x Thermal oil heater, exhaust gas heated - 10 bar Heating surface: 121,0 m² Year of manufacture: 1999 Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH |
|
Electric installations |
1x 450/ 230 V - 650 kVA 1x 450 V - 680 kVA 1x 450 V - 343 kVA |
|
Shaft generator |
1x 680 kVA |
|
Generators |
2x Main diesel generatorsets each 325 kVA |
|
Emergency generator |
1x Diesel generatorset 343 kVA |
|
Bow thruster |
1x 400 kW, forward |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Number of ramps |
1 |
|
Tank capacities |
Water ballast: 3.069 m³ Fuel oil: 596 m³ |
|
Lifting equipment |
2x Deck cranes - SWL 60 t each |
|
Anchor equipment |
3x Anchors weight each 3.780 kg Chain length: 522,50 m |
|
Manager |
Sloman Neptun Schiffahrts-Aktiengesellschaft Langenstr. 44 28195 Bremen Federal Republic of Germany |
|
Operator |
Sloman Neptun |
|
Owner |
Producer Shipping Co. Ltd. Care of Sloman Neptun Schiffahrts-Aktiengesellschaft Langenstr. 44 28195 Bremen Federal Republic of Germany |
|
Renamed |
2019 Lady R Russia, Astrakhan - Call Sign: UBDT8 Manager & Owner: Transmorflot LLC - Russia |
|
Latest data adjustment |
22 August 2022 |
