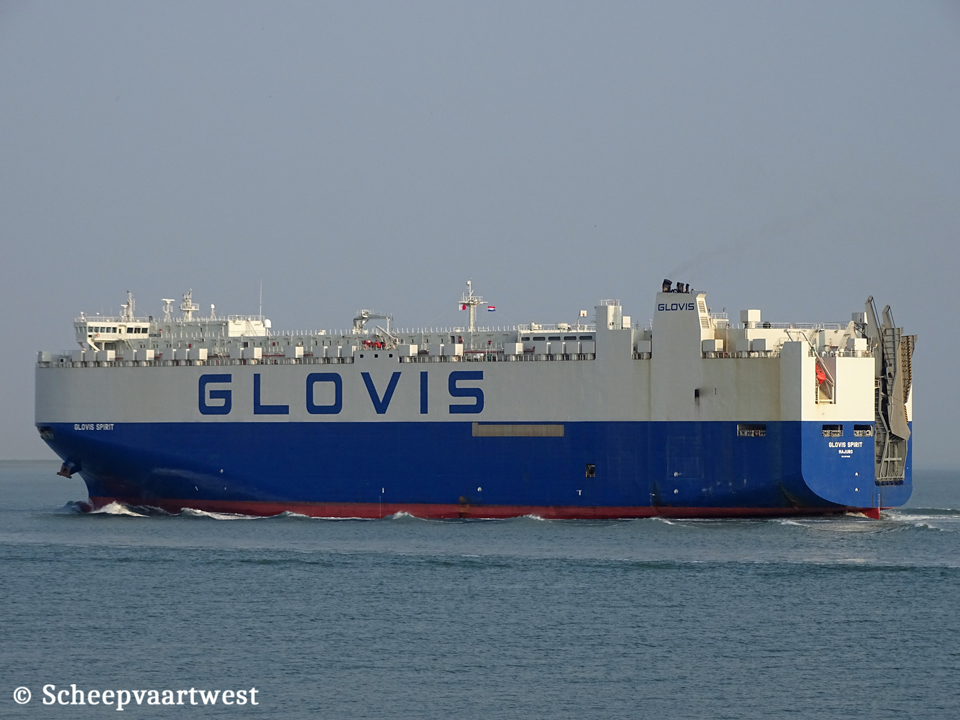

Glovis Spirit IMO 9674165 03

Westerschelde 30 March 2019

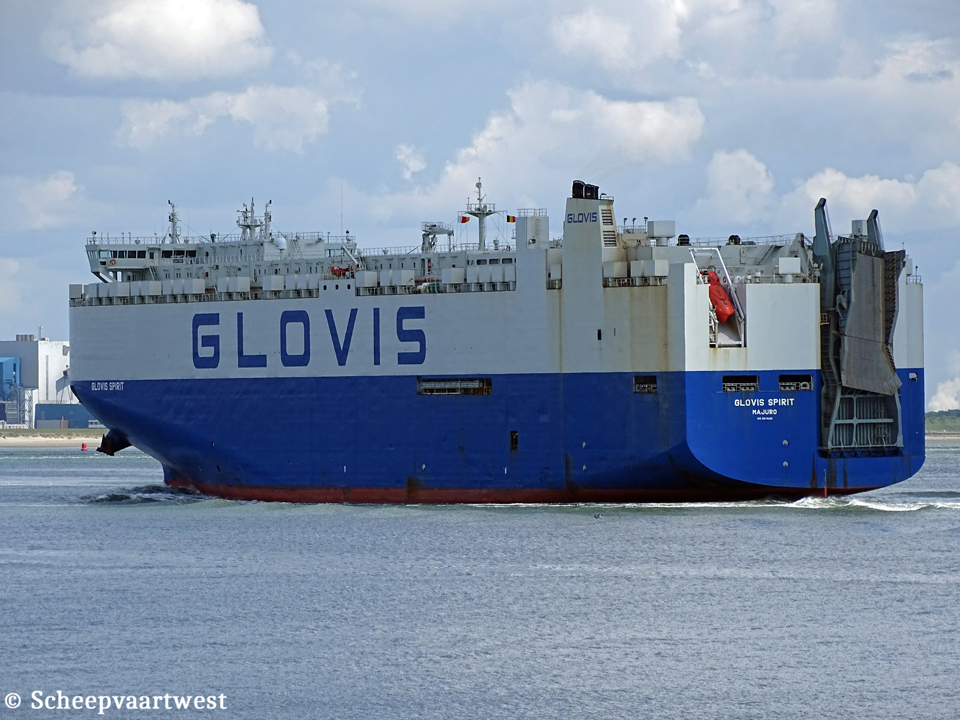

Glovis Spirit IMO 9674165 02   Glovis Spirit 01
Westerschelde 11/05/20 Westerschelde 17/10/14









Name

GLOVIS SPIRIT

Type

Roll-On/Roll-Off vehicle carrier

PCC - Pure car Carrier

IMO-number

9674165

Call sign

V7CA8

Flag

Marshall Island

Port of registry

Majuro

GT

64.650 t

DWT

Summer: 20.138 t

NT

22.552 t

Length

199,97 m overall

Breadth

35,40 m

Draught

10,01 m

Reg. Dimensions L x B x D

194,32 x 35,40 x 20,52 m

Rule Dimensions L x B x D

188,80 x 35,40 x 14,48 m

Freeboard

3.220 mm

Depth

20,52 m registered

Speed

Service: 20,23 knots

Built

2013

Keel laid

15/04/2013

Launch date

13/07/2013

Date of completion

26/09/2013

Builder

Hyundai Samho Heavy Industries Co. Ltd.

Yeongam

South Korea

Yard number

S667

Hull material

Steel

Main engine

1x MAN-B&W 7S60ME-C8 - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 17.770 bhp / 13.070 kW at 102,0 rpm

Built: 02/2013

Builder: Hyundai Heavy Ltd. Engine & Machinery, Ulsan - South Korea

Propellers

1x Fixed pitch propeller

Boilers

Built: 02/2013

Builder: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea

Number of cars

7.300

Number of ramp

2

Tank capacities

Fuel oil: 3.452,2 m³

Fresh water: 320,7 m³

Water ballast: 9.233,2 m³

Commerical manager

Hyundai Glovis Co Ltd.

512, Yeongdong-daero

Gangnam-gu, Seoul, 06172

South Korea

ISM manager

G-Marine Service Co Ltd.

331, Jungang-daero, Dong-gu

Busan, 48792

South Korea

Operator

Glovis - part of the Hyundai Kia Automotive Group

Registered owner

Hyundai Glovis Co Ltd.

512, Yeongdong-daero, Gangnam-gu

Seoul, 06172

South Korea

Latest data adjustment

29 November 2021
