| Westerschelde 19 July 2018 |
 |
 |
 |
||

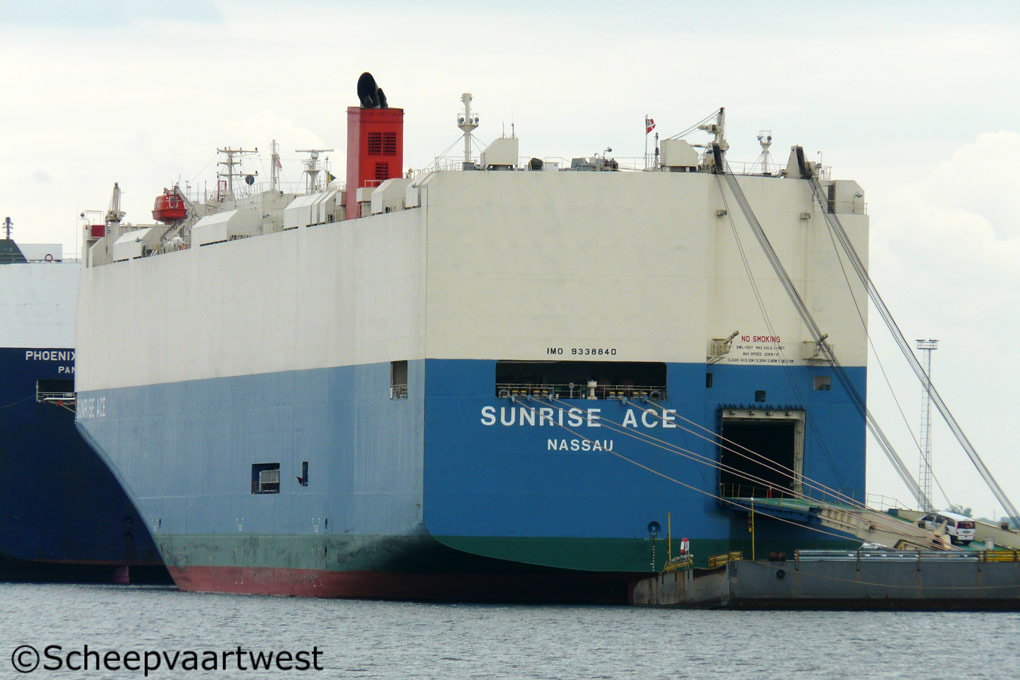

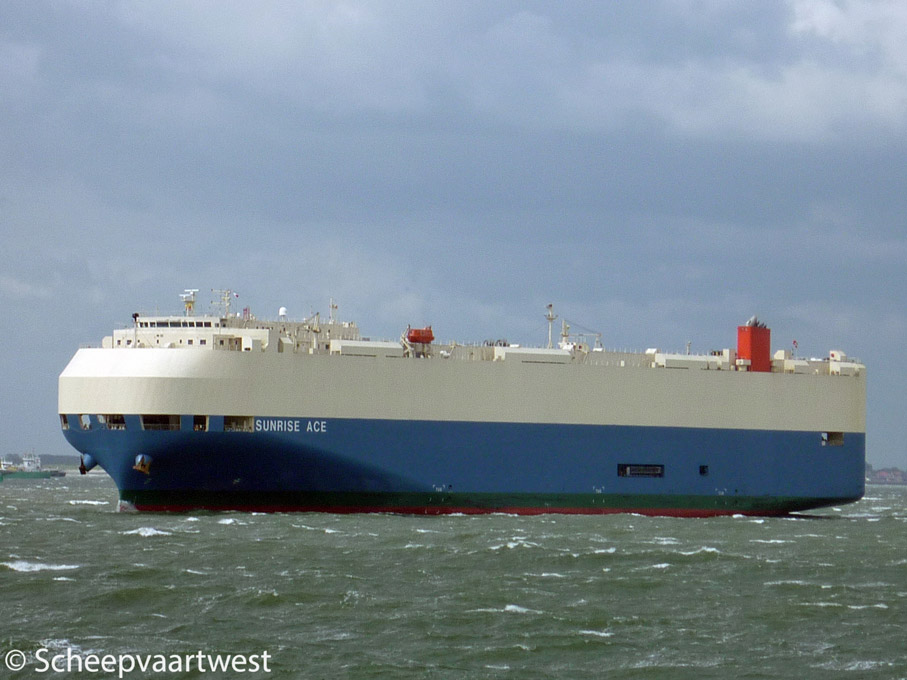

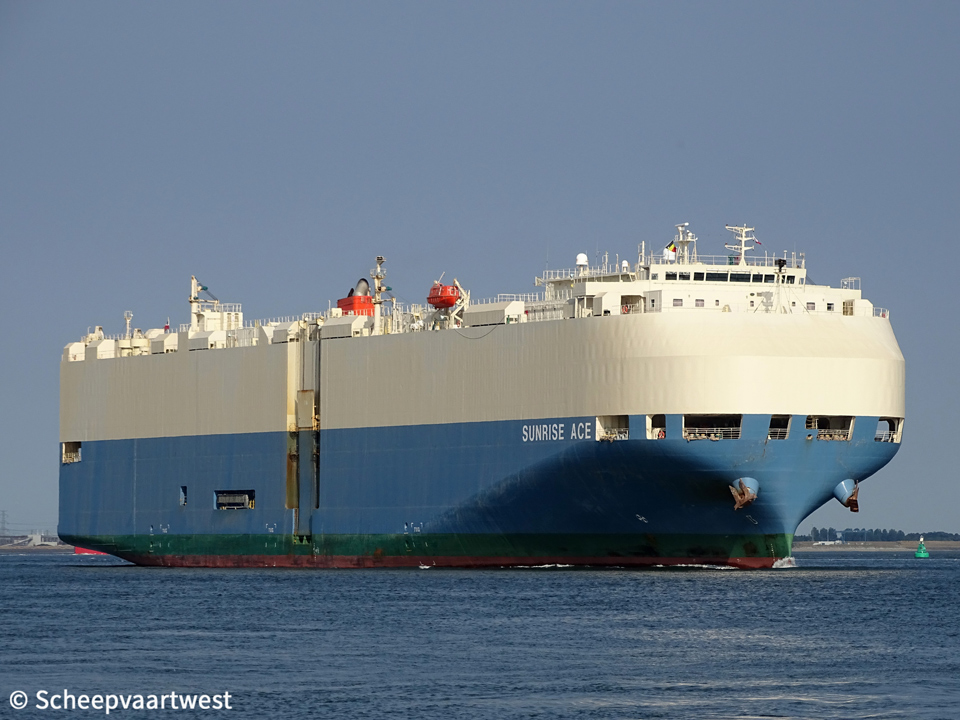

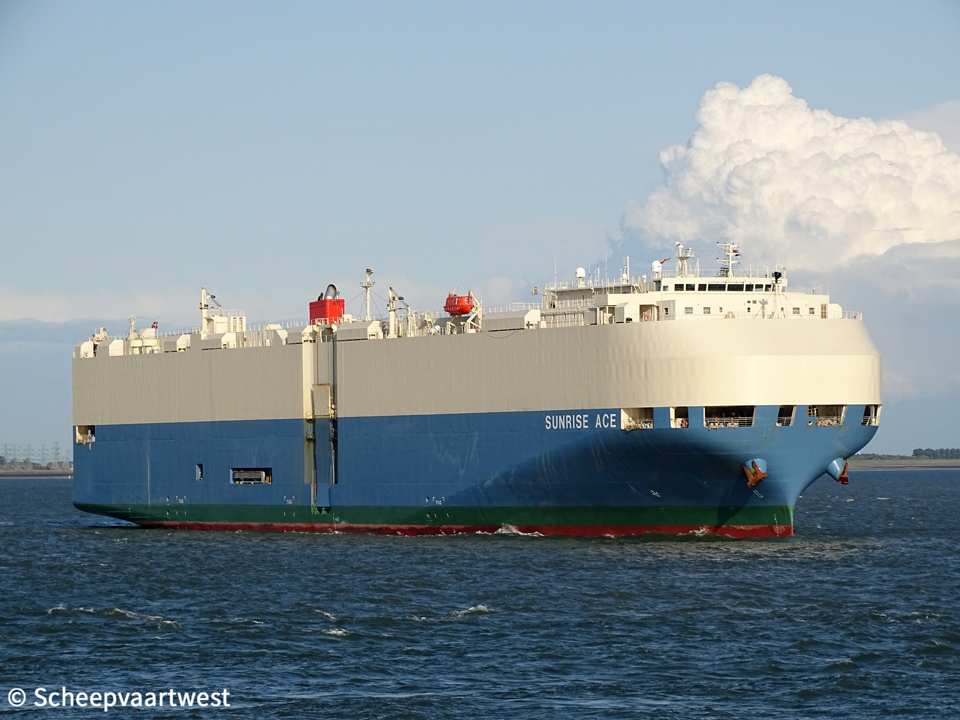

| Westerschelde 09/06/12 | Zeebrugge 10/06/12 | Westerschelde 13/08/19 |
|
Name |
SUNRISE ACE |
|
Type |
Vehicle carrier PCTC - Pure car and truck Carrier |
|
IMO-number |
9338840 |
|
Call sign |
C6XL9 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
58.685 t |
|
DWT |
18.864 t |
|
NT |
18.167 t |
|
Length |
199,95 m |
|
Breadth |
32,20 m |
|
Draught |
Summer: 9,82 m |
|
Moulded L x B x D |
190,00 x 32,20 x 14,70 m |
|
Registered L x B x D |
192,86 x 32,20 x 21,19 m |
|
Freeboard |
4.914 mm |
|
Depth |
14,70 m moulded |
|
Speed |
22,0 knots |
|
Built |
2008 |
|
Keel laid |
20/11/2007 |
|
Launch date |
08/09/2008 |
|
Date of completion |
24/12/2008 |
|
Builder |
Minaminippon Shipbuilding Co., Ltd. Usuki Japan |
|
Yard number |
702 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 15.130 kW at 100,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. |
|
Propeller |
1x Fixed pitch propeller |
|
Propeller Shaft |
1x Oil lubrication shaft with monitoring device |
|
Boilers |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 3,98 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 3.900 kVA |
|
Car capacity |
6.237 |
|
Tank capacities |
Fuel oil: 2.951 m³ Fresh water: 398 m³ Water ballast: 7.233 m³ |
|
Lifting equipment |
3x Cranes - SWL 4,0 t each |
|
Crew |
23 |
|
Crew |
24 |
|
Manager |
MOL Ship Management (Singapore) Pte. Ltd. |
|
Operator |
MOL Auto Carrier Express - MOL ACE |
|
Registered owner |
Snowscape Car Carriers S.A. Care of Mitsui OSK Lines (MOL) 1-1 Toranomon 2-chome Minato-ku Tokyo Japan |
|
Latest data adjustment |
14 October 2020 |
